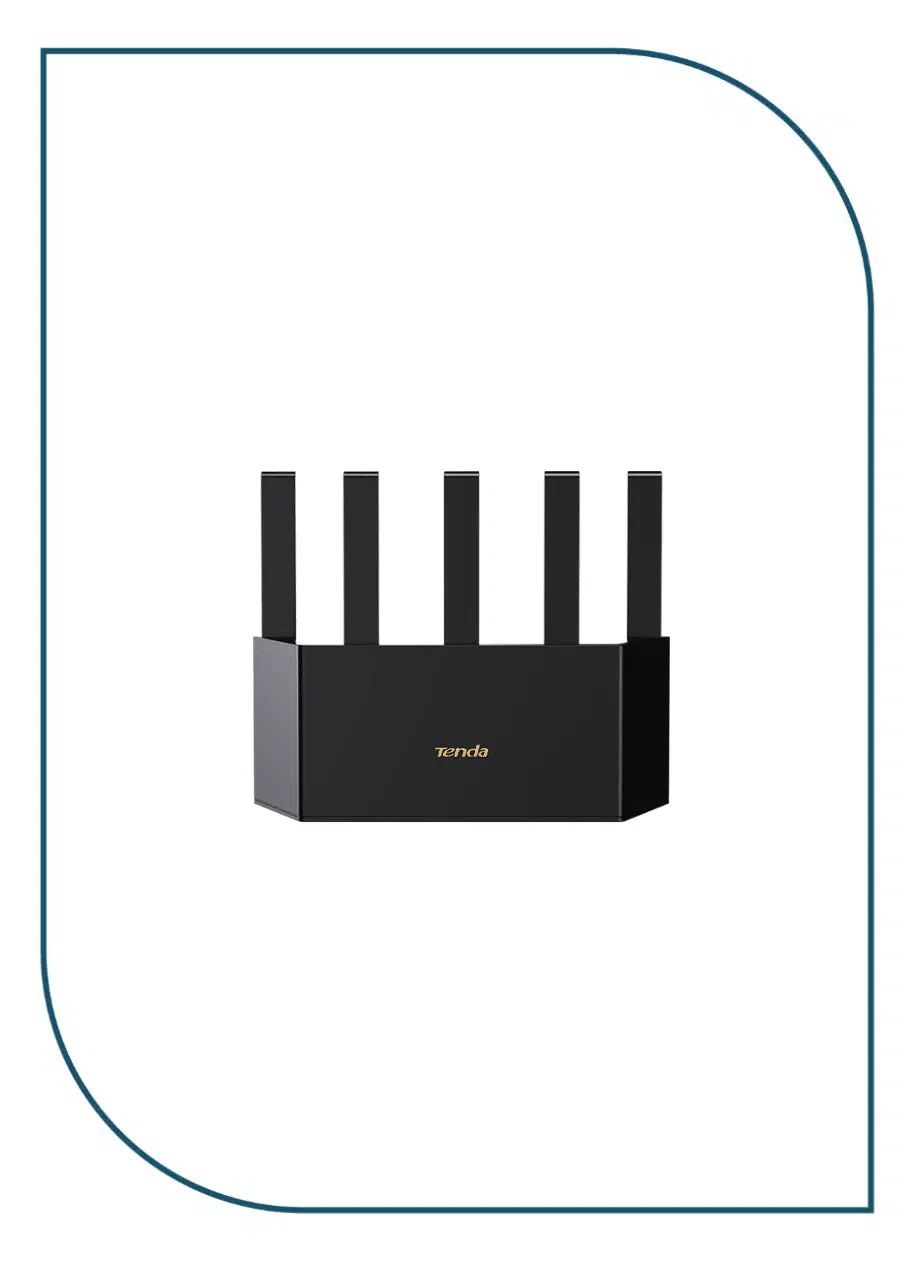

Tenda TX2L Pro
Dual Band Gigabit Wi-Fi 6 Router
- MU-MIMO, OFDMA, Fast Roaming, App Management, VPN, WiFi+
- Max. No. of Connected Devices: 25-30
- Interface: 4*1000Mbps Ports
- Antenna: 5
- Wi-Fi6，2.4G: 300Mbps，5G:1201Mbps
TX2L Pro is an entry-level dual-band Gigabit Wi-Fi 6 router designed for home users, its dual-band concurrent speed is up to 1501 Mbps(5GHz: 1201 Mbps 2.4 GHz: 300 Mbps). TX2L Pro is equipped with 2 high-performance modules and 5 external high-gain antennas，it can effectively enhance signal transmission and reception sensitivity, and extend Wi-Fi 6 to every corner of your home.supporting Tenda Wi-Fi+ technology, it can be networked with Tenda products that support Wi-Fi+ with one click, you can enjoy a broder and smoother network. More devices can be connected to the internet at the same time with lower lag, and the transmission efficiency is significantly improved by OFDMA+MU-MIMO technology. With 4 Gigabit Ethernet ports，wired devices can be connected with faster speed, which make sure all kinds of wired devices work smoothly，just enjoy the ultra-speed network.
| Category | Specification |
|---|---|
| Hardware | |
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Interfaces | 1× 10/100/1000 Mbps WAN Port, 3× 10/100/1000 Mbps LAN Ports |
| Antenna | 5× External Antennas |
| Button | 1× WPS/Reset Button |
| Power | Input: AC 100–240V ~ 50/60HzOutput: DC 12V 1A |
| LED Indicator | 1× LED |
| Dimensions | 244 × 56 × 200 mm (L × W × H) |
| Wireless | |
| Wireless Standard | IEEE 802.11ax/ac/n/a (5 GHz)IEEE 802.11n/b/g (2.4 GHz) |
| Data Rate | 5 GHz: 1201 Mbps2.4 GHz: 300 Mbps |
| Frequency | CE: 2.4G (2412–2472MHz), 5G (5180–5240MHz)FCC: 2.4G (2412–2462MHz), 5G (5150–5250MHz, 5725–5850MHz) |
| Transmission Power | CE: <20 dBm (2.4G), <23 dBm (5G)FCC: <30 dBm (2.4G & 5G) |
| Basic Features | OFDMA + MU-MIMO, Beamforming |
| Wireless Security | WPA2-PSK, WPA3-SAE, WPA3/WPA2 Mixed |
| Extra Features | WPS Fast Connection, Enable/Disable Wireless Encryption |
| Software | |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP |
| Network Protocol | IPv4 & IPv6 |
| Operating Mode | Wireless Relay Mode (Client + AP) |
| Parental Control | Client Filter |
| Management | Remote Web Management |
| DHCP | Server, Client List, Static IP Reservation |
| Virtual Server | Port Forwarding, DMZ, UPnP |
| Firewall | ICMP/TCP/UDP Flood Defense, Ignore WAN Ping |
| DDNS | DynDNS, No-IP |
| VPN | IPSec, PPTP, L2TP (Server & Client Support) |
| Special Features | Wi-Fi+ (Mesh), IPTV, Smart LED |
| Other Functions | Bandwidth Control, Guest Network, System Log, MAC Clone, Power Saving |
| App Support | Tenda App (Parental Control) |
| System | Backup & Restore, Auto Access Detection, Online Upgrade |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10% ~ 90% (Non-condensing) |
| Storage Humidity | 5% ~ 90% (Non-condensing) |
| Certification | CE, FCC, RoHS |
| Package Contents | Router, Ethernet Cable, Power Adapter, Installation Guide |
