Description

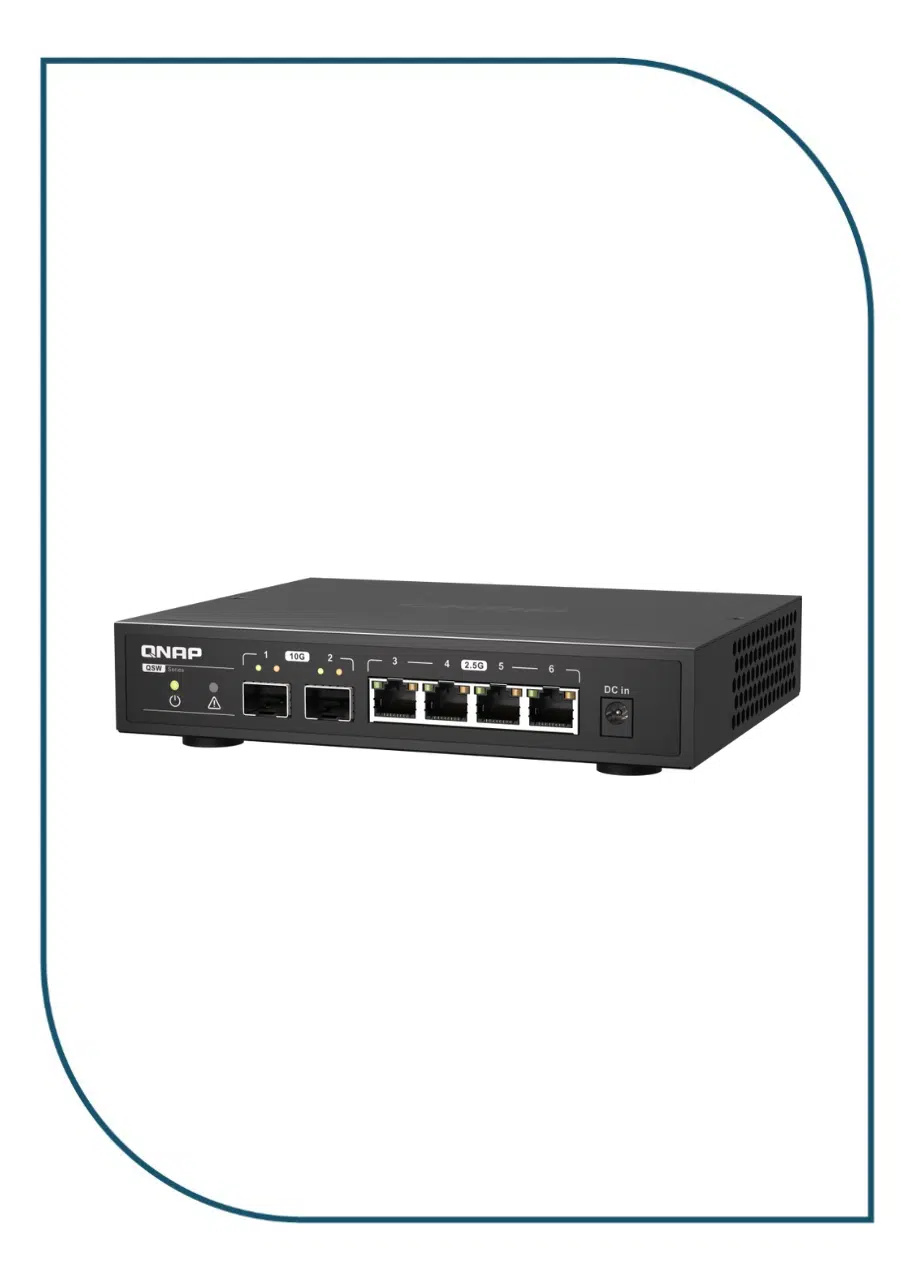

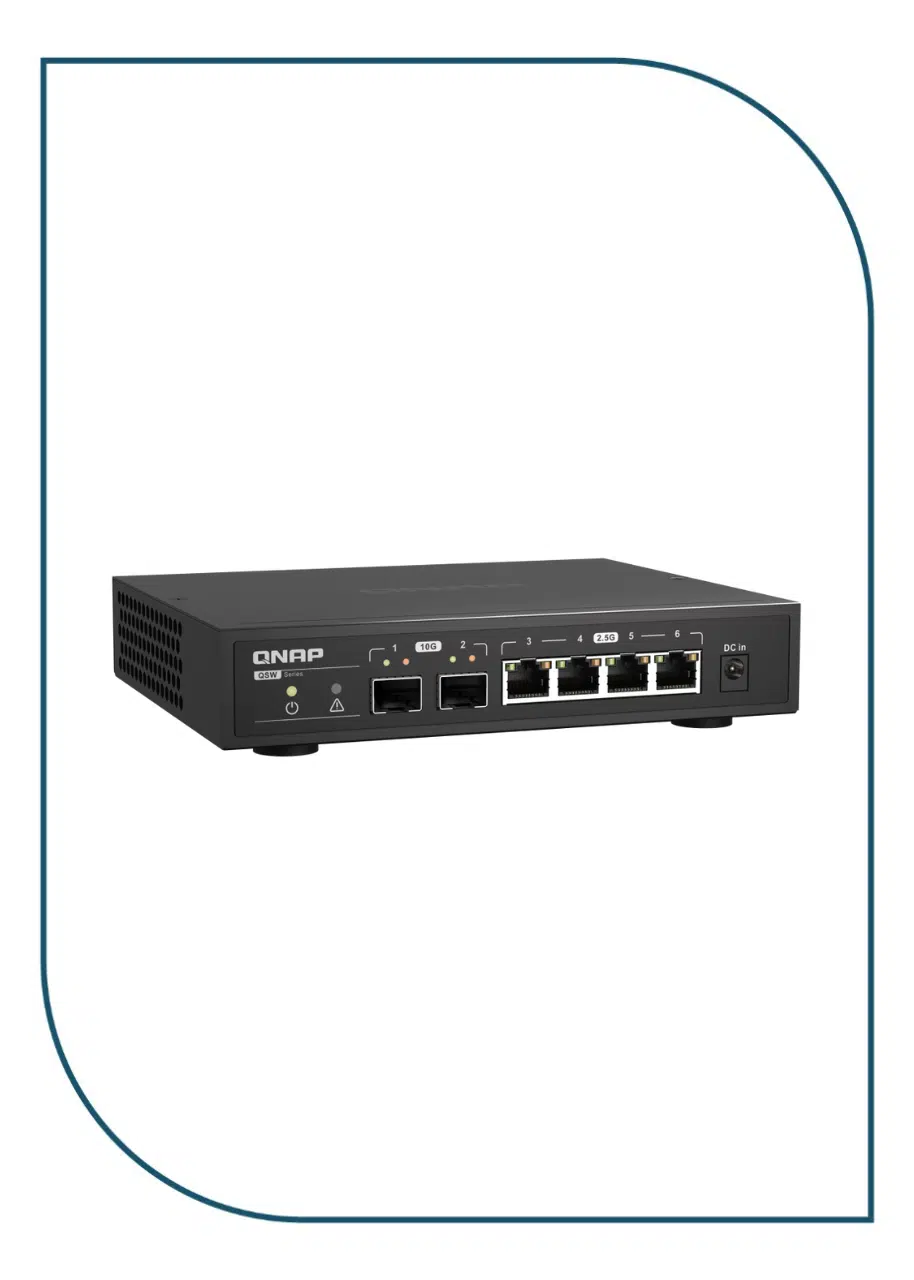

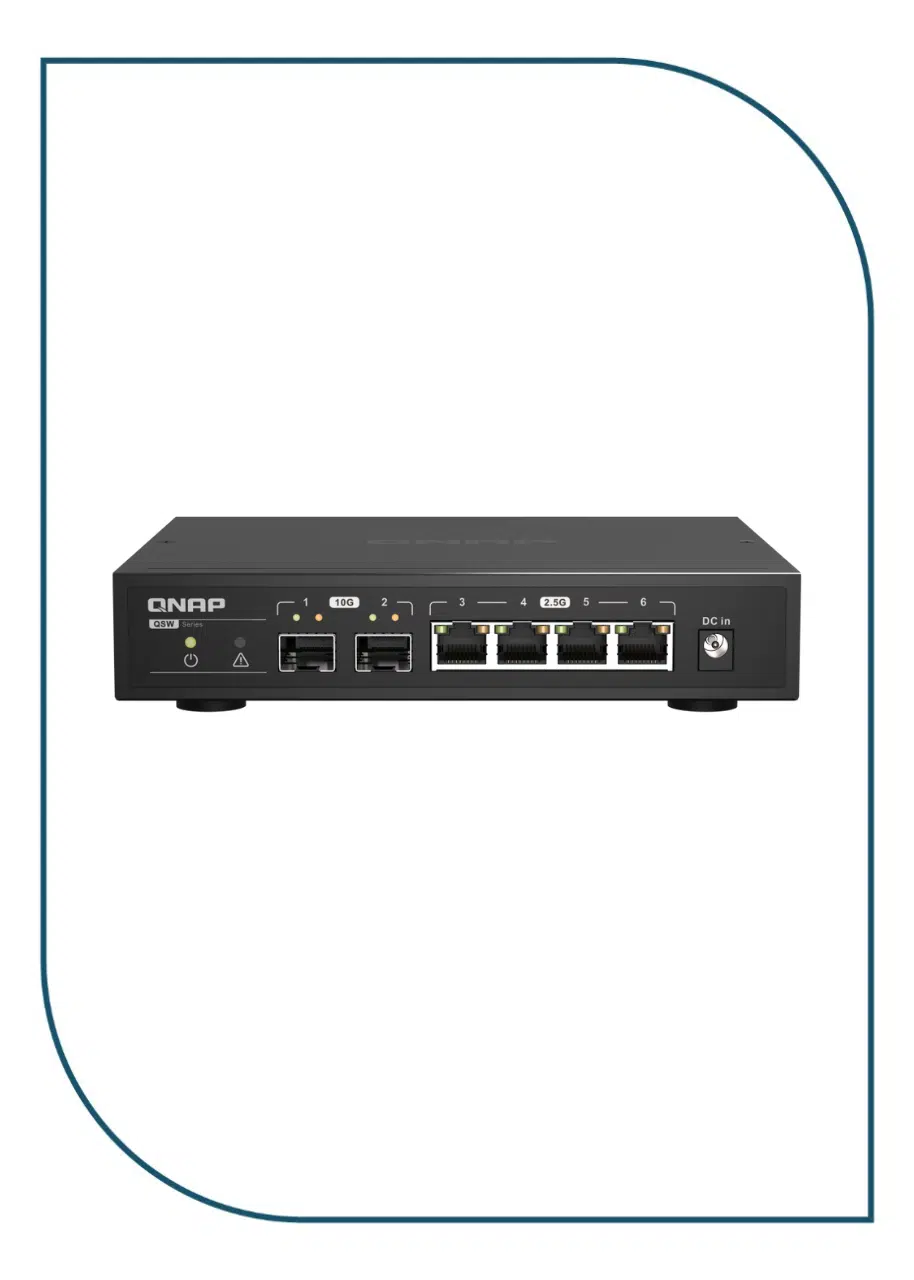

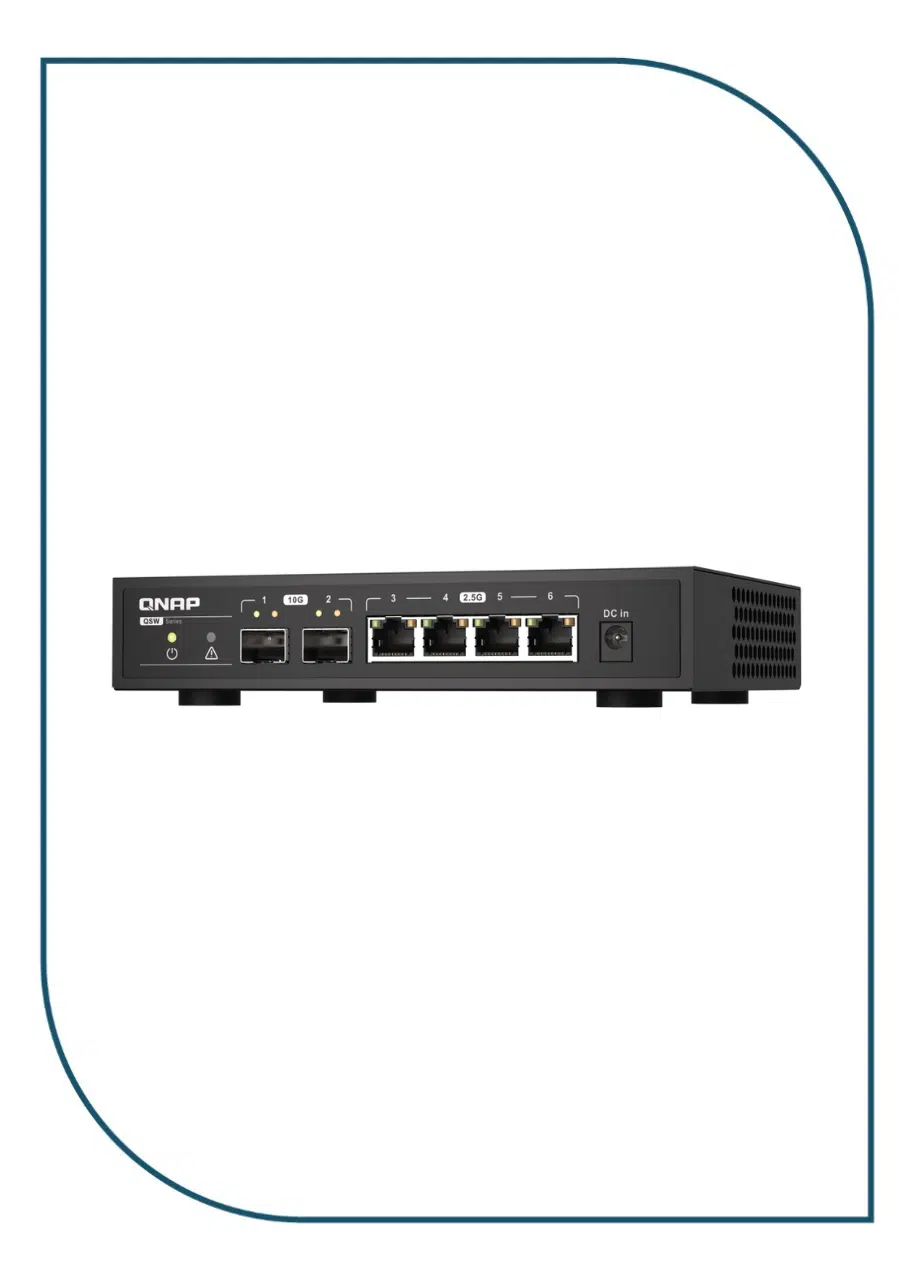

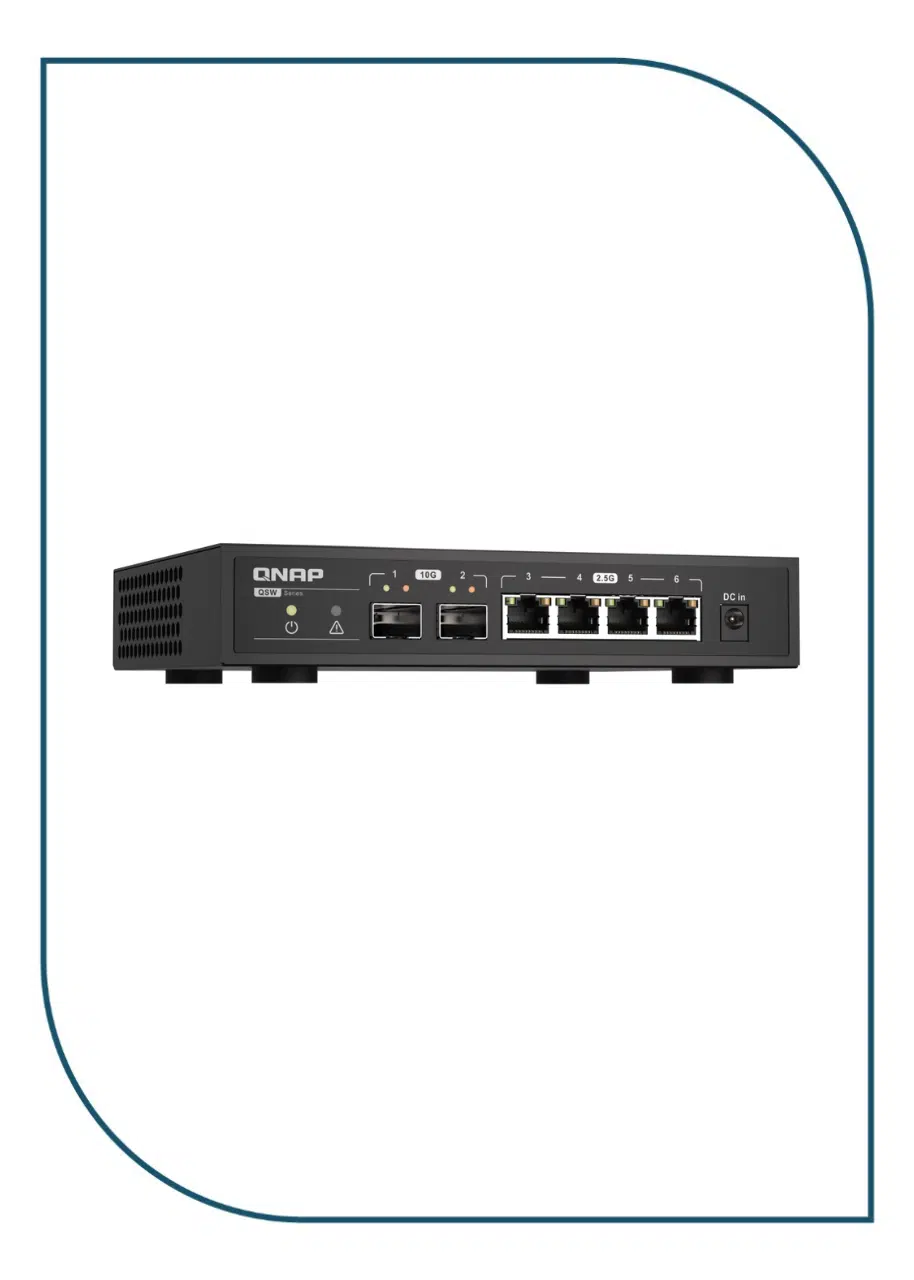

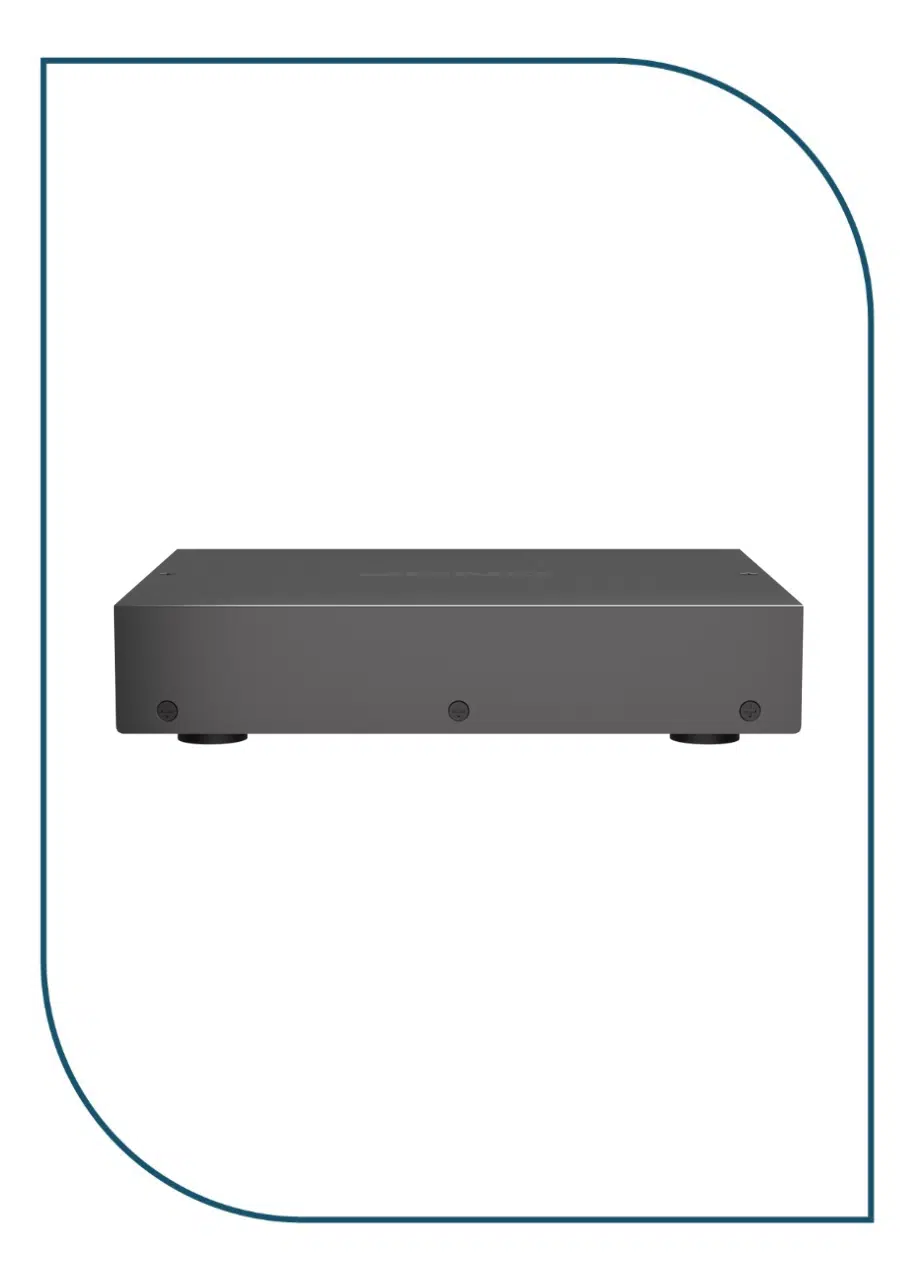

QSW-2104-2S
Key Features :
-
4 × 2.5GbE RJ45 ports
-
2 × 10GbE SFP+ ports
-
Unmanaged plug-and-play switch
-
Ideal for high-speed NAS and workstation connections
-
Silent fanless design
-
Compact metal enclosure
Hardware specs :
| Management Type | Unmanaged |
| Number of Ports | 6 |
| 10GbE SFP+ | 2 |
| 2.5GbE (RJ45) | 4 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 30Gbps |
| Switching Capacity | 60Gbps |
| Fanless | |
| Supported Standards | IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBase-T SFP Transceiver 1000BASE-SX SFP Transceiver 1000BASE-LX SFP Transceiver 1000BASE-T Copper RJ45 GBIC |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
