Description

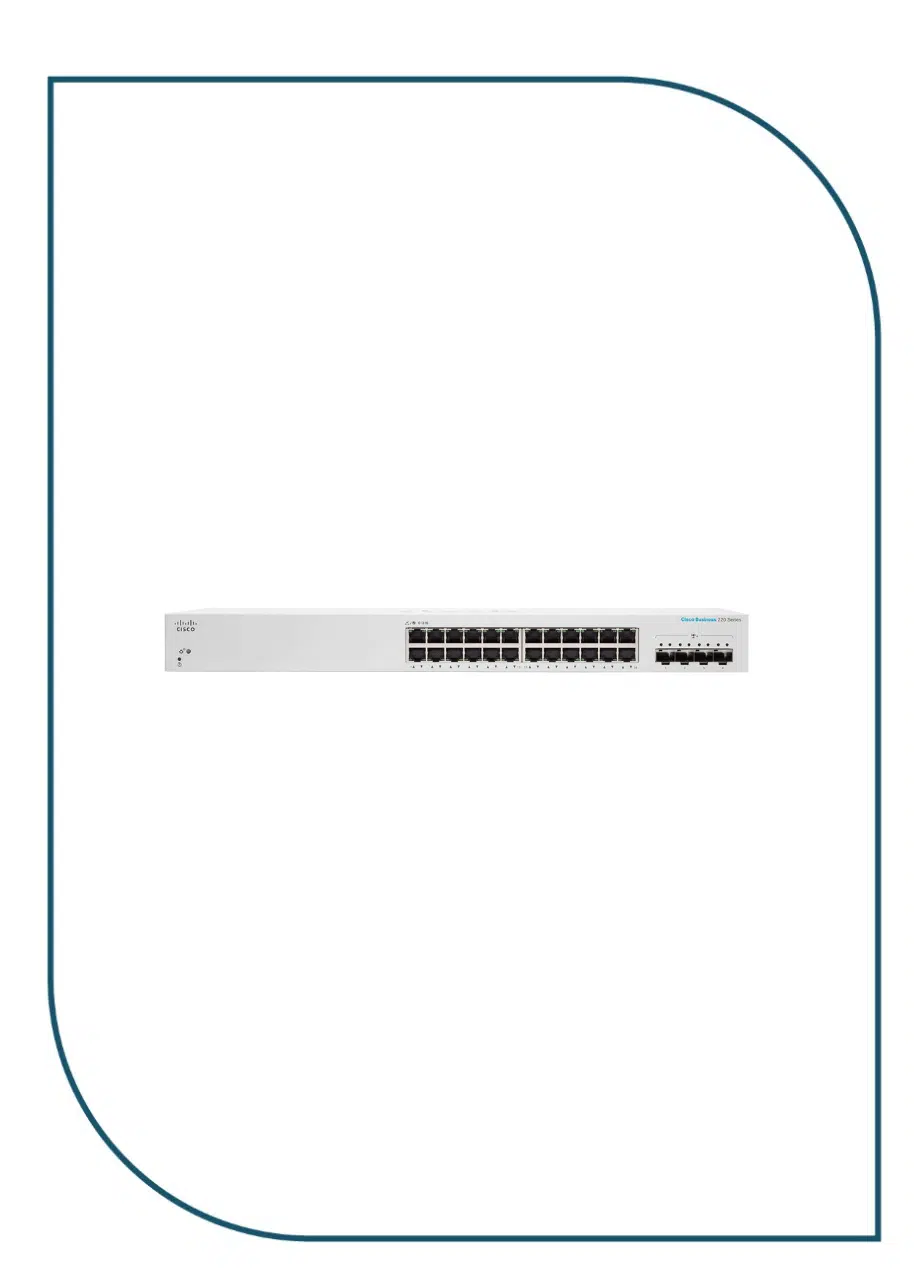

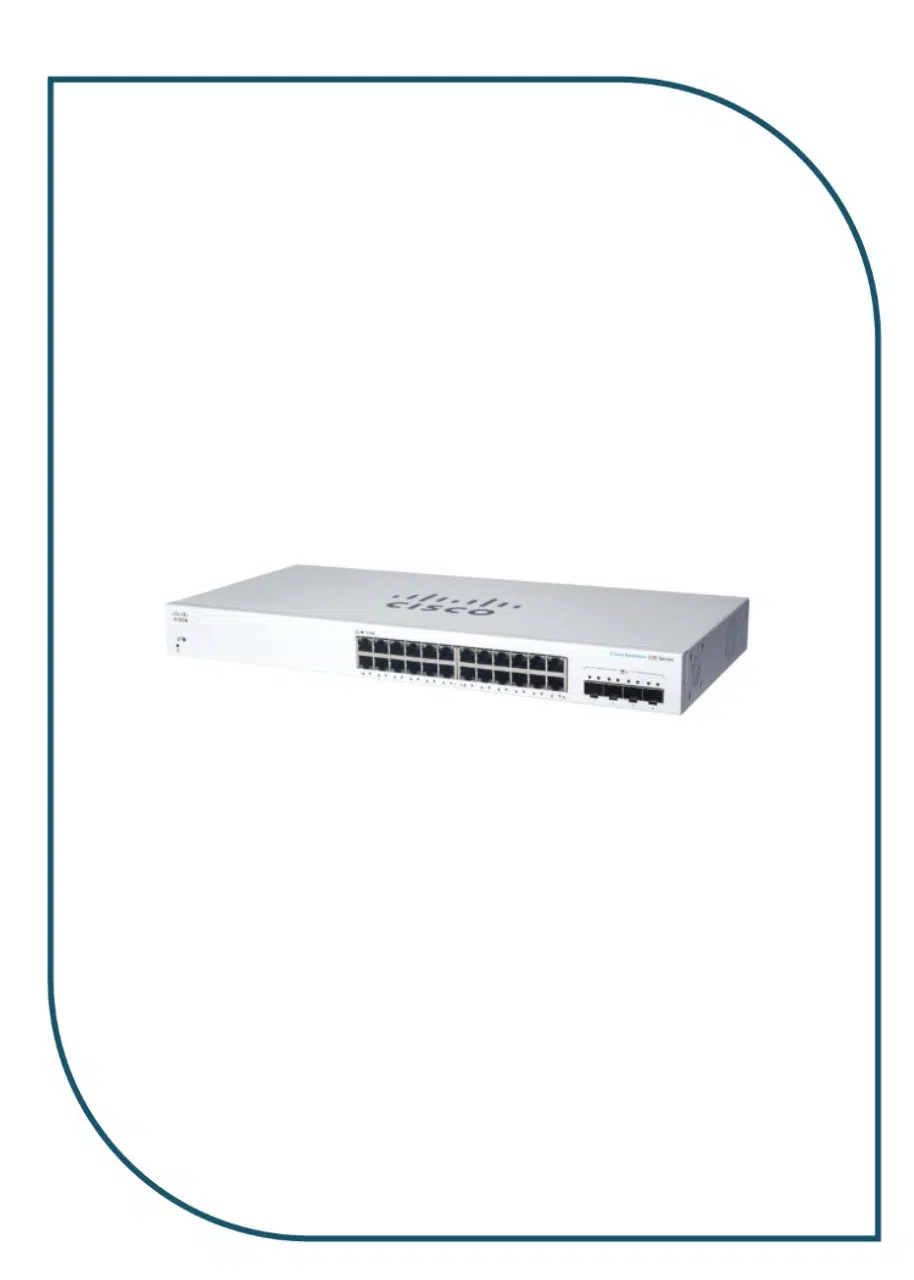

The Cisco CBS220-24FP-4X-EU delivers reliable business-class networking with advanced smart management capabilities and high-speed connectivity. Designed for small and medium-sized businesses, this switch includes 24 Gigabit Ethernet Full PoE+ ports and 4 ultra-fast 10G SFP+ uplink interfaces for scalable network expansion and high-bandwidth applications.
With Full PoE+ support, the switch can power IP cameras, VoIP phones, wireless access points, and IoT devices directly through Ethernet cables, reducing installation complexity and infrastructure costs. The large PoE power budget makes it ideal for dense PoE deployments in offices, schools, hotels, surveillance systems, and enterprise environments.
The Cisco Business 220 Series provides essential smart management features including VLAN support, QoS traffic prioritization, advanced security policies, IPv6 compatibility, link aggregation, and intuitive web-based administration. Its rackmount design and enterprise-grade reliability ensure stable and secure network operations for modern IT infrastructures.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-24FP-4X-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 24 × Gigabit Ethernet Full PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Power Budget | 382W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| IPv6 Support | Yes |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, CCTV, VoIP, Wireless APs |
| Brand | Cisco |
Key Features
- 24 Gigabit Full PoE+ ports
- 4 high-speed 10G SFP+ uplinks
- Large 382W PoE power budget
- Smart managed Layer 2 switch
- VLAN and QoS support
- Advanced business security features
- IPv6-ready network infrastructure
- Ideal for IP cameras and VoIP systems
- Rackmount enterprise design
- Reliable Cisco business networking
