Description

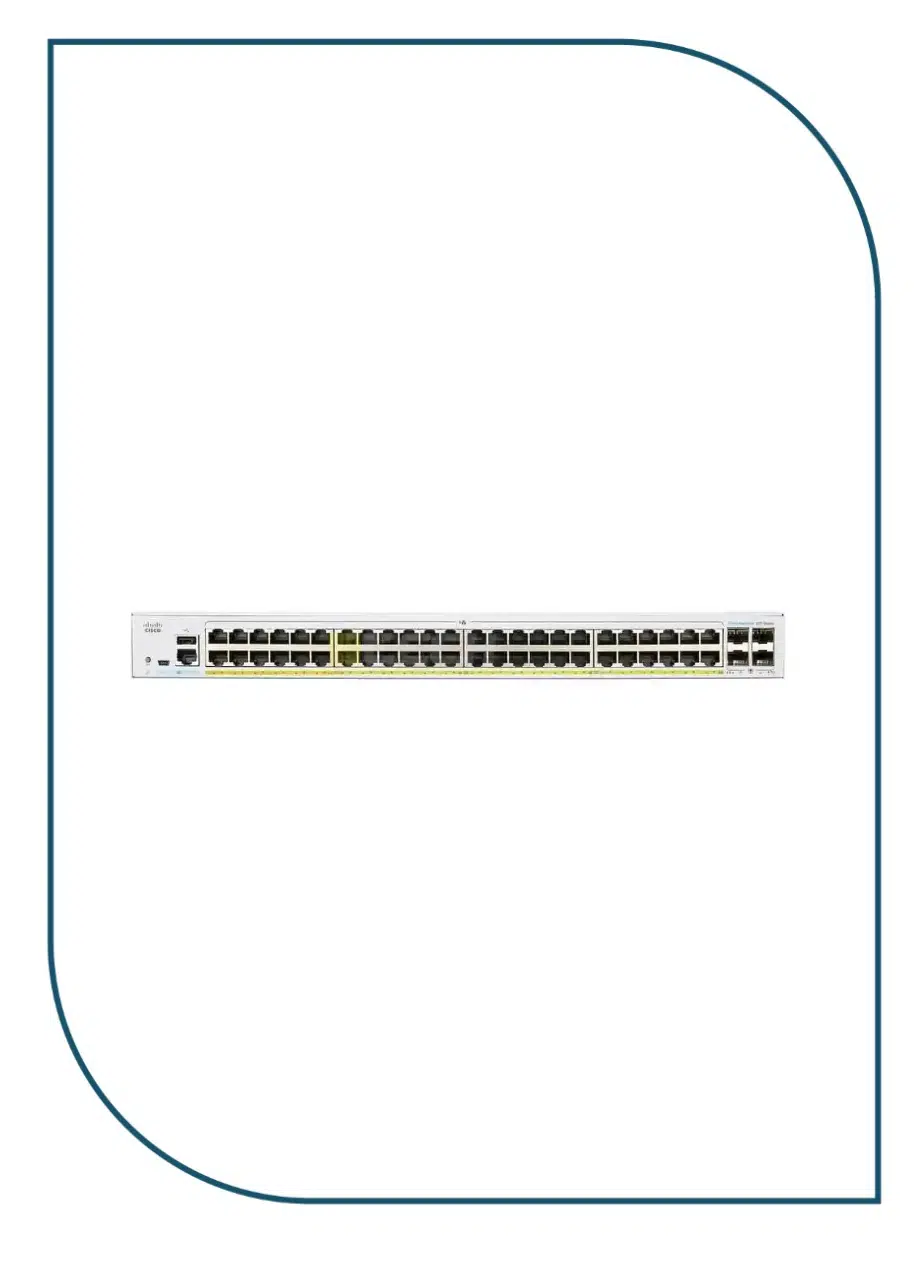

The Cisco CBS250-48P-4X-EU delivers enterprise-class networking performance with intelligent management and advanced connectivity for growing businesses. Equipped with 48 Gigabit Ethernet PoE+ ports and 4 high-speed 10G SFP+ uplinks, this switch provides scalable and secure connectivity for modern network infrastructures.
Built as part of the Cisco Business 250 Series, the switch supports advanced Layer 2 switching and Layer 3 Lite static routing capabilities. It includes VLAN segmentation, QoS traffic prioritization, IPv4/IPv6 support, link aggregation, ACL security, and easy-to-use web management tools.
The integrated PoE+ functionality allows the switch to power IP cameras, VoIP phones, wireless access points, and other network devices directly through Ethernet cables, simplifying deployment and reducing infrastructure costs. With a high PoE power budget and reliable rackmount design, the CBS250-48P-4X-EU is ideal for offices, schools, hospitality environments, surveillance systems, and enterprise networks.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS250-48P-4X-EU |
| Product Series | Cisco Business 250 Series |
| Switch Type | Smart Managed Switch |
| Ports | 48 × Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Power Budget | 370W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.94 Mpps |
| Layer Support | Layer 2 / Layer 3 Lite |
| Routing Features | Static Routing |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, CLI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, CCTV, VoIP, Wireless APs |
| Brand | Cisco |
Key Features
- 48 Gigabit PoE+ Ethernet ports
- 4 high-speed 10G SFP+ uplinks
- Smart managed Layer 2 & Layer 3 Lite switch
- Large 370W PoE power budget
- VLAN and QoS support
- IPv4 & IPv6 static routing
- Advanced business security features
- Ideal for CCTV and VoIP systems
- Rackmount enterprise design
- Reliable Cisco business networking
