Description

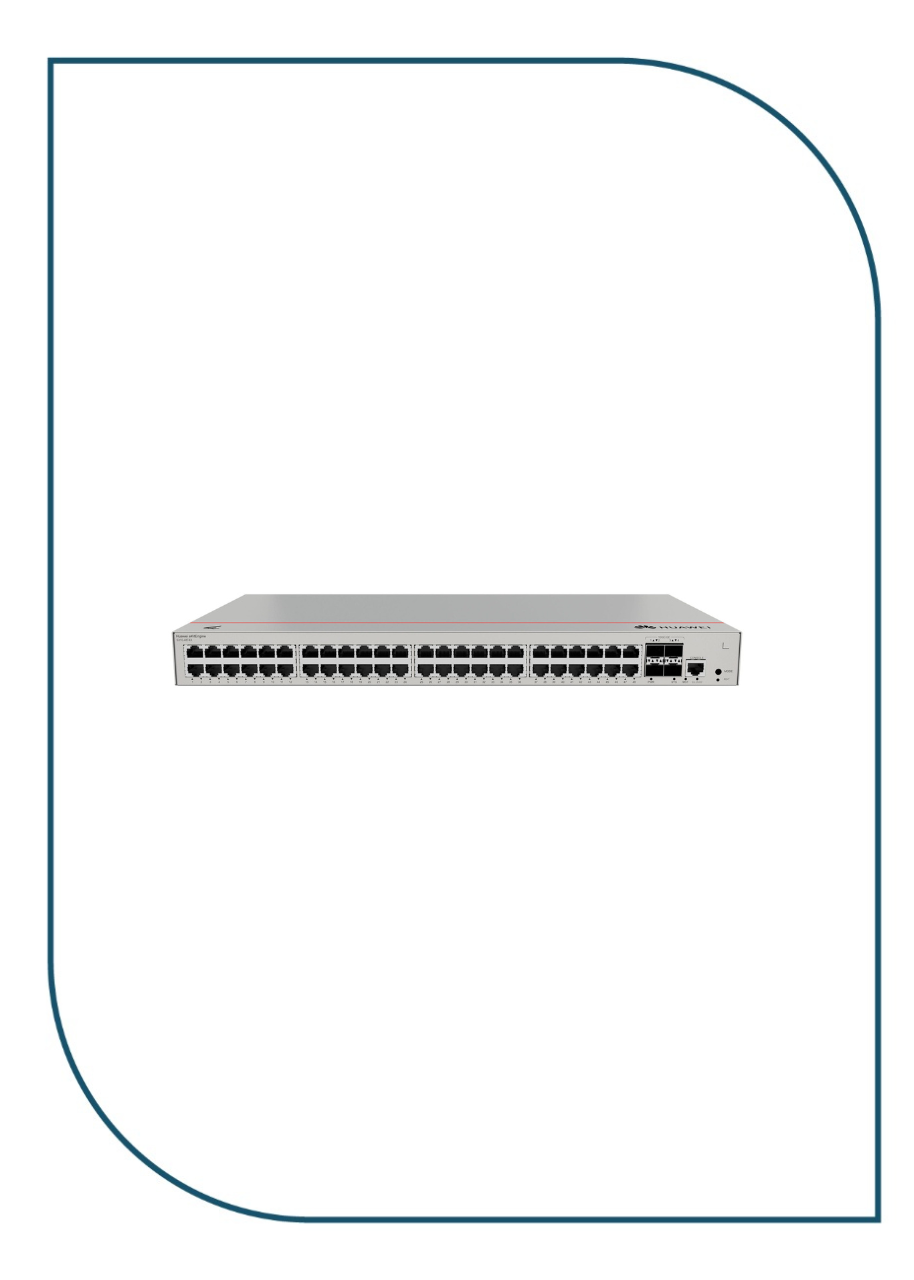

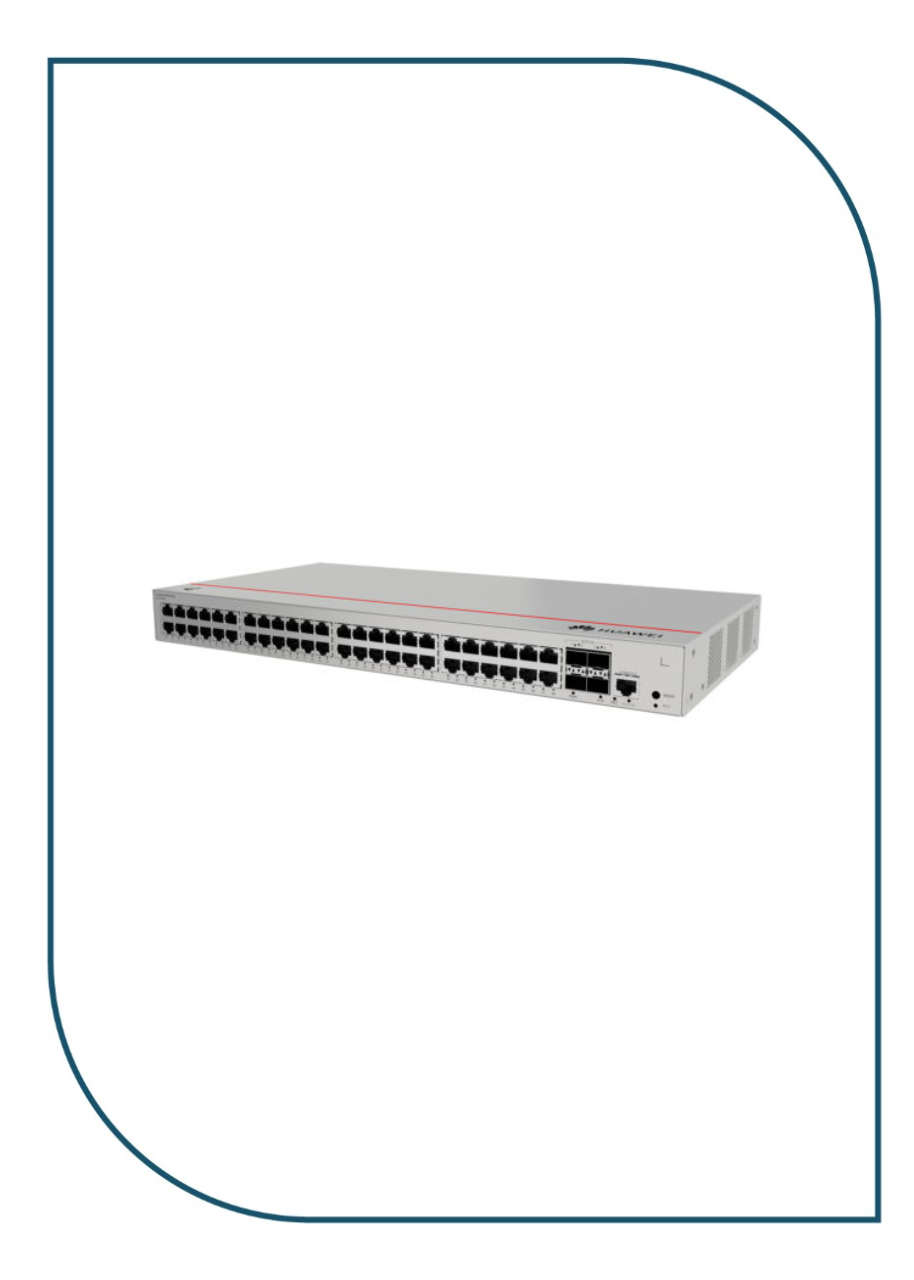

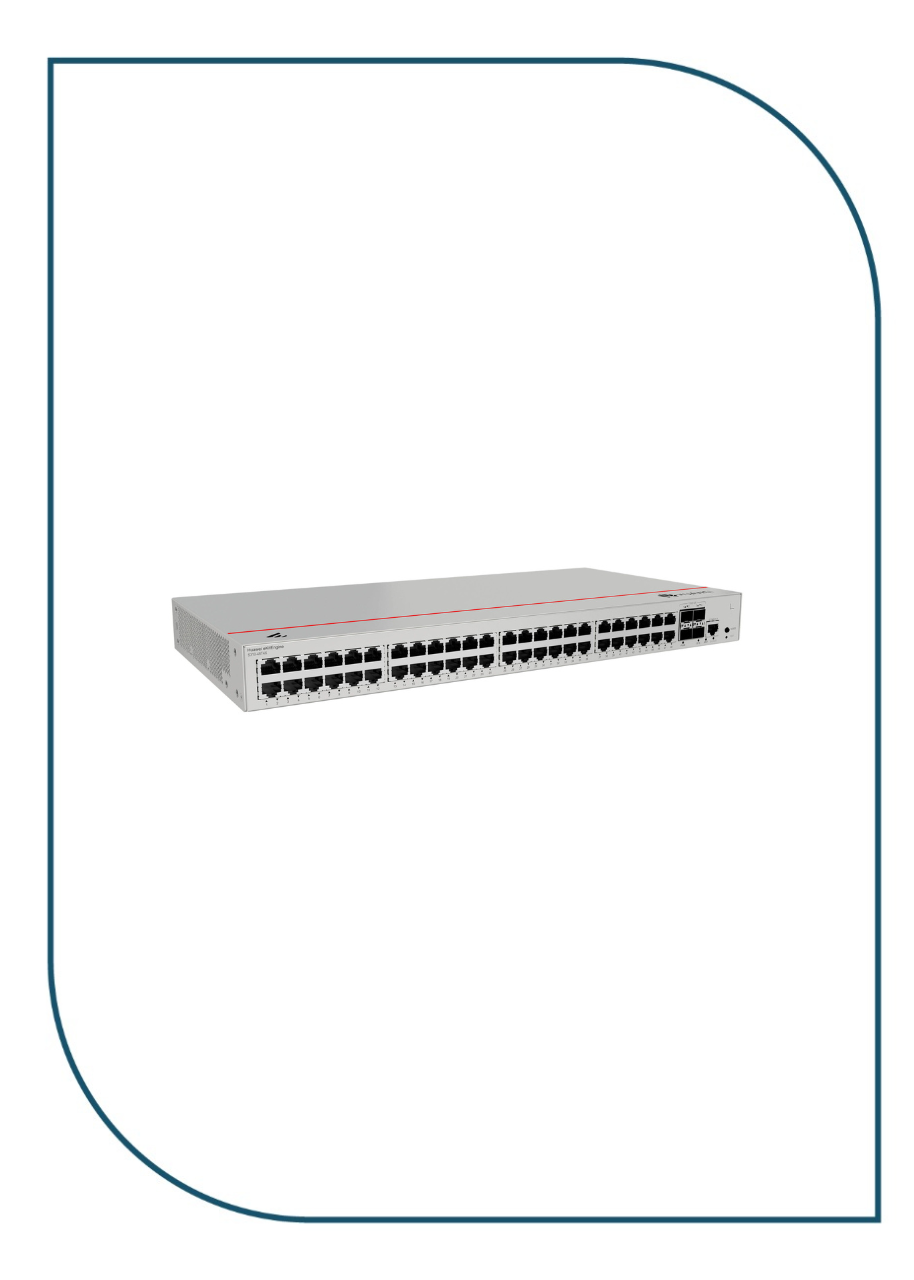

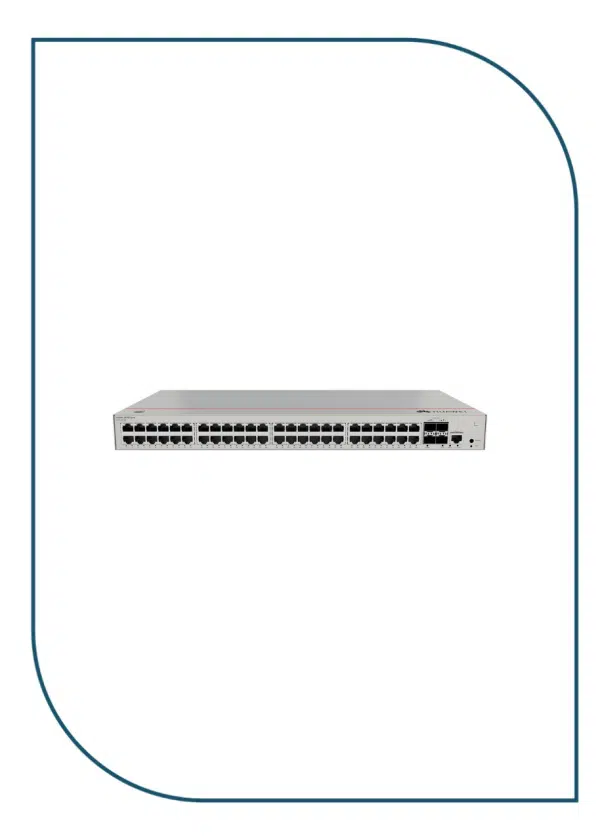

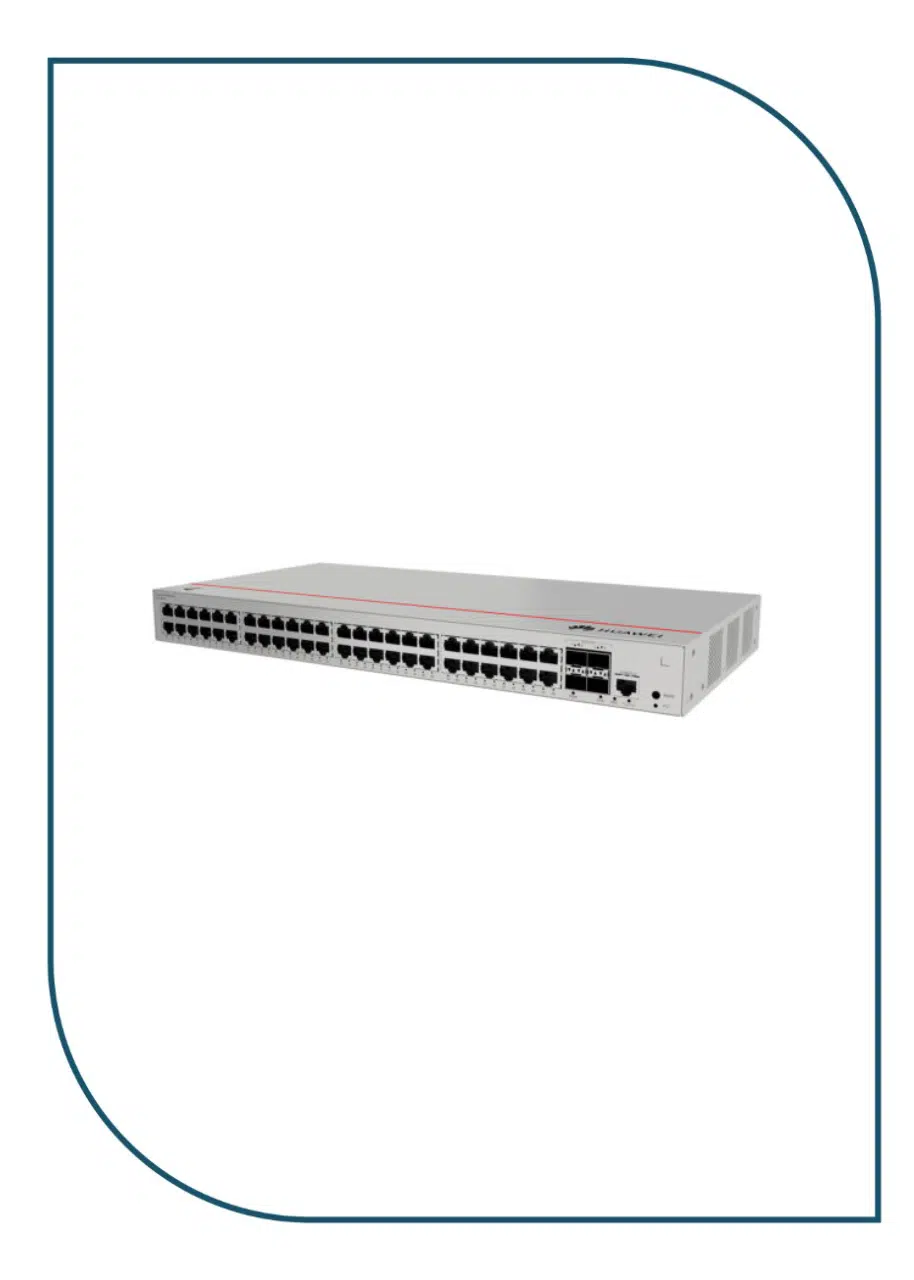

The Huawei eKitEngine S310-48T4X is a Layer 3 Smart Managed Gigabit Switch designed for enterprise networks, small and medium-sized businesses, educational institutions, hospitality, healthcare, retail, and campus environments. It features 48 Gigabit Ethernet RJ45 ports and 4 × 10GE SFP+ uplink ports, delivering high-speed wired connectivity and 10 Gigabit fiber uplinks for bandwidth-intensive applications.
Built on Huawei’s enterprise switching platform, the S310-48T4X supports comprehensive Layer 2 and Layer 3 networking capabilities, including IPv4 Static Routing, IPv6, VLAN, QoS, ACL, Link Aggregation (LACP), STP/RSTP/MSTP, ERPS, IGMP Snooping, DHCP Snooping, and Huawei iStack virtualization. These features provide high availability, enhanced security, and simplified network management.
The switch also supports Huawei eKit Cloud Management, allowing administrators to remotely deploy, configure, monitor, and maintain the network using the Huawei eKit App or Web management platform. Featuring a built-in AC power supply, intelligent fan cooling, and a durable 1U metal chassis, the S310-48T4X is an ideal solution for modern enterprise access and aggregation networks.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S310-48T4X |
| Switch Type | Layer 3 Smart Managed Switch |
| Downlink Ports | 48 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Support | No |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 131 Mpps |
| MAC Address Table | 16K Entries |
| Layer 3 Features | Static Routing (IPv4), IPv6 |
| VLAN Support | Up to 4,094 VLANs |
| QoS | Supported |
| ACL | Supported |
| Link Aggregation | LACP |
| Spanning Tree | STP, RSTP, MSTP |
| Ring Protection | ERPS |
| Multicast | IGMP Snooping |
| DHCP Features | DHCP Snooping |
| Stacking | Huawei iStack (Up to 4 Switches) |
| Management | Web GUI, CLI, SNMP, Huawei eKit App, Cloud Management |
| Power Supply | Built-in AC (90–264V AC, 45–65 Hz) |
| Cooling | Intelligent Fan Cooling (1 Built-in Fan) |
| Installation | Rack Mount, Desktop, Wall Mount |
| Chassis Material | Metal |
| Dimensions (H × W × D) | 43.6 × 442 × 220 mm |
| Weight | 2.71 kg |
| Operating Temperature | -5°C to +50°C |
