Description

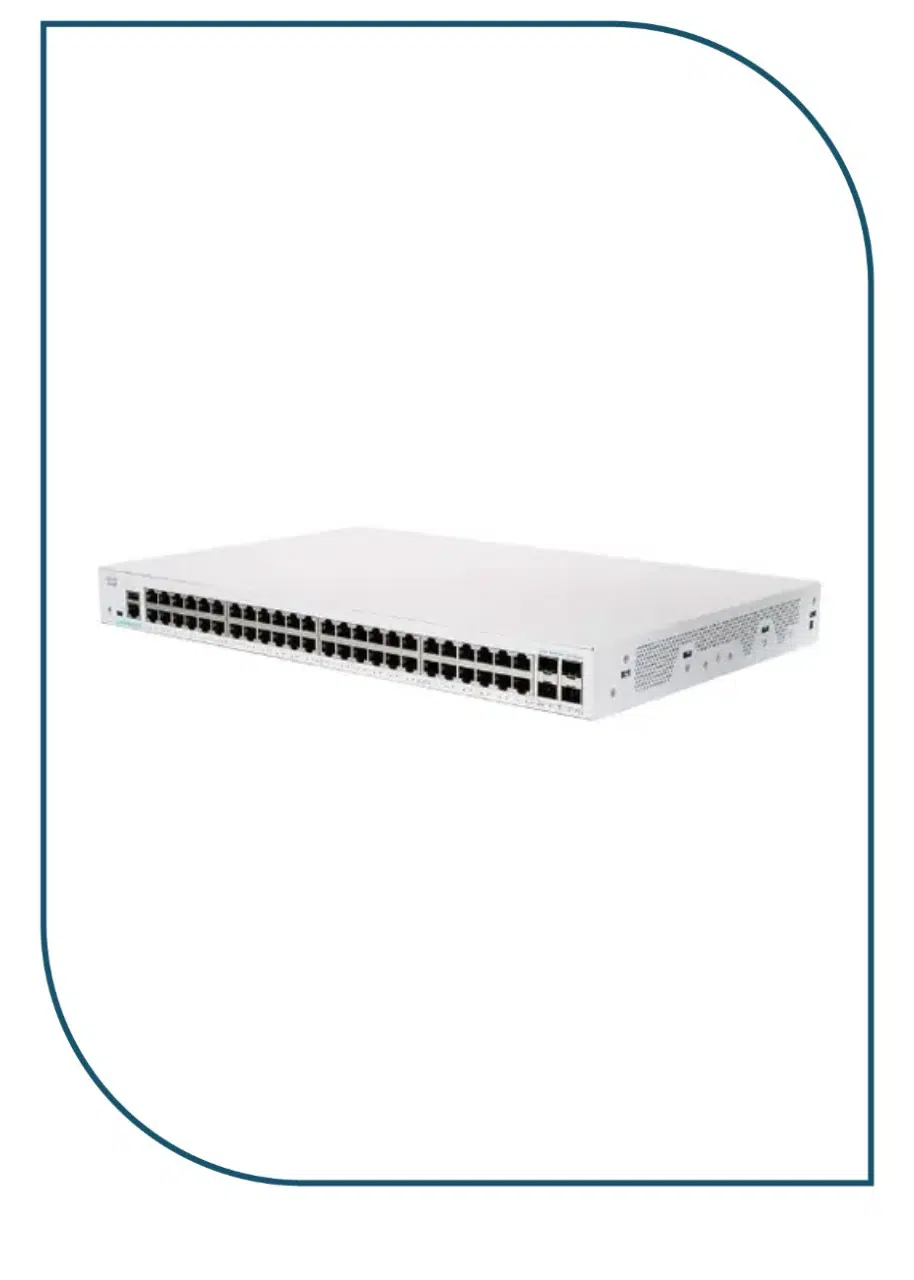

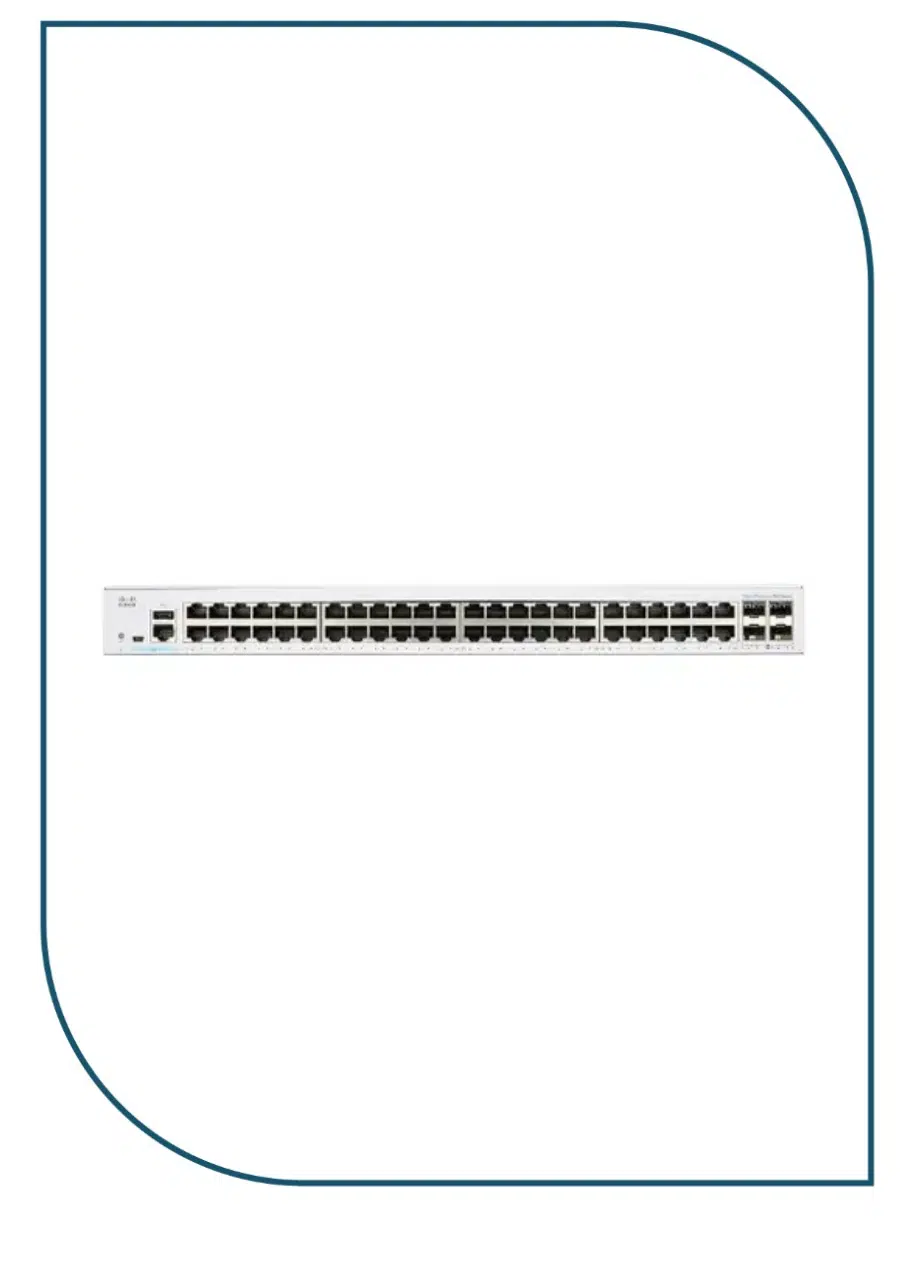

The Cisco CBS350-48T-4G-EU is a professional-grade managed Layer 3 switch designed for growing businesses that require advanced network control, security, and reliability. It features 48 Gigabit Ethernet ports for connecting computers, IP phones, printers, access points, and other network devices, along with 4 dedicated Gigabit SFP uplink ports for high-speed fiber connectivity to core switches, servers, or network backbones.
As part of the Cisco Business 350 Series, the switch provides enterprise-class features including Layer 3 static routing, VLAN segmentation, Quality of Service (QoS), Access Control Lists (ACLs), IPv6 support, and comprehensive security capabilities. These features help organizations optimize network performance while maintaining secure and reliable communication across departments and applications.
The CBS350-48T-4G-EU supports centralized management through the Cisco Business Dashboard, allowing administrators to configure, monitor, and troubleshoot network devices from a single interface. Advanced management options such as SNMP, CLI, and web-based administration provide flexibility for both small businesses and IT professionals.
With a 104 Gbps switching capacity and 77.38 Mpps forwarding performance, the switch delivers reliable high-speed connectivity for demanding business environments including offices, schools, hotels, healthcare facilities, and retail networks. Its rack-mountable 1U design makes it ideal for deployment in network cabinets and server rooms.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS350-48T-4G-EU |
| Series | Cisco Business 350 Series |
| Switch Type | Managed Layer 3 Switch |
| Total Ports | 48 × 10/100/1000 Gigabit Ethernet |
| Uplink Ports | 4 × 1G SFP Uplink Ports |
| PoE Support | No |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Packet Buffer | 3 MB |
| MAC Address Table | 16K Entries |
| Jumbo Frames | Up to 9 KB |
| VLAN Support | Yes |
| Layer 3 Features | Static Routing, Inter-VLAN Routing |
| QoS | Advanced QoS Support |
| Security Features | ACLs, 802.1X Authentication, Port Security, DoS Protection |
| IPv6 Support | Yes |
| Management | Web GUI, CLI, SNMP, Cisco Business Dashboard |
| Stacking | Supported |
| Mounting | Rack Mountable (1U) |
| Dimensions | 445 × 350 × 44 mm |
| Power Supply | Internal AC Power Supply |
| Power Consumption | Approx. 48W |
| Operating Temperature | -5°C to 50°C |
