Description

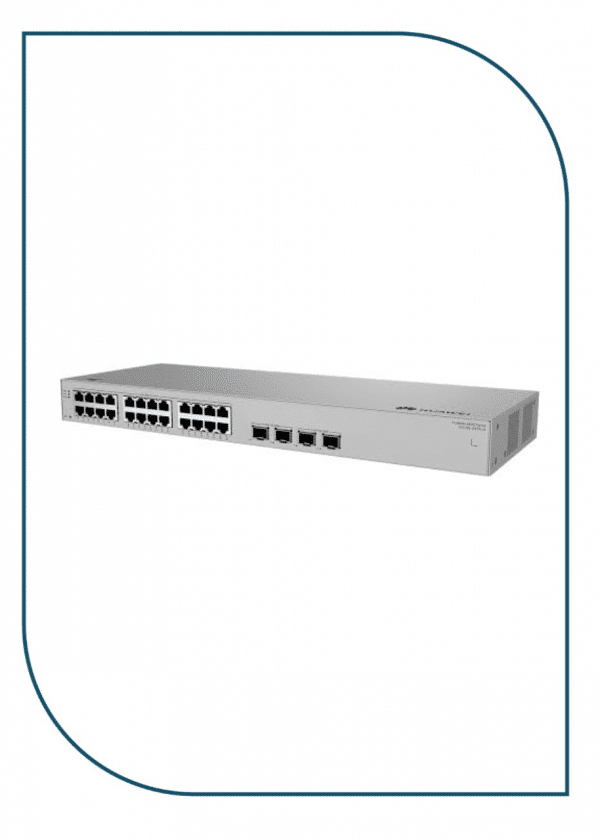

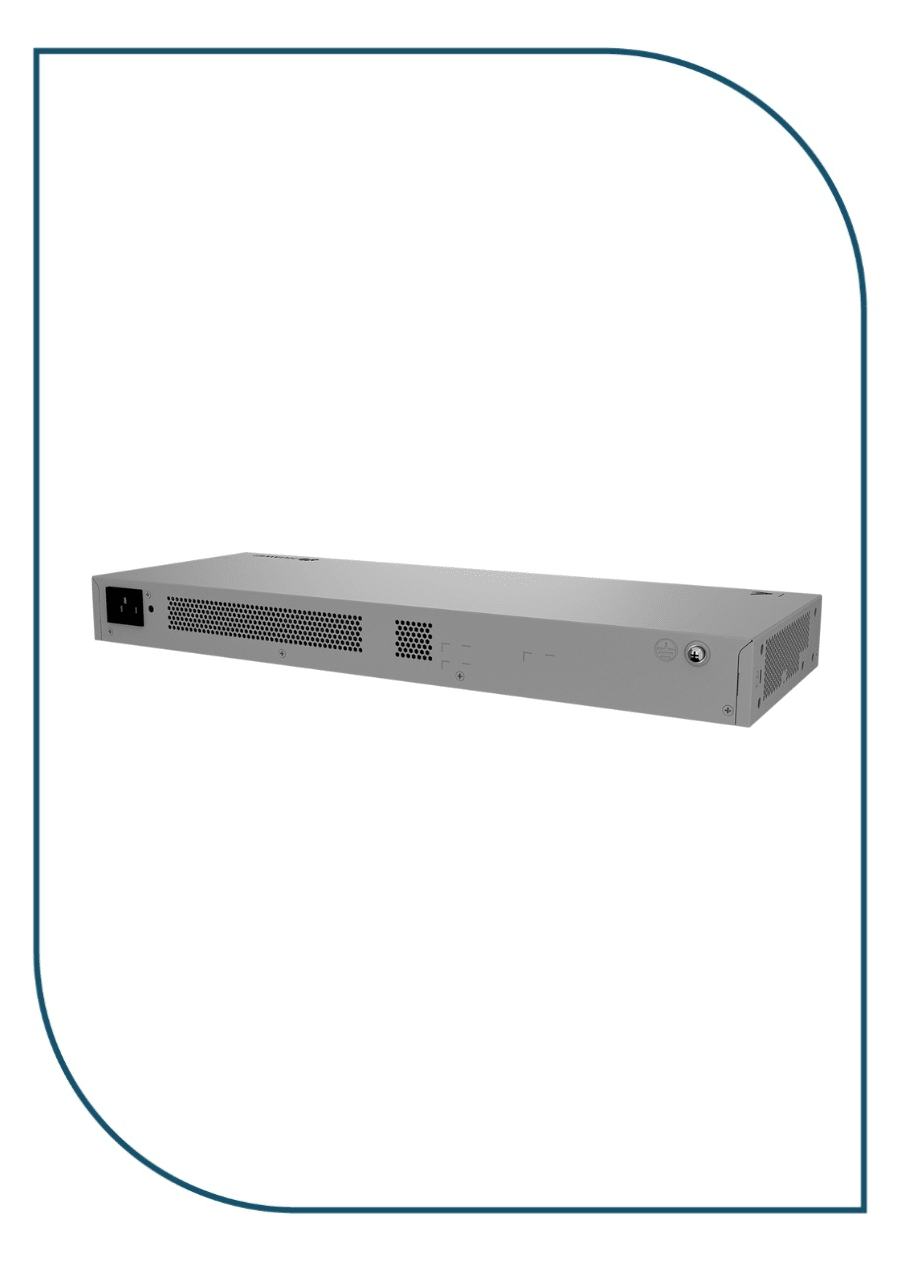

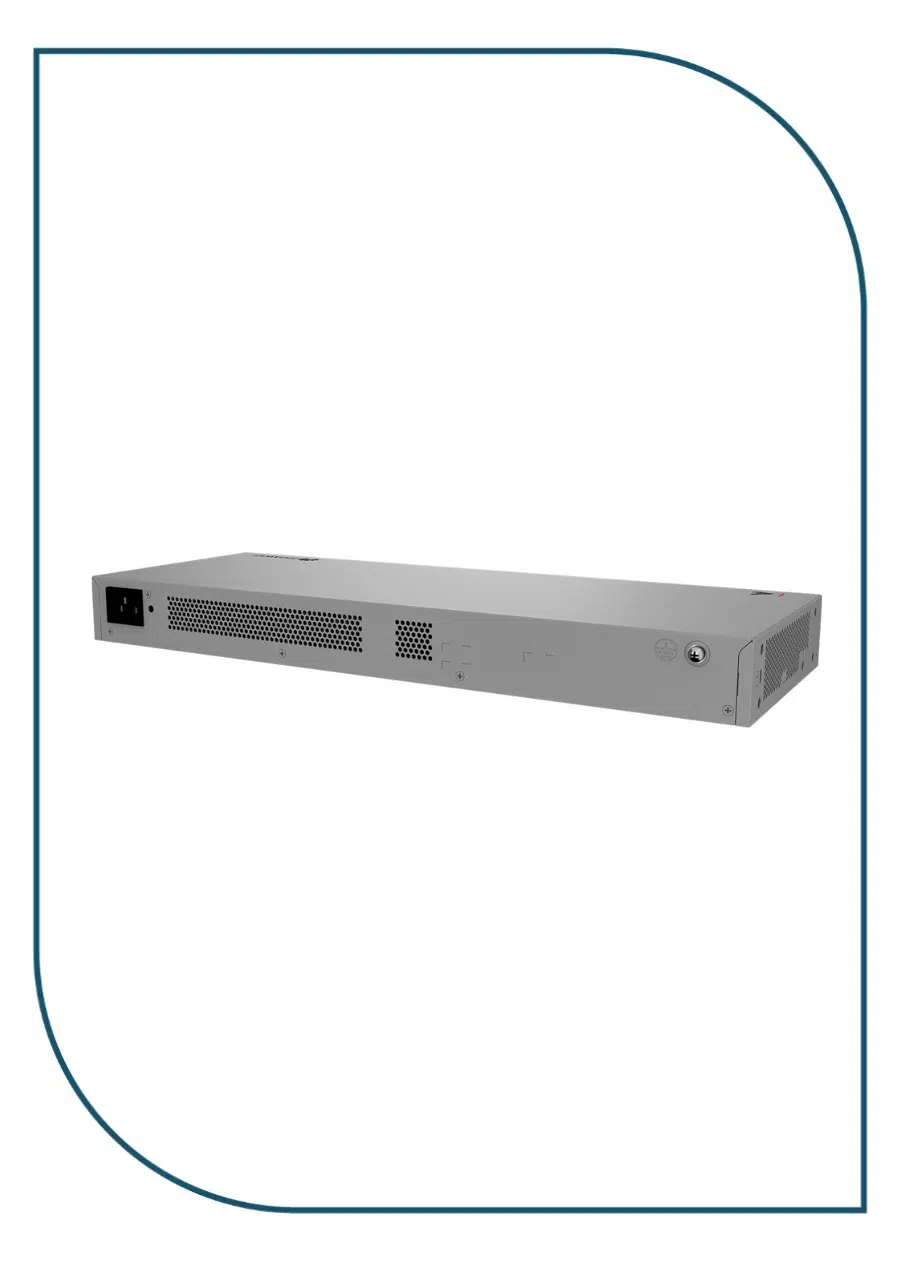

S310S-24T4JX
| Model | Huawei eKitEngine S310S-24T4JX |
| Switch Type | Layer 2+ (Lite Layer 3) Managed Switch |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ45 (Copper) |
| Uplink Ports | 4 × 1G/10G SFP+ ports |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K |
| VLAN Support | Up to 4K VLANs |
| Routing Capabilities | – Static Routing – Inter-VLAN Routing |
| Security Features | – DHCP Snooping – ARP Inspection – ACL |
| Loop Prevention | STP / RSTP / MSTP |
| QoS (Quality of Service) | Supported |
| Management Interfaces | – Web UI – CLI (Console, Telnet, SSH) – SNMP |
| PoE Support | No PoE (This is a non-PoE model) |
| Mounting | Rack-mountable (1U) |
| Power Supply | AC powered |
| Typical Applications | – SMB Access Networks – Inter-VLAN Routing – Small Data Center Access |
| Energy Saving | Supported |
Key Points:
| Feature | Details |
|---|---|
| Layer Support | Layer 2 and basic Layer 3 |
| Uplink | 4 × 10G SFP+ (Flexible Uplink) |
| Target Users | Small and Medium Businesses (SMBs) |
| Main Advantage | Affordable L2+ switch with 10G uplinks |
Use Case
- Access Switch for small/medium enterprise networks.
- Inter-VLAN Routing for basic network segmentation.
- Aggregation Switch with 10G uplinks to core/distribution switches.
- Suitable for office environments that don’t need PoE.
