Description

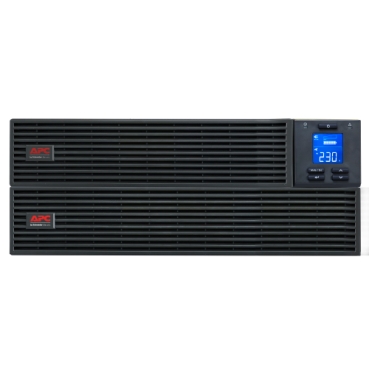

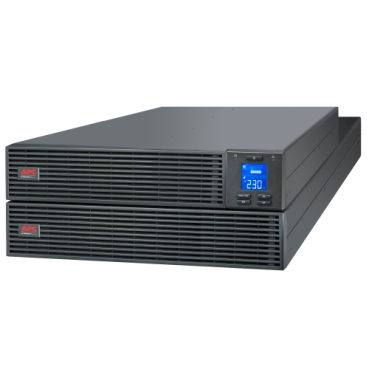

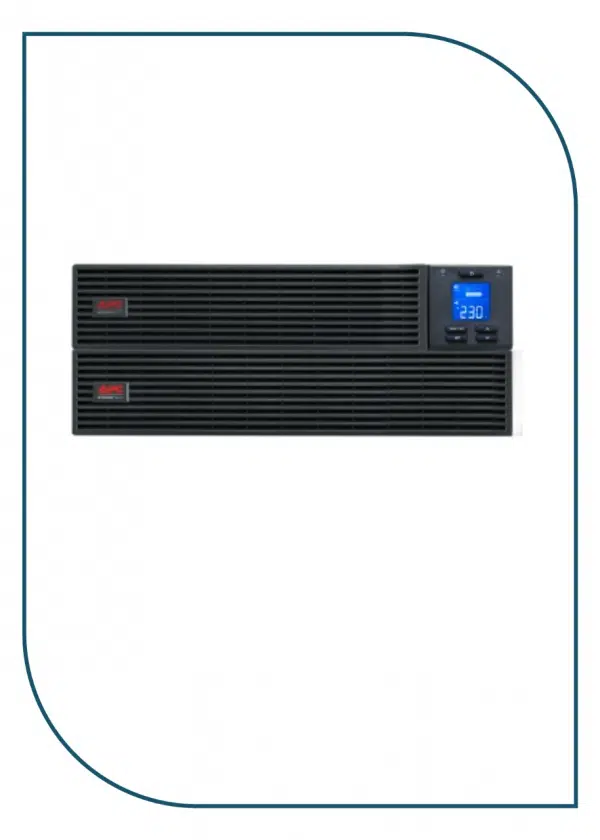

APC SRV10KRIRk
10000VA/10000W RM 230V Easy Online Ups
A top-notch, On-line UPS with double-conversion technology, engineered to provide reliable power protection for critical applications, even in extremely unpredictable power environments.
Specifications:
This Uninterruptible Power Supply (UPS) guarantees reliable power backup, operating within a primary input voltage range of 230 V and also accommodating input voltages of 220 V and 240 V. It maintains a steady primary output voltage of 230 V while supporting output voltages of 220 V and 240 V. With a rated power capacity of 10000 W and 10000 VA, it efficiently provides ample power supply. The UPS is designed with a hard-wire 3-wire (H N + E) 1 connector type, occupying a compact 4U of rack space. It comes bundled with essential accessories such as signaling cables, a software CD, mounting brackets and support rails, a user manual, and a USB cable.
Featuring a sleek black design, this UPS offers a space-saving solution with its compact dimensions. It stands at a height of 17.3 cm, measures 43.8 cm in width, and has a depth of 71.0 cm. Weighing 68 kg, it is specifically designed for convenient front-mounted, rack-mounted installation in a horizontal orientation. This UPS does not have any available power module slots and does not support redundancy. However, it offers USB compatibility, ensuring effortless connectivity.

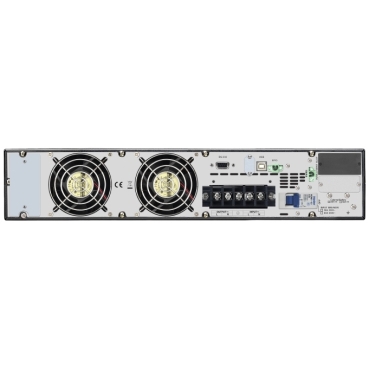

The APC UPS ensures reliable power protection by accepting an input voltage range of 110 V to 300 V at half load and 176 V to 300 V at full load. It features a single hard-wire 3-wire (1P + N + E) input connector and supports automatic detection of network frequency within the range of 40 Hz to 70 Hz.
With a maximum configurable power capacity of 10000 VA and 10000 W, this UPS provides ample power to meet demanding requirements. The output frequency remains synchronized with the mains at 50/60 Hz, with a variation of +/- 3 Hz. Operating in double conversion online mode, it delivers a clean sine wave output with minimal harmonic distortion of just 1%. Additionally, the UPS is equipped with an internal bypass system, offering both automatic and manual bypass options.
Certified with CE, EAC, and TISI, the UPS complies with the EN/IEC 62040-1 and EN/IEC 62040-2 standards, ensuring adherence to rigorous quality and safety requirements. It operates effectively within an ambient air temperature range of 0°C to 40°C and supports a relative humidity range of 0% to 95% (non-condensing). The UPS can be operated at altitudes ranging from 0 to 3000 m. For storage, it can withstand temperatures from -15°C to 60°C and altitudes of up to 15000 m.
Featuring a user-friendly multifunction LCD control console, the APC UPS provides comprehensive status and control monitoring. It incorporates an emergency power off feature for swift shutdown when necessary. Surge protection is built into the unit, offering a surge energy rating of 600 J. The UPS utilizes lead-acid batteries with a voltage of 192 V, providing a recharge time of approximately 9 hours. The battery life typically spans between 3 to 5 years, and the UPS includes a battery charger power of 235 W.
To manage heat dissipation, the UPS generates 2128 Btu/h, while ensuring an IP20 degree of protection. During operation, it emits an acoustic level of around 58 dBA. The APC UPS package weighs 79 kg and has dimensions of 48.5 cm (height) x 60 cm (width) x 83.6 cm (length).
