Description

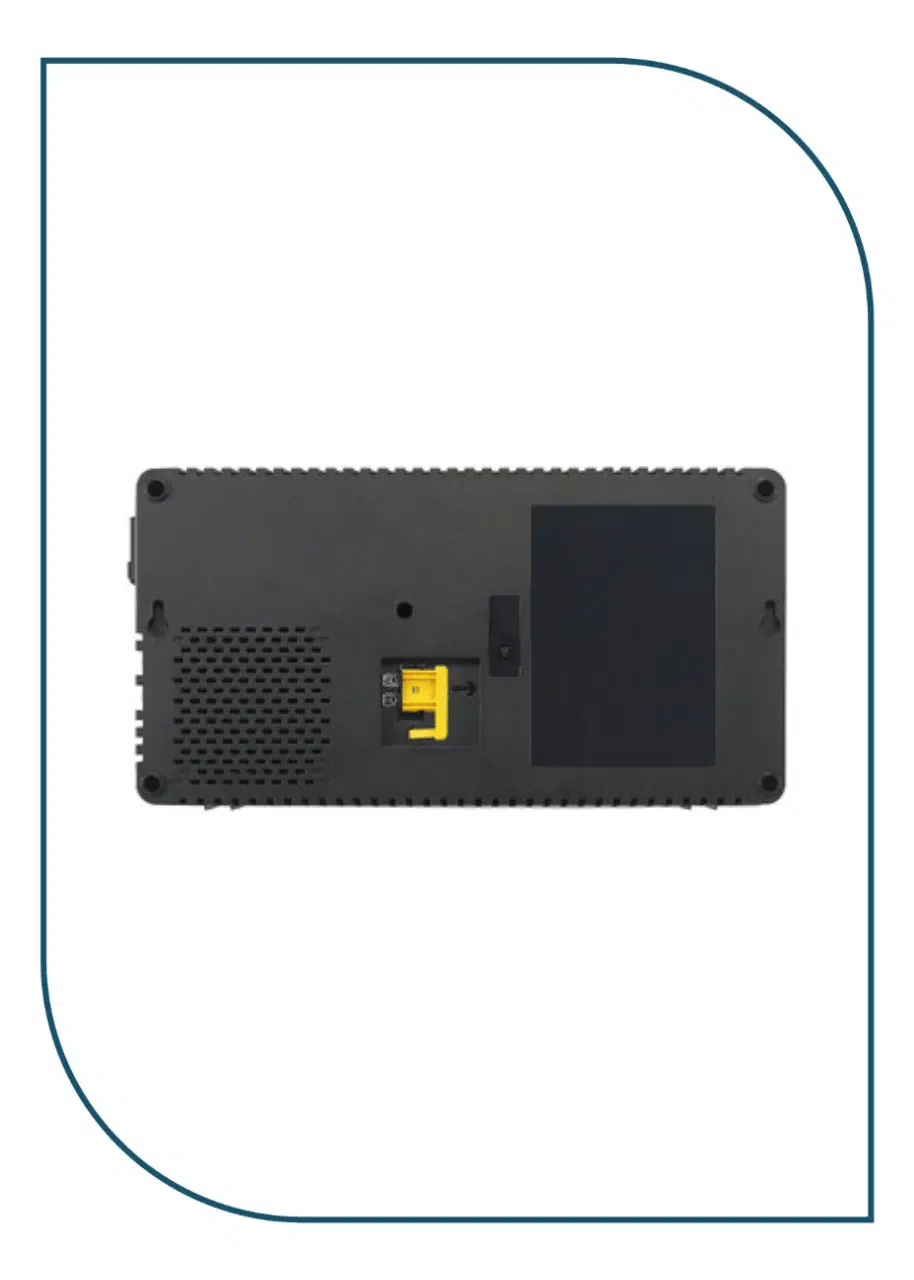

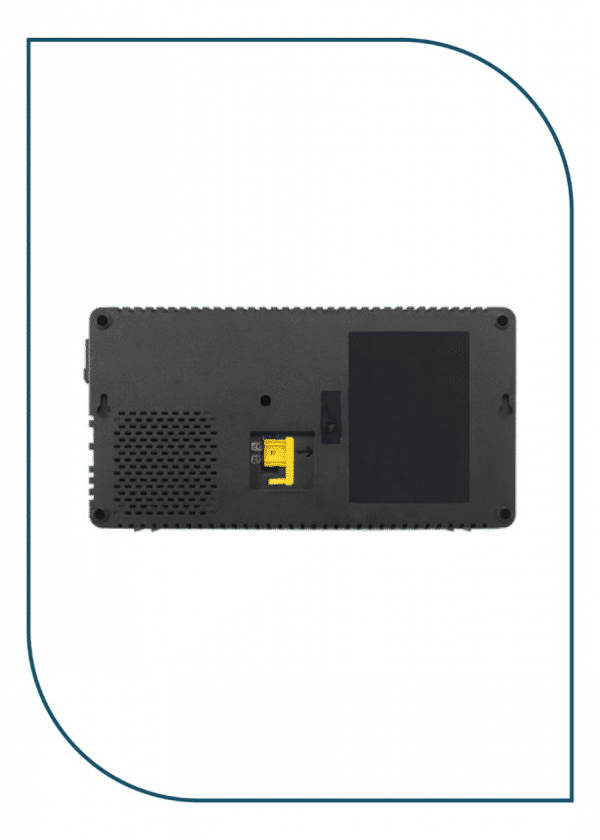

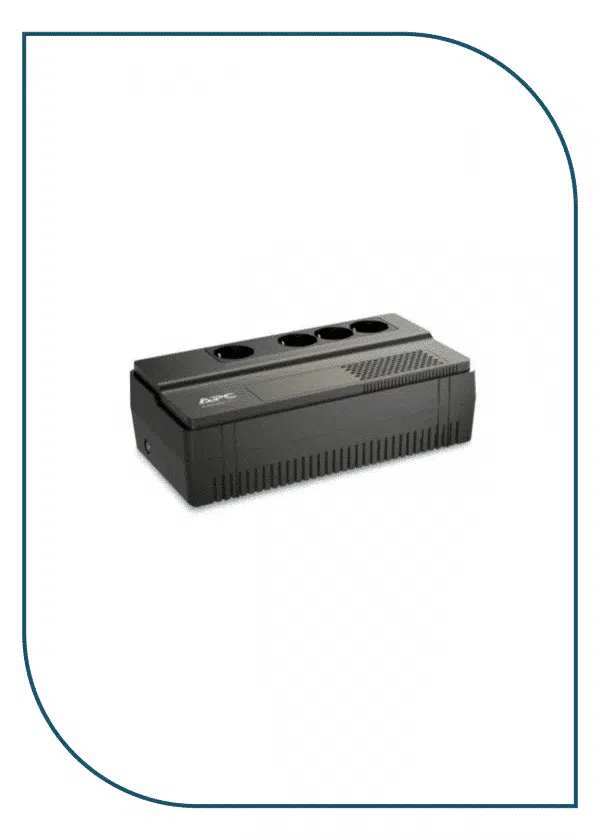

BV800I-GR
This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments.
Specifications :
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| Rated power in W | 450 W |
| Rated power in VA | 800 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | Schuko CEE 7/7P |
| output connection type | 4 Schuko CEE 7 |
| Cable length | 1.50 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| Range of product | Easy UPS |
| Efficiency |
|
|---|---|
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery life | 3…5 year(s) |
| Replacement battery |
|
| Extended runtime | 0 |
| Number of power module free slots | 0 |
|---|---|
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Colour | Black |
|---|---|
| Height | 9.25 cm |
| Width | 16.05 cm |
| Depth | 30.5 cm |
| Product weight | 5.3 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| Input voltage limits | 170…280 V |
| Maximum configurable power in W | 450 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Graph display | 1 |
| Maximum configurable power in VA | 800 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Product certifications | CE |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…90 % |
| Operating altitude | 0…6667 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…90 % |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|
| Surge energy rate | 156 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 23.500 cm |
| Package 1 Length | 37.000 cm |
| Package 1 Weight | 5.618 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 23.831 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 107.324 kg |
| SCC14 | 10731304338366 |
| Warranty | 2 years repair or replace |
|---|
