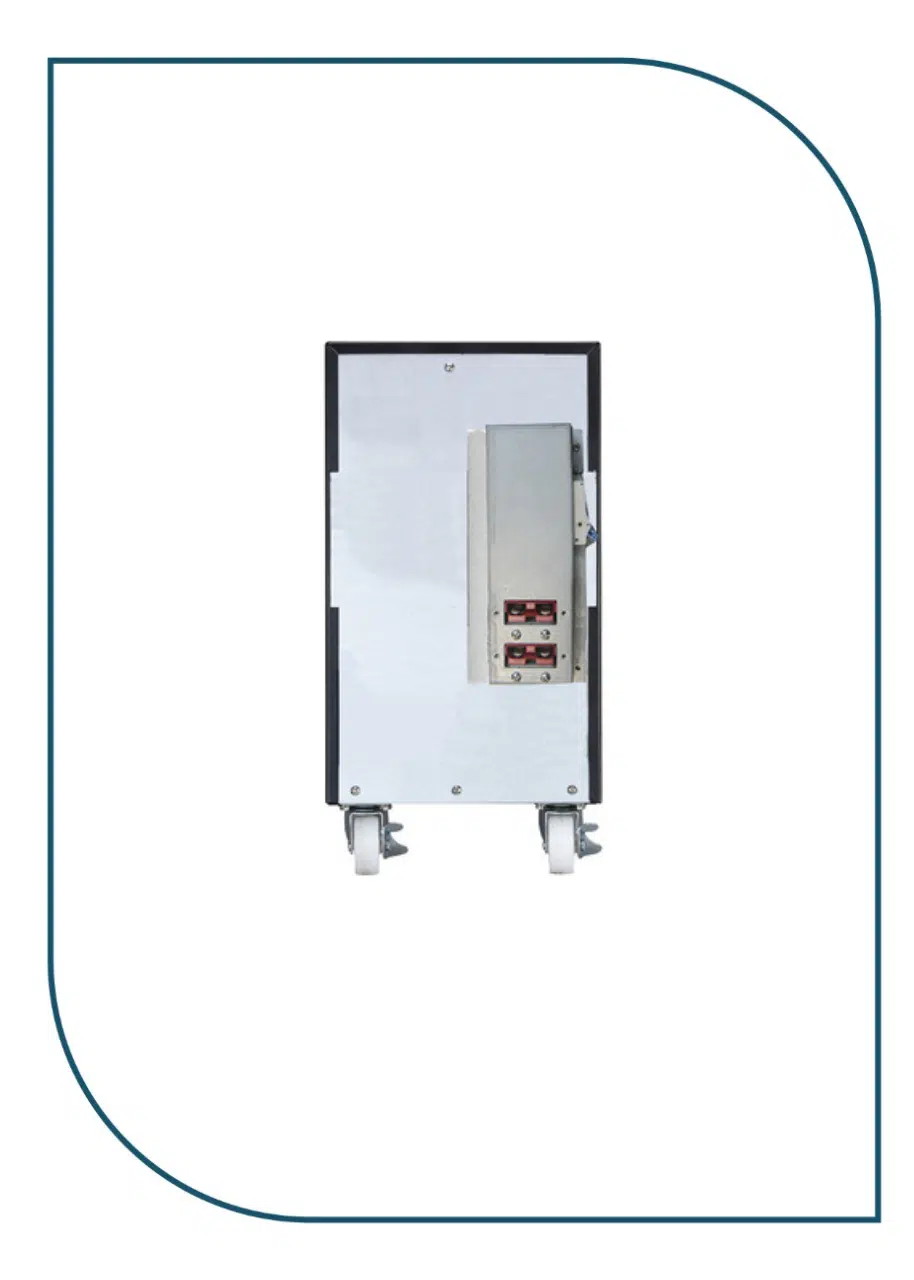

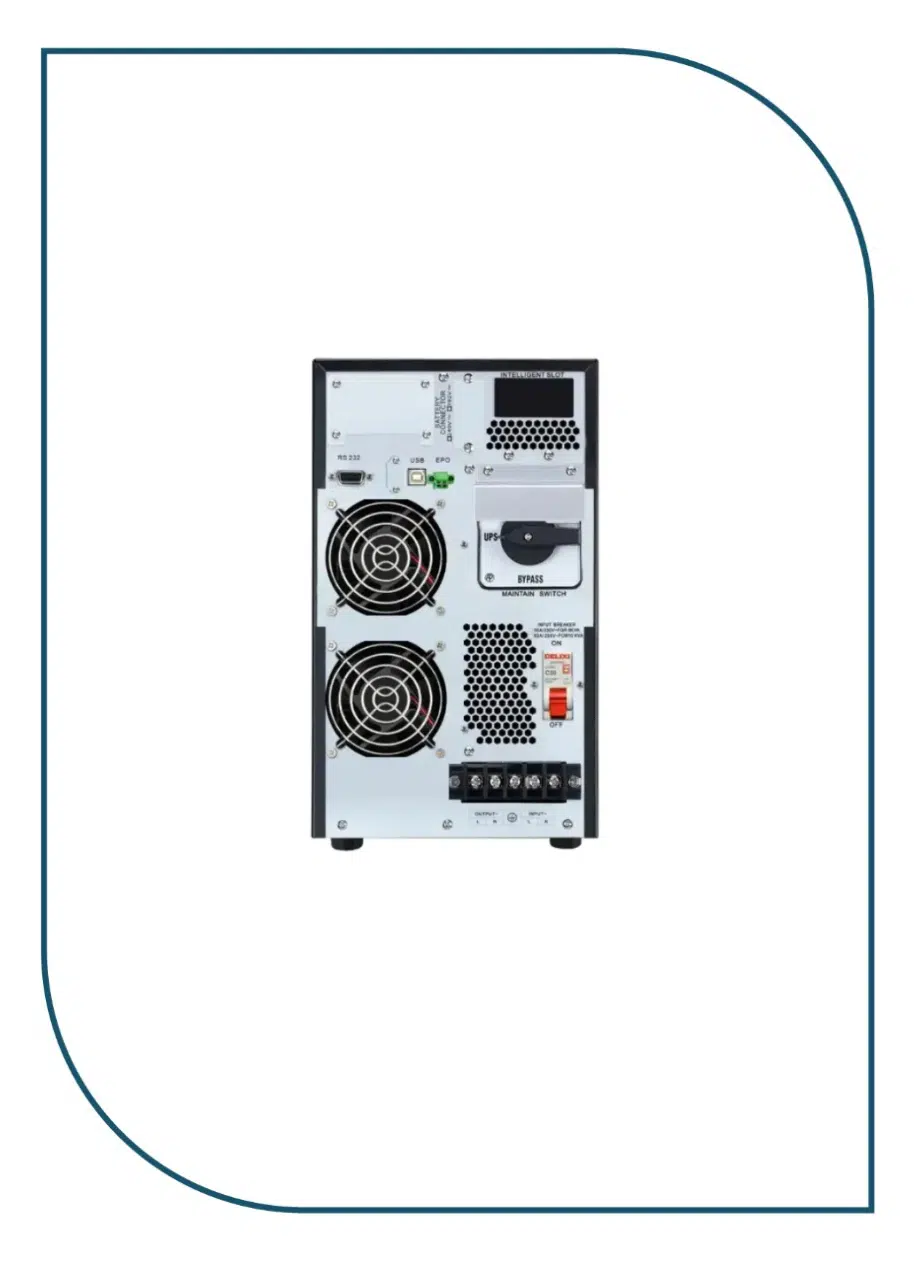

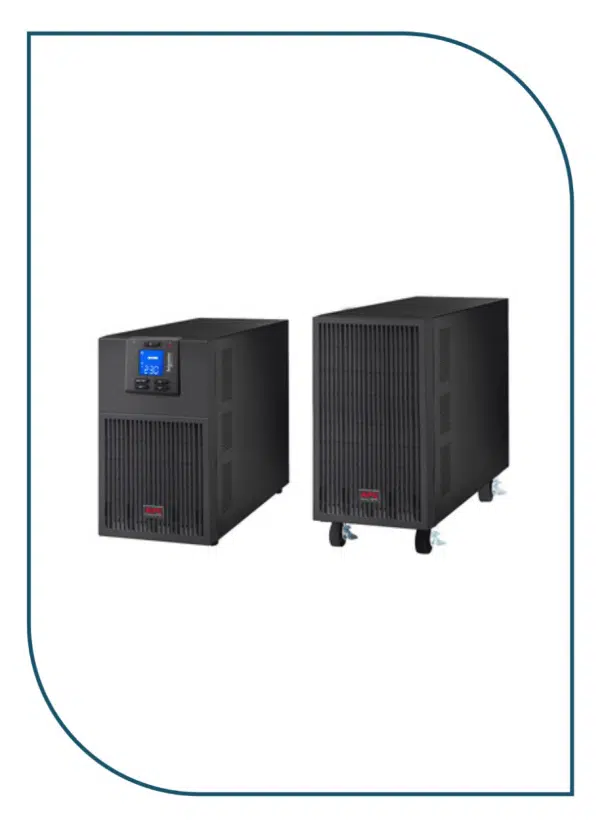

SRV6KIL APC Easy UPS On-Line SRV 6000VA 230V with Extended Runtime Battery Pack

Description

• Overview

  Presentation	High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
  Lead time	Usually in Stock

  Main

  rated power in W	6000 W
  rated power in VA	6000 VA
  output connector type	Hard wire 3-wire (H N + E) 1
  Main Output Voltage	230 V
  Other Output Voltage	220 V 240 V

  General

  Number of power module filled slots	0
  Number of power module free slots	0
  redundant	No
  provided equipment	Basic UPS signalling RS-232 cable CD with software 1 x DC cable User manual USB cable

  Physical

  mounting mode	Not rack-mountable
  height	36.8 cm
  width	38 cm
  depth	48.5 cm
  net weight	73 kg
  colour	Black

  Input

  Main Input Voltage	230 V
  Other Input Voltage	220 V 240 V
  input voltage limits	110…300 V half load 176…300 V full load
  number of input connectors	1 hard wire 3-wire (1P + N + E)
  network frequency	40…70 Hz auto sensing

  Output

  Maximum configurable power in VA	6000 VA
  Maximum configurable power in W	6000 W
  output frequency	50/60 Hz +/- 3 Hz sync to mains
  harmonic distortion	1 %
  UPS type	Double conversion online
  Wave type	Sine wave
  efficiency	94 % (full load)
  additional information	Configurable for 220 : 230 or 240 nominal output voltage
  bypass type	Internal bypass (automatic and manual)
  crest factor	3 : 1

  Conformance

  product certifications	CE EAC TISI
  standards	EN/IEC 62040-1 EN/IEC 62040-2

  Environmental

  acoustic level	55 dBA
  heat dissipation	1172 Btu/h
  operating altitude	0…3000 m
  ambient air temperature for operation	0…40 °C
  ambient air temperature for storage	-15…60 °C
  storage altitude	0…15000 m
  IP degree of protection	IP20
  relative humidity	0…95 % non-condensing
  storage Relative Humidity	Non-condensing 0…95 %

  Batteries & Runtime

  battery type	Lead-acid battery
  battery voltage	240 V
  number of battery filled slots	0
  number of battery free slots	0
  Battery recharge time	9 h
  battery life	3…5 year(s)
  battery charger power	1170 W rated
  battery option	SRV240BP-9A 1 3024 VAh SRV240BP-9A 2 4536 VAh SRV240BP-9A 3 6048 VAh SRV240BP-9A 4 7560 VAh SRV240BP-9A

  Communications & Management

  alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  control panel	Multifunction LCD status and control console
  Emergency power off	Yes
  free slots	1

  Surge Protection and Filtering

  Surge energy rate	600 J

  Packing Units

  Package 1 Weight	79 kg
  Package 1 Height	46 cm
  Package 1 width	58 cm
  Package 1 Length	57 cm

  Offer Sustainability

  REACh Regulation	REACh Declaration
  EU RoHS Directive	Compliant EU RoHS Declaration
  Mercury free	Yes
  RoHS exemption information	Yes

  Contractual warranty

  Warranty	2 years repair or replace
