Description
SRV3KIL
| Presentation |
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
|
|
|---|---|---|
| Lead time |
Usually in Stock
|
| rated power in W |
2400 W
|
|
|---|---|---|
| rated power in VA |
3000 VA
|
|

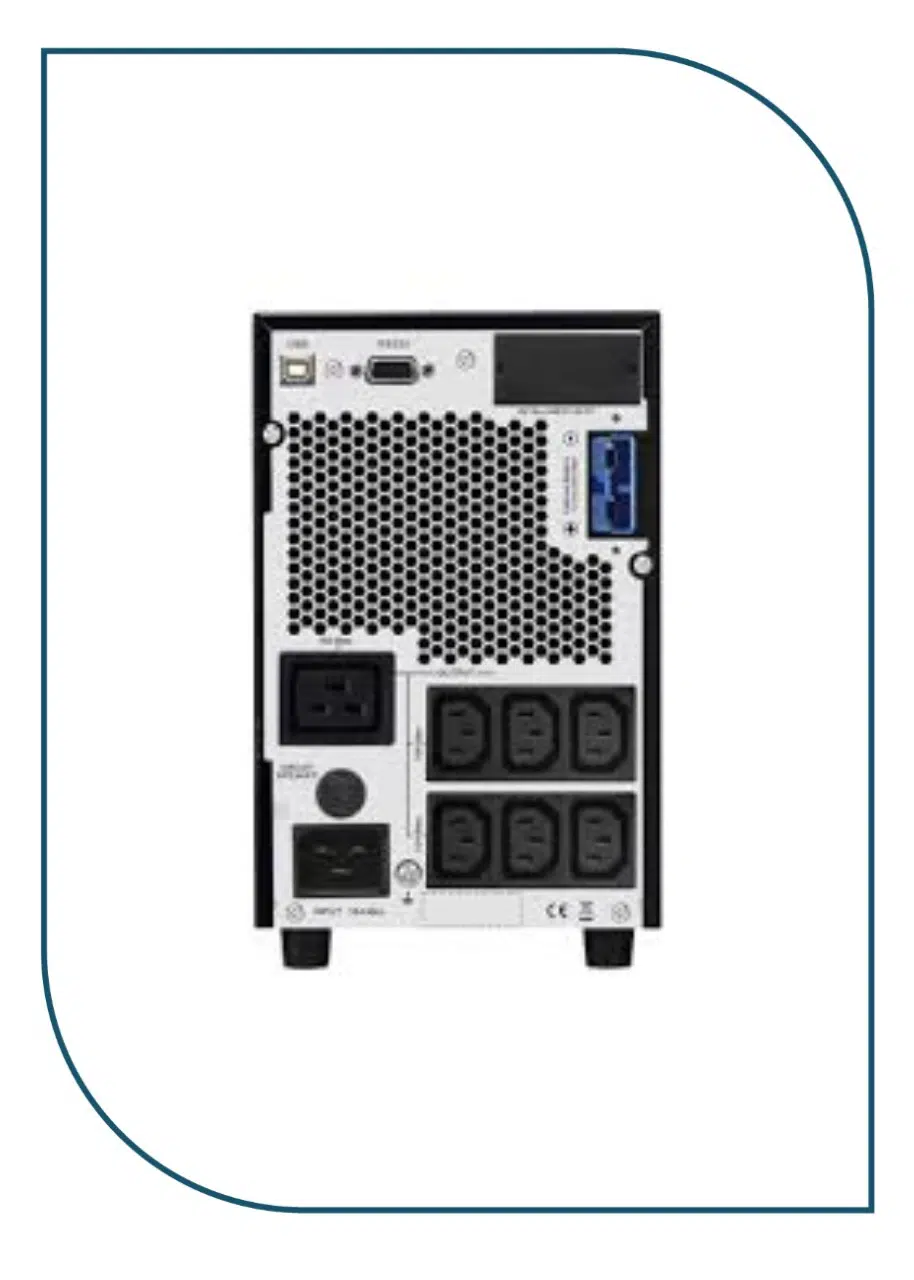

| nb of power socket outlets |
6 IEC 60320 C13
1 IEC 60320 C19 |
|
| Main Output Voltage |
230 V
|
|
| Other Output Voltage |
220 V
240 V |
|
| plug standard |
IEC 60320 C14
|
|
| cable length |
1.52 m
|
|
| number of cables |
1
|
| Number of power module filled slots |
0
|
|
|---|---|---|
| Number of power module free slots |
0
|
|
| redundant |
No
|
|
| provided equipment |
Basic UPS signalling RS-232 cable
CD with software Country-specific detachable power cord 1 x DC cable User manual USB cable |
| mounting mode |
Not rack-mountable
|
|
|---|---|---|
| height |
33.6 cm
|
|
| width |
42.5 cm
|
|
| depth |
42.5 cm
|
|
| net weight |
45.9 kg
|
|
| colour |
Black
|
| Main Input Voltage |
230 V
|
|
|---|---|---|
| Other Input Voltage |
220 V
240 V |
|
| input voltage limits |
110…285 V half load
160…280 V full load |
|
| network frequency |
40…70 Hz auto sensing
|
| Maximum configurable power in VA |
3000 VA
|
|
|---|---|---|
| Maximum configurable power in W |
2400 W
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| harmonic distortion |
3 %
|
|
| Transfer time |
4 ms typical
|
|
| UPS type |
Double conversion online
|
|
| Wave type |
Sine wave
|
|
| efficiency |
88 % (full load)
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| bypass type |
Internal bypass (automatic and manual)
|
|
| crest factor |
3 : 1
|
| product certifications |
CE
EAC TISI |
|
|---|---|---|
| standards |
EN/IEC 62040-1
EN/IEC 62040-2 |
| acoustic level |
50 dBA
|
|
|---|---|---|
| heat dissipation |
910 Btu/h
|
|
| operating altitude |
0…3000 m
|
|
| ambient air temperature for operation |
0…40 °C
|
|
| ambient air temperature for storage |
-20…50 °C
|
|
| storage altitude |
0…15000 m
|
|
| IP degree of protection |
IP20
|
|
| relative humidity |
0…95 % non-condensing
|
|
| storage Relative Humidity |
Non-condensing 0…95 %
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| battery voltage |
72 V
|
|
| number of battery filled slots |
0
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
5.5 h
|
|
| battery life |
3…5 year(s)
|
|
| battery charger power |
350 W rated
|
|

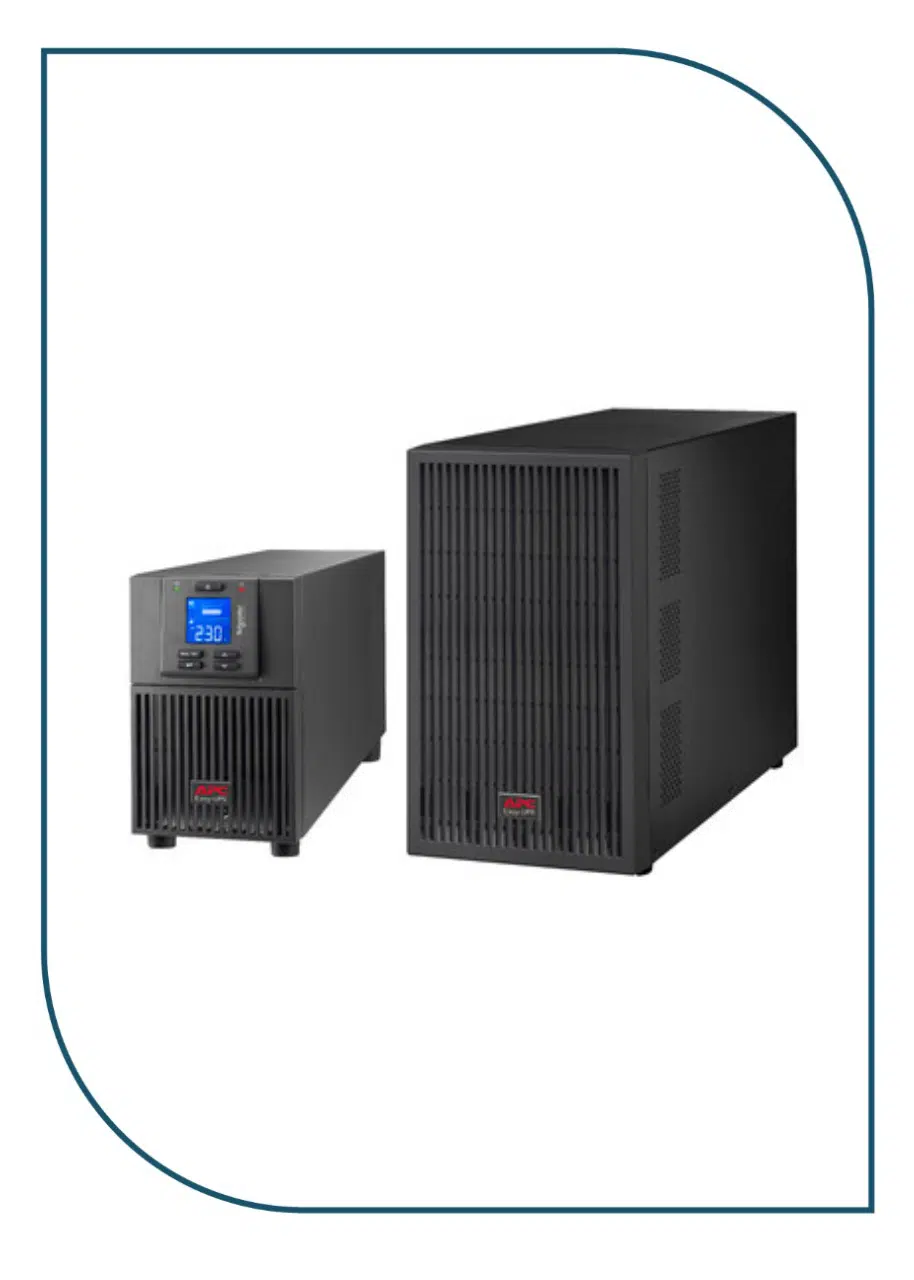

| battery option |
SRV72BP-9A1 1878 VAh
SRV72BP-9A2 2817 VAh SRV72BP-9A3 3756 VAh SRV72BP-9A4 4695 VAh |
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
|---|---|---|
| control panel |
Multifunction LCD status and control console
|
|
| free slots |
1
|
| Surge energy rate |
600 J
|
|---|
| Package 1 Weight |
49.8 kg
|
|
|---|---|---|
| Package 1 Height |
46.5 cm
|
|
| Package 1 width |
56.5 cm
|
|
| Package 1 Length |
56.5 cm
|
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive |
Under investigation
|
| Warranty |
2 years repair or replace
|
|---|
