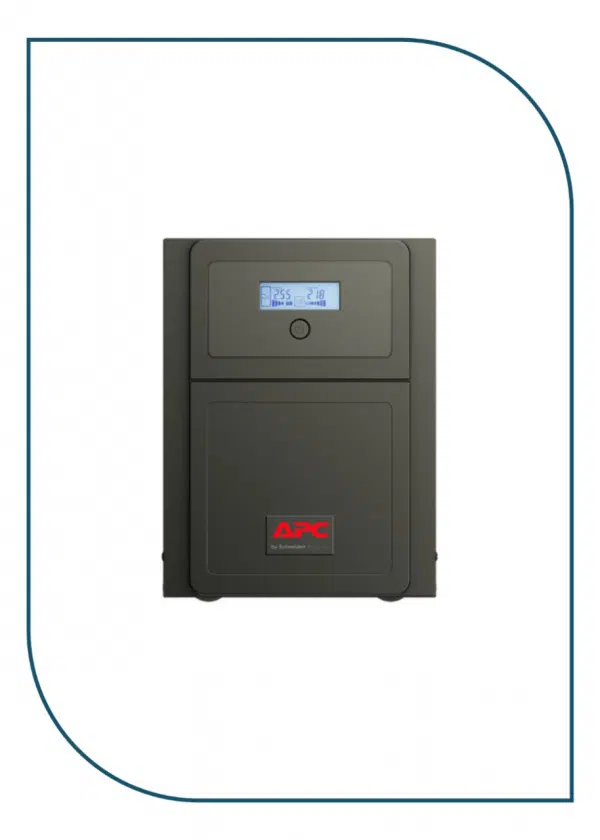

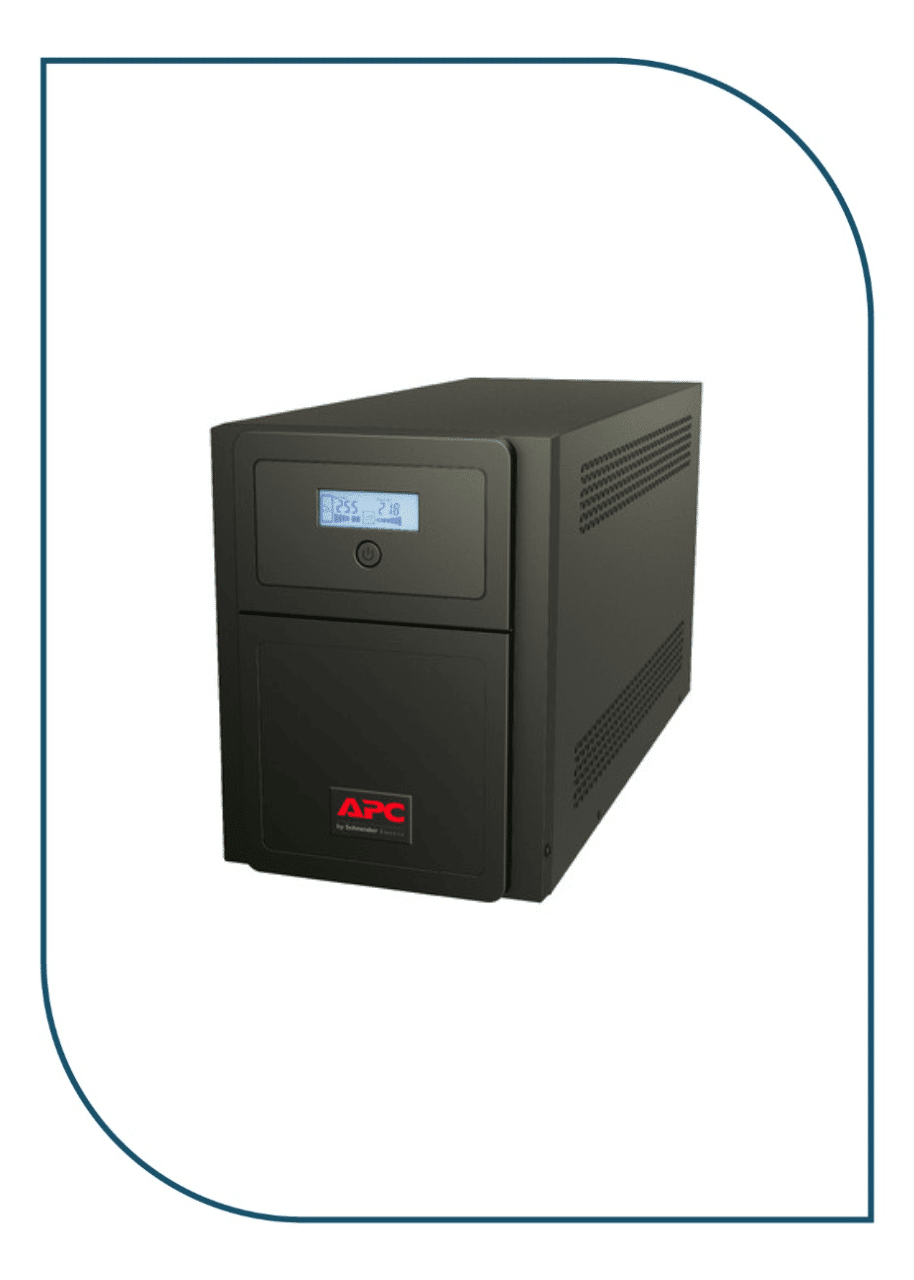

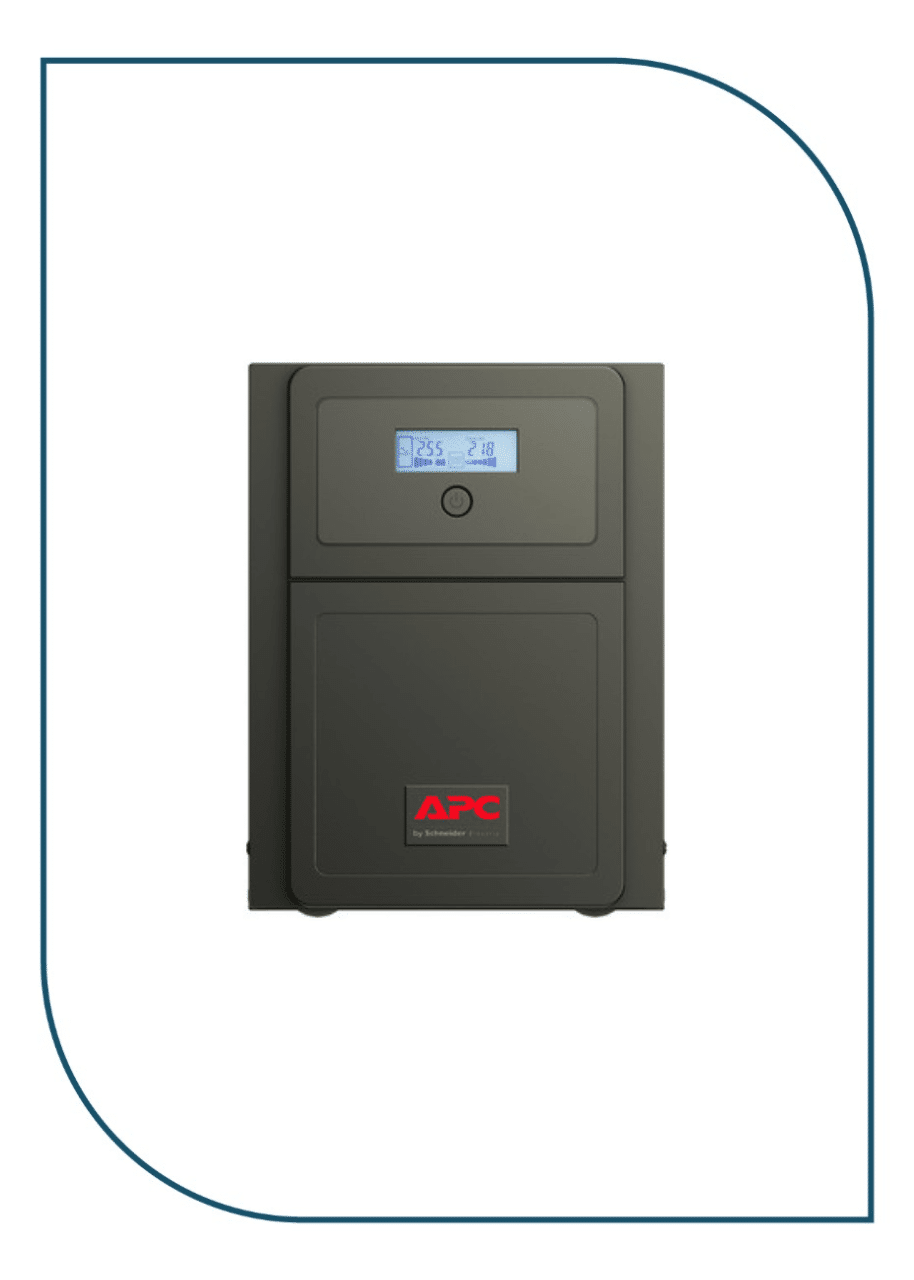

SMV3000AI-GR APC Easy UPS Line-interactive SMV 3000VA 230V, Schuko Outlet

WhatsApp Button Call for Price

Availability: In Stock
SKU:SMV3000AI-GR

Description

Overview
Lead time Usually in Stock
General
Provided equipment Documentation CD
User manual
USB cable
Number of tare power 98 W
Number of power module free
slots
0
Number of power module filled
slots
0
Redundant No
UPS size WS
Physical
Colour Black
Depth 45.5 cm
Height 24 cm
Mounting preference No preference
Net weight 25.2 kg
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible No
Width 18 cm
Input
Network frequency 45…65 Hz +/- 1 Hz auto-sensing
Plug standard IEC 60320 C20
Input voltage limits 165…295 V
Input voltage 220 V
240 V
Number of cables 1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
Dec 22, 2021 1
Input voltage 230 V
Output
Rated power in W 2100 W
Maximum configurable power in
W
2100 W
Output frequency 50/60 Hz +/- 1 Hz unsynchronised
Crest factor 3 : 1
UPS type Line interactive
Wave type Sine wave

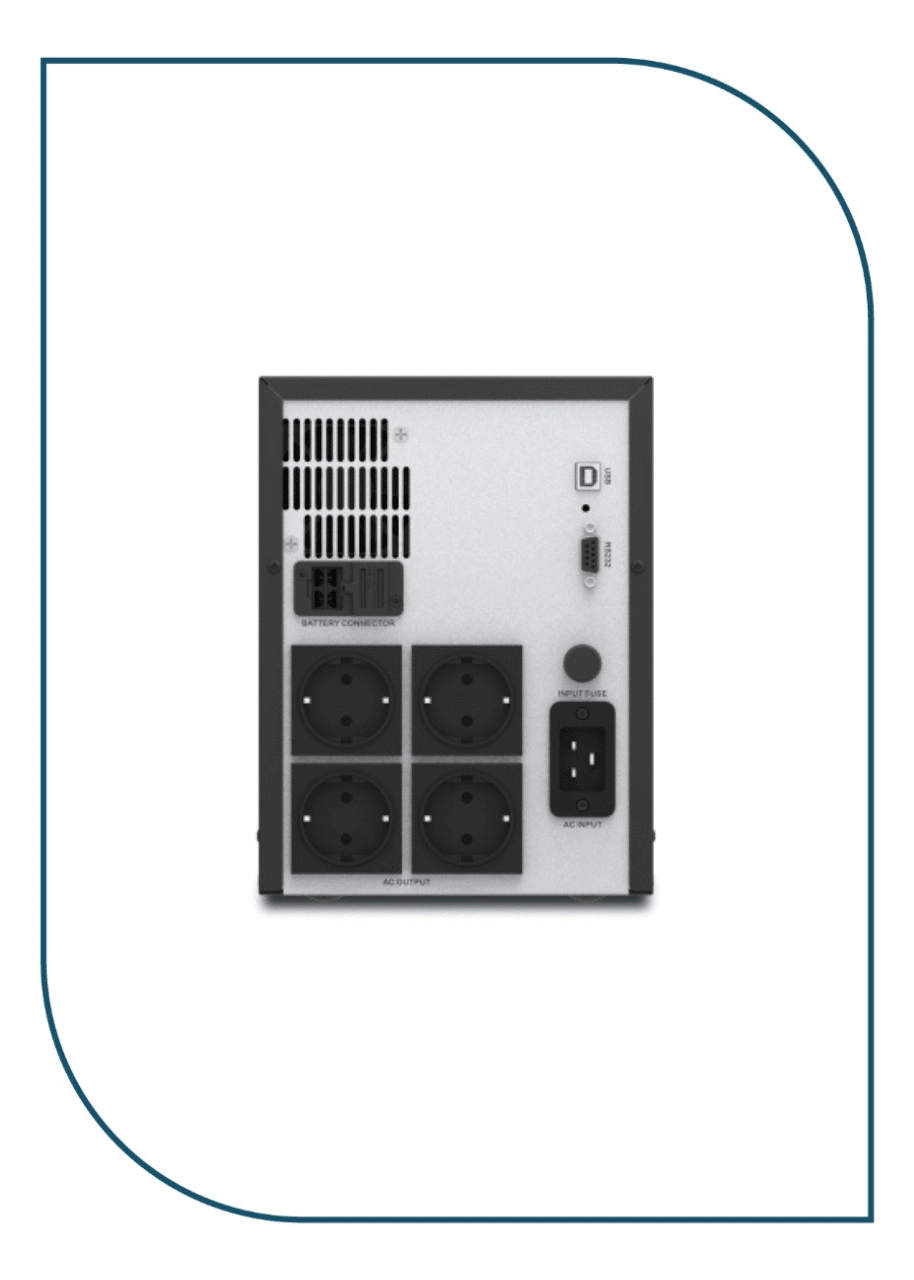

Nb of power socket outlets 4 Schuko CEE 7
Curve equation Efficiency
Curve fixed loss 0.0198
Curve load maximum 100 %
Curve load minimum 2 %
Curve proportional loss 0
Curve square loss 0.0048
Curve X-axis maximum 100 %
Curve test cond ID Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible
Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions,
with 230V/50Hz electrical input and balanced resistive load (PF =
Curve X-axis minimum 0 %
Curve X-axis title Load
Curve X-axis units Percentage
Curve Y-axis maximum 100 %
Curve Y-axis minimum 50 %
Curve Y-axis title Efficiency
Curve Y-axis units Percentage
Graph display 1
Output voltage 230 V
Maximum configurable power in
VA
3000 VA
Rated power in VA 3000 VA
Transfer time 2-6 ms typical : 12 ms maximum
Conformance
Product certifications CE
Standards EN/IEC 62040-1
EN/IEC 62040-2
Environmental
Ambient air temperature for
operation
0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for
storage
-10…40 °C
2 Dec 22, 2021
Storage Relative Humidity 0…95 % Non-condensing
Storage altitude 0…15000 m
Acoustic level 45 dBA
Show note OP temperature No
IP degree of protection IP20
Batteries & Runtime
Battery type Lead-acid battery
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Liquid value 0
Battery voltage 48 V
Battery curve C
Battery charger power 99 W rated
Battery power in VAH 432 VAh capacity
395 VAh runtime
Battery life 3…5 year(s)
Extended runtime 0
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 125 J
Packing Units
Package 1 Weight 28.9 kg
Package 1 Height 41.05 cm
Package 1 width 32.6 cm
Package 1 Length 60.1 cm
Contractual warranty
Warranty 2 years repair or replace
