S310-24T4S Huawei eKitEngine switch

S310-24T4S

It features 24 gigabit Ethernet ports (10/100/1000 Mbps) and 4 SFP slots (1 Gbps). It provides Layer 2 management and basic Layer 3 function

EGP15,000

Buy Now Compare
Availability: Available on backorder
SKU:S310-24T4S

All prices include VAT

Description

S310-24T4S

Overview

The Huawei S310-24T4S is a manageable switch from the eKitEngine series. It features 24 gigabit Ethernet ports (10/100/1000 Mbps) and 4 SFP slots (1 Gbps). It provides Layer 2 management and basic Layer 3 functions. The switch supports Spanning Tree Protocols (STP / RSTP / MSTP) and the modern ERPS (Ethernet Ring Protection Switching) standard. It has a Smart Link function that allows for backup connections.

Based on the next-generation high-performance hardware and software platform, Huawei CloudEngine S310 series switches stand out with features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. In addition, CloudEngine S310 series switches support multiple Layer 3 routing protocols, delivering higher performance and more powerful service processing capabilities. These make them ideal for various application scenarios, such as enterprise campus access and gigabit to the desktop.
  • 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports
  • AC power supply
  • Packet forwarding rate: 42 Mpps
  • Switching capacity: 260 Gbit/s

Basic information about the S310-24T4S

Item Details
Description S310-24T4S (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Part Number 98012202
Model S310-24T4S
First supported version V600R022C10

Components

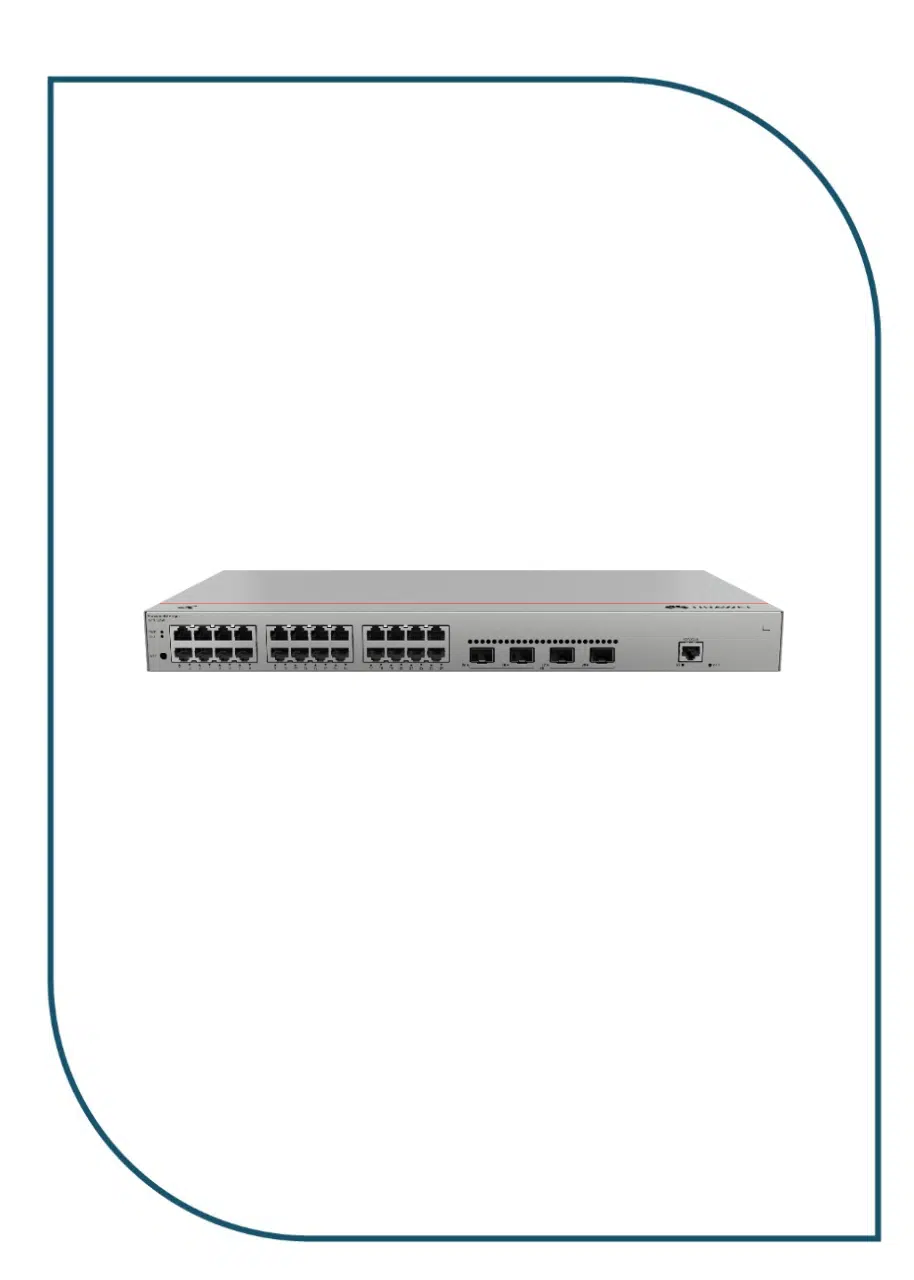

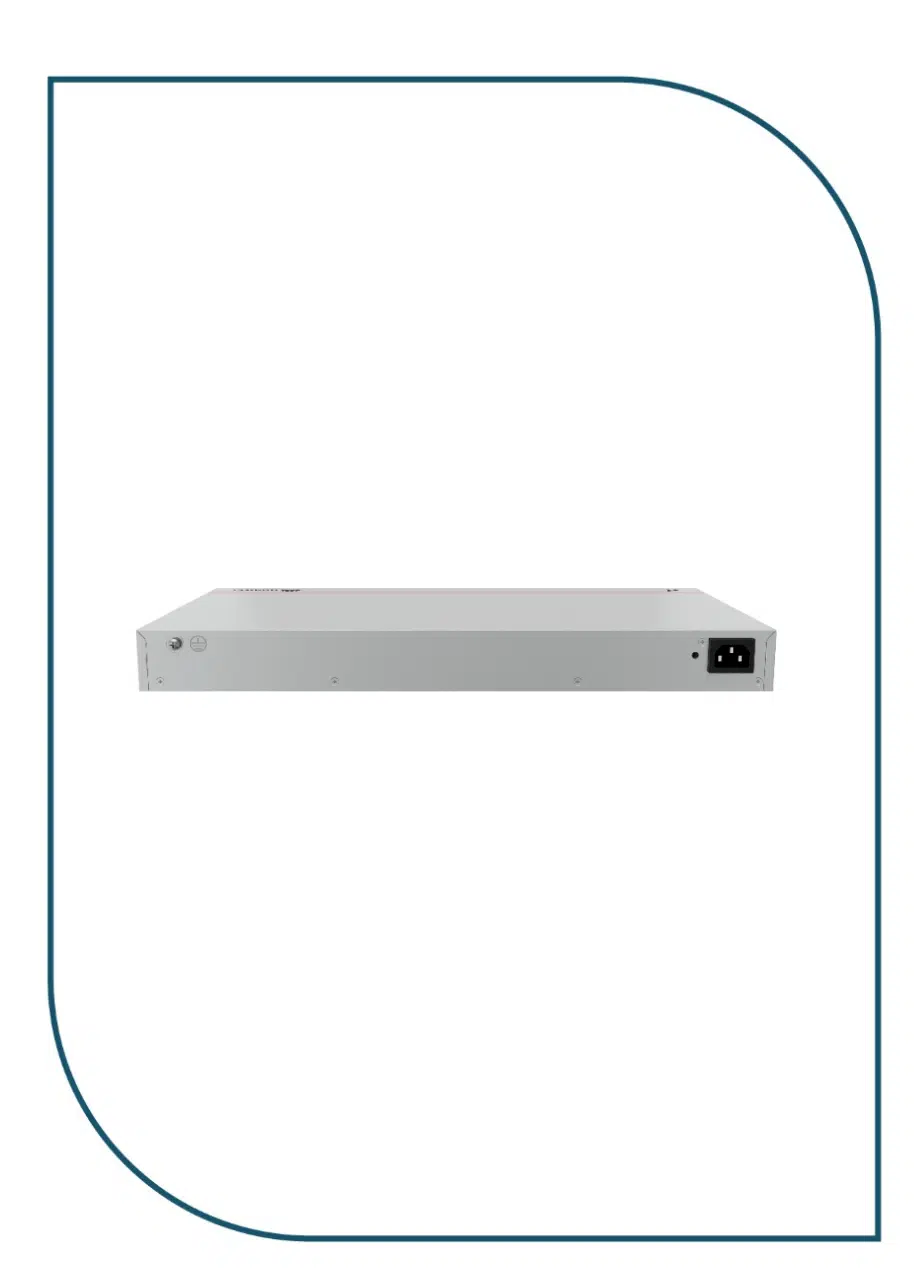

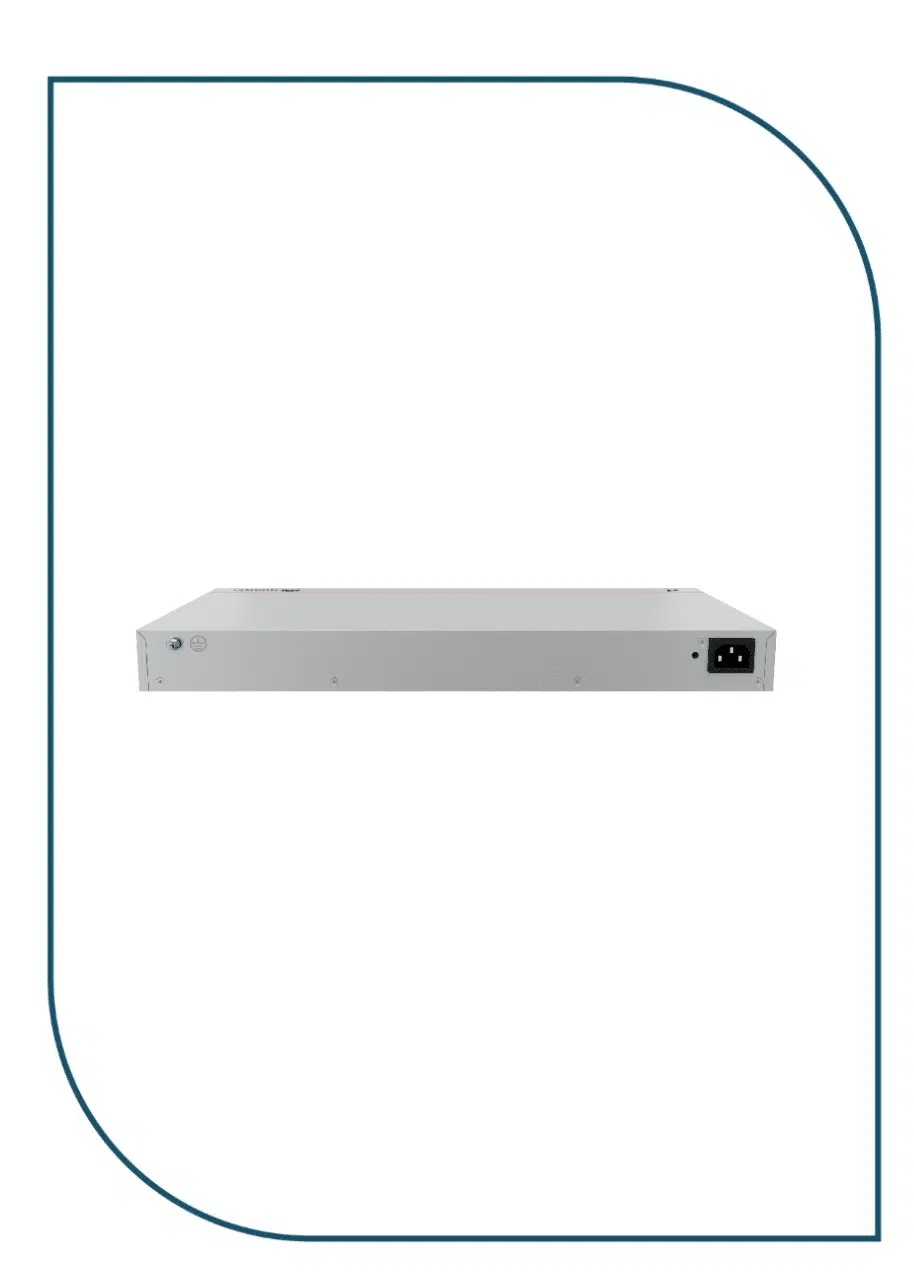

Figure 4-25 S310-24T4S appearance

This model has had changes to its appearance and branding (from CloudEngine to eKitEngine), and devices delivered over different periods may have different appearances but have no differences in functions.

1 One MODE button 2 Twenty-four 10/100/1000BASE-T ports
3 Four 1000BASE-X ports 4 One console port
5 One RST button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

6 Ground screw

NOTE:

It is used with a ground cable.
7 Jack for AC power cable locking strap

NOTE:

The AC power cable locking strap is not delivered with the switch.
8 AC socket

NOTE:

It is used with an AC power cable.

Ports

Table 4-77 Ports on the S310-24T4S

Port Connector Type Description Available Components
10/100/1000BASE-T port RJ45 A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. Ethernet cable
1000BASE-X port SFP A 1000BASE-X port can send and receive data at 1000 Mbit/s.
Console port RJ45 The console port is connected to a console for on-site configuration. Console cable

Indicators and Buttons

Figure 4-26 Indicators on the Switch

The S310-24P4S model is used as an example. Non-PoE models do not have PoE indicator and PoE mode.

Table 4-78 Description of indicators on the switch

No. Indicator Name Color Status Description
1 PWR Power module indicator Off The switch is powered off.
Green Steady on The power supply is normal.
Yellow Steady on The power supply is abnormal.
2 SYS System status indicator Off The system is not running.
Green Fast blinking The system is starting.
Green Steady on During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 30 seconds.
Green Slow blinking The system is running normally.
Red Steady on The system does not work normally after registration, or a fan alarm or a temperature alarm has been generated.
3 PoE PoE indicator Off The PoE mode is not selected.
Green Steady on The PoE mode is selected, and service port indicators show the PoE status of each port.
4 MODE Mode switch button
  • When you press this button once, the service port indicators change to the PoE mode and show the PoE status of each service port.
  • When you press this button a second time, the service port indicators restore to the default mode and show the connection status and link activity of each service port.

If you do not press the MODE button within 45 seconds, the service port indicators restore to the default mode. In this case, the PoE indicator is off.

NOTE:

In V600R023C00 and later versions, hold down the mode switch button for 6s and release it to start the web initial login mode. Either of the following situations will occur:

  • If the switch has no configuration file, the system attempts to enter the web initial login mode.
  • If the login fails, check whether the device uses factory default settings.
5 Service port indicator Meanings of service port indicators vary in different modes. For details, see Table 4-79.

NOTE:

If a power failure occurs on a device’s PCB board, indicators of the last four optical ports on the device’s front panel blink green cyclically at an interval of 1 second, with each indicator illuminating for 0.25 seconds.

6 ID ID indicator Off The ID indicator is not used (default state).
Blue Steady on The indicator identifies the switch to maintain. The ID indicator can be turned on or off remotely to help field engineers find the switch to maintain.

Table 4-79 Description of service port indicators in different modes (one indicator for each port)

Display Mode Color Status Description
Default mode Off The port is not connected or has been shut down.
Green Steady on A link has been established on the port.
Green Blinking The port is sending or receiving data.
PoE mode Off The port is not providing power to a powered device (PD).
Green Steady on The port is providing power to a PD.
Green Blinking The power of the PD connected to the port exceeds the power capacity of the port or the power threshold configured on the port. Alternatively, the PD does not comply with IEEE standards.

Power Supply System

The switch has a built-in AC power module and does not support pluggable power modules.

Heat Dissipation System

The switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.

When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.

This figure only shows the airflow direction and does not depict the actual device.

Technical Specifications

Table 4-80 Technical specifications of the S310-24T4S

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 2.32 kg (5.11 lb)
Weight with packaging [kg(lb)] 3.44 kg (7.58 lb)
Typical power consumption [W] 26.37 W
Typical heat dissipation [BTU/hour] 89.98 BTU/hour
Maximum power consumption [W] 34.04 W
Maximum heat dissipation [BTU/hour] 116.15 BTU/hour
Static power consumption 19.00
MTBF [years] 70.75 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 47 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 35 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A] 0.8 A
Memory 2 GB
Flash memory Physical space: 1 GB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certification

Safety certification

Manufacturing certification
