Description

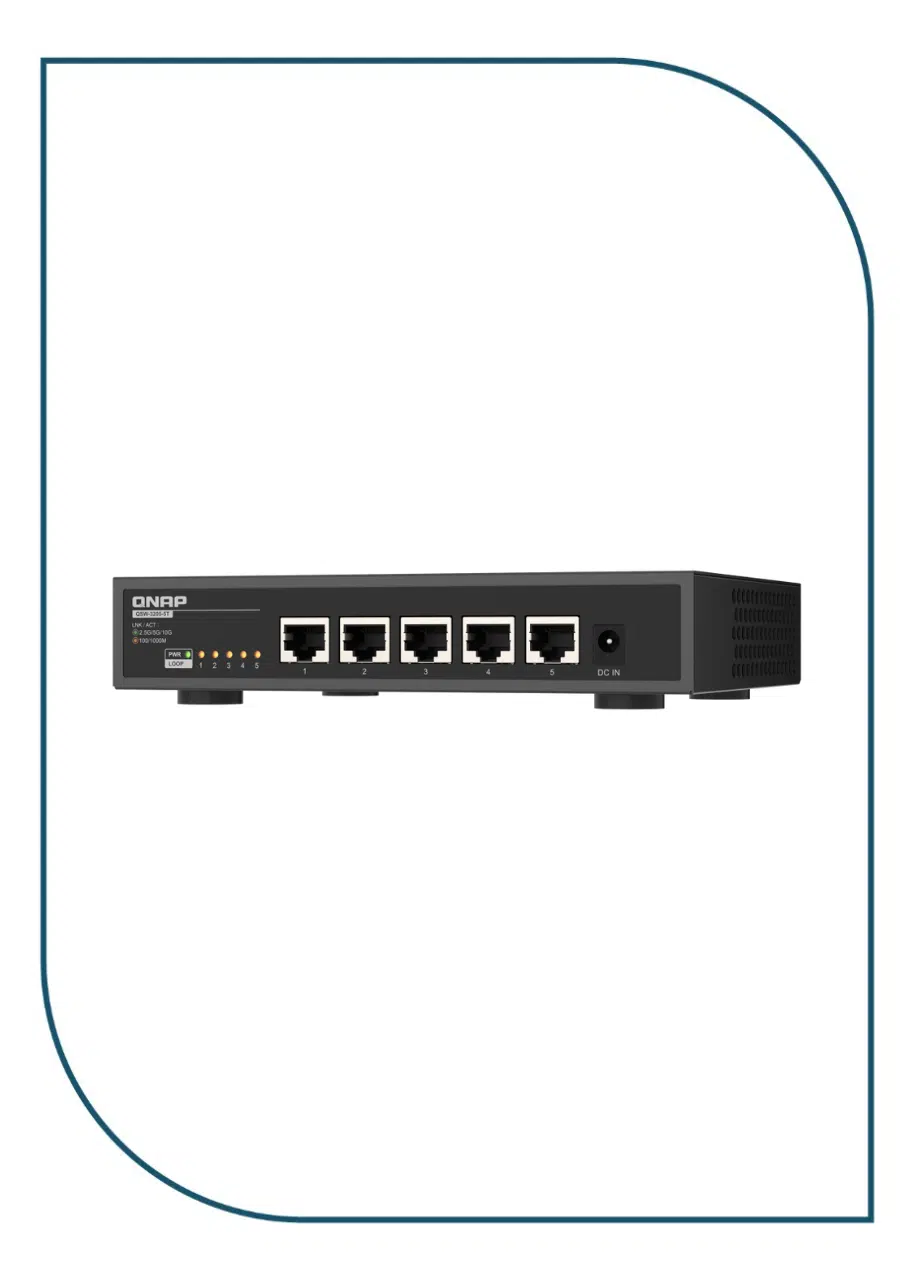

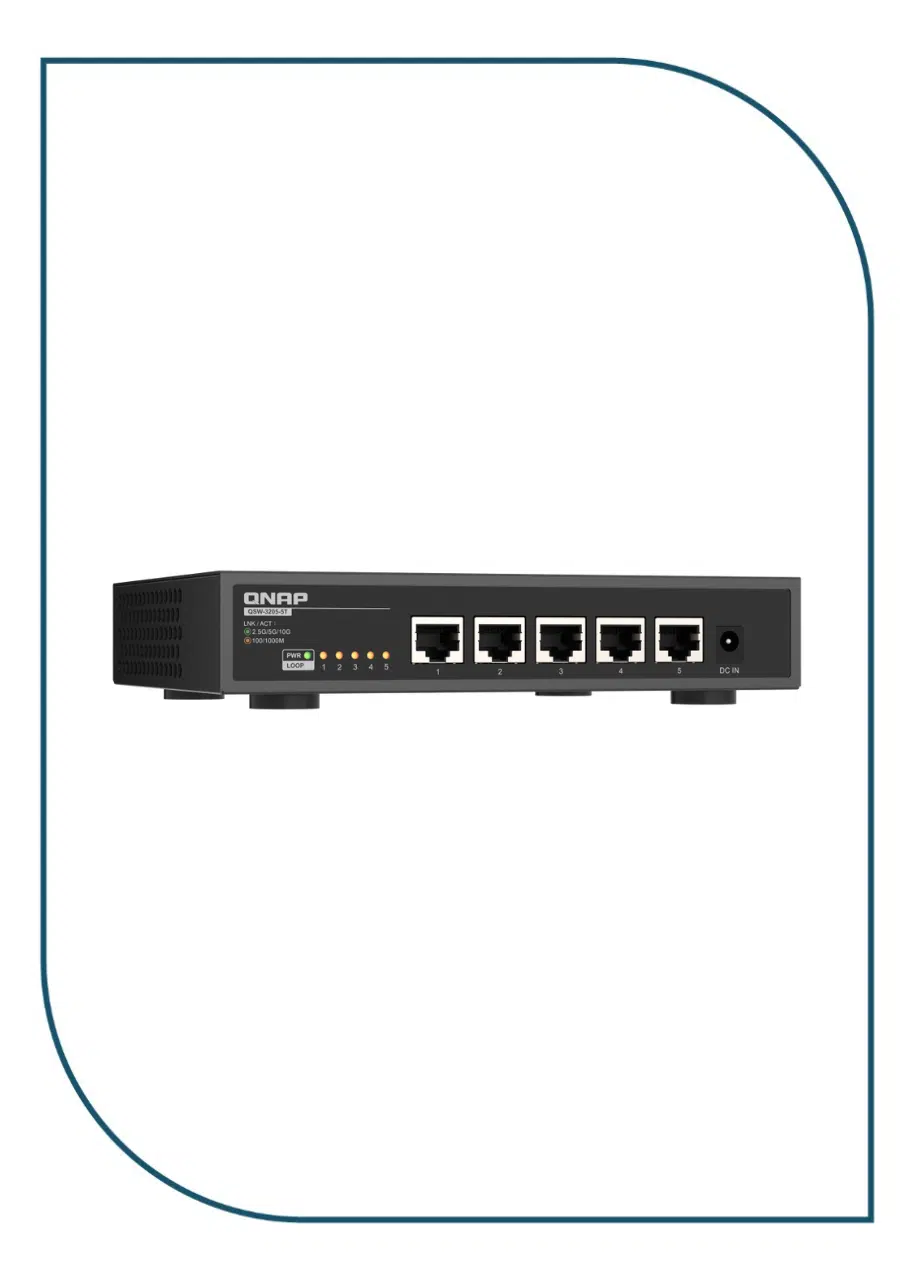

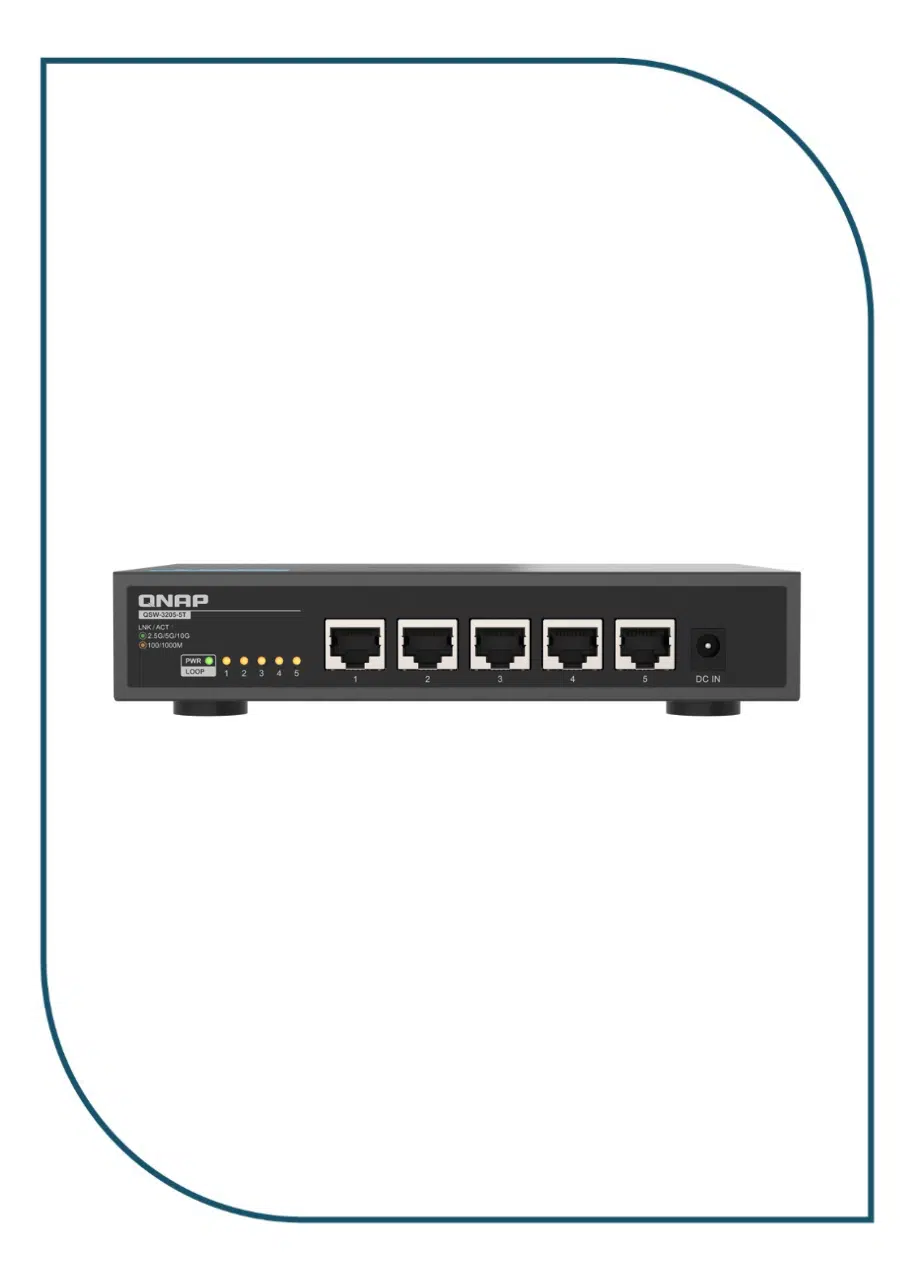

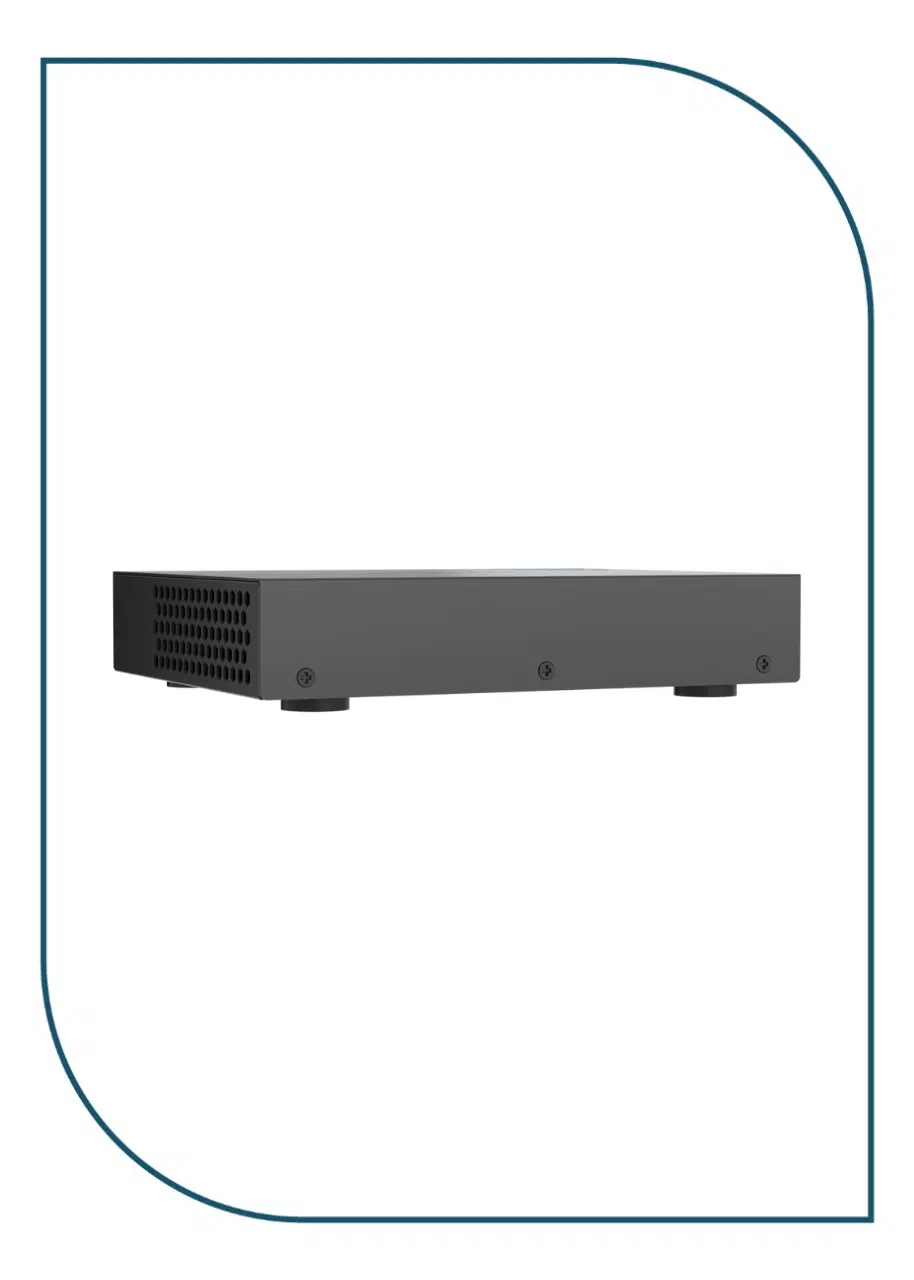

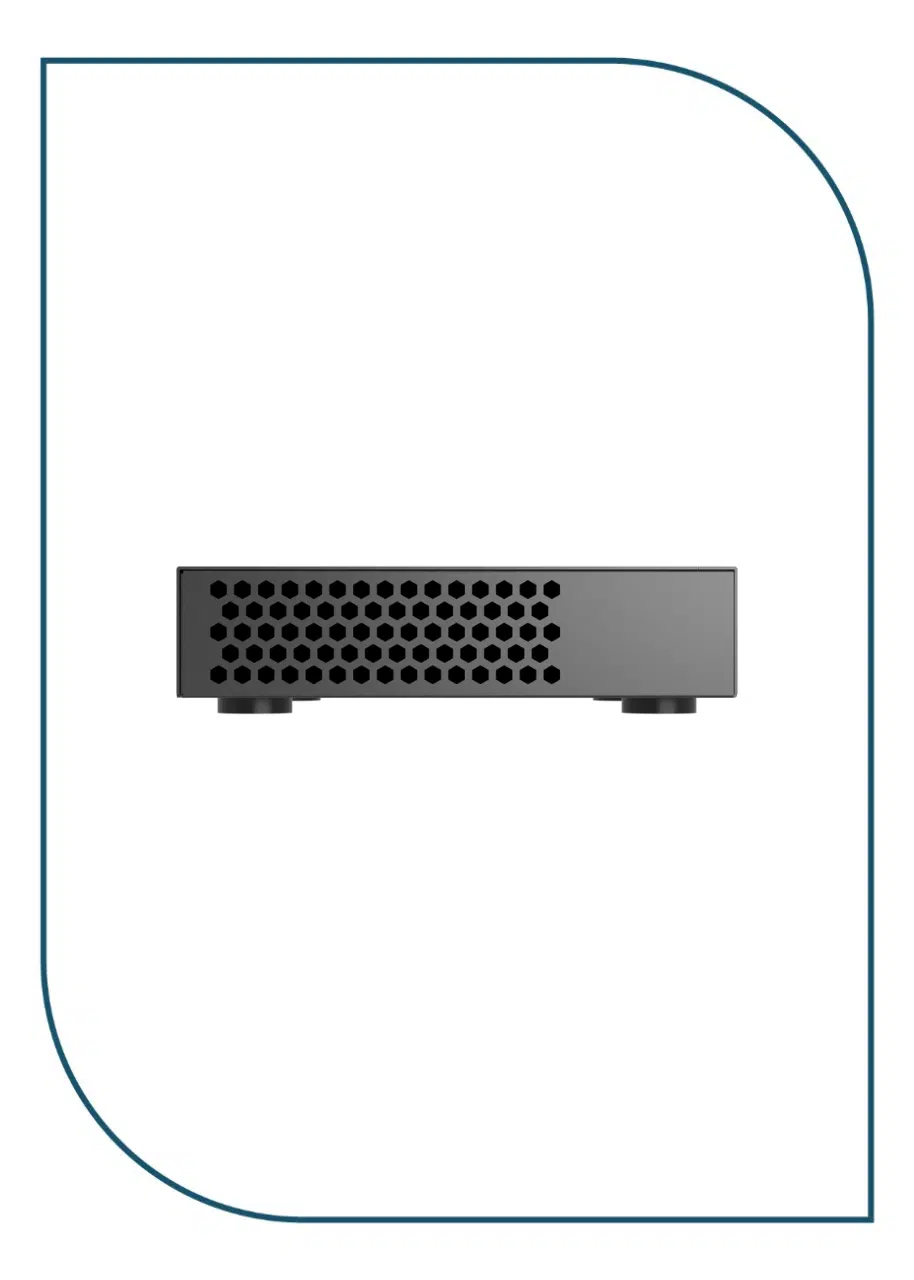

QSW-3205-5T
Key Features :
-
5 × 10GBASE-T RJ45 ports
-
Unmanaged plug-and-play switch
-
Supports ultra-high-speed 10GbE connections
-
Ideal for NAS, servers, and workstations
-
Silent fanless operation
-
Compact and durable metal design
Hardware specs :
| Management Type | Unmanaged |
| Number of Ports | 5 |
| 10GbE BASE-T (RJ45) | 5
10G/5G/2.5G/1G/100M
|
| Power Supply Description | Adapter |
| Max. Power Consumption | 36W |
| Input Power Type | DC |
| Input Voltage Range | 12V/3A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 50Gbps |
| Switching Capacity | 100Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3az EEE IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status/Loop |
