Description
QSW-M2108-2S
Key Features
-
8 × 2.5GbE RJ45 ports
-
2 × 10GbE SFP+ uplink ports
-
Layer 2 web-managed switch
-
User-friendly QNAP web management interface
-
Supports VLAN, QoS, and link aggregation
-
Fanless and energy-efficient design

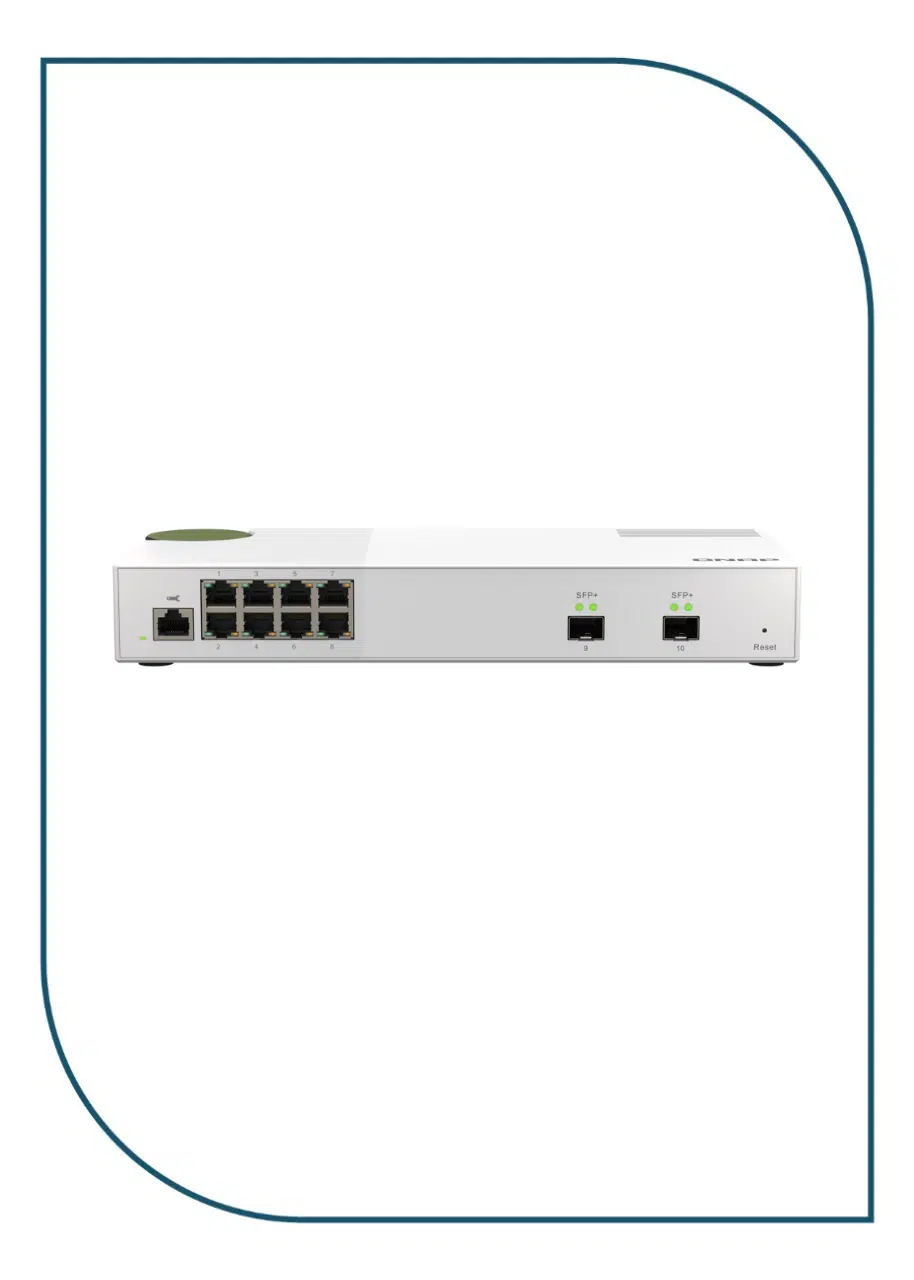

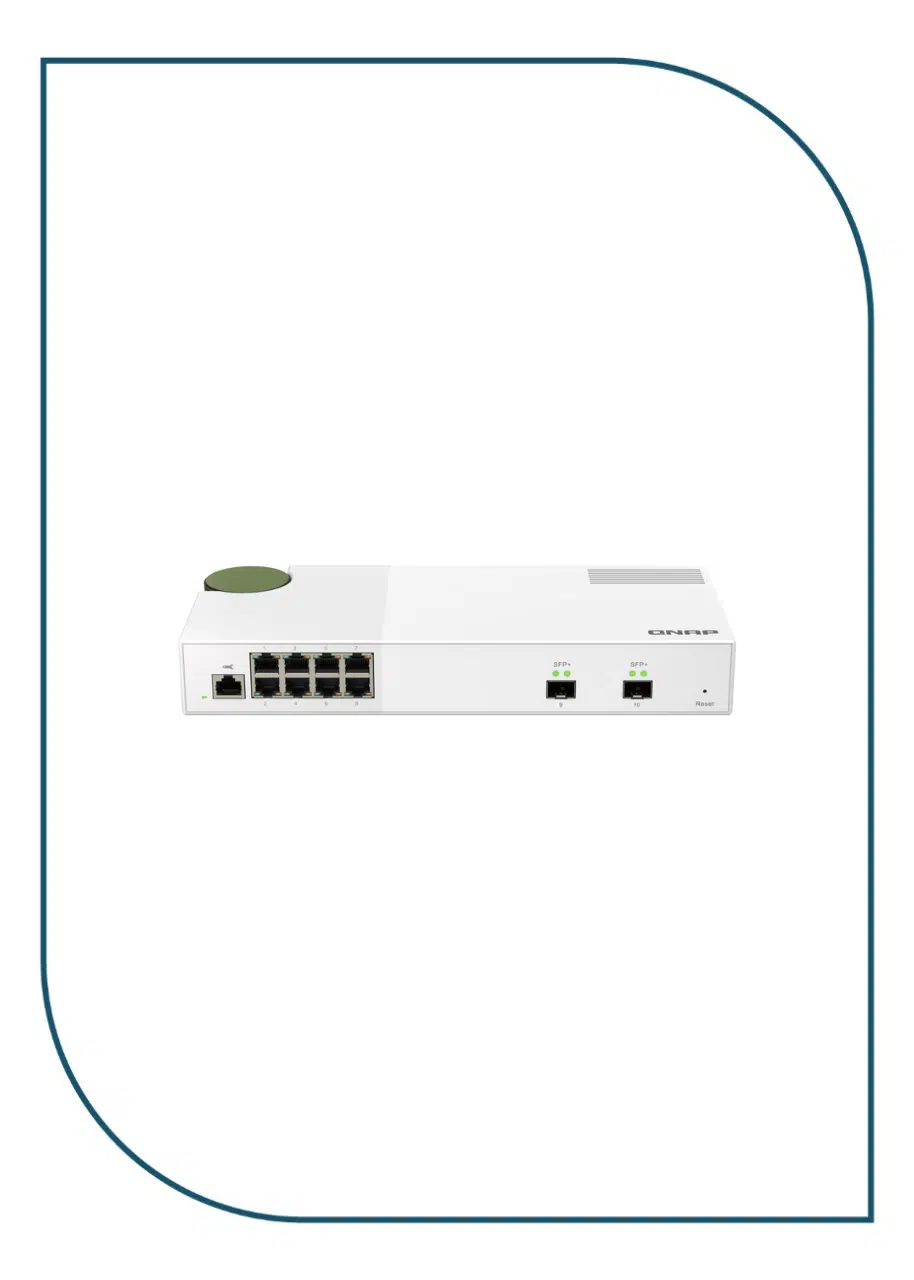

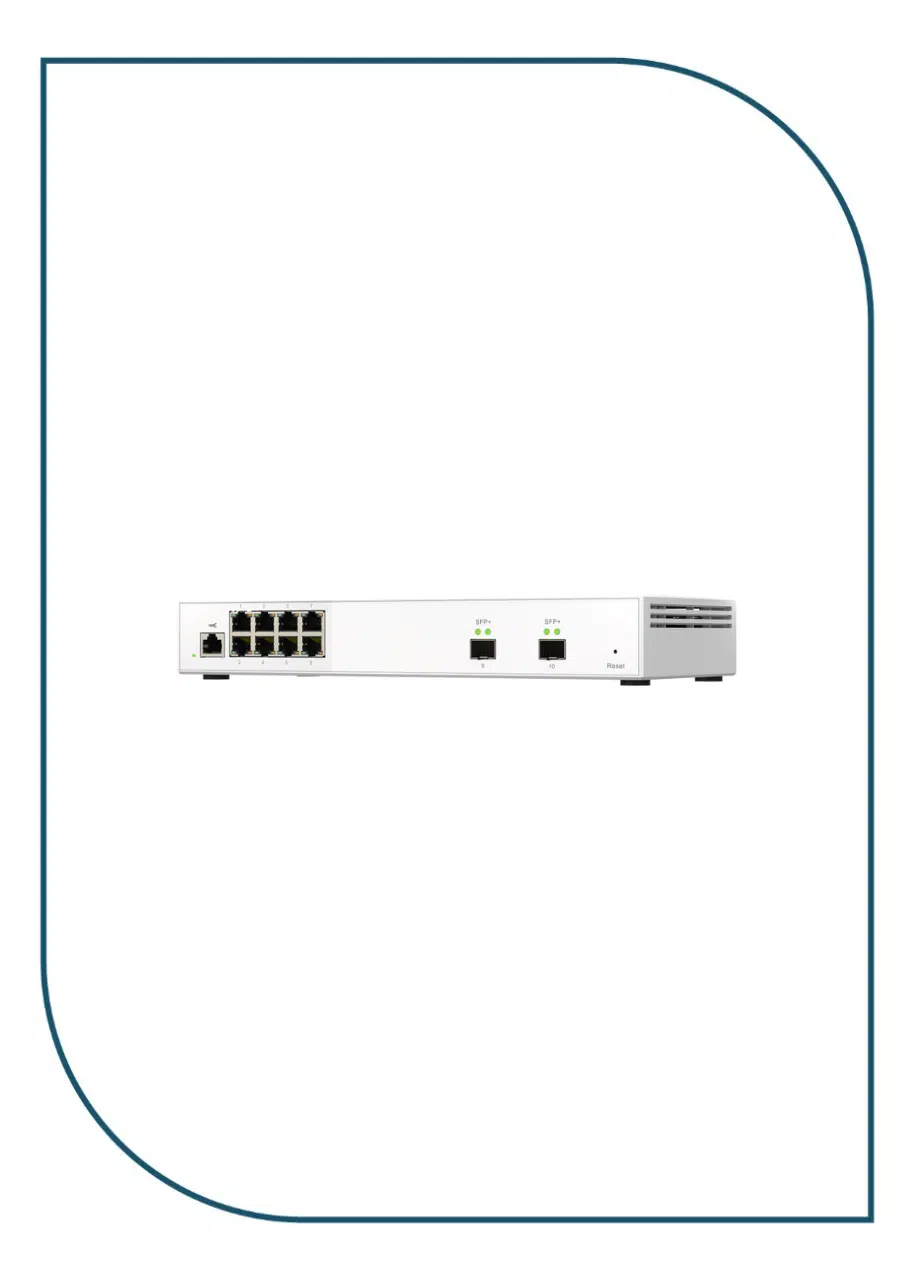

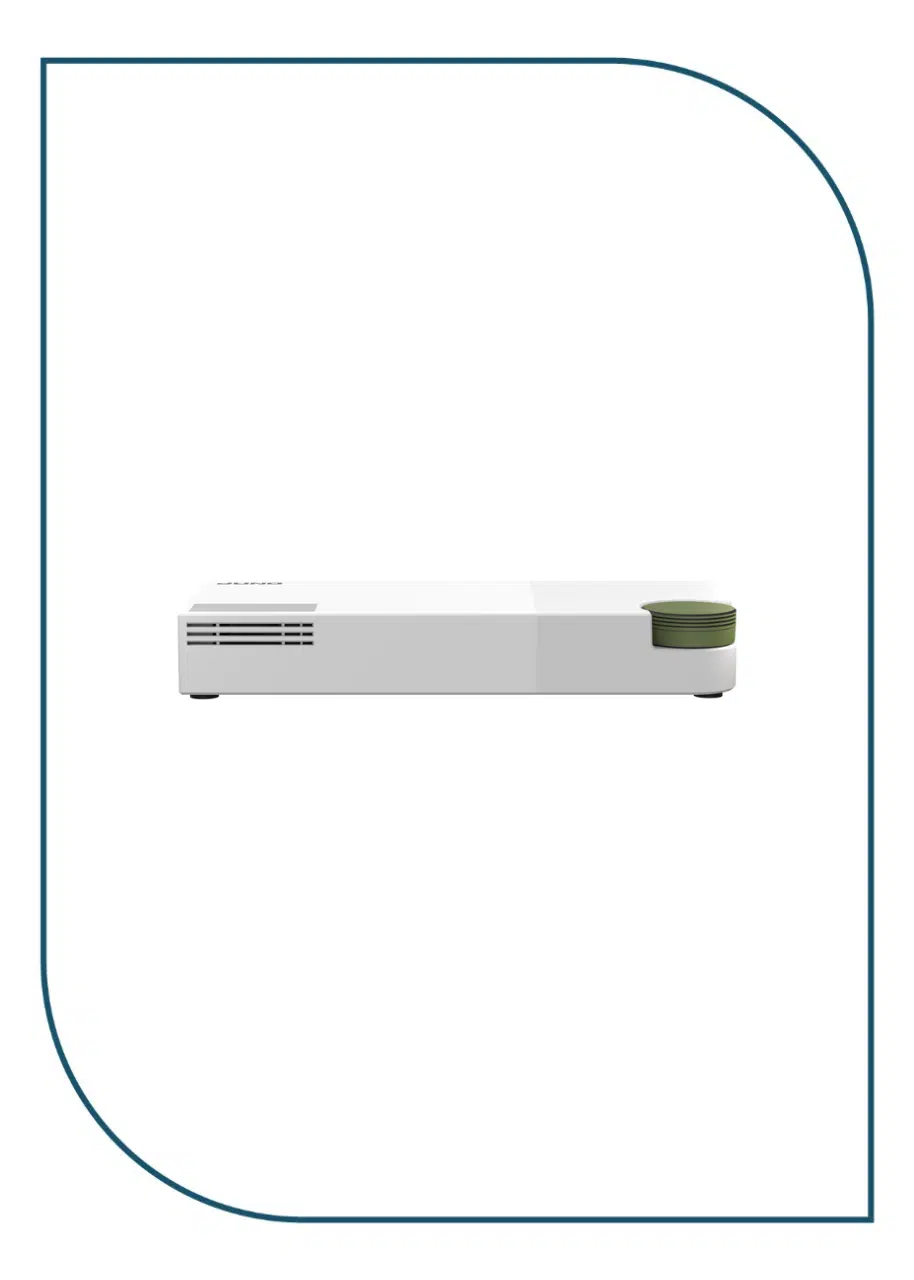

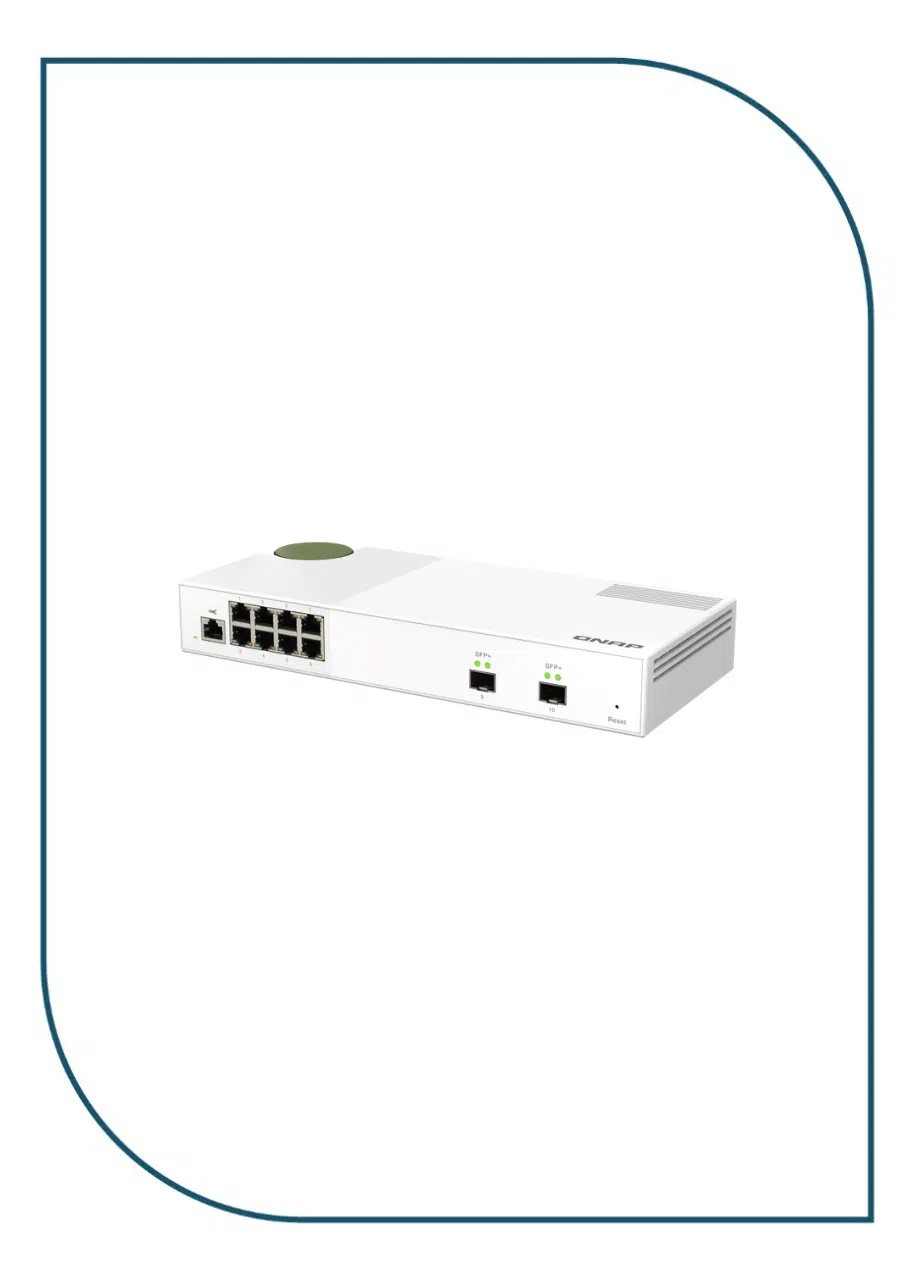

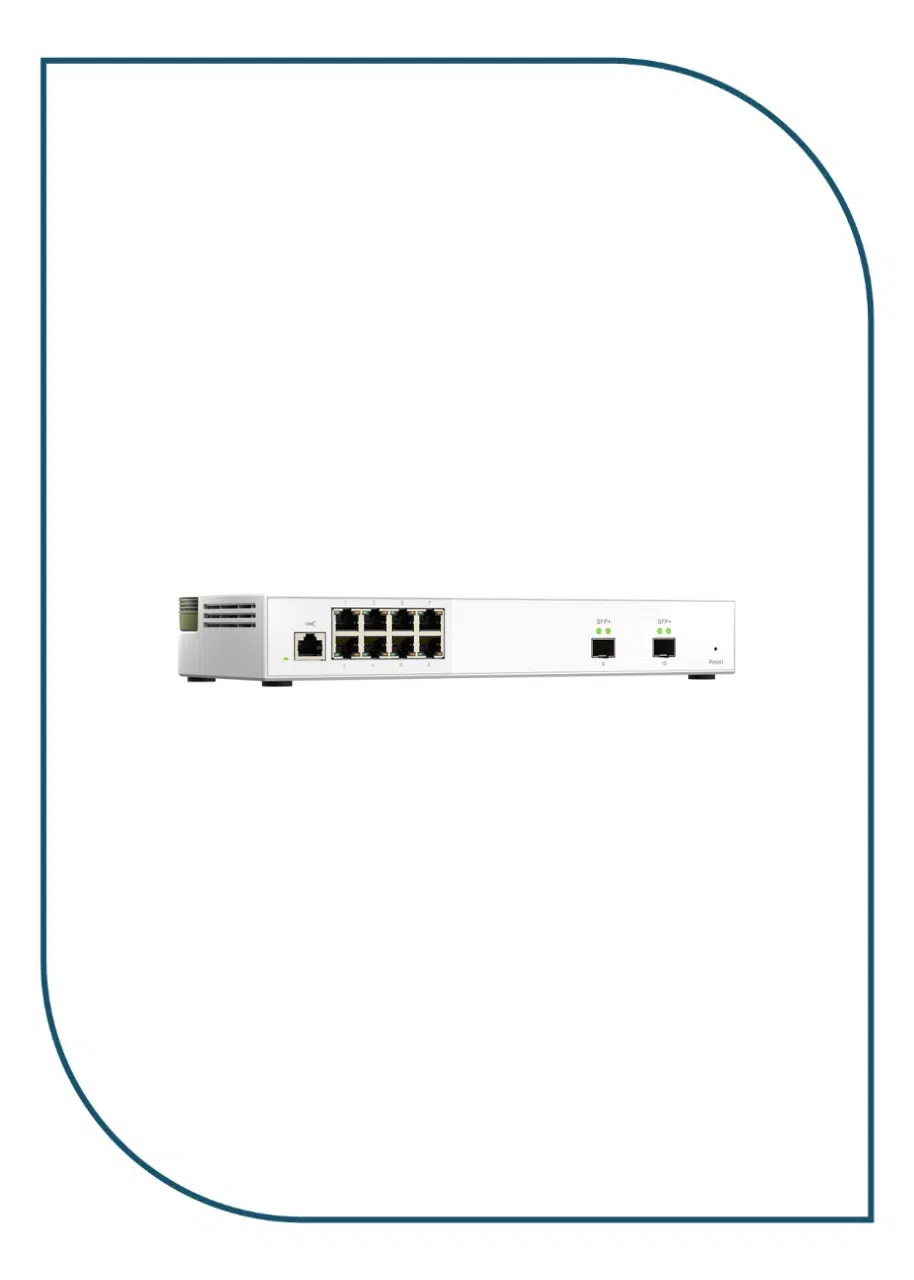

The QSW-M2108-2S is a Layer 2 Web Managed Switch with two 10GbE SFP+ ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108-2S offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With high performance, user-friendly management, and desktop form factor, the QSW-M2108-2S enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance. The QSW-M2108-2S is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Hardware specs
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+ | 2 |
| 2.5GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 23W |
| Input Power Type | DC |
| Input Voltage Range | 12V |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 40Gbps |
| Switching Capacity | 80Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Fan | PWM double ball bearing fan x 1 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
