Description

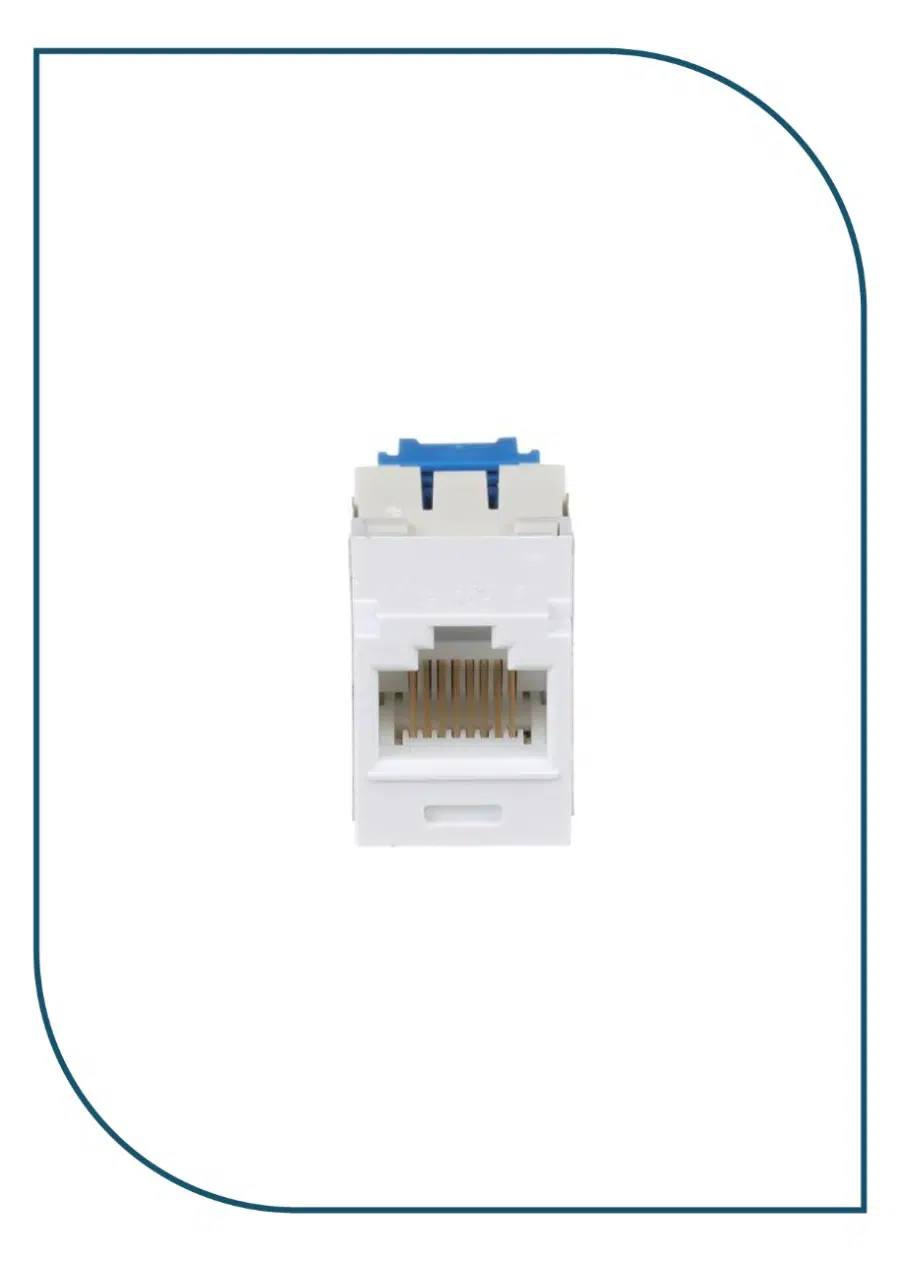

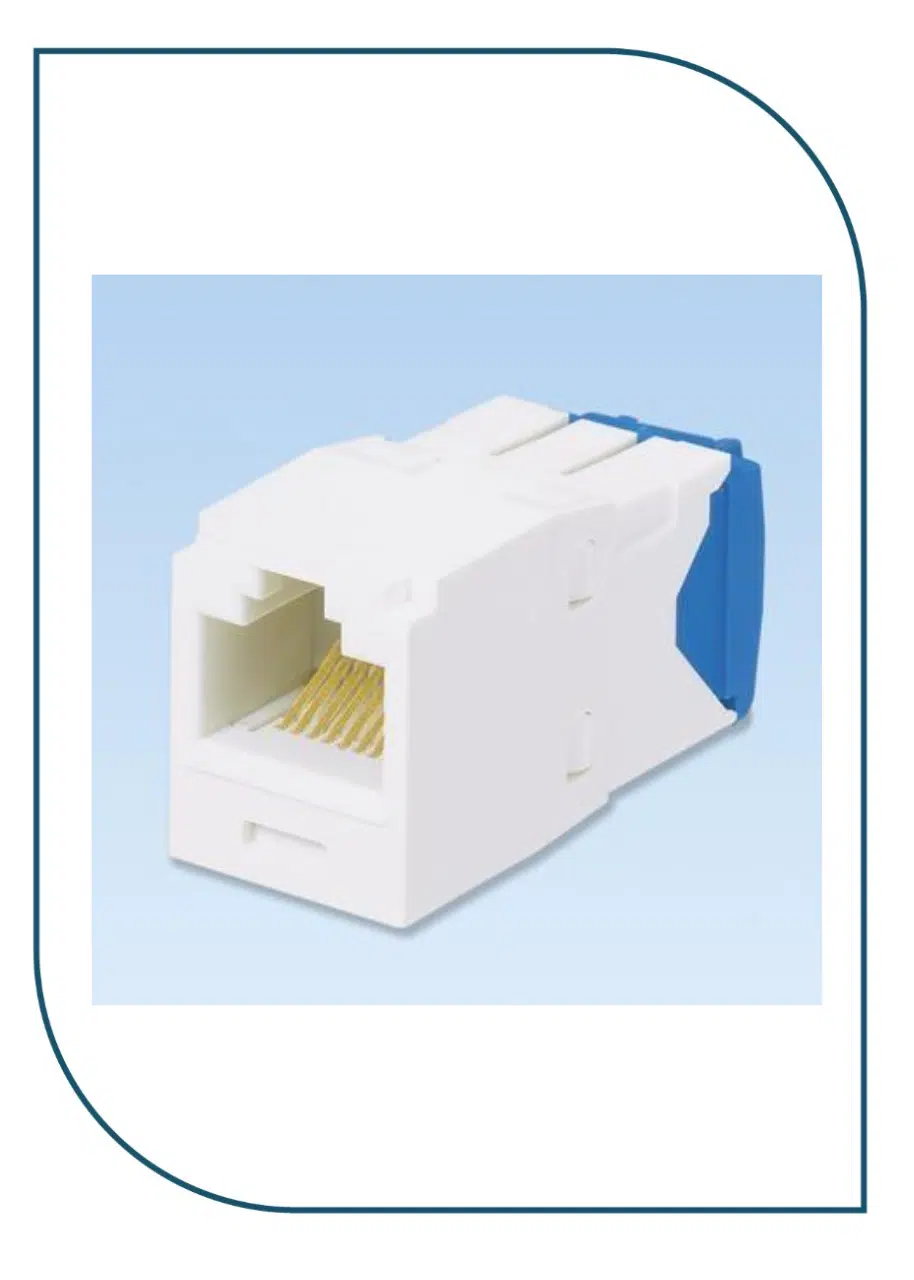

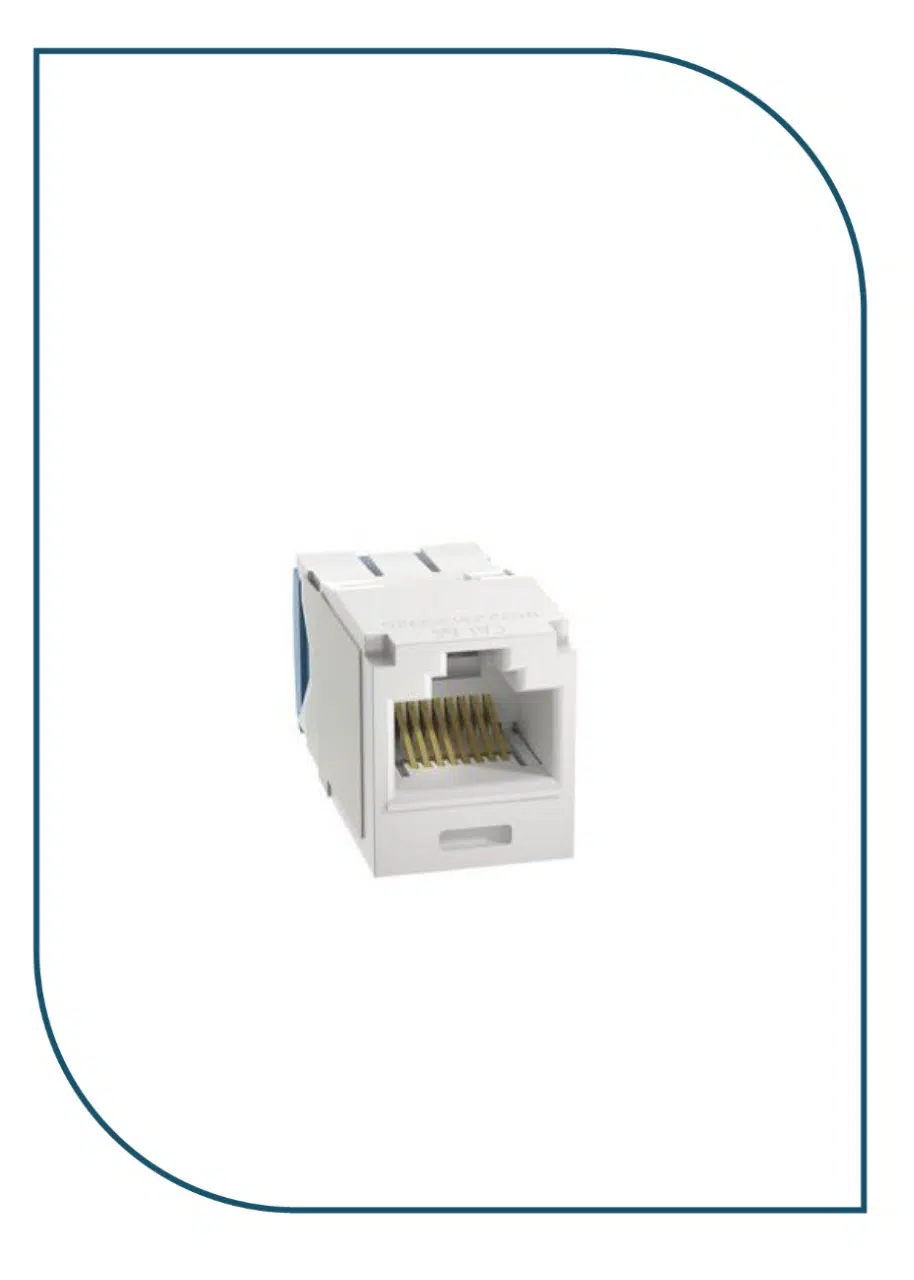

The Panduit CJ6X88TGAW Pan-Net / Mini-Com® TX6A™ Category 6A UTP Jack Module is a high-performance RJ45 keystone-style module designed for professional structured cabling systems and 10 Gigabit Ethernet networks. It is built for unshielded Cat6A copper applications and supports termination of 4-pair 22–26 AWG twisted pair cable.
This module uses TG style termination, which simplifies installation and helps reduce installation time compared with traditional punchdown methods. It is also 100% factory tested to exceed Cat6A performance requirements, and each jack is individually serialized for traceability. The module is compatible with Panduit Mini-Com® modular patch panels and faceplates, making it suitable for enterprise LANs, office network outlets, and data infrastructure projects.
Finished in Arctic White, the CJ6X88TGAW combines reliable electrical performance, clean installation, and compatibility with Panduit copper cabling systems, making it a strong choice for high-speed structured cabling deployments.
| Specification | Details |
|---|---|
| Manufacturer | Panduit |
| Part Number | CJ6X88TGAW |
| Brand / Series | Pan-Net® / Mini-Com® TX6A™ |
| Product Type | RJ45 Jack Module / Keystone Module |
| Category | Category 6A |
| Shield Type | UTP / Unshielded |
| Connector Type | RJ45, 8-position 8-wire (8P8C) |
| Module Type | Mini-Com® Jack Module |
| Termination Style | TG Style (Tool-less style) |
| Wiring Scheme | T568A / T568B |
| Cable Compatibility | 22–26 AWG twisted pair cable |
| Mounting | Compatible with Mini-Com® patch panels and faceplates |
| Contact Material | Plated phosphor bronze |
| Housing Material | Polycarbonate / ABS-Polycarbonate |
| Color | Arctic White |
| Operating Temperature | -10°C to +75°C |
| Standards / Performance | Exceeds ANSI/TIA-568 Category 6A and ISO/IEC 11801 Class EA channel requirements |
| Ethernet Support | 10GBASE-T |
| Applications | Structured cabling, LAN outlets, patch panels, enterprise networks, data rooms |
