Description

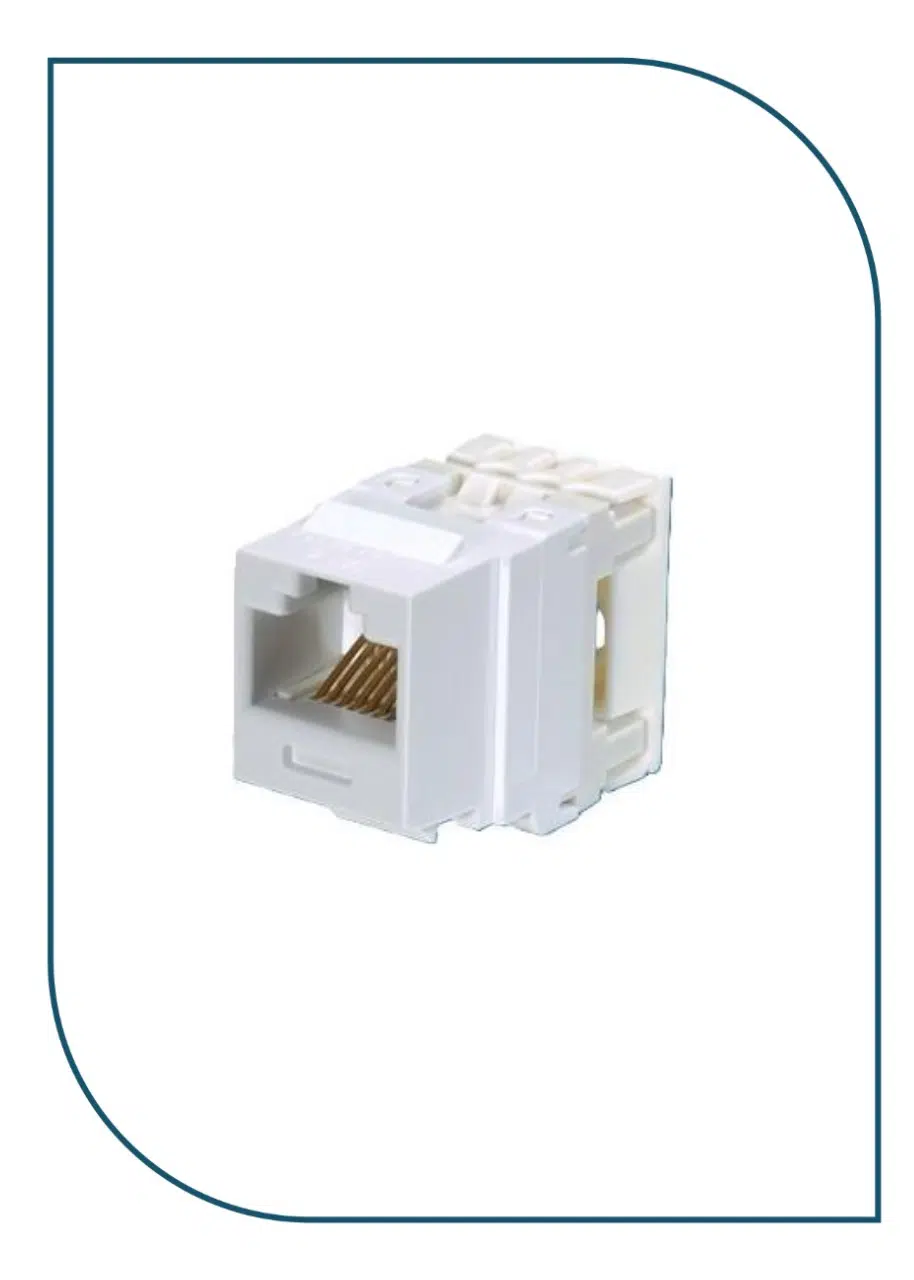

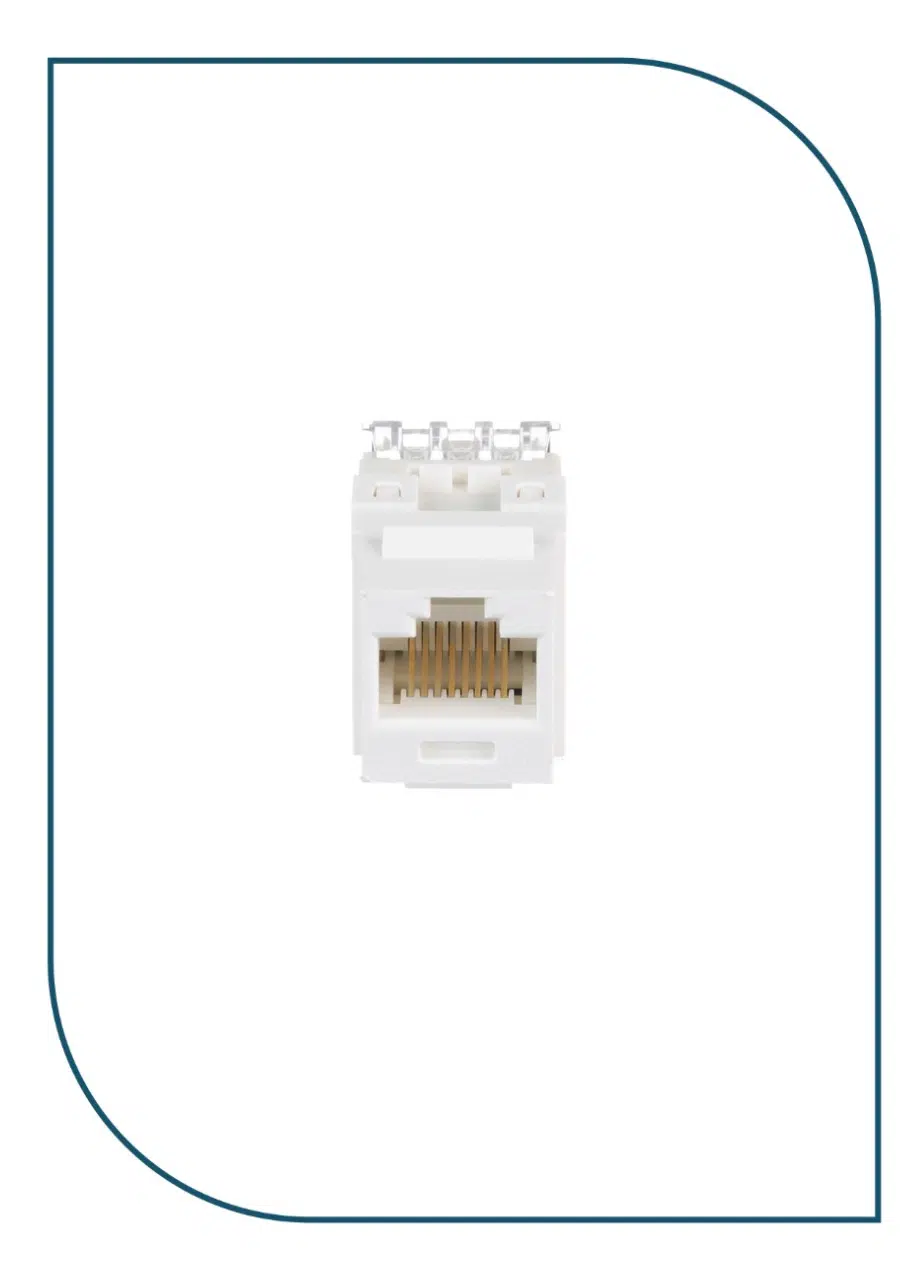

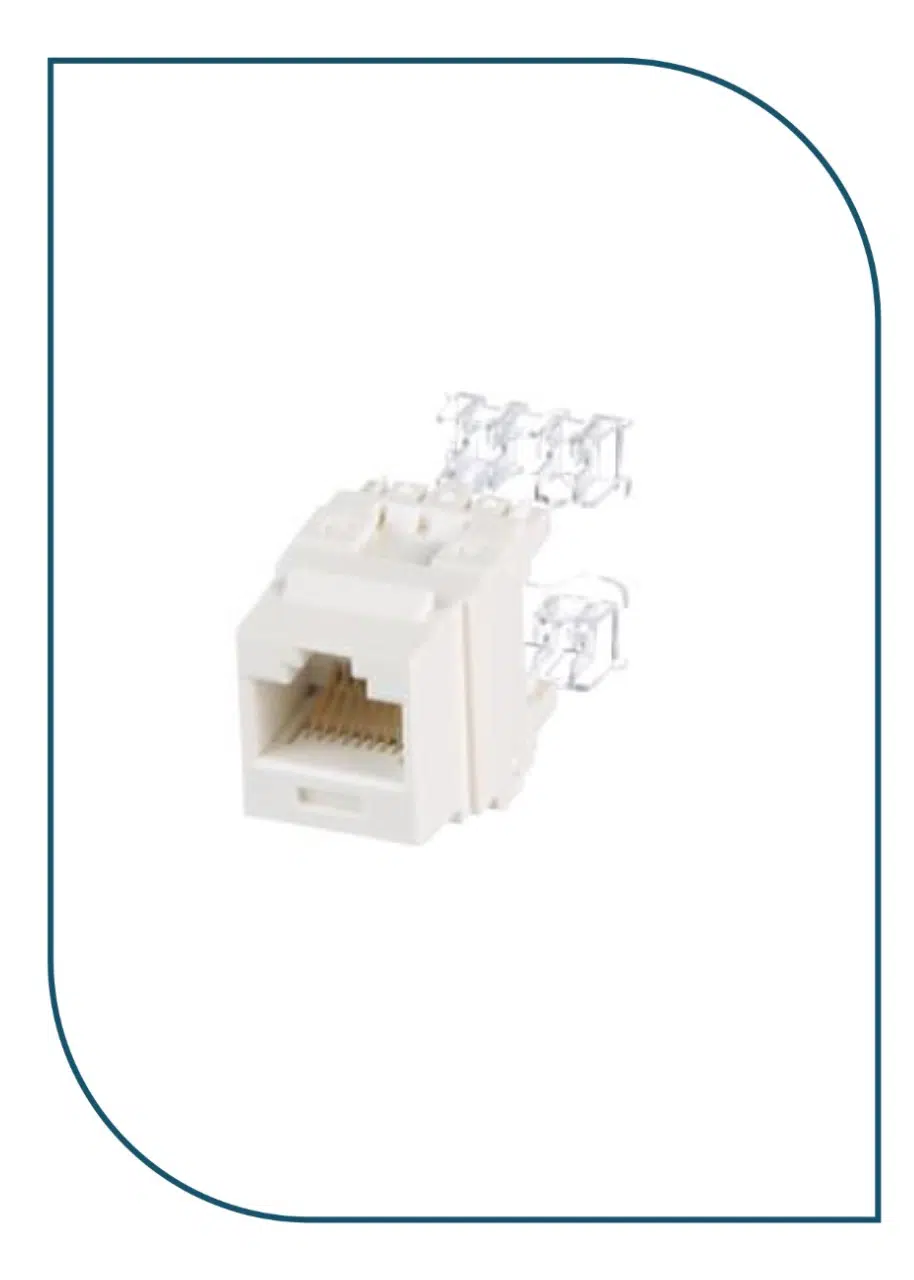

The Panduit NK688MWH NetKey® Category 6 Keystone Jack Module is a high-performance RJ45 punchdown connector engineered for professional structured cabling systems. Designed for reliable Gigabit Ethernet connectivity, each jack features an 8-position, 8-wire (8P8C) configuration with 110 IDC punchdown termination supporting both T568A and T568B wiring standards.
Manufactured from durable ABS/polycarbonate housing with premium gold-plated contacts, the module provides excellent electrical performance and long-term reliability. Its snap-in keystone design allows quick installation into compatible NetKey® faceplates, patch panels, and surface-mount boxes while simplifying future moves, adds, and changes.
Each module is 100% factory performance tested and individually serialized for traceability. Supporting Gigabit Ethernet, PoE, PoE+, and PoE++ applications, the NK688MWH is ideal for offices, enterprise networks, educational institutions, healthcare facilities, telecommunications rooms, and data centers. The NK688MWH-Q convenience package includes 25 white keystone jack modules, making it suitable for large structured cabling projects.
| Specification | Details |
|---|---|
| Model | NK688MWH |
| Bulk Pack Model | NK688MWH-Q (25 Pieces) |
| Brand | Panduit |
| Product Series | NetKey® |
| Product Type | Keystone Punchdown Jack Module |
| Category | Category 6 (Cat6) |
| Connector Type | RJ45 Female (8P8C) |
| Termination Type | 110 Punchdown IDC |

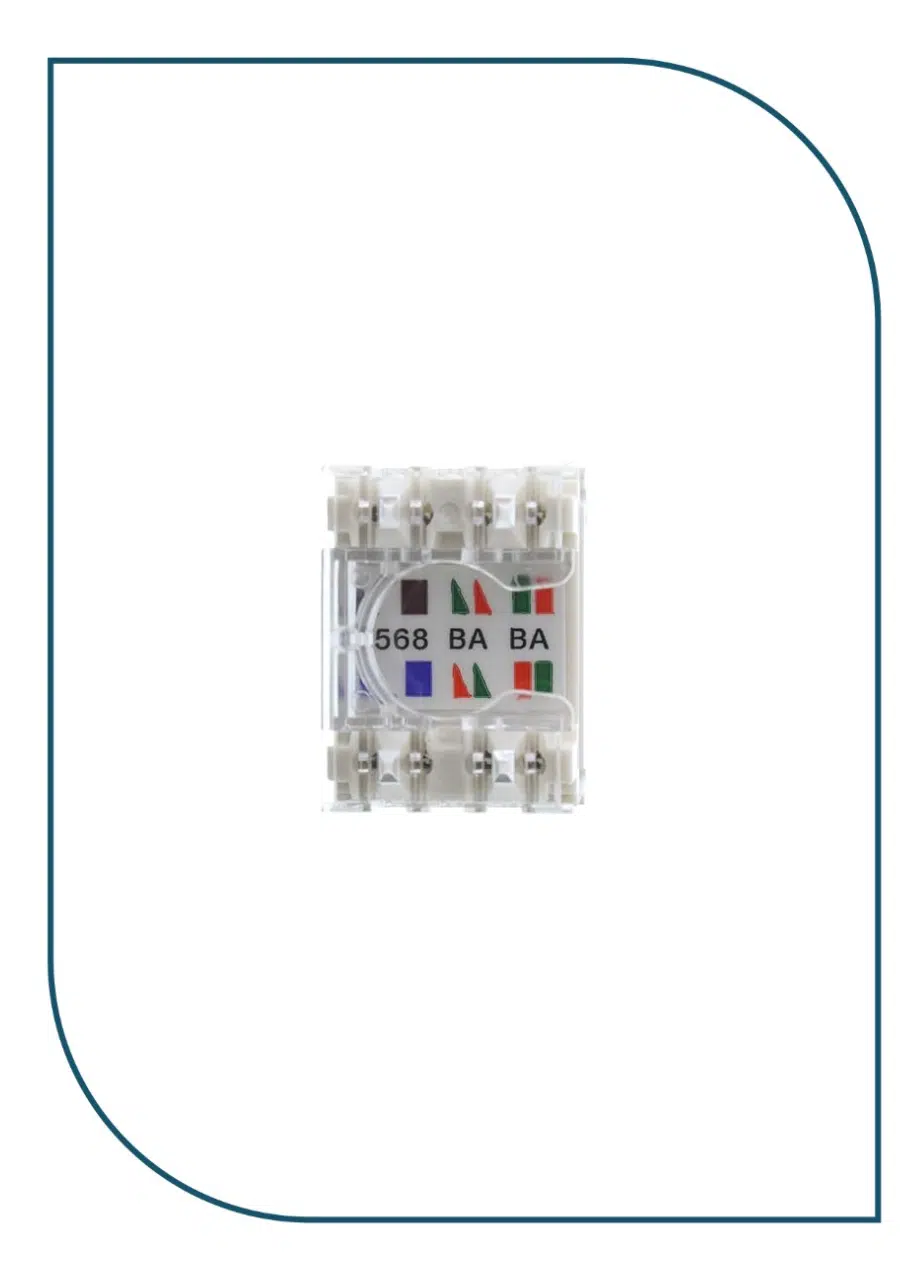

| Wiring Schemes | T568A & T568B |
| Shielding | UTP (Unshielded) |
| Conductor Compatibility | 22–26 AWG Solid or Stranded Copper |
| Contact Material | Gold-Plated Contacts |
| Housing Material | High-Impact ABS / Polycarbonate |
| Color | White |
| Mounting Style | Keystone Snap-In |
| Performance | Up to 250 MHz |
| Ethernet Support | 10/100/1000BASE-T Gigabit Ethernet |
| PoE Support | IEEE 802.3af, IEEE 802.3at & IEEE 802.3bt |
| Standards Compliance | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801 Class E |
| Package Quantity | 25 Keystone Jack Modules |
| Applications | Faceplates, Patch Panels, Work Area Outlets, Enterprise LANs, Structured Cabling |
