Description

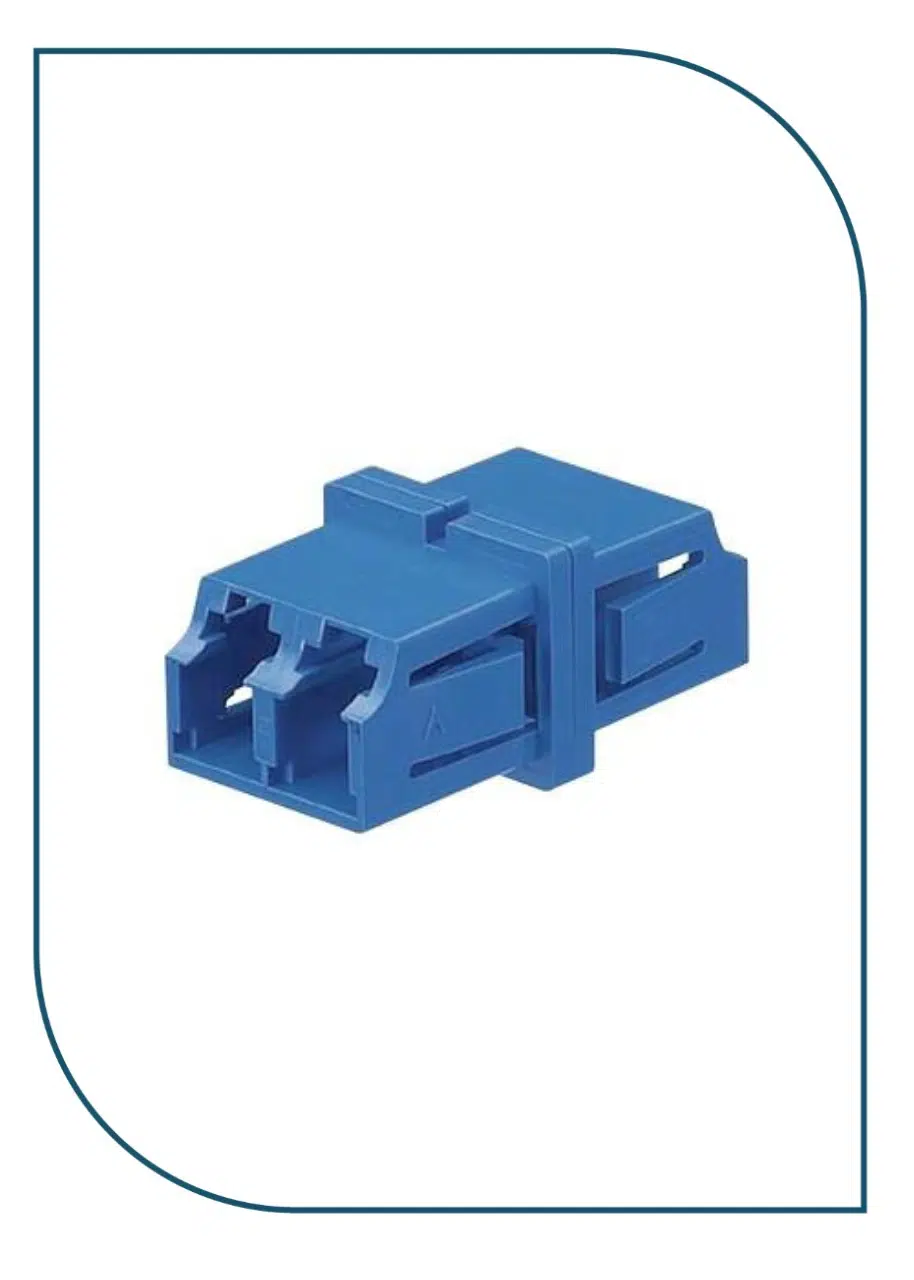

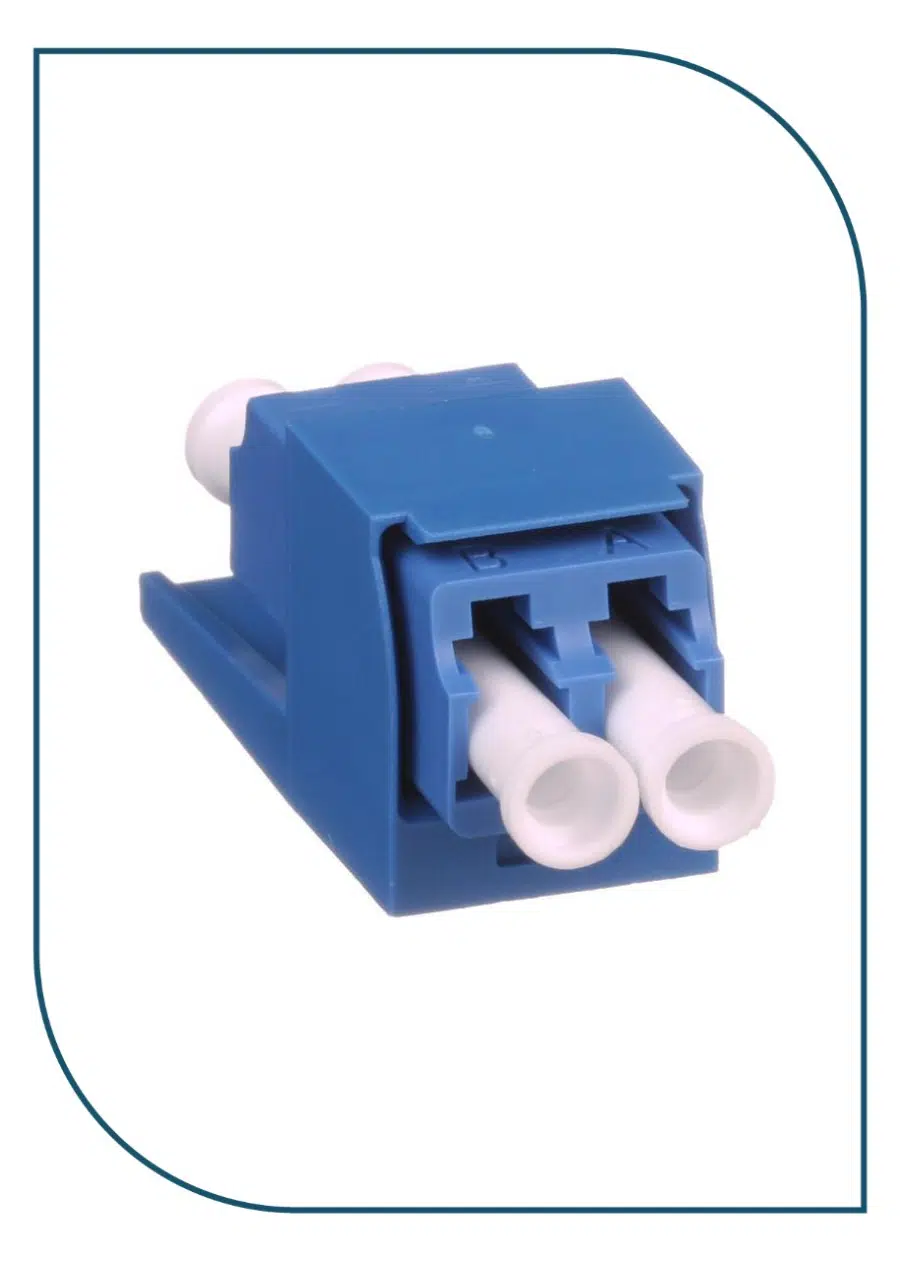

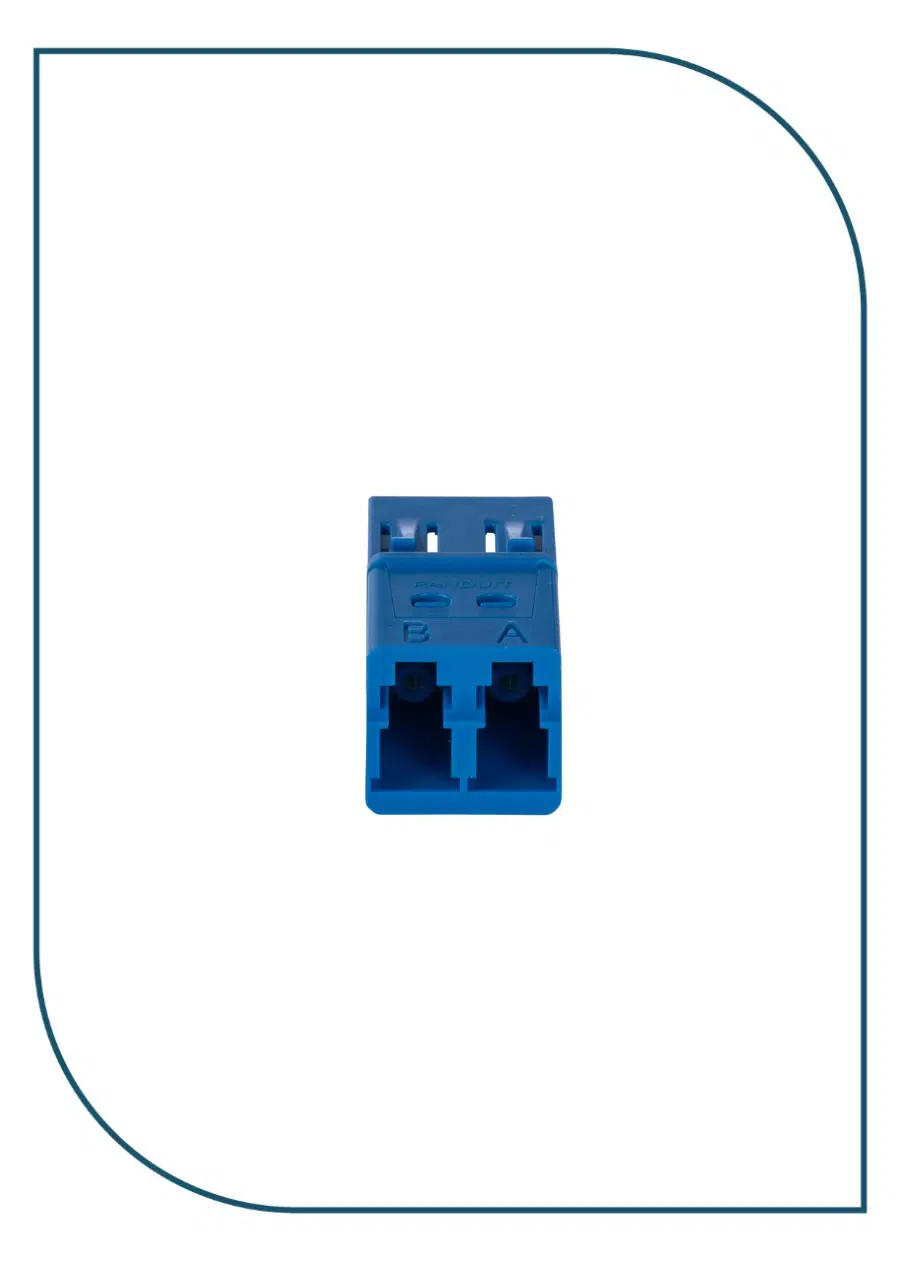

The Panduit CMDSLCZBU Mini-Com® Duplex LC Fiber Adapter Module is a compact singlemode fiber connectivity module designed for structured cabling, telecom rooms, and data center fiber installations. It uses a duplex LC to LC adapter in a Mini-Com® snap-in module format, allowing it to fit directly into compatible Panduit faceplates, patch panels, and surface mount boxes.
This model is intended for OS1/OS2 singlemode fiber applications and includes zirconia ceramic split sleeves, which are the preferred sleeve material for singlemode fiber because they provide precise ferrule alignment and low insertion loss. The module features a blue LC duplex adapter with a blue Mini-Com® module body, following common singlemode color identification practices.
The CMDSLCZBU is built to meet TIA/EIA-604 FOCIS-10 requirements and exceeds TIA/EIA-568-B.3 performance expectations. It offers an average 0.1 dB insertion loss, making it suitable for enterprise LANs, fiber backbone links, FTTH environments, and other high-performance optical network applications.
| Specification | Details |
|---|---|
| Manufacturer | Panduit |
| Part Number | CMDSLCZBU |
| Product Series | Mini-Com® |
| Product Type | Fiber Adapter Module |
| Adapter Type | Duplex LC Fiber Adapter |
| Fiber Mode | Singlemode (OS1 / OS2, 9/125µm) |
| Connector Type | LC Duplex to LC Duplex |
| Sleeve Material | Zirconia Ceramic Split Sleeve |
| Module Color | Blue |
| Adapter Color | Blue |
| Mounting Type | Snap-In / Panel Mount |
| Form Factor | Small Form Factor (SFF) Duplex Adapter Module |
| Compatible Systems | Panduit Mini-Com® Faceplates, Patch Panels, Surface Mount Boxes |
| Insertion Loss | 0.1 dB average |
| Return Loss Support | Supports singlemode performance requirements |
| Standards | TIA/EIA-604 FOCIS-10, exceeds TIA/EIA-568-B.3 |
| Operating Temperature | 0°C to +60°C |
| Compliance | RoHS Compliant |
| Applications | Fiber LAN, Data Centers, Telecom Rooms, FTTH, Backbone & Structured Cabling |
