Description
IPC2322LB-ADZK-G

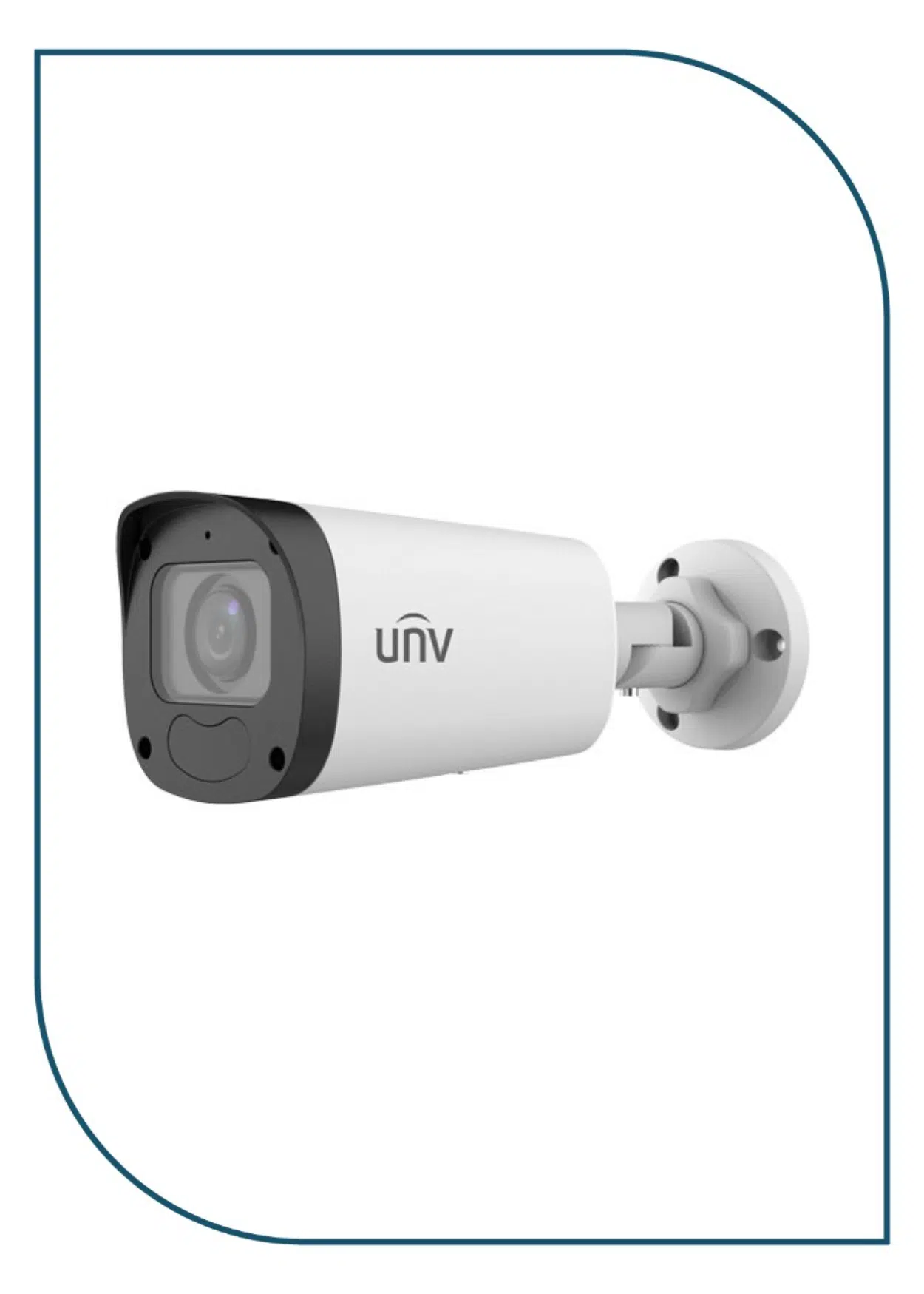

The Uniview IPC2322LB-ADZK-G is a 2-megapixel HD infrared (IR) bullet network camera designed for high-quality surveillance in various lighting conditions. Below are its key specifications:
Camera Specifications:
- Image Sensor: 1/2.7″ progressive scan CMOS sensor
- Resolution and Frame Rate:
- 2MP (1920×1080) at up to 30 frames per second (fps)
- 720P (1280×720) at up to 30 fps
- Lens: 2.8–12mm motorized zoom lens with autofocus
- Field of View (FOV):
- Horizontal: Approximately 108.05° to 32.59°
- Vertical: Approximately 56.81° to 18.36°
- Diagonal: Approximately 111.91° to 36.53°
- Day/Night Functionality: IR-cut filter with auto switch (ICR)
- Minimum Illumination:
- Color: 0.005 lux (F1.6, AGC ON)
- 0 lux with IR on
- IR Range: Up to 50 meters (164 feet)
- Wide Dynamic Range (WDR): 120dB true WDR
- Digital Noise Reduction (DNR): 2D/3D DNR
Video Compression:
- Formats Supported: Ultra 265, H.265, H.264, MJPEG
- H.264 Profiles: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 1080P (1920×1080) at up to 30 fps
- Sub Stream: 720P (1280×720) at up to 30 fps
Audio:
- Built-in Microphone: Yes
- Audio Compression: G.711
Network:
- Interface: 1 × RJ45 10M/100M Ethernet
- Protocols Supported: ONVIF
Storage:
- Edge Storage: Supports Micro SD cards up to 128 GB
Physical and Environmental:
- Power Supply:
- Options: DC 12V (±25%) or PoE (IEEE 802.3af)
- Power Consumption: Maximum 8.5W
- Ingress Protection Rating: IP67, indicating high resistance to dust and water
- Vandal Resistance: IK10
- Operating Environment: Temperature range from -30°C to 60°C (-22°F to 140°F); humidity up to 95% RH (non-condensing)
- Dimensions: Approximately 206 mm × 74 mm × 74 mm (8.1″ × 2.9″ × 2.9″)
- Weight: Approximately 0.54 kg (1.19 lb)
This camera is suitable for various surveillance applications, offering robust features for both day and night monitoring.
