Description

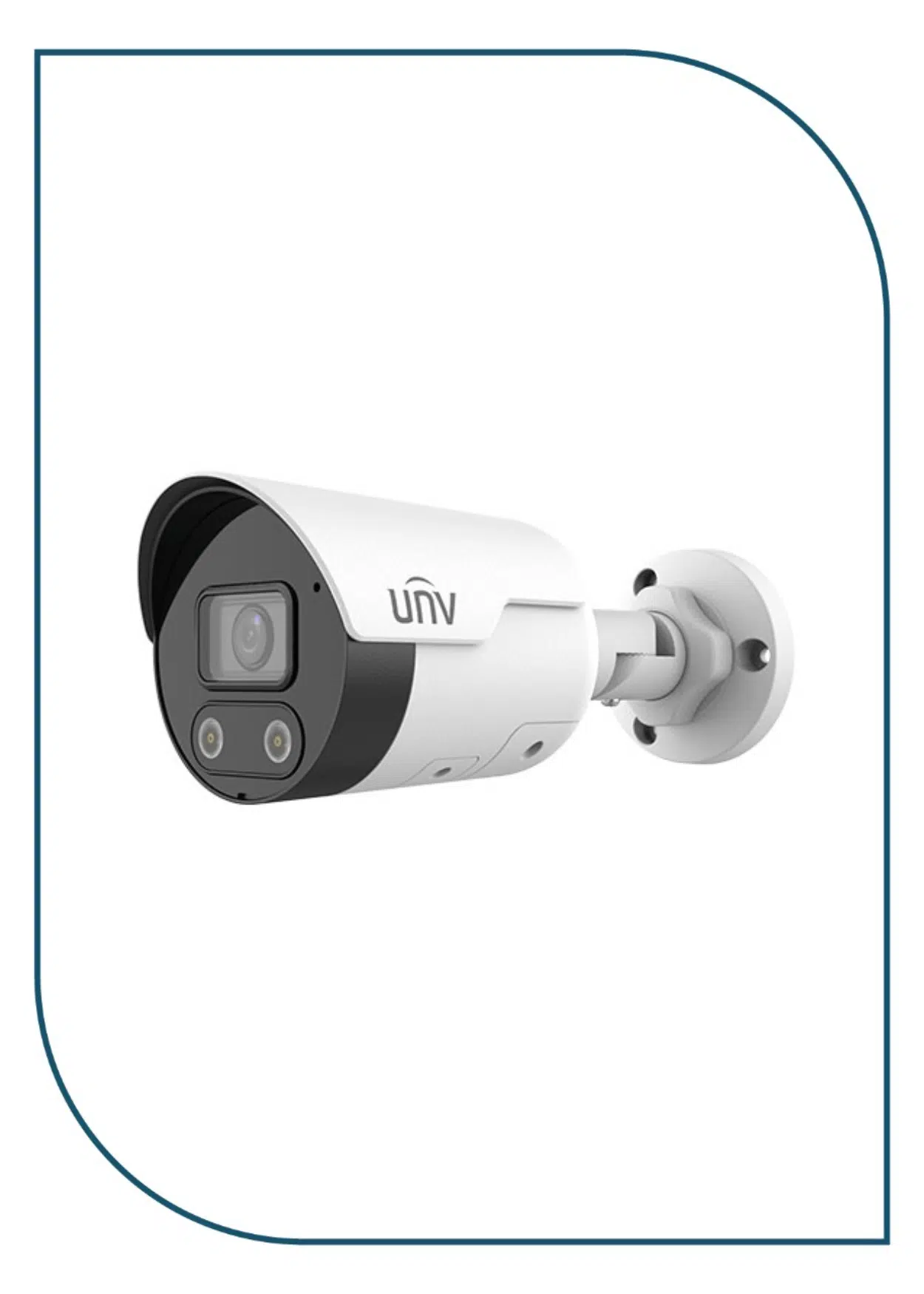

The IPC2122LE-ADF40KMC-WL is a 2-megapixel (2MP) ColorHunter Fixed Bullet Network Camera from Uniview, designed to deliver high-quality, full-color images even in low-light conditions. Below is a detailed overview of its
Camera Specifications:
- Image Sensor: 1/2.8″ 2.0 megapixel progressive scan CMOS
- Minimum Illumination: Color: 0.003 lux (F1.6, AGC ON); 0 lux with light
- Shutter Speed: Auto/Manual, 1 to 1/100,000 seconds
- Adjustment Angles:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
- Wide Dynamic Range (WDR): 120dB true WDR technology enables clear images in strong light scenes
- Signal-to-Noise Ratio (S/N): Greater than 52dB
Lens:
- Lens Type: 4.0mm fixed lens at F1.6 aperture
- Field of View (FOV):
- Horizontal (H): 87.5°
- Vertical (V): 46.3°
- Diagonal (D): 92.4°
Illumination:
- Supplemental Light: Smart IR and white light
- Illumination Distance: Up to 30 meters (98 feet)
- Light Control: Auto/Manual
Video:
- Compression Formats: Ultra 265, H.265, H.264, MJPEG
- Frame Rates:
- Main Stream: 2MP (1920×1080) at 30/25fps; 720P (1280×720) at 30/25fps
- Bit Rate: 128 Kbps to 6144 Kbps
- Region of Interest (ROI): Up to 8 areas
- On-Screen Display (OSD): Up to 4 OSDs
- Privacy Masking: Up to 4 areas
Image Enhancements:
- White Balance Modes: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- High Light Compensation (HLC): Supported
- Backlight Compensation (BLC): Supported
- Defog: Digital Defog
- Image Flip: Normal, Flip Vertical, Flip Horizontal, 180°
Audio:
- Built-in Microphone and Speaker: Yes, supports two-way audio communication and active deterrent
- Audio Compression: G.711U, G.711A
- Bit Rate: 64 Kbps
- Sampling Rate: 8 kHz
Storage:
- Edge Storage: Micro SD card slot, supporting up to 128 GB
Network:
- Protocols Supported: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
- Integration Compatibility: ONVIF (Profile S, Profile T, Profile G), API, SDK
- User Access: Supports up to 32 users with 2 user levels: administrator and common user
- Security Features: Password protection, strong password enforcement, HTTPS encryption, exportable operation logs, basic and digest authentication for RTSP and HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Interface:
- Network Interface: 1 × RJ45 10M/100M Base-TX Ethernet
Physical and Environmental:
- Power Supply:
- Options: DC 12V (±25%) or PoE (IEEE 802.3af)
- Power Consumption: Maximum 5W
- Dimensions: 191 mm × 75 mm × 74 mm (7.5” × 3.0” × 2.9”)
- Weight: Approximately 0.41 kg (0.90 lb)
- Material: Combination of metal and plastic
- Operating Environment: Temperature range from -30°C to 60°C (-22°F to 140°F); humidity up to 95% RH (non-condensing)
- Storage Environment: Temperature range from -30°C to 60°C (-22°F to 140°F); humidity up to 95% RH (non-condensing)
- Surge Protection: 4KV
- Ingress Protection Rating: IP67, indicating high resistance to dust and water
