USG6000E-S03
Overview
| Description | Part Number | Model | First supported version |
|---|---|---|---|
| USG6000E-S03-AC Host(10*GE RJ45+2*10GE SFP+,1*Adapter,Include SSL VPN 100 Users) | 02355YXH | USG6000E-S03-AC | V600R007C20SPC605 |
Appearance
Components
|
1. Indicator area |
2. Product model ID |
3. Protective ground terminal |
4. Fixed interface area |
5. MAC label |
|
6. SN label |
– |
– |
– |
– |
|
Name |
Description |
|---|---|
|
Indicator area |
Provides various indicators to display the device running status in real time. |
|
Product model ID |
Indicates the product model of the device. |
|
Protective ground terminal |
Connects the M4 OT terminal of a PGND cable to the cabinet or the ground bar in the equipment room. |
|
Fixed interface area |
|
|
MAC label |
Uniquely identifies the MAC address of the device, which is required during network forwarding configuration. |
|
SN label |
Uniquely identifies the device, which needs to be provided for the local technical support personnel to apply for a license. |

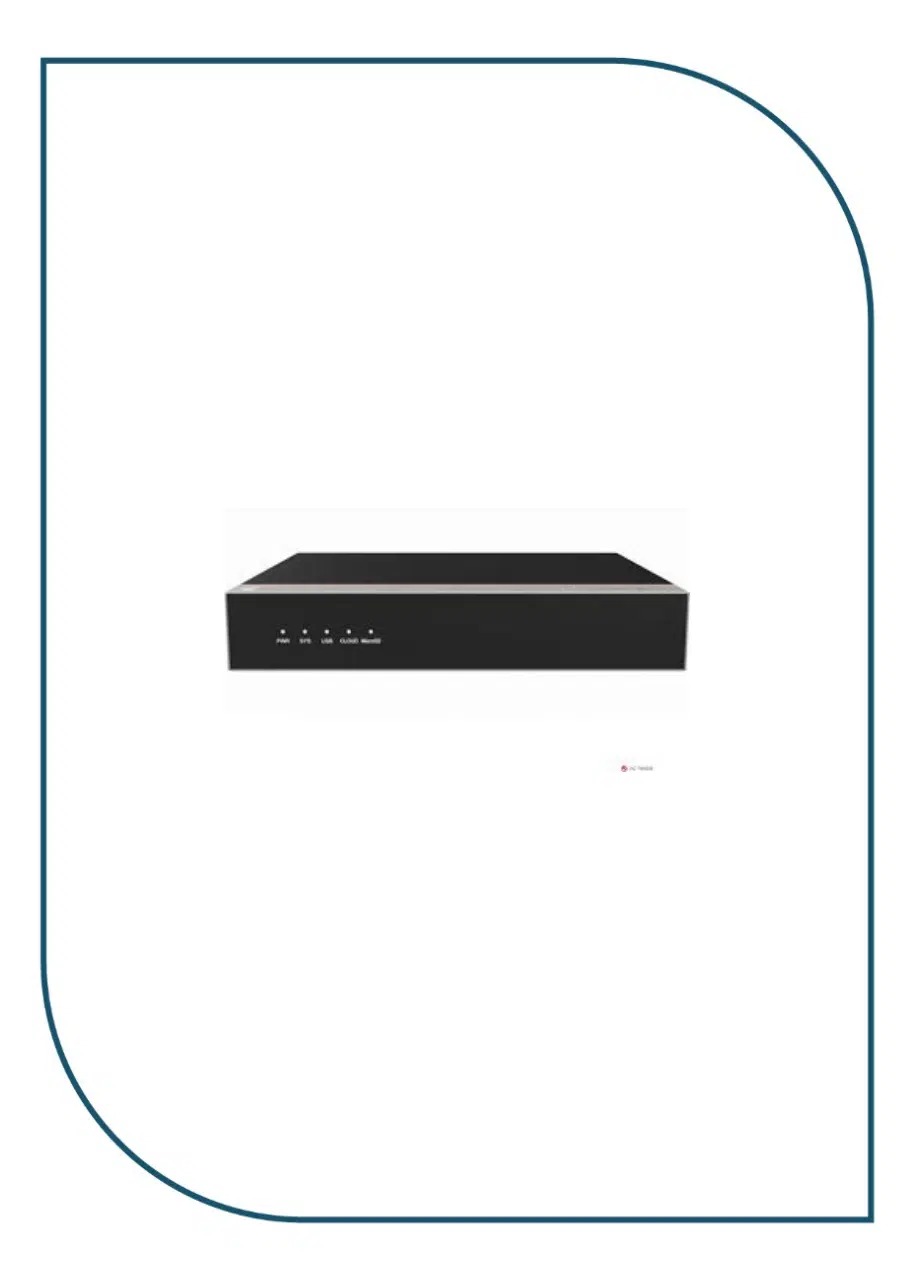

Indicators and Buttons
|
1. PWR, SYS, USB, CLOUD, and MicroSD indicators |
2. GE electrical port ACT indicator |
3. GE electrical port LINK indicator |
4. Optical port indicator |
5. RST button |
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| PWR | Power indicator | Green | Steady on | The power module is working properly. |
| – | Off | The power module is faulty or the device is not powered on. | ||
| SYS | SYS indicator | Green | Steady on | The system is being powered on or restarted. |
| Green | Blinks once every 2 seconds (0.5 Hz). | The system is running normally. | ||
| Green | Blinking four times every second (4 Hz) | The system is starting. | ||
| Red | Steady on | A system fault occurs. | ||
| – | Off | The system is not running. | ||
| USB | USB indicator | Green | Steady on | USB-based deployment has been completed. |
| Green | Blinking four times every second (4 Hz) | The system is reading data from the USB flash drive. | ||
| Red | Steady on | USB-based deployment fails. | ||
| – | Off | USB-based deployment is disabled (default state). | ||
| CLOUD | CLOUD indicator | Green | Steady on | Connected to the cloud management platform. |
| Green | Blinking four times every second (4 Hz) | Connecting to the cloud management platform, transmitting or receiving data. | ||
| – | Off | The device is not connected to the cloud management platform. | ||
| MicroSD | Micro SD indicator | Green | Steady on | The micro SD card is present. |
| – | Off | The micro SD card is not detected. | ||
| – | ACT indicator of the GE electrical port | Yellow | Blinking (12 Hz) | The port is sending or receiving data. |
| – | Off | The port is not sending or receiving data. | ||
| – | LINK indicator of the GE electrical ports | Green | Steady on | The port link is connected. |
| – | Off | No link is established on the port. | ||
| – | Optical port indicator | Green | Steady on | The port link is connected. |
| Green | Blinking (12 Hz) | The port is sending or receiving data. | ||
| – | Off | No link is established on the port. |
| Silkscreen | Name | Description |
|---|---|---|
| RST | RST button |
When the device is running properly, you can press the RST button to restart the device. You are advised to save the current configuration before pressing the RST button. This button can also be used to restore the default settings with one click. If you press and hold the RST button for 5 seconds and then release the RST button, the device restores its default settings and restarts. NOTE:
If needed, you can run the factory-configuration prohibit command in the system view to disable the function of restoring the factory settings by holding down the RST button. To enable this function again, run the undo factory-configuration prohibit command. |

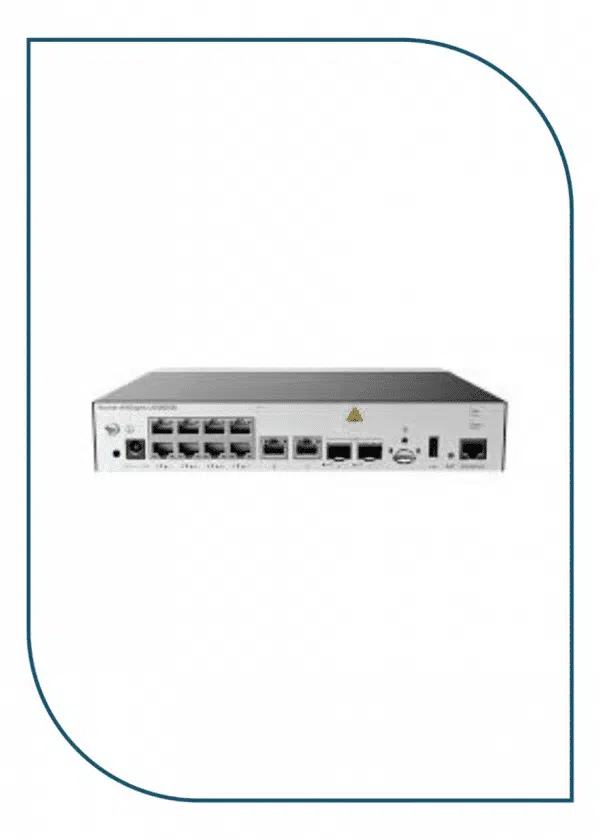

Ports
|
1. Clip hole |
2. Power receptacle |
3. GE electrical port |
4. 10GE optical port |
5. Micro SD card slot |
|
6. USB port |
7. Console port |
– |
– |
– |
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| Clip hole | – | The hole is used to install the power cable clip, which is used to bind and fix the power cable. |
Power cable clip |
| Power receptacle | – | The receptacle connects to the tuning fork plug of the power adapter. | |
| GE electrical ports (0 to 9) | RJ45 |
10 10/100/1000M autosensing Ethernet electrical ports, numbered from GigabitEthernet 0/0/0 to GigabitEthernet 0/0/9. GigabitEthernet 0/0/0 is an inband management port and its default IP address is 192.168.0.1. After this port is connected to your PC through Ethernet cables, you can log in to the device using Telnet, STelnet, or web UI to configure or manage the device. NOTE:
Arrowheads show the positions of ports. A down arrowhead indicates a port at the bottom, and an up arrowhead indicates a port at the top. |
|
| 10GE optical ports (0 to 1) | SFP+ | 2 GE/10GE autosensing Ethernet optical ports, numbered from XGigabitEthernet 0/0/0 to XGigabitEthernet 0/0/1. | |
| Micro SD card slot | Micro SD |
The micro SD card slot allows you to insert a micro SD card to record logs and reports in real time. The micro SD card is optional. You can purchase one from Huawei if needed. You are advised to install an anti-theft board delivered with the device to protect the micro SD card. |
SDSDQAE-064G (BOM code: 06010308, capacity: 64GB, dimensions (H x W x D): 1 mm x 15.00 mm x 11.00 mm/0.04 in. x 0.59 in. x 0.43 in) |
| USB port | USB Type A | USB port allows you to insert an USB flash drive for system software upgrades. For details on upgrades through USB flash drives, refer to the Upgrade Guide delivered with the device. |
USB flash drive |
| Console port | RJ45 |
Console ports allow you to locally connect a PC to the device. You can use a console cable to connect the console port (RJ45) on the device to the COM port on your PC and use a serial port terminal program on your PC to access, configure, and manage the device. |
Power Supply System
The device has no built-in power modules and uses a 36 W Power Adapter (02221468) for power supply.
Heat Dissipation System
The device has no fans and uses natural heat dissipation.
Technical Specifications
| Item | Specification |
|---|---|
| Installation Type |
|
| Cabinet installation standard | Cabinet with a depth of 600 mm or above |
| Dimensions without packaging (H x W x D) [mm(in.)] | 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 470 mm x 335 mm (4.33 in. x 18.5 in. x 13.19 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.3 kg (5.07 lb) |
| Weight without packaging [kg(lb)] | 1.57 kg (3.46 lb) |
| CPU | 1 CPU, 4 cores/CPU, up to 1.2 GHz |
| Memory | DDR4 2 GB |
| NOR Flash | 64 MB |
| NAND Flash | 2 GB |
| Hard disk | Optional. Purchase one 64-GB micro SD card from Huawei as required. |
| Console port | RJ45 |
| Maximum power consumption [W] | 22.3 W |
| Maximum heat dissipation [BTU/hour] | 76.08 BTU/hour |
| MTBF [years] | 57.29 years |
| MTTR [hours] | 2 hours |
| Power supply mode | Power adapter external |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 1 A |
| Maximum output power [W] | 36 W |
| Types of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Has no fan and uses natural cooling. |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C |
| Storage temperature [°C(°F)] | -40°C to 70°C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0 m to 5000 m |
| Storage altitude [m(ft.)] | 0 m to 5000 m |
- The width does not include the size of mounting ears.
- The height is 1U (1U = 1.75 inches, or about 44.45 mm), which is a height unit defined in International Electrotechnical Commission (IEC) 60297 standards.
- Temperature and humidity are measured 1.5 m above the floor and 0.4 m in front of the rack when no protection plate exists before or after the rack.
