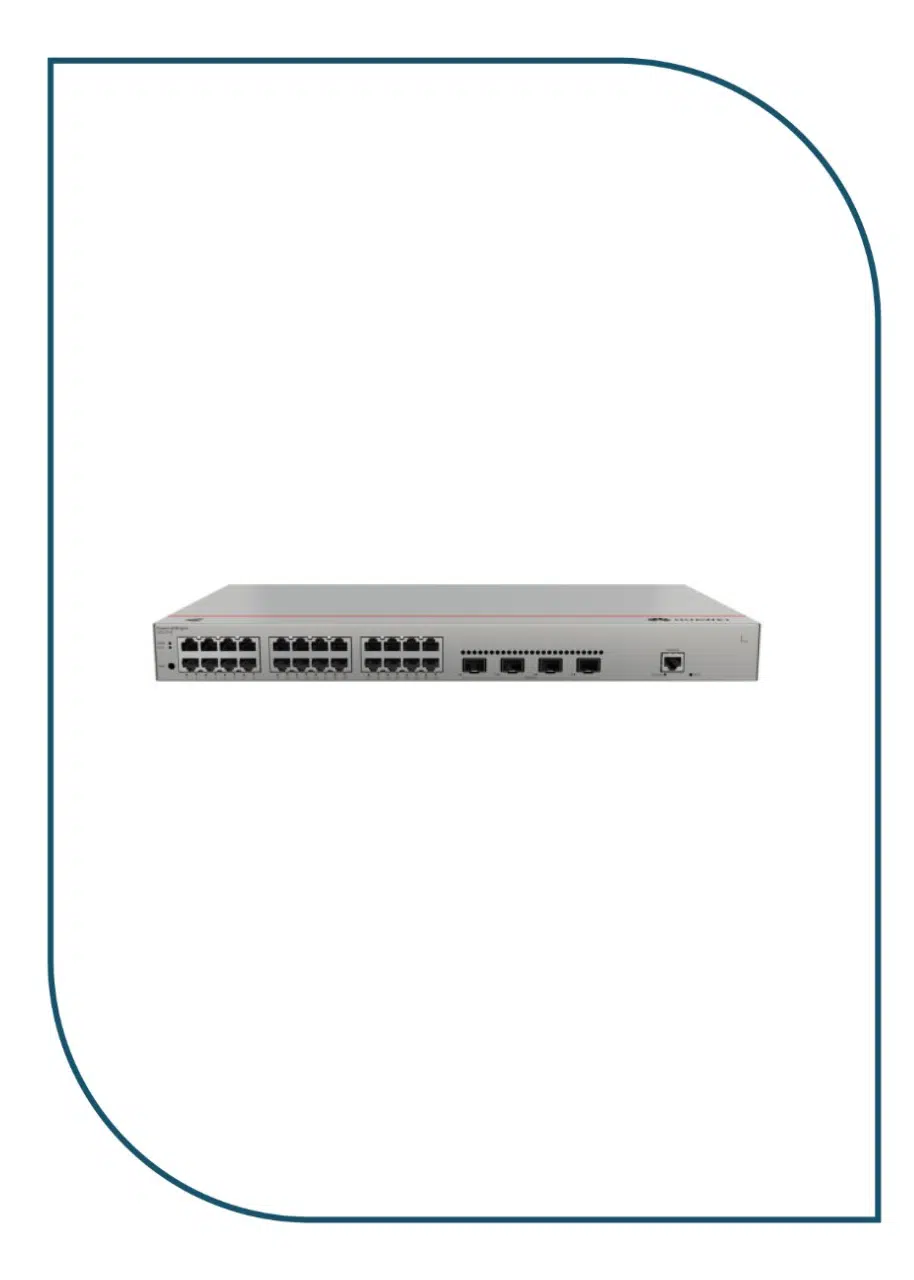

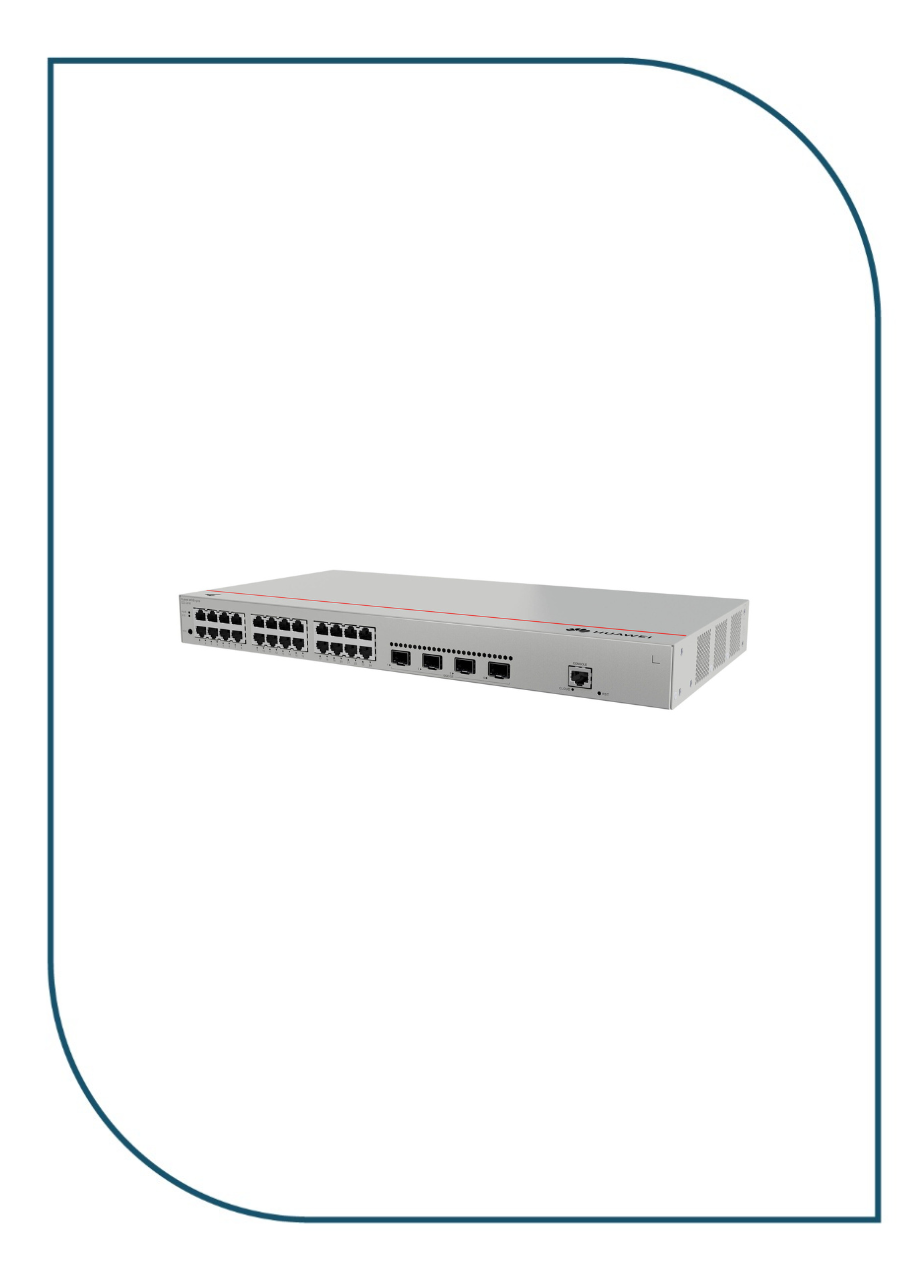

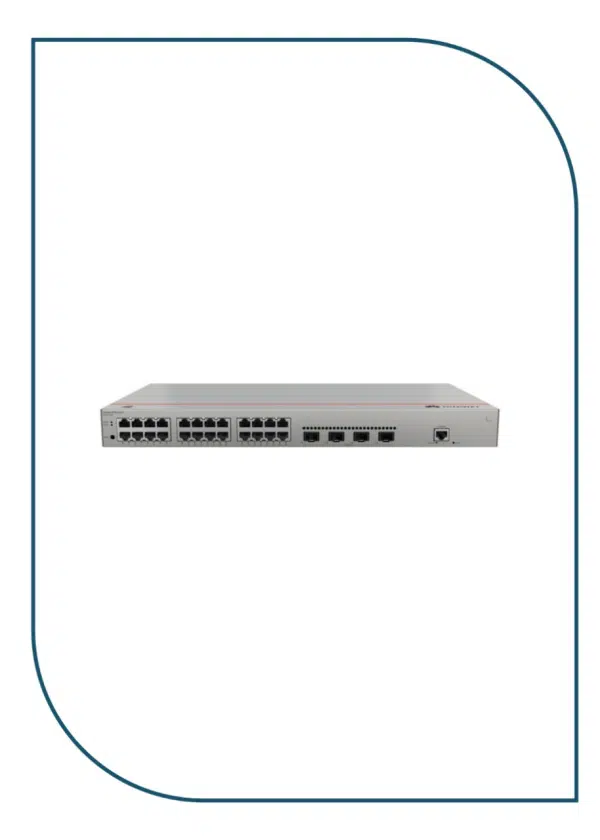

S220-24T4X
Overview
| Item | Details |
|---|---|
| Description | S220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012375 |
| Model | S220-24T4X |
| First supported version | V600R023C00 |

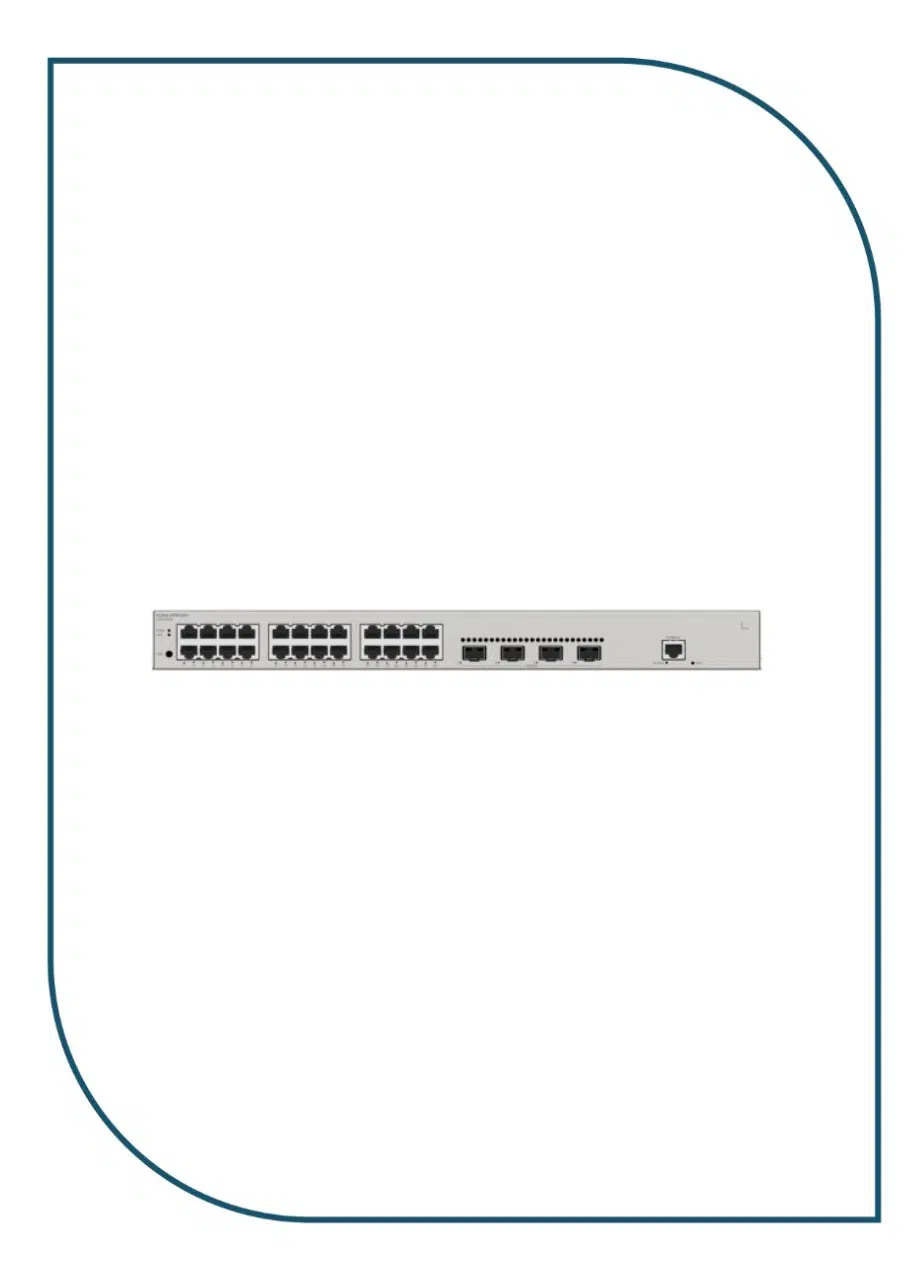

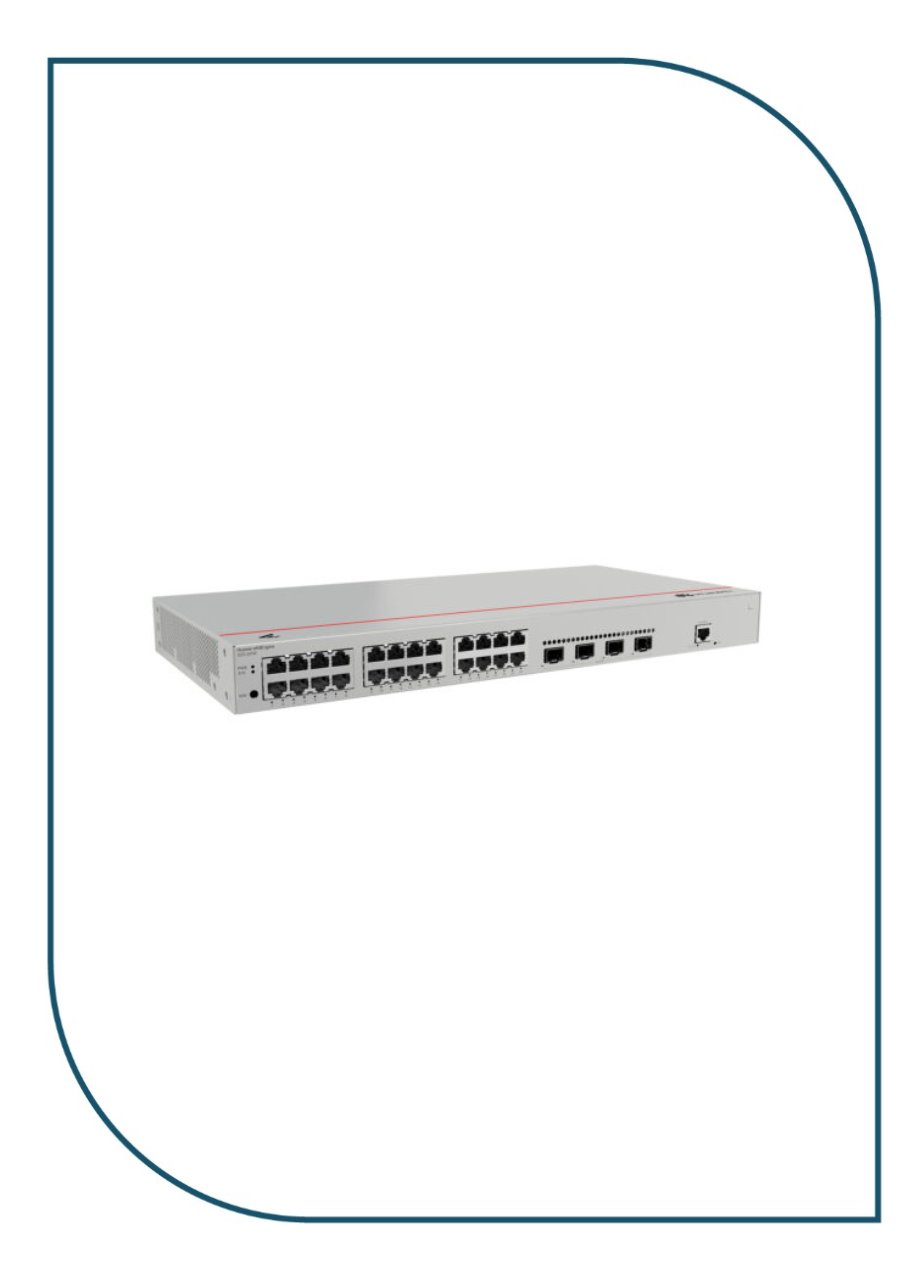

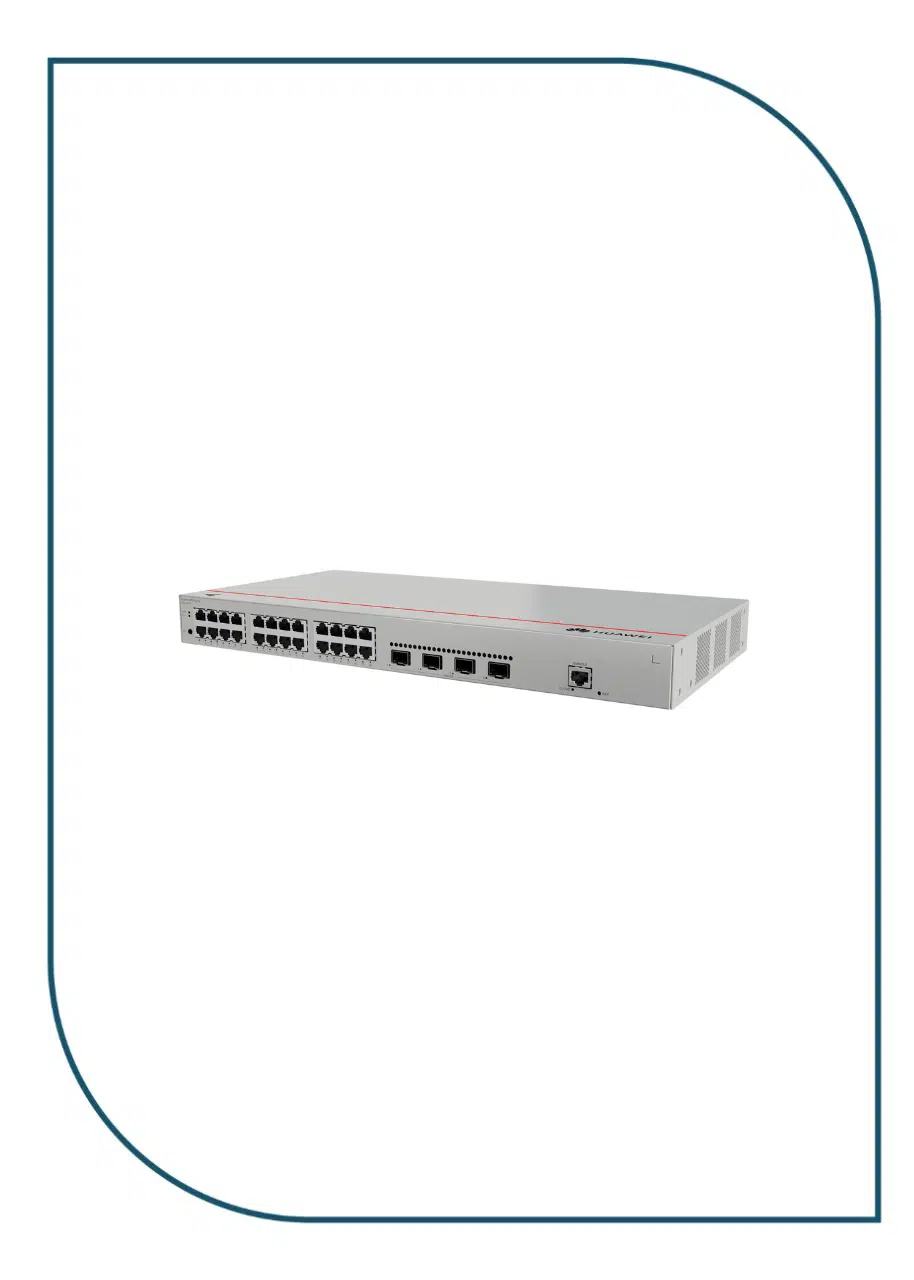

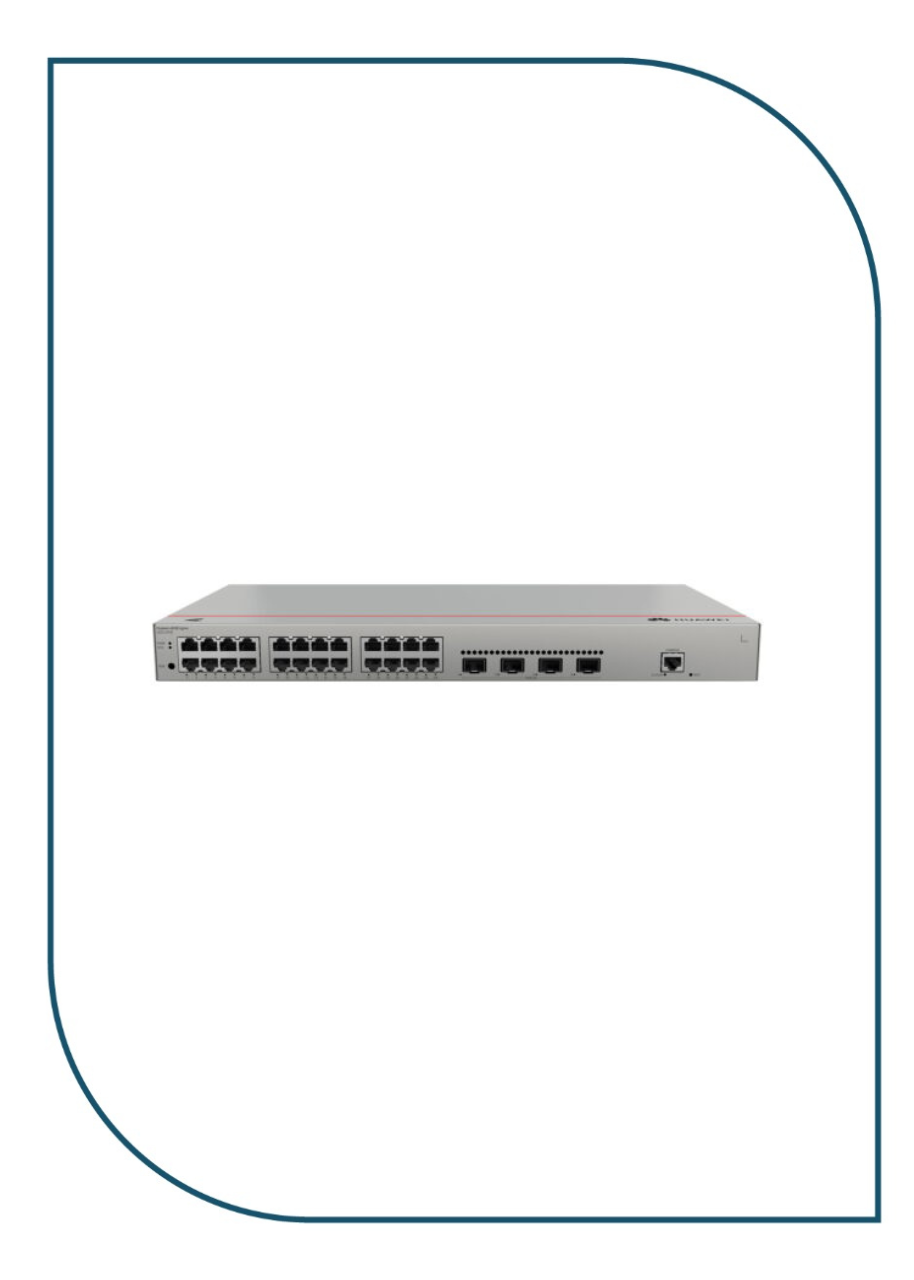

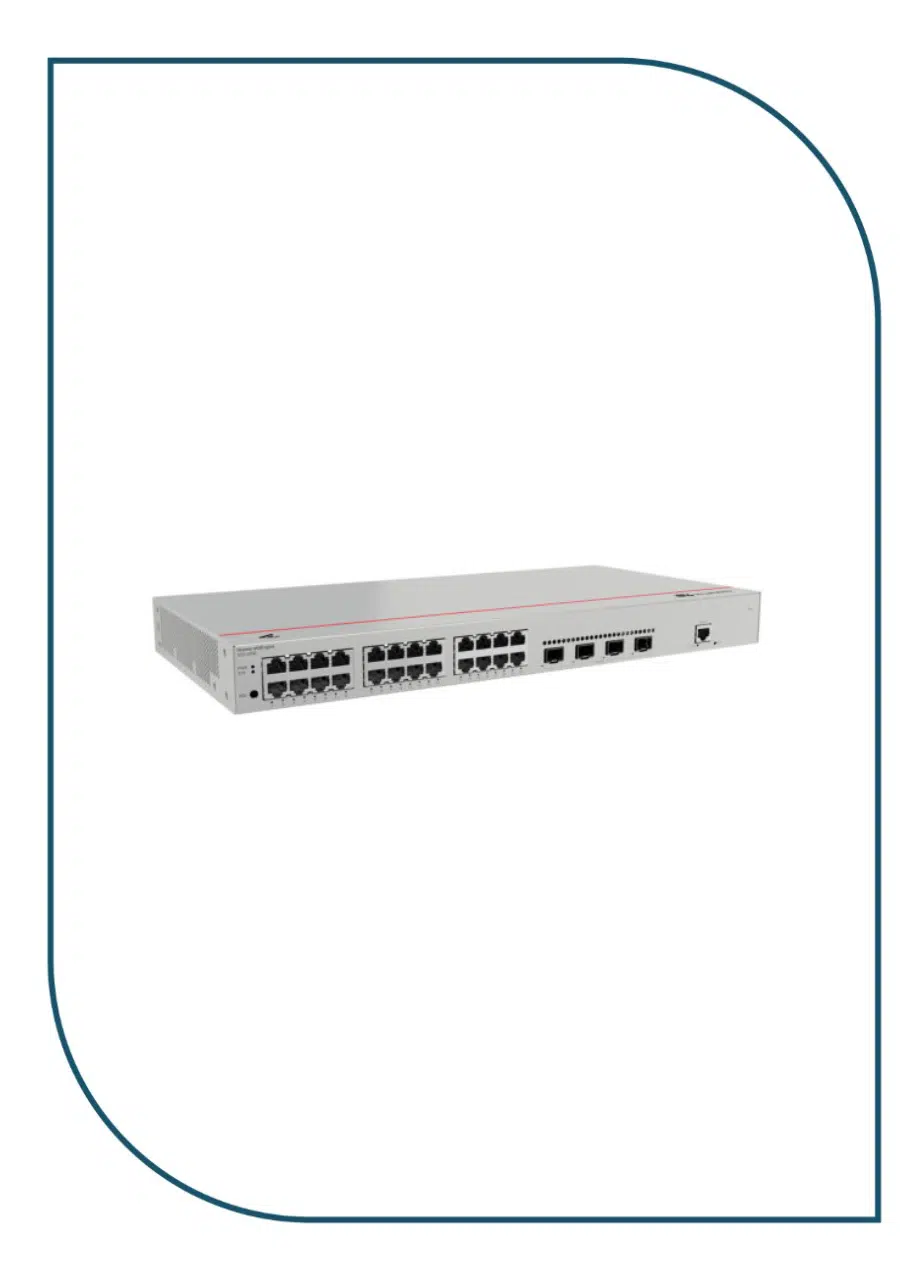

Components
| 1 | One MODE button
NOTE:
This button is reserved and is not required currently. |
2 | Twenty-four 10/100/1000BASE-T ports |
| 3 | Four 10GE SFP+ ports | 4 | One console port |
| 5 | One RST button
NOTICE:
To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. |

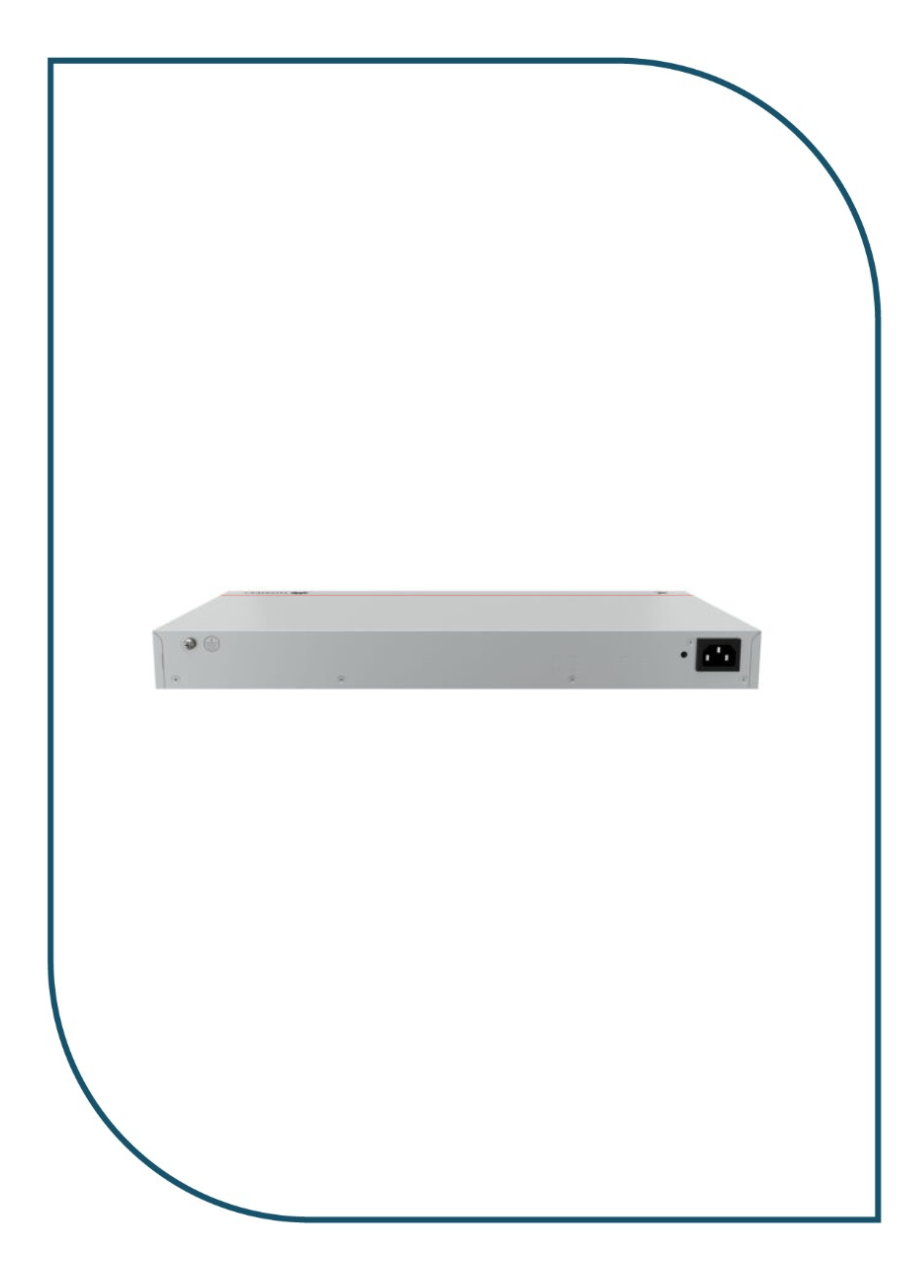

6 | Ground screw
NOTE:
It is used with a ground cable.
|
| 7 | Jack for AC power cable locking strap
NOTE:
The AC power cable locking strap is not delivered with the switch.
|

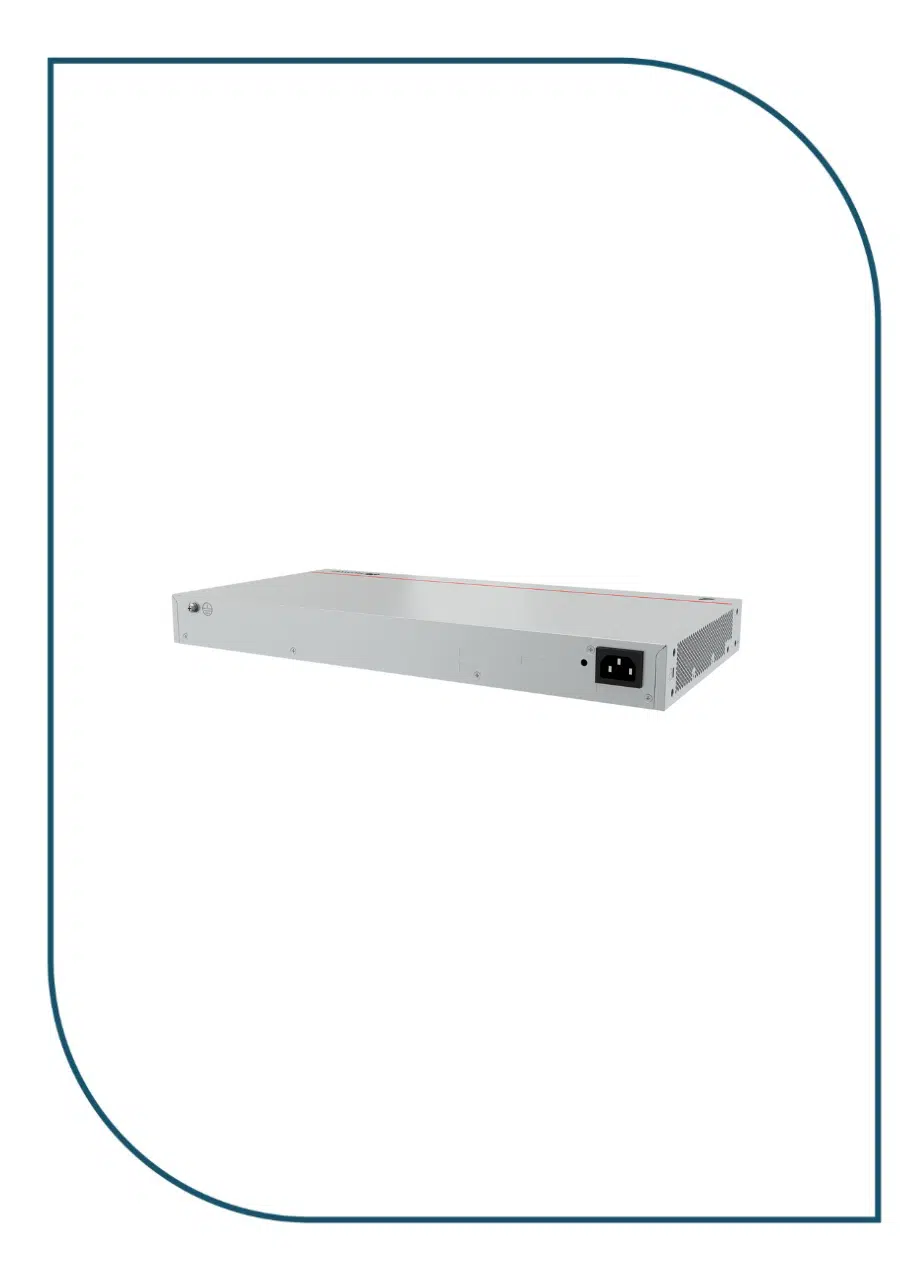

8 | AC socket
NOTE:
It is used with an AC power cable. |
Ports
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. | Ethernet cable |
| 10GE SFP+ port | SFP+ | A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. | Console cable |
Indicators and Buttons
The S220-24T4X has similar indicators to those on the S220-24P4X except that the S220-24T4X does not have a PoE mode indicator. For details, see the S220-24P4X.

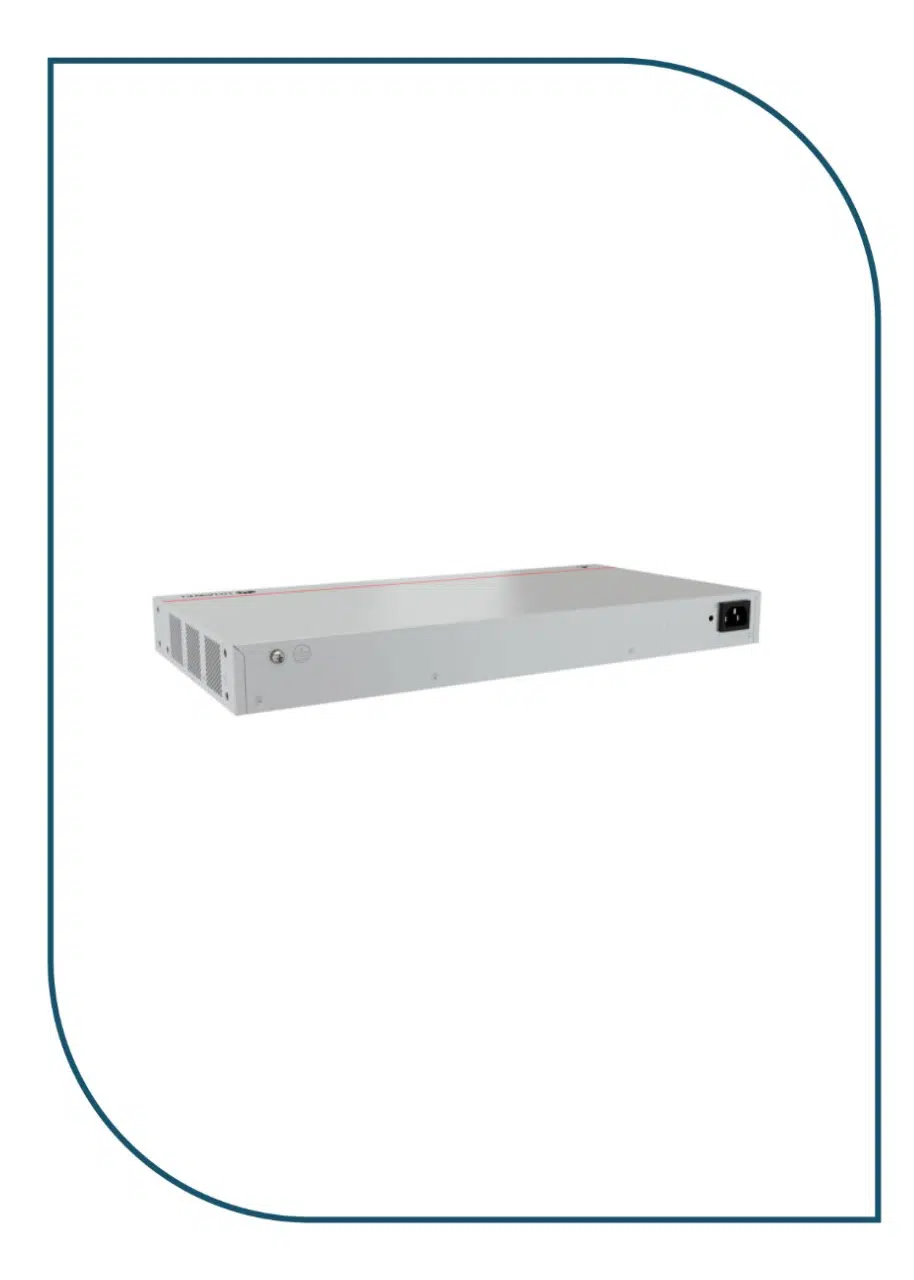

Power Supply System
The switch has a built-in AC power module and does not support pluggable power modules.
Heat Dissipation System
The switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.
When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.
