Description

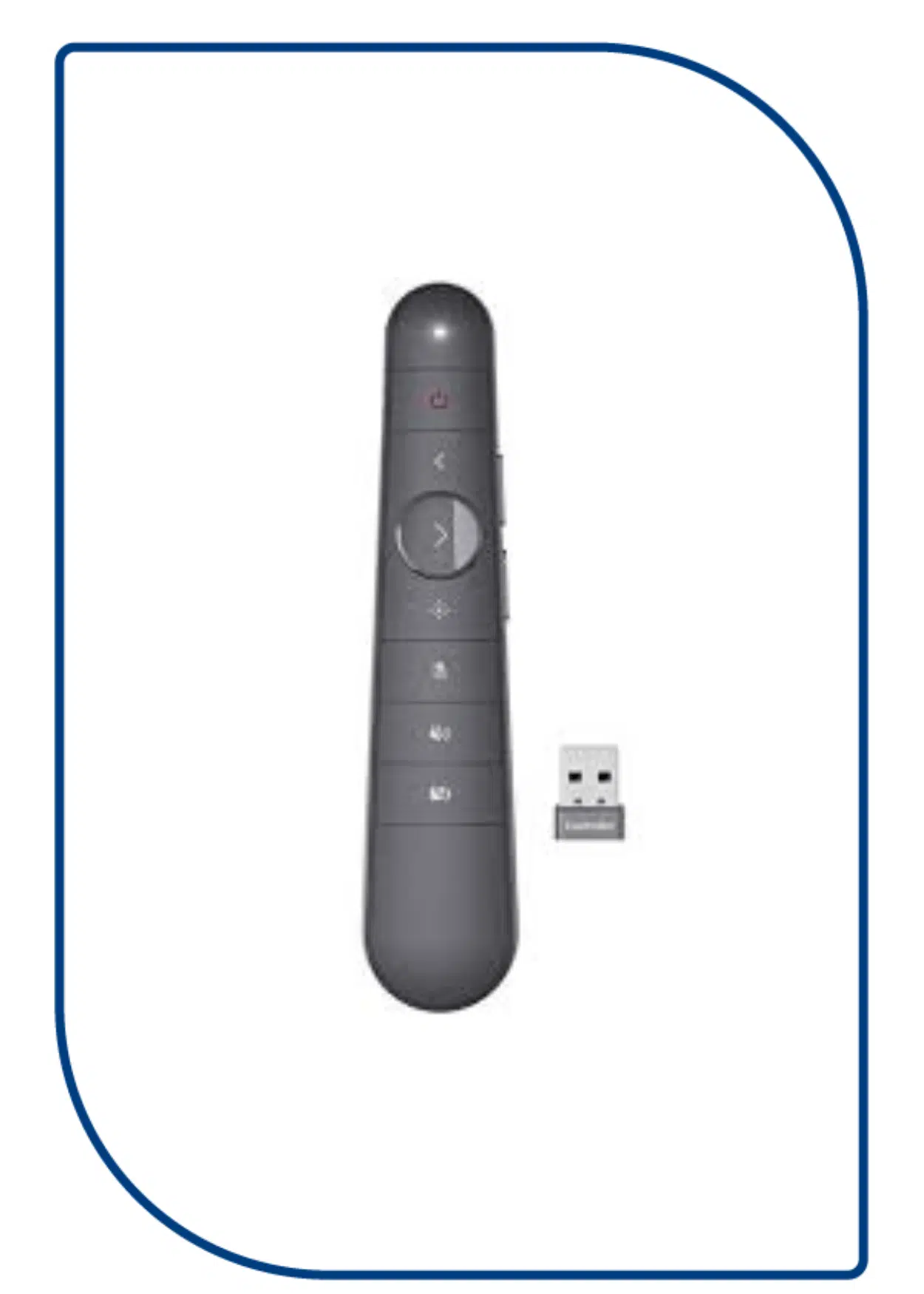

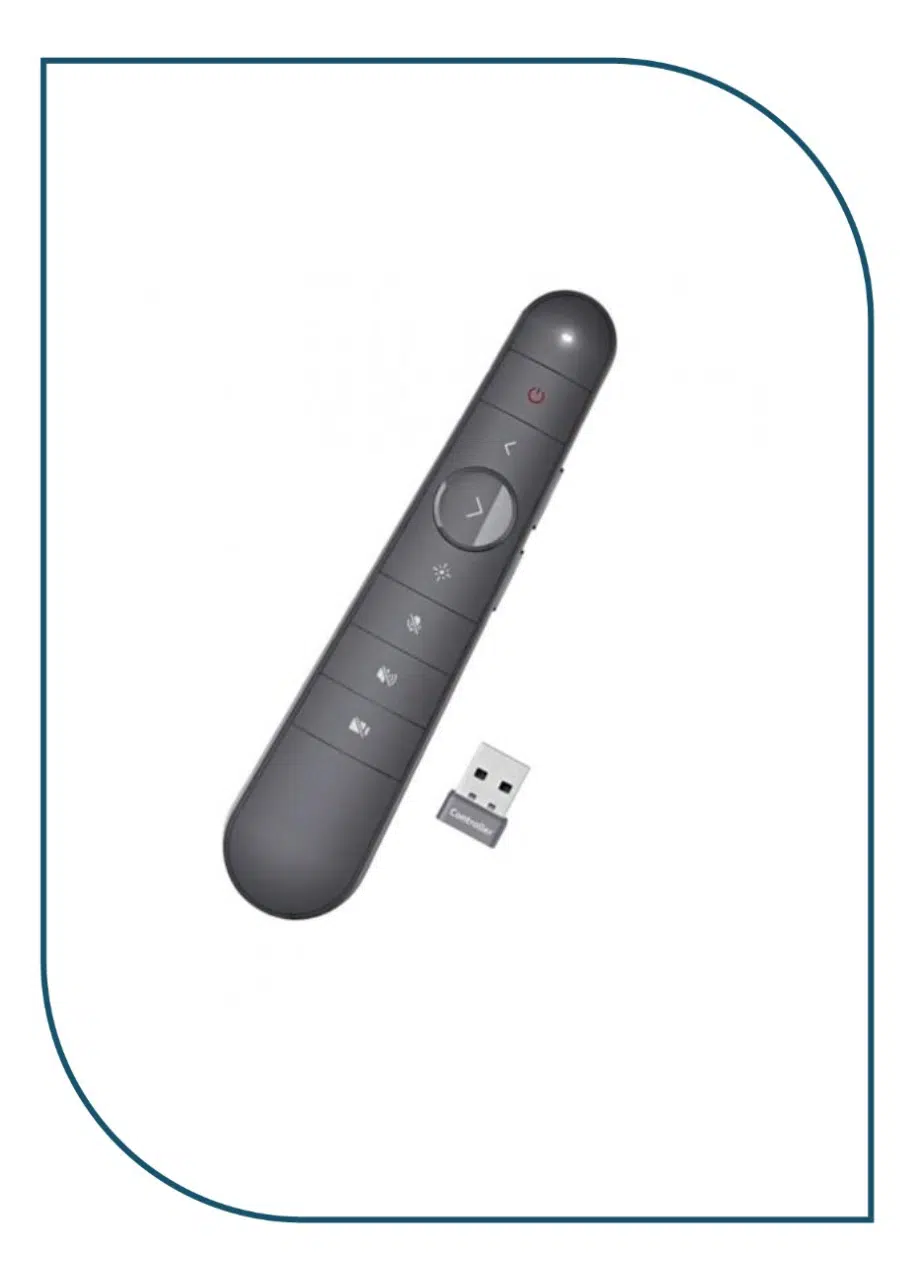

The Huawei IdeaHub Controller (IHC) is a wireless remote controller designed to simplify operation of Huawei IdeaHub interactive displays during meetings, presentations, and collaborative sessions. It enables presenters to control presentations, adjust audio, activate the laser pointer, and manage key meeting functions without leaving their seat.

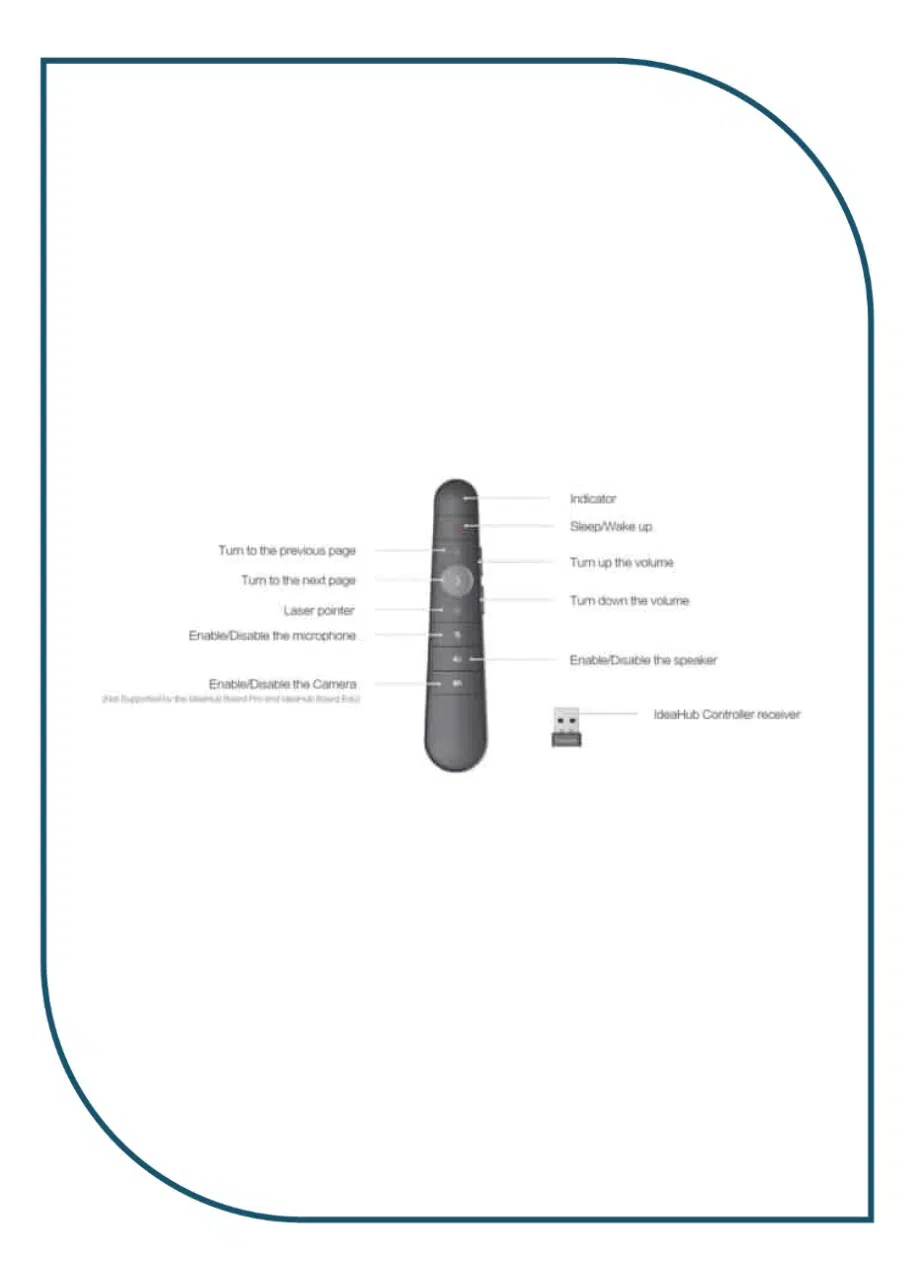

Using 2.4 GHz wireless communication and a plug-and-play USB receiver, the IdeaHub Controller provides reliable operation with no software installation required. The ergonomic design offers a comfortable grip, while dedicated shortcut buttons allow users to quickly navigate slides, control volume, mute the microphone, enable or disable the camera and speaker, and use the built-in laser pointer.
Compatible with multiple Huawei IdeaHub models—including IdeaHub S, IdeaHub Pro, IdeaHub Enterprise, IdeaHub Board Pro, IdeaHub Board Edu, IdeaHub S2, IdeaHub B2, and IdeaHub Board 2—the controller is an ideal accessory for conference rooms, boardrooms, classrooms, and training centers. It also supports reverse control functions such as page navigation and wireless mouse operation for an enhanced presentation experience.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei IdeaHub Controller (IHC) |
| Product Type | Wireless Conference Controller |
| Connectivity | 2.4 GHz Wireless |
| Receiver | USB Plug-and-Play Receiver |
| Transmission Distance | Up to 8 m (Straight Line) |
| Power Supply | 2 × AAA Alkaline Batteries |
| Battery Life | Up to 3 Months (Typical) |
| Operating Current | ≤ 50 mA |
| Standby Current | ≤ 15 μA |
| Number of Buttons | 9 |
| Functions | Page Up/Down, Wireless Mouse, Laser Pointer, Volume Control, Sleep/Wake, Microphone Mute, Speaker Mute, Camera On/Off* |
| Reverse Control | Supported |
| Dimensions | 145.3 × 31.7 × 23.5 mm |
| Weight | Approx. 52.2 g (with USB Receiver) |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 10%–90% RH |
| Compatible Devices | IdeaHub S, IdeaHub Pro, IdeaHub Enterprise, IdeaHub Board Pro, IdeaHub Board Edu, IdeaHub S2, IdeaHub B2, IdeaHub Board 2 |
