Description

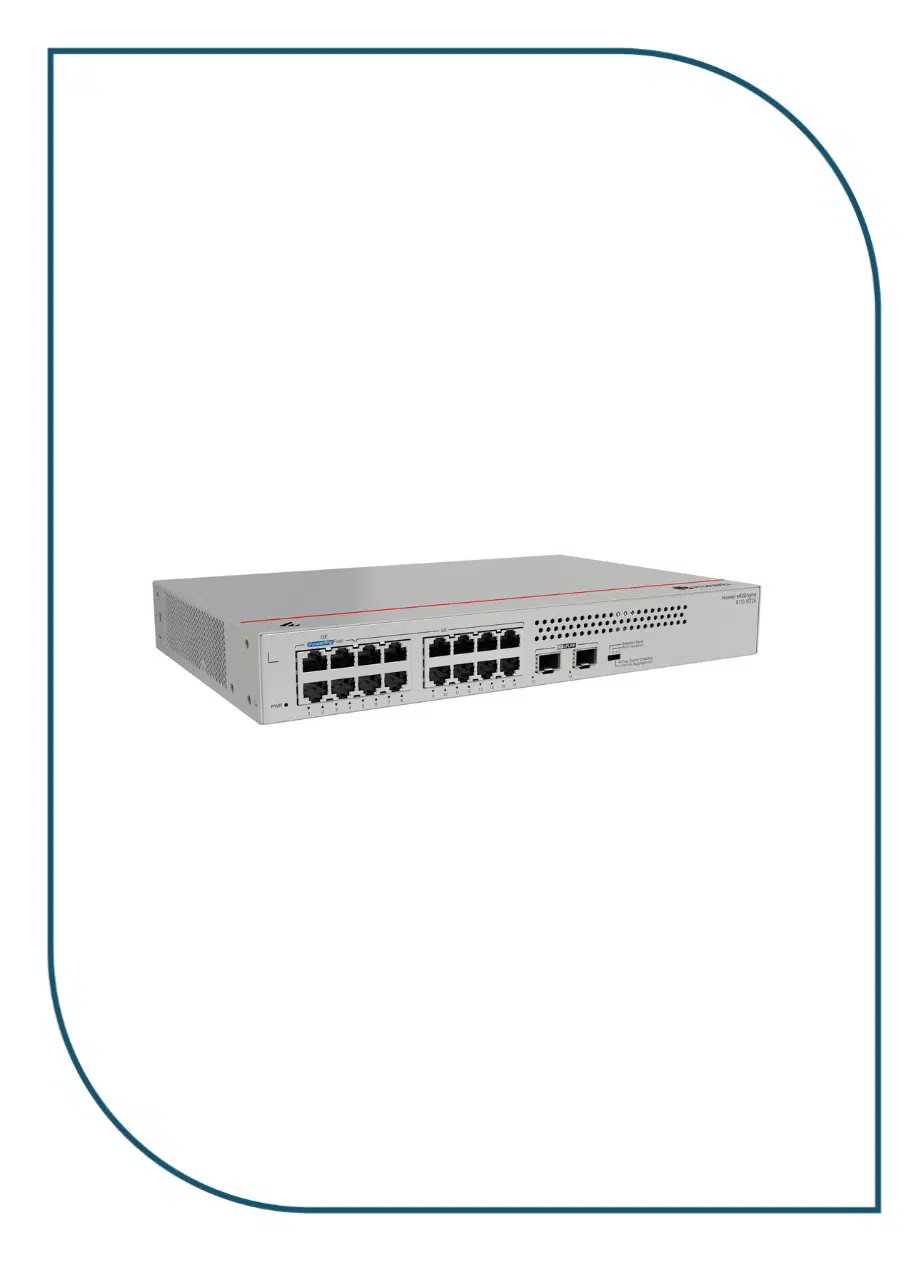

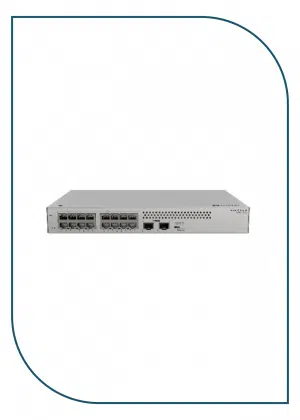

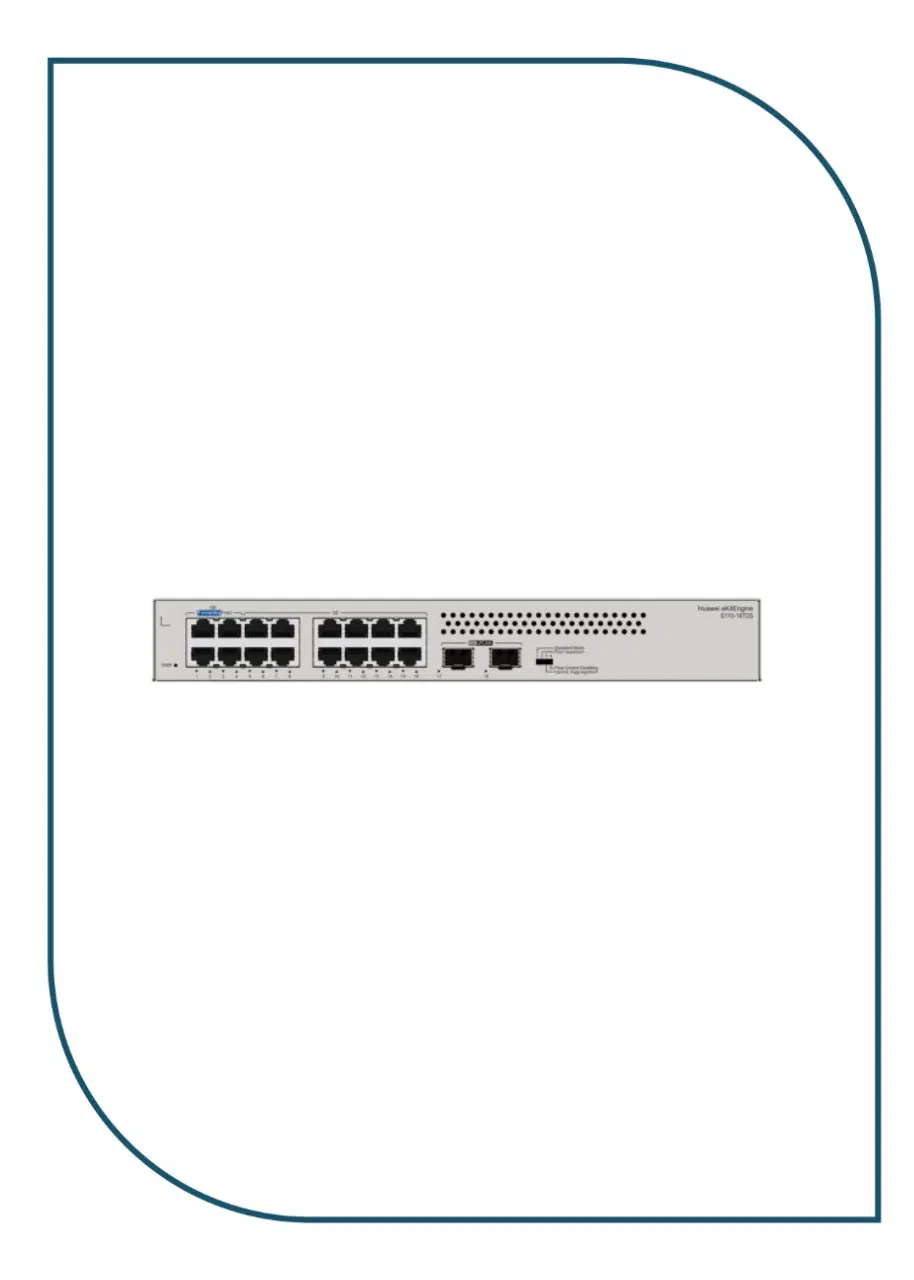

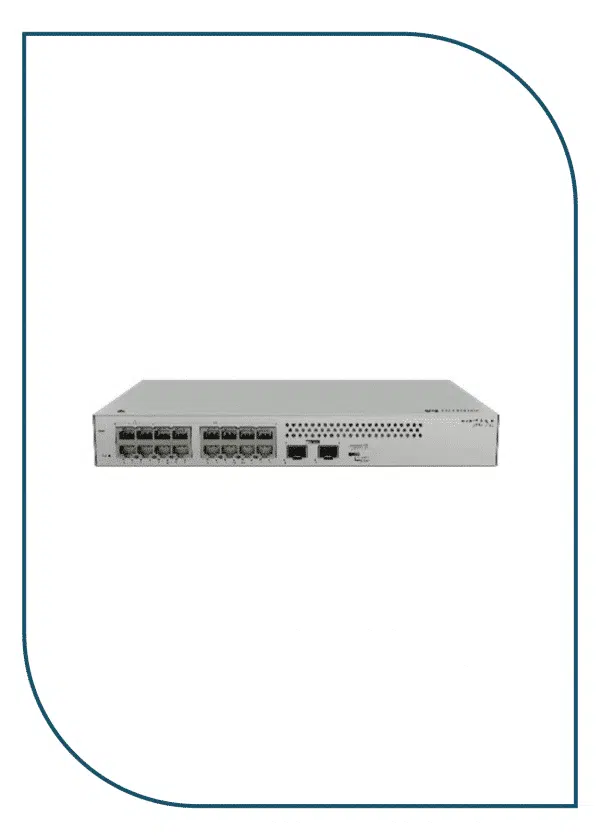

The Huawei eKitEngine S110-16T2S is a 16-port Gigabit Unmanaged Switch designed for small businesses, branch offices, retail stores, schools, and home office networks. Featuring 16 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP uplink ports, it provides reliable wired connectivity with flexible fiber uplinks for network expansion and long-distance connections.
As a plug-and-play unmanaged switch, the S110-16T2S requires no software configuration or network management. Simply connect your devices, and the switch automatically begins forwarding traffic, making installation quick and hassle-free. The dedicated 2 × GE SFP ports enable seamless fiber connections to aggregation switches or backbone networks.
The switch supports IEEE 802.3x flow control, Auto MDI/MDIX, automatic speed negotiation, store-and-forward switching, and 8K MAC address learning, ensuring efficient and stable network performance. Its fanless design provides silent operation while reducing maintenance requirements, making it ideal for quiet office environments.
Built with a durable metal enclosure and supporting desktop or rack installation, the Huawei S110-16T2S delivers dependable Gigabit networking for organizations seeking a cost-effective and maintenance-free switching solution.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S110-16T2S |
| Product Type | Unmanaged Gigabit Ethernet Switch |
| Ethernet Ports | 16 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 2 × 1GE SFP |
| Management | Unmanaged (Plug & Play) |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.8 Mpps |
| MAC Address Table | 8K Entries |
| Forwarding Mode | Store-and-Forward |
| Flow Control | IEEE 802.3x |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Jumbo Frames | Up to 9 KB |

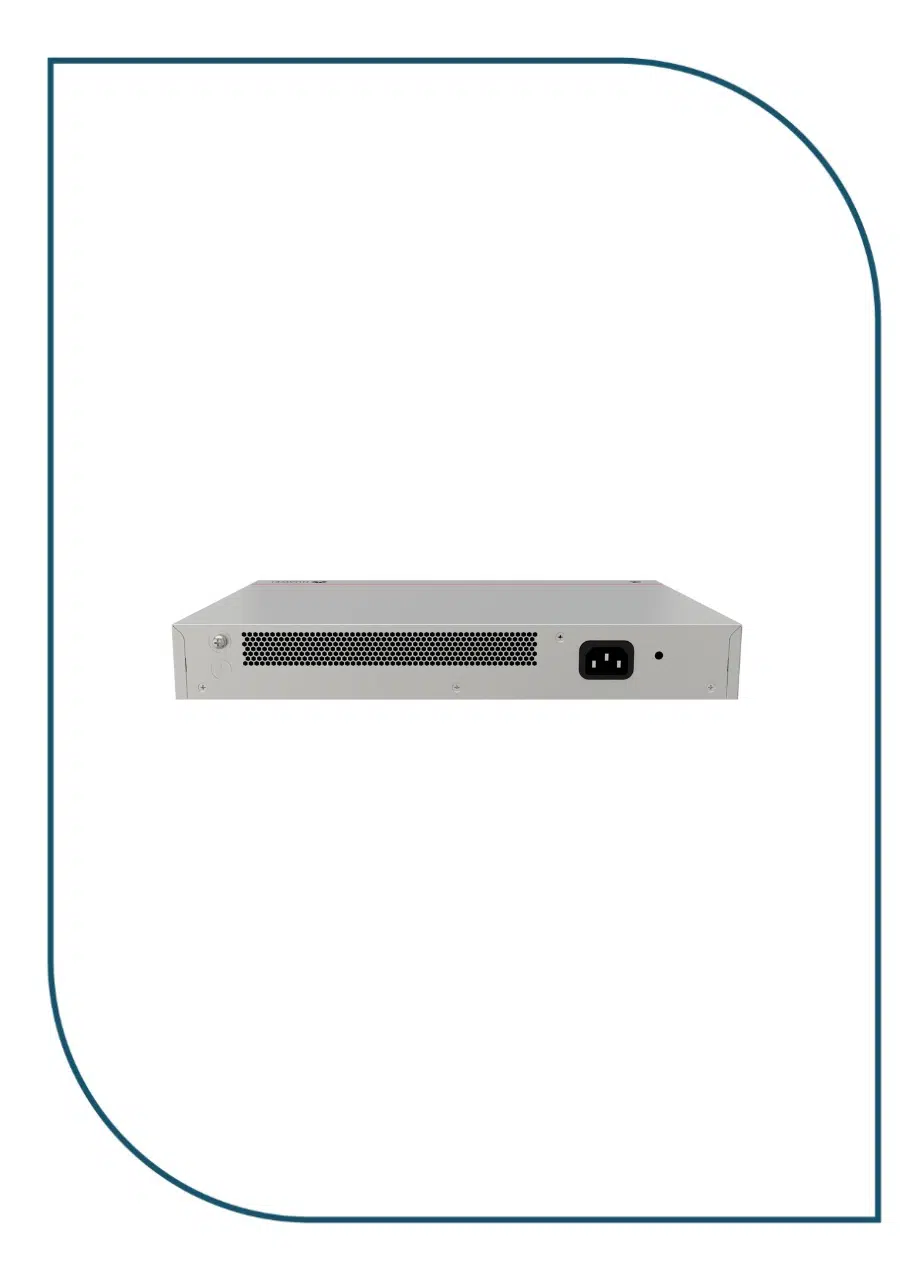

| Power Supply | Built-in AC (100–240V AC, 50/60 Hz) |
| Cooling | Fanless |
| Installation | Desktop or Rack Mount |
| Housing | Metal |
| Operating Temperature | 0°C to +40°C |
