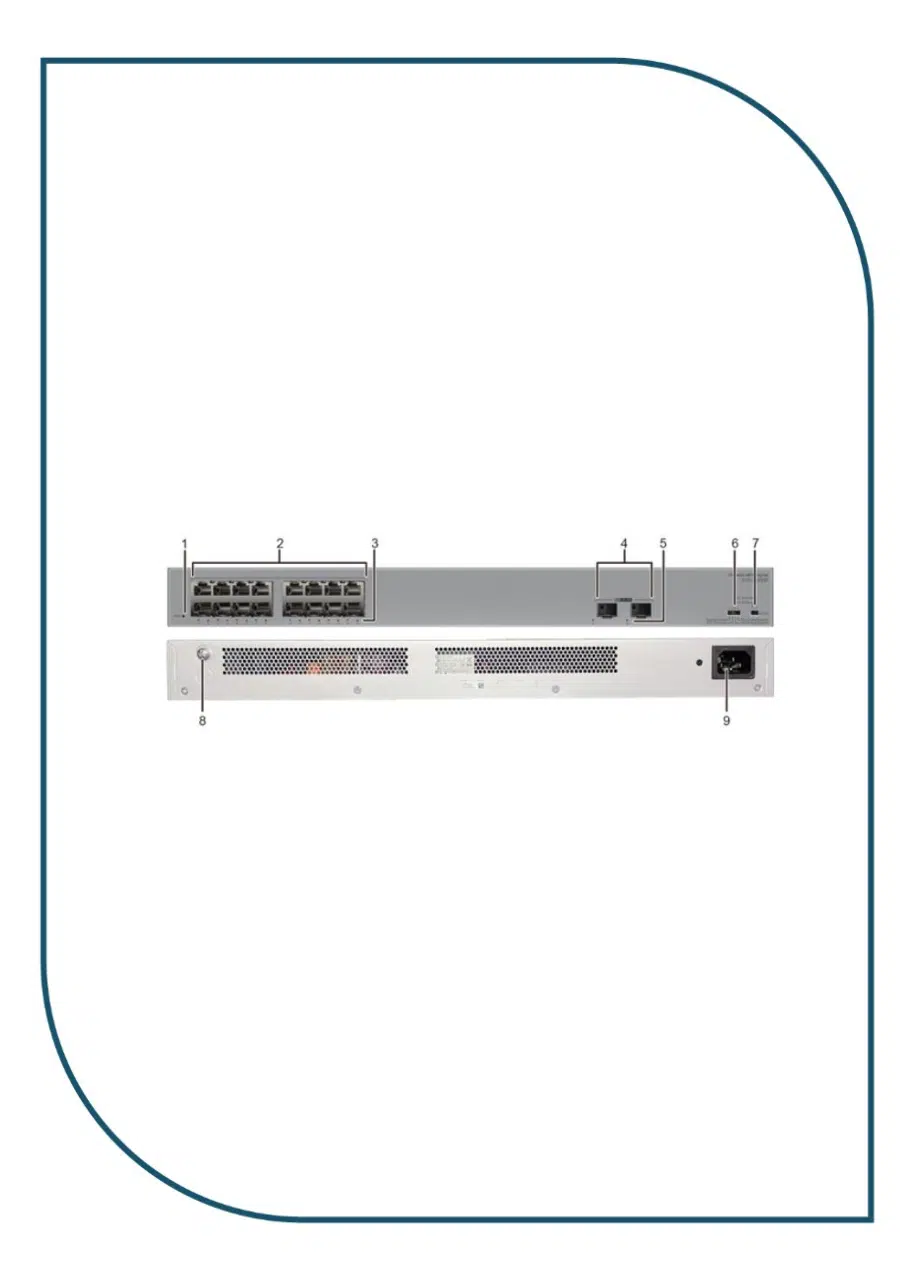

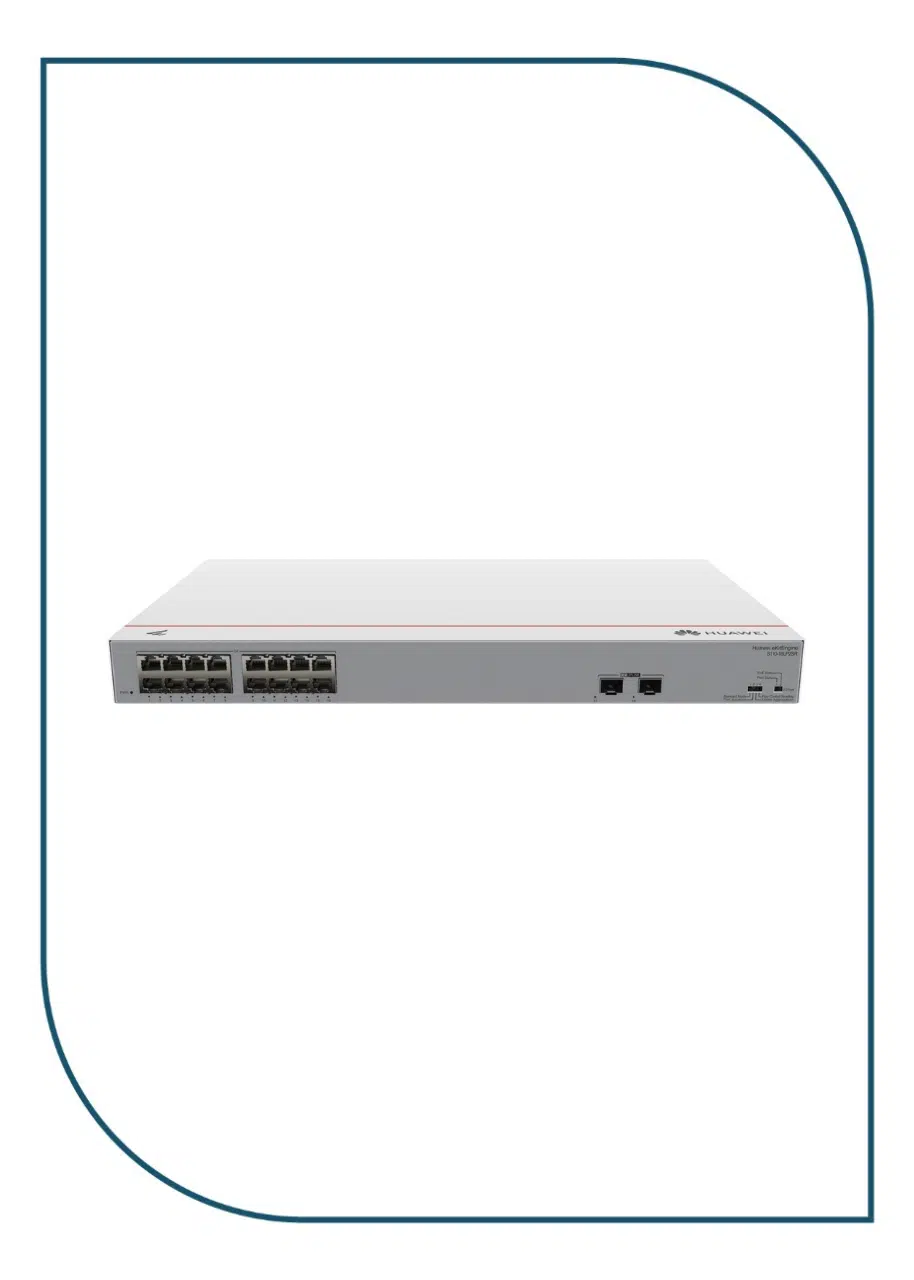

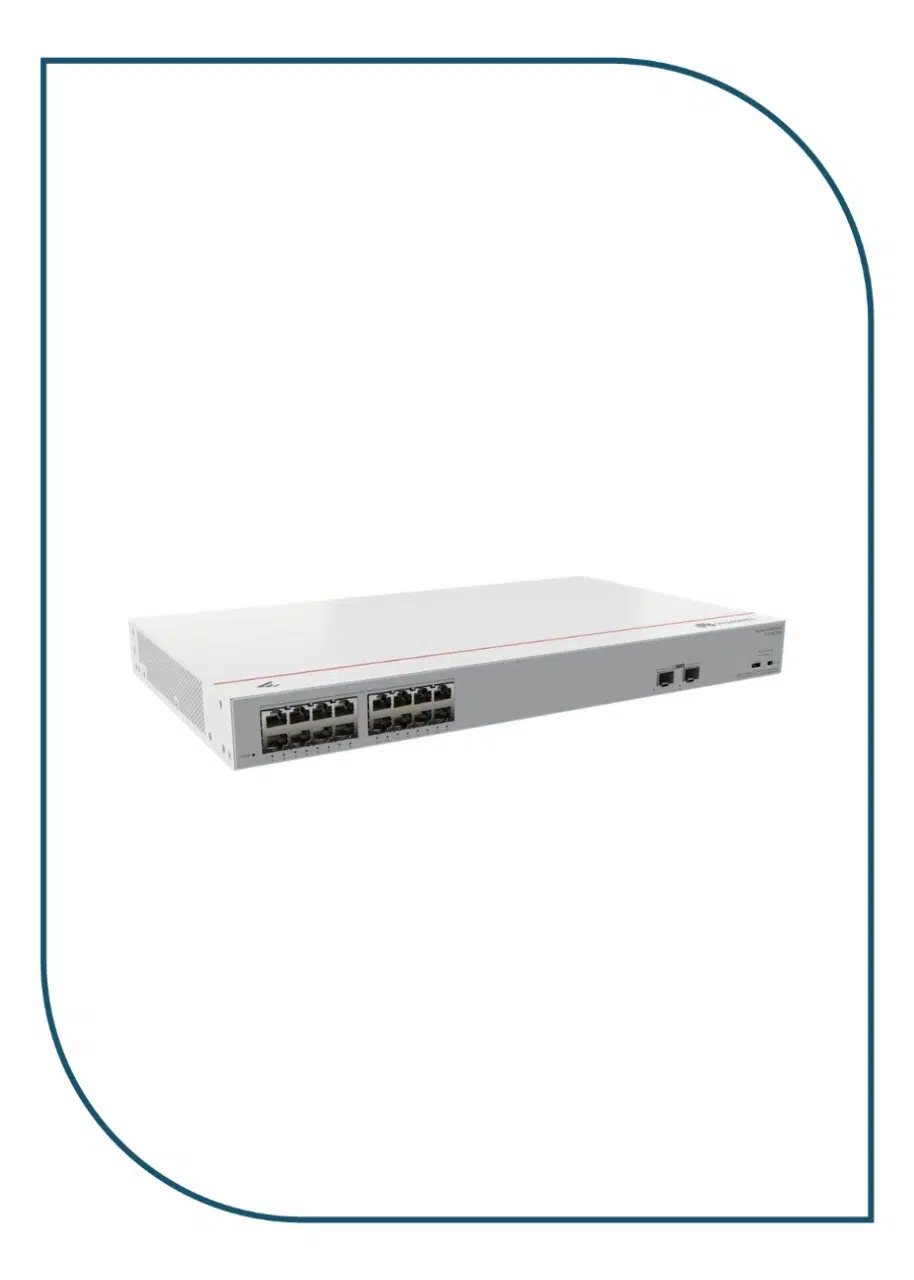

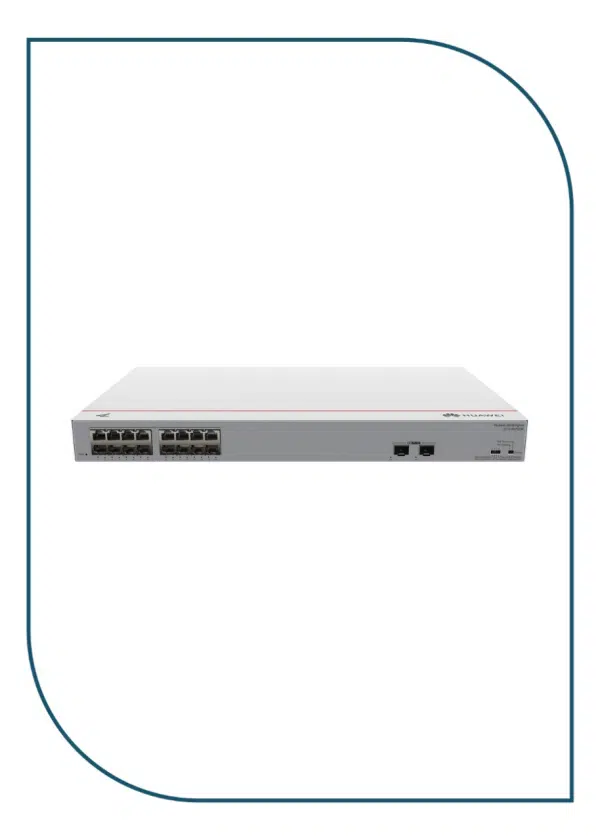

Huawei eKitEngine (S110-16LP2SR) 16-Port Unmanaged PoE+ Switch
The Huawei eKitEngine S110-16LP2SR is a 16-port Gigabit unmanaged PoE+ switch featuring 16 Gigabit PoE+ ports, 2 Gigabit SFP uplink ports, and a 124W PoE budget. Its plug-and-play operation, silent fanless design, fiber uplinks, and reliable Layer 2 switching make it ideal for IP cameras, wireless access points, VoIP phones, and small business networks.
10.080,00 EGP 8.400,00 EGP
Description
The Huawei eKitEngine S110-16LP2SR is a 16-port Gigabit Unmanaged PoE+ Switch designed for small and medium-sized businesses, offices, retail stores, hotels, schools, and IP surveillance deployments. It features 16 Gigabit PoE+ RJ45 ports and 2 Gigabit SFP uplink ports, providing reliable wired connectivity with flexible fiber uplinks for network expansion.
With a 124W PoE power budget, the switch supplies power and data over a single Ethernet cable to IP cameras, wireless access points, VoIP phones, access control devices, and other IEEE 802.3af/at-compliant equipment, reducing installation costs and simplifying network deployment.
As an unmanaged Plug-and-Play switch, the S110-16LP2SR requires no configuration. It automatically detects connected devices and starts forwarding traffic immediately. The switch also includes port isolation mode, uplink aggregation mode, flow control mode, Auto MDI/MDIX, IEEE 802.3x flow control, and store-and-forward switching, ensuring stable and efficient network performance.
Built with a durable 1U metal chassis, fanless cooling, and a built-in AC power supply, the S110-16LP2SR delivers silent operation and dependable performance, making it an excellent choice for enterprise edge networks and PoE deployments.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S110-16LP2SR |
| Product Type | Unmanaged Gigabit PoE+ Switch |
| Switch Layer | Layer 2 |
| Ethernet Ports | 16 × 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 2 × 1GE SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget | 124 W |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K Entries |
| Forwarding Mode | Store-and-Forward |
| Flow Control | IEEE 802.3x |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Jumbo Frames | Up to 9 KB |
| Management | Unmanaged (Plug & Play) |
| Special Modes | Port Isolation, Uplink Aggregation, Flow Control |
| Power Supply | Built-in AC (90–300V AC, 47–63Hz) |
| Maximum Power Consumption | 160 W (124 W PoE Load) |
| Cooling | Fanless (Natural Cooling) |
| Installation | Rack Mount, Desktop, Wall Mount |
| Dimensions (H × W × D) | 43.6 × 442 × 260 mm |
| Weight | 3.0 kg |
| Operating Temperature | 0°C to +40°C |
Additional information
| Access Ports | 16 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 26.78 Mpps |
| Management Platform | |
| Mounting Options | Rack Mount |
| POE | Support POE |
| POE Budget | |
| Switching Capacity | 32 Gbps |
| Uplink Ports | 2 |
| UpLinks Speed | 1G |
