Description

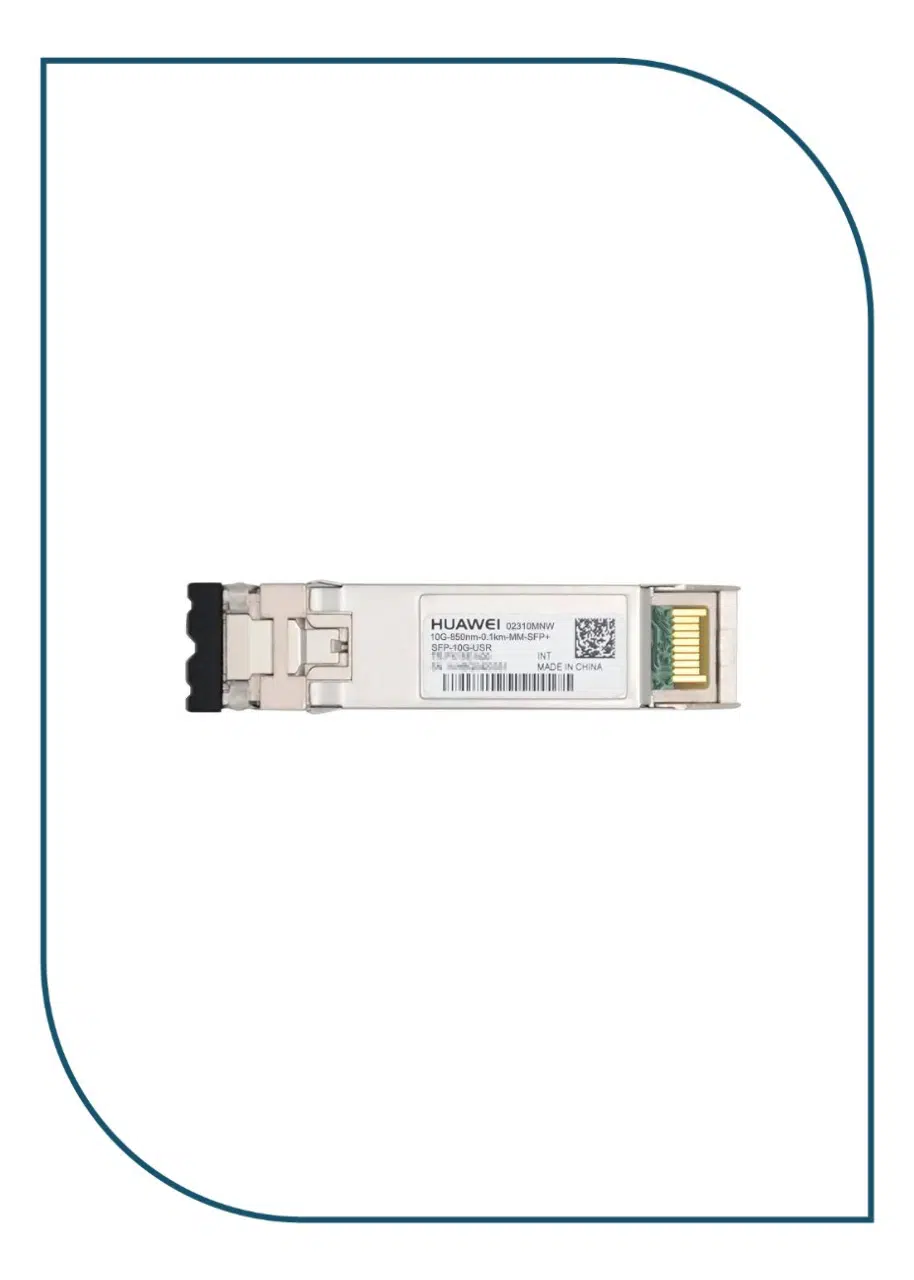

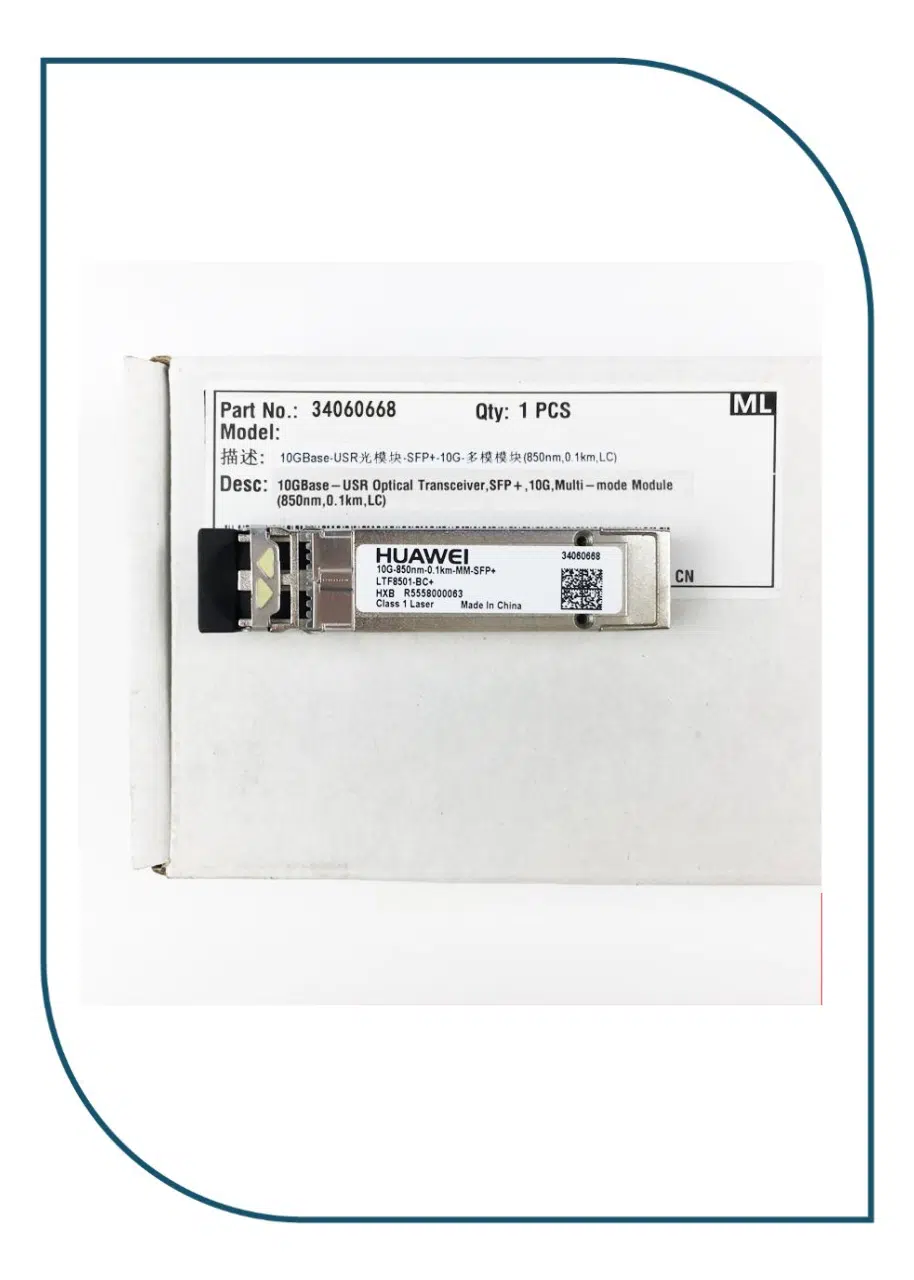

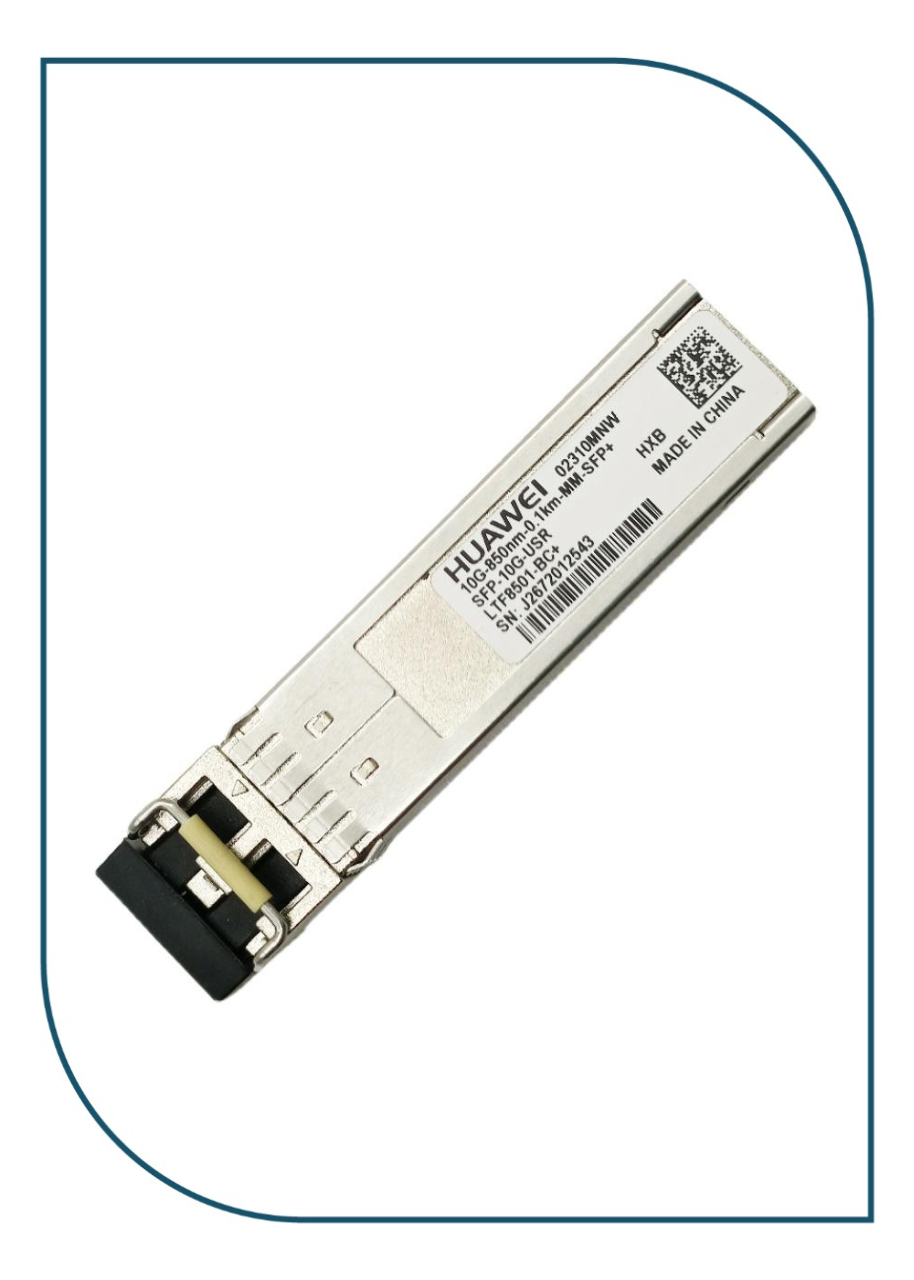

The Huawei SFP-10G-USR is a high-performance 10 Gigabit SFP+ multimode optical transceiver designed for short-distance, high-speed optical communication in enterprise, campus, and data center networks. Compliant with the 10GBASE-USR standard, it delivers 10 Gbps transmission over multimode fiber (MMF) using an 850 nm VCSEL laser and an LC duplex optical connector.
Designed for hot-pluggable installation, the SFP-10G-USR can be inserted or removed without interrupting system operation, simplifying network maintenance and upgrades. It supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters such as temperature, voltage, transmit power, and receive power, enabling proactive network management and troubleshooting.
The module is ideal for connecting Huawei switches, routers, wireless controllers, and other networking equipment equipped with 10G SFP+ interfaces. It is widely used for server connections, switch uplinks, aggregation links, and data center interconnects requiring low-latency, high-bandwidth fiber connectivity.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei SFP-10G-USR |
| Part Number | 02310MNW |
| Product Type | 10G SFP+ Optical Transceiver |
| Form Factor | SFP+ (Hot-Pluggable) |
| Application Standard | 10GBASE-USR |
| Data Rate | 10 Gbps (10.31 Gbit/s) |
| Fiber Type | Multimode Fiber (MMF) |
| Operating Wavelength | 850 nm |
| Connector Type | Duplex LC |
| Maximum Transmission Distance | 100 m (OM3 MMF) |
| Laser Type | VCSEL |
| Digital Diagnostics | DDM/DOM Supported |
| Operating Temperature | 0°C to +70°C |
| Power Supply | 3.3 V |
| Installation | Hot Swappable |
| Typical Applications | Data Centers, Enterprise Networks, 10G Switch Uplinks, Server Connectivity |
