Huawei eKitEngine S620-24T16X8Y2CZ Switch
Overview
Table 4-148 Basic information about the S620-24T16X8Y2CZ
| Item | Details |
|---|---|
| Description | S620-24T16X8Y2CZ (24*10/100/1000BASE-T ports, 16*10GE SFP+ ports, 8*25GE SFP28 ports, 2*100GE QSFP28 ports, expansion card slot, with 1*AC power module) |
| Part Number | 98012536 |
| Model | S620-24T16X8Y2CZ |
| First supported version | V600R024C00 |
| Remarks | When cards are used, power modules with a power of 240 W or higher must be used. |
S620-24T16X8Y2CZ Components

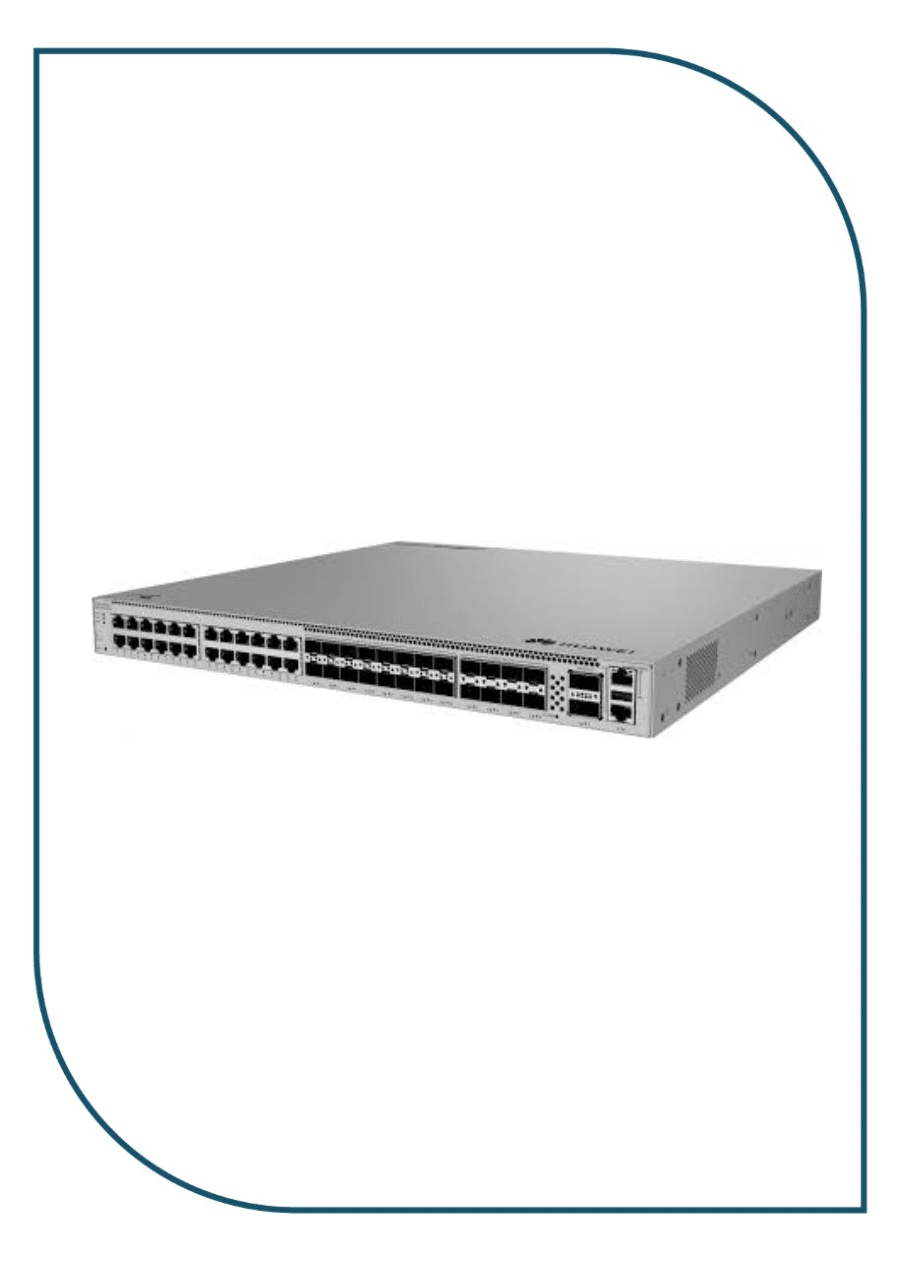

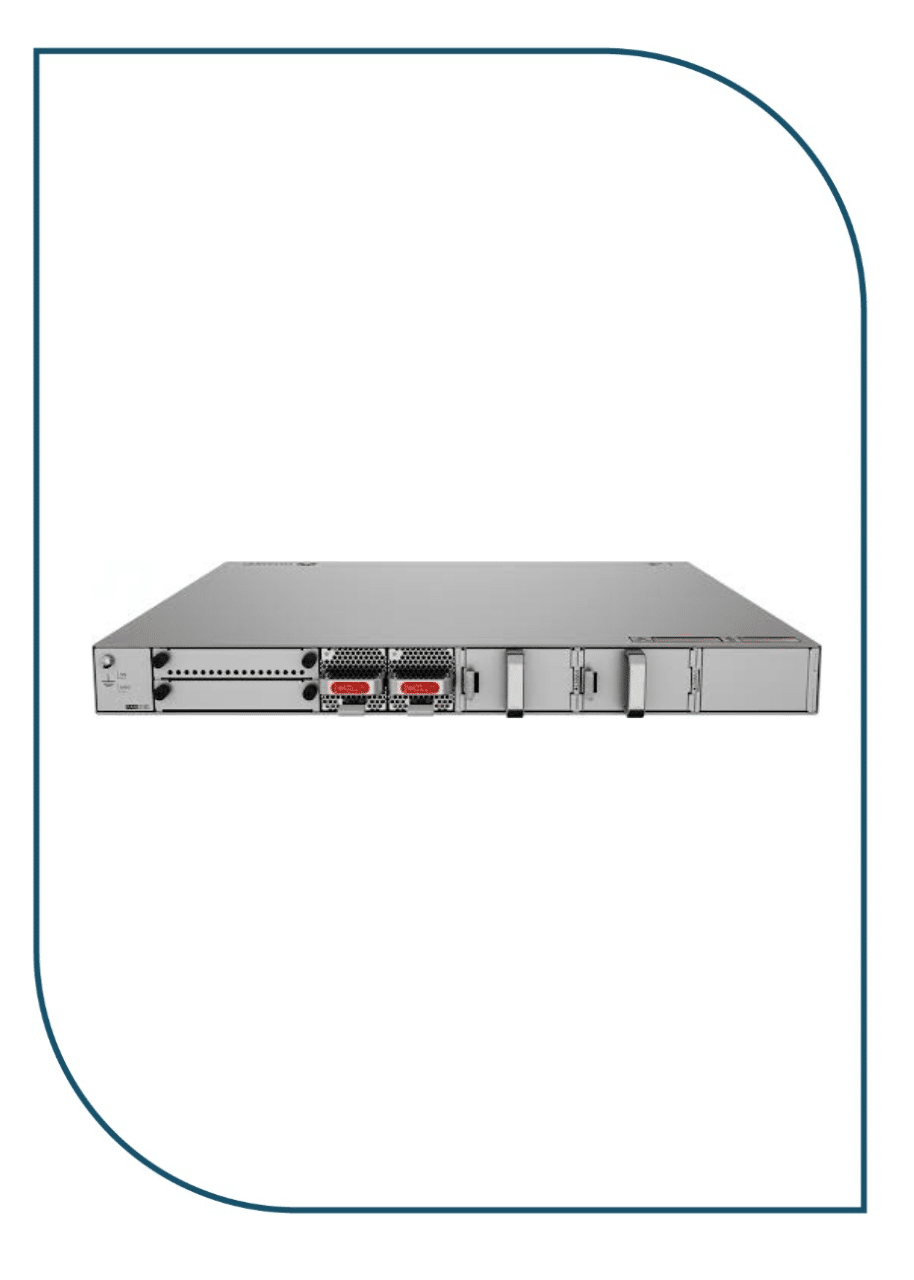

S620-24T16X8Y2CZ appearance
Description of indicators on the switch:
| 1 | One RST button
NOTICE: To restore the factory settings and reset the device, hold down the button for at least 6 seconds. To reset the device, press the button. Resetting the device will cause service interruption. Exercise caution when you press the button. |
2 | Twenty-four 10/100/1000BASE-T ports |
| 3 | Sixteen FE/GE/2.5GE/10GE SFP+ optical ports | 4 | Eight GE/2.5GE/10GE/25GE SFP28 optical ports |
| 5 | Two 40GE/100GE QSFP28 optical ports | 6 | One console port |
| 7 | One USB port | 8 | One ETH management port |
| 9 | Ground screw
NOTE: It is used with a ground cable.
|
10 | One card slot
NOTE: Applicable card: HSIC-X08S000 |
| 11 | Fan module slot 1
NOTE: Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
12 | Fan module slot 2
NOTE: Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) |
| 13 | Power module slot 1
NOTE: Applicable power modules:
|
14 | Power module slot 2
NOTE: Applicable power modules:
|
Heat Dissipation System
The switch uses pluggable fan modules for forced air cooling. Air flows in from the right and front sides, and exhausts from the rear panel.
