Description

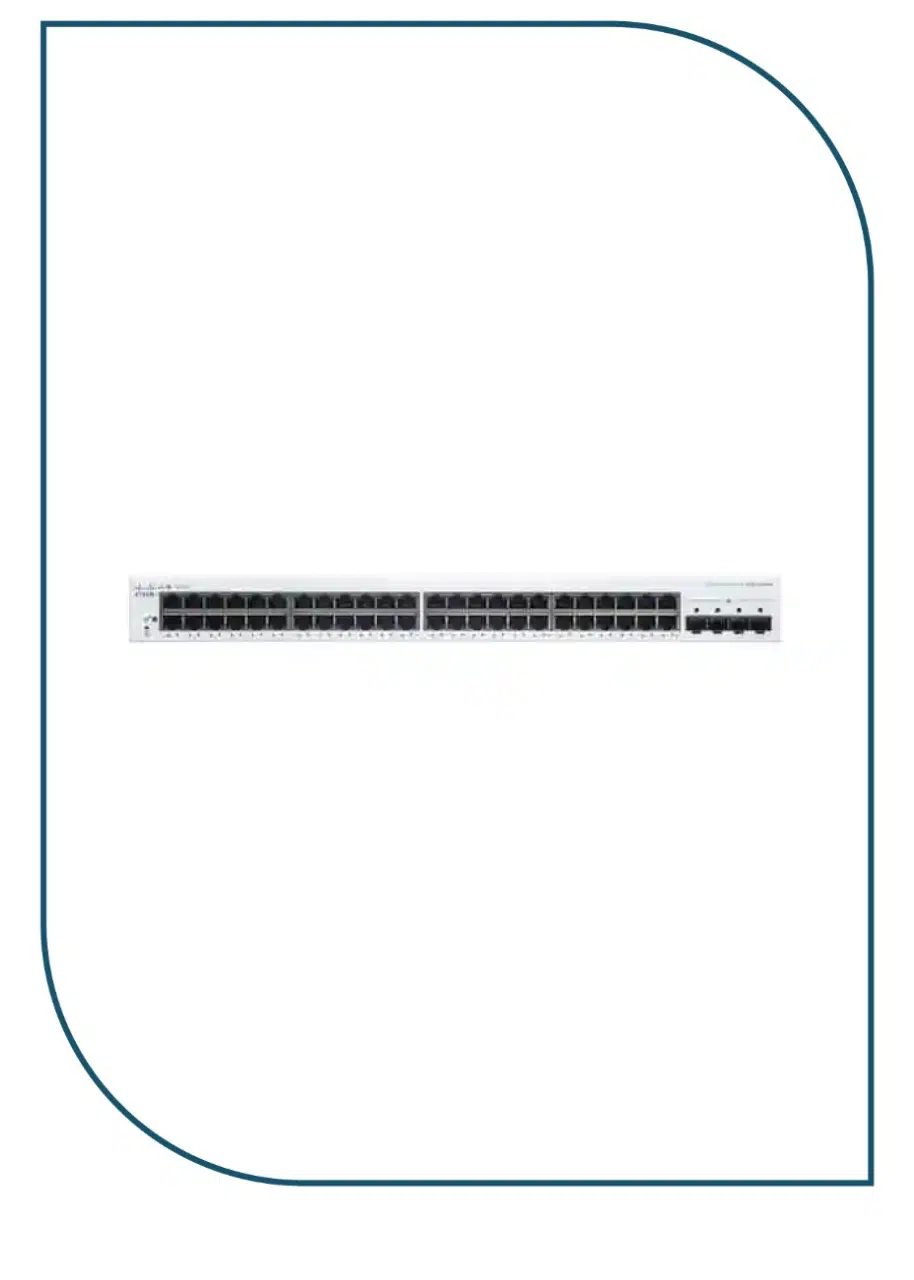

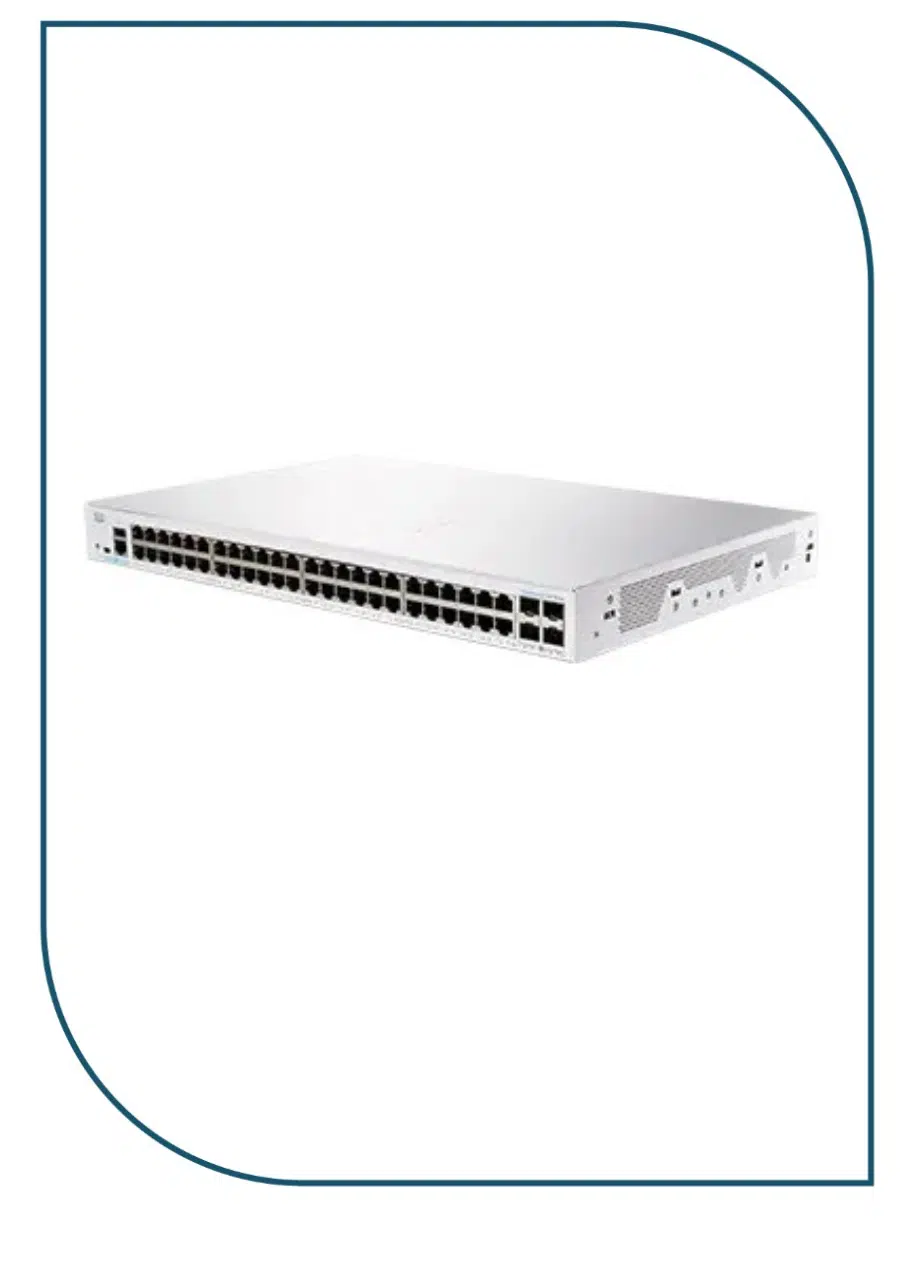

The Cisco CBS220-48T-4X provides enterprise-class networking performance with intelligent management features for growing business environments. Equipped with 48 Gigabit Ethernet ports and 4 high-speed 10G SFP+ uplink ports, this switch offers scalable connectivity and reliable network performance for modern infrastructures.
Part of the Cisco Business 220 Series, the switch supports advanced Layer 2 networking capabilities including VLAN segmentation, QoS traffic prioritization, IPv6 compatibility, link aggregation, and enhanced security features such as ACL and 802.1X authentication. These capabilities help businesses optimize traffic flow and maintain secure network operations.
The CBS220-48T-4X is ideal for offices, schools, retail environments, hospitality deployments, surveillance systems, and enterprise networks requiring dependable Gigabit connectivity with high-speed 10G fiber uplinks. Its rackmount design and intuitive web-based management simplify deployment and network administration.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-48T-4X |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 48 × Gigabit Ethernet RJ-45 |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Support | No |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.94 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, Enterprise Offices, CCTV, Wireless Networks |
| Brand | Cisco |
Key Features
- 48 Gigabit Ethernet ports
- 4 high-speed 10G SFP+ uplinks
- Smart managed Layer 2 switch
- VLAN and QoS support
- Advanced business security features
- IPv6-ready infrastructure
- Rackmount enterprise design
- Reliable Cisco networking performance
- Ideal for office and surveillance networks
- Easy web-based management
