Description

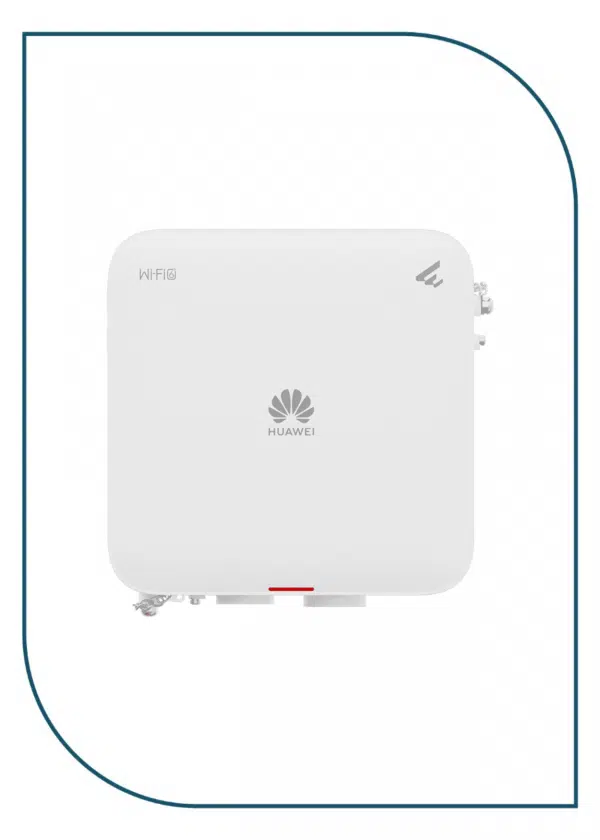

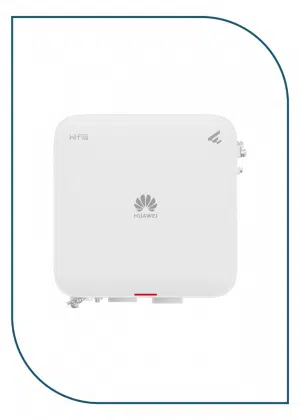

The Huawei eKitEngine AP761 is a high-performance outdoor Wi-Fi 6 (802.11ax) Access Point designed for enterprise campuses, hotels, schools, industrial parks, warehouses, stadiums, public squares, resorts, and other outdoor environments. Featuring dual-band 2×2 MIMO, a maximum wireless rate of 1.775 Gbps, and built-in directional antennas, it delivers reliable long-range wireless coverage and high-speed connectivity.
Designed for harsh outdoor deployments, the AP761 features an IP68-rated waterproof and dustproof enclosure, 6 kV surge protection, and an operating temperature range of -40°C to +65°C, ensuring stable operation in demanding weather conditions. The integrated directional antennas provide optimized outdoor coverage with a recommended coverage distance of up to 180 meters.
The access point supports Wi-Fi 6 technologies such as OFDMA, MU-MIMO, Beamforming, BSS Coloring, and Bluetooth Low Energy (BLE) for improved wireless efficiency, lower latency, and better user experience in high-density environments. It supports up to 1,024 connected clients with 120 recommended concurrent users.
For flexible deployment, the AP761 includes 1 × Gigabit Ethernet (RJ45) port and 1 × Gigabit SFP optical uplink, allowing either copper or fiber network connections. It is powered through IEEE 802.3af/at PoE, simplifying installation while reducing cabling costs. The AP can be managed through Huawei eKit Cloud, Huawei Wireless Access Controllers, or local web management for centralized monitoring and configuration.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine AP761 |
| Product Type | Outdoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac Wave 2/ax |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Maximum Wireless Speed | 1.775 Gbps |
| MIMO | 2×2 (2.4 GHz) + 2×2 (5 GHz) |
| Maximum Channel Width | 40 MHz (2.4 GHz), 80 MHz (5 GHz) |
| Maximum Users | 1,024 |
| Recommended Users | 120 |
| Maximum Transmit Power | 28 dBm (2.4 GHz), 27 dBm (5 GHz) |
| Antennas | Built-in Directional Antennas |
| Antenna Gain | 10 dBi (2.4 GHz), 11 dBi (5 GHz) |
| Coverage Distance | Up to 180 m (recommended) |

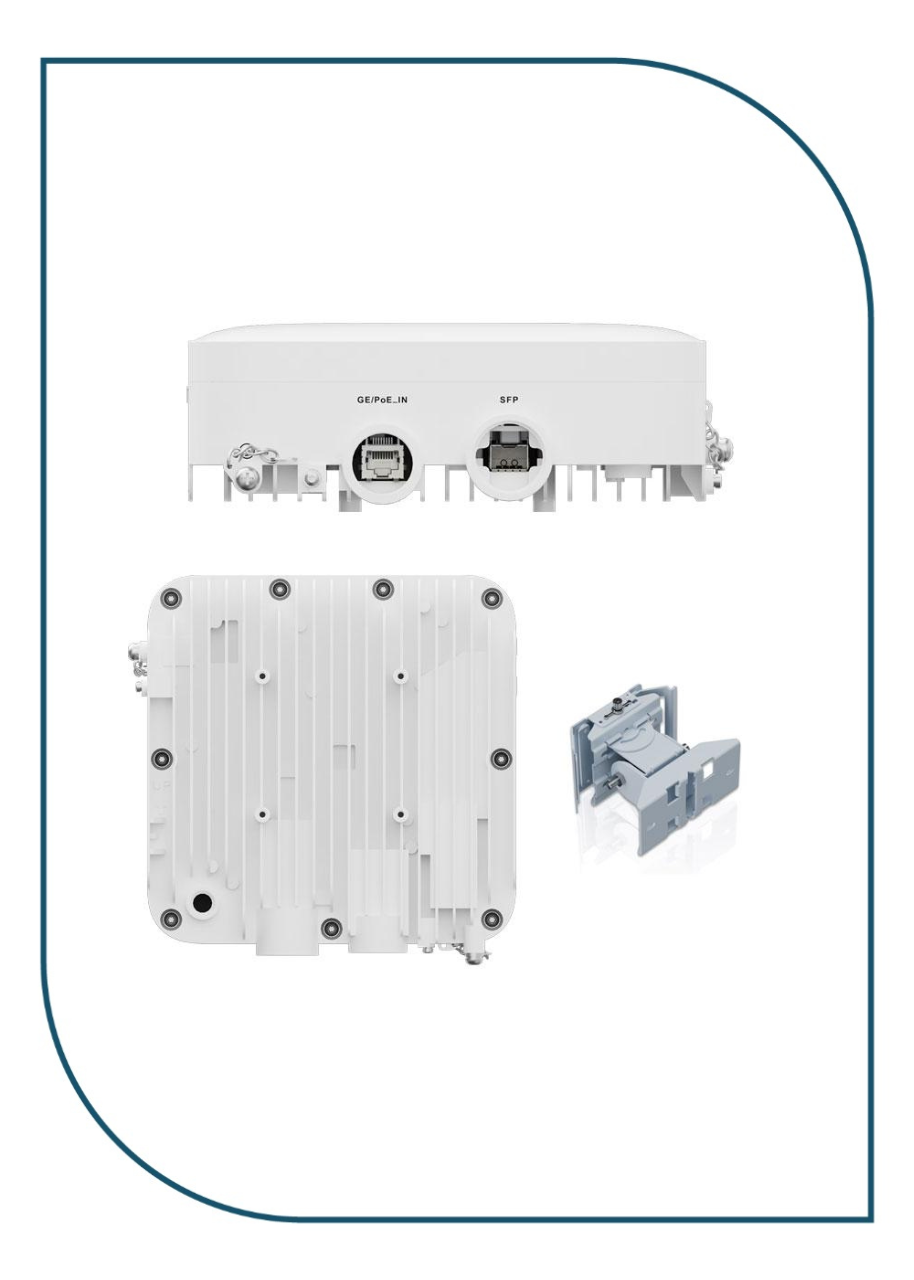

| Network Ports | 1 × Gigabit RJ45, 1 × Gigabit SFP |
| Bluetooth | BLE Supported |
| Power Supply | IEEE 802.3af/at PoE |
| Maximum Power Consumption | 17.7 W |
| Protection Rating | IP68 |
| Surge Protection | 6 kV |
| Management | Huawei eKit Cloud, WAC, Web Management |
| Mounting | Pole Mount, Wall Mount |
| Dimensions (H × W × D) | 69 × 200 × 200 mm |
| Weight | 1.91 kg |
| Operating Temperature | -40°C to +65°C |
