Description

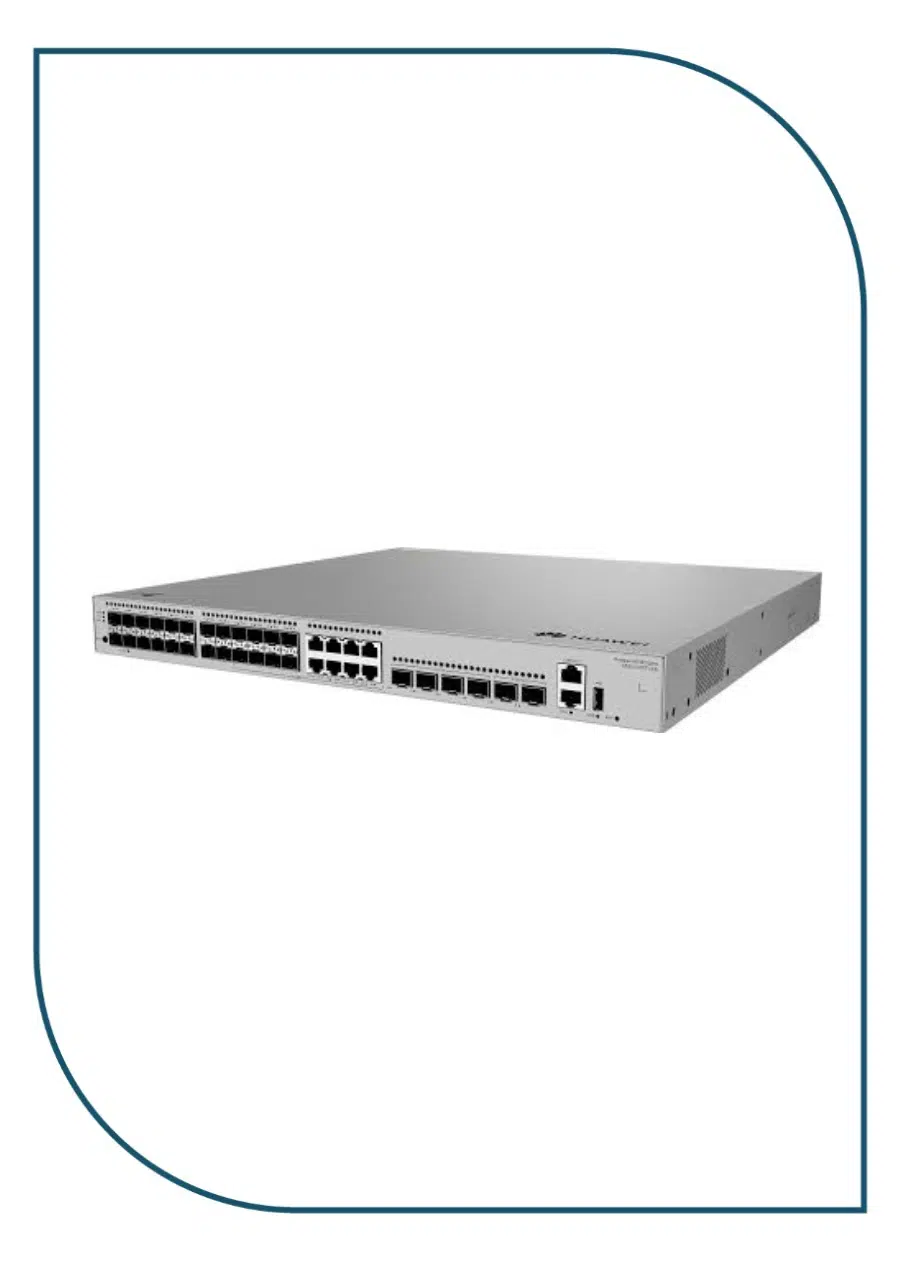

S530-24ST4XE
| Model | Huawei eKitEngine S530-24ST4XE |
| Switch Type | Layer 3 Managed Switch |
| Downlink Ports | 24 × 1Gbps SFP ports (Fiber) |
| Uplink Ports | 4 × 10Gbps SFP+ ports |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K |
| VLAN Support | Up to 4K VLANs |
| Routing Capabilities | – Static Routing – Inter-VLAN Routing |
| Security Features | – ACL (Access Control List) – DHCP Snooping – ARP Inspection |
| Loop Prevention | STP / RSTP / MSTP |
| QoS (Quality of Service) | Supported |
| Management Interfaces | – Web UI – CLI (Console, Telnet, SSH) – SNMP |
| Power Supply | AC powered (No PoE support) |
| Mounting | Rack-mountable (1U) |
| Typical Applications | – SMB Access & Aggregation Layer – Fiber to the Office (FTTO) – Small Branch Networks |
| Energy Saving | Supported |
Use Case for S530-24ST4XE:
- Ideal if your access layer is fiber-based, such as Fiber To The Office (FTTO) scenarios.
- Common in environments needing long-distance connectivity over fiber instead of copper cabling.
- Suitable for SMBs, Campus Networks, and Branch Networks where fiber is the primary medium.
