Description
S220S-8P4J

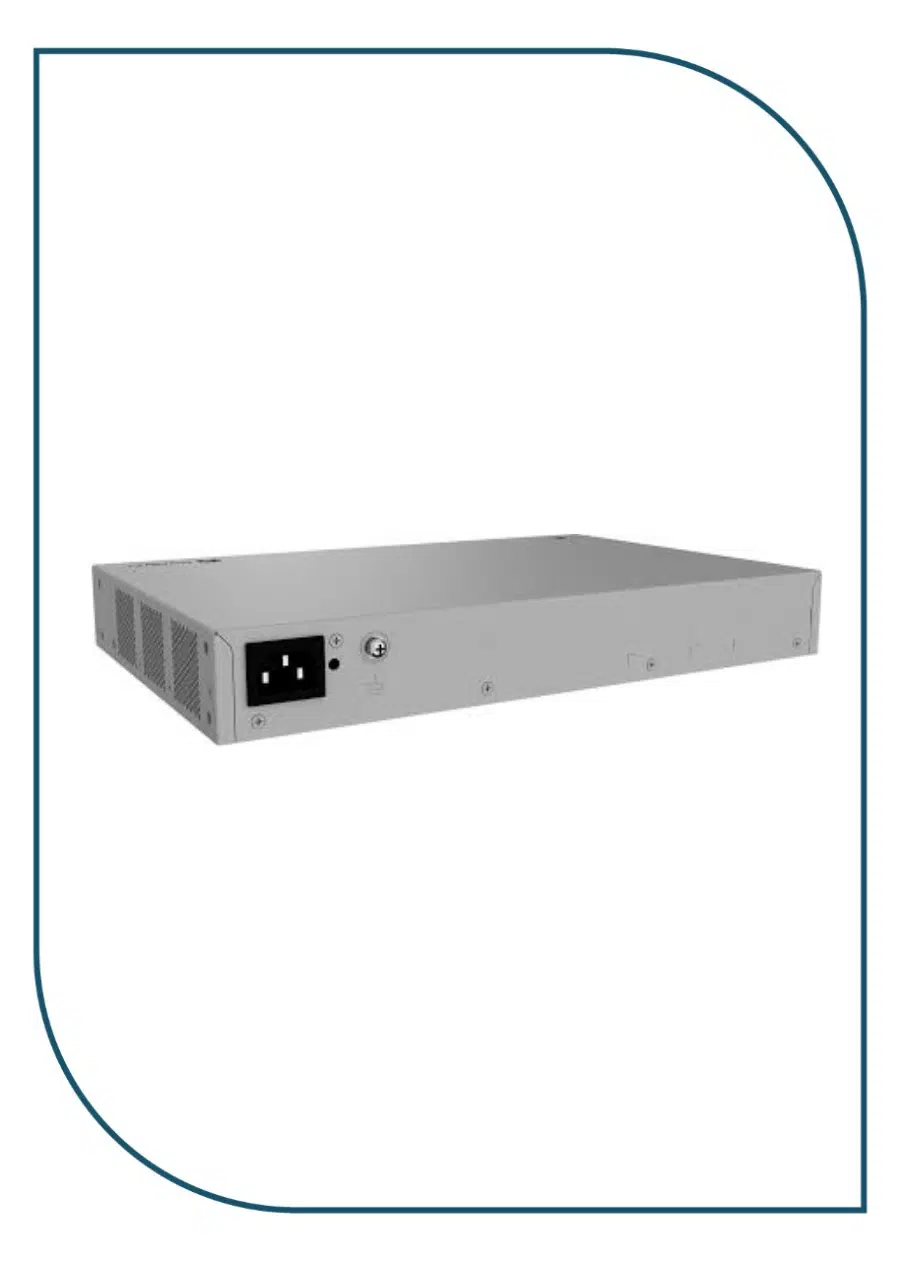

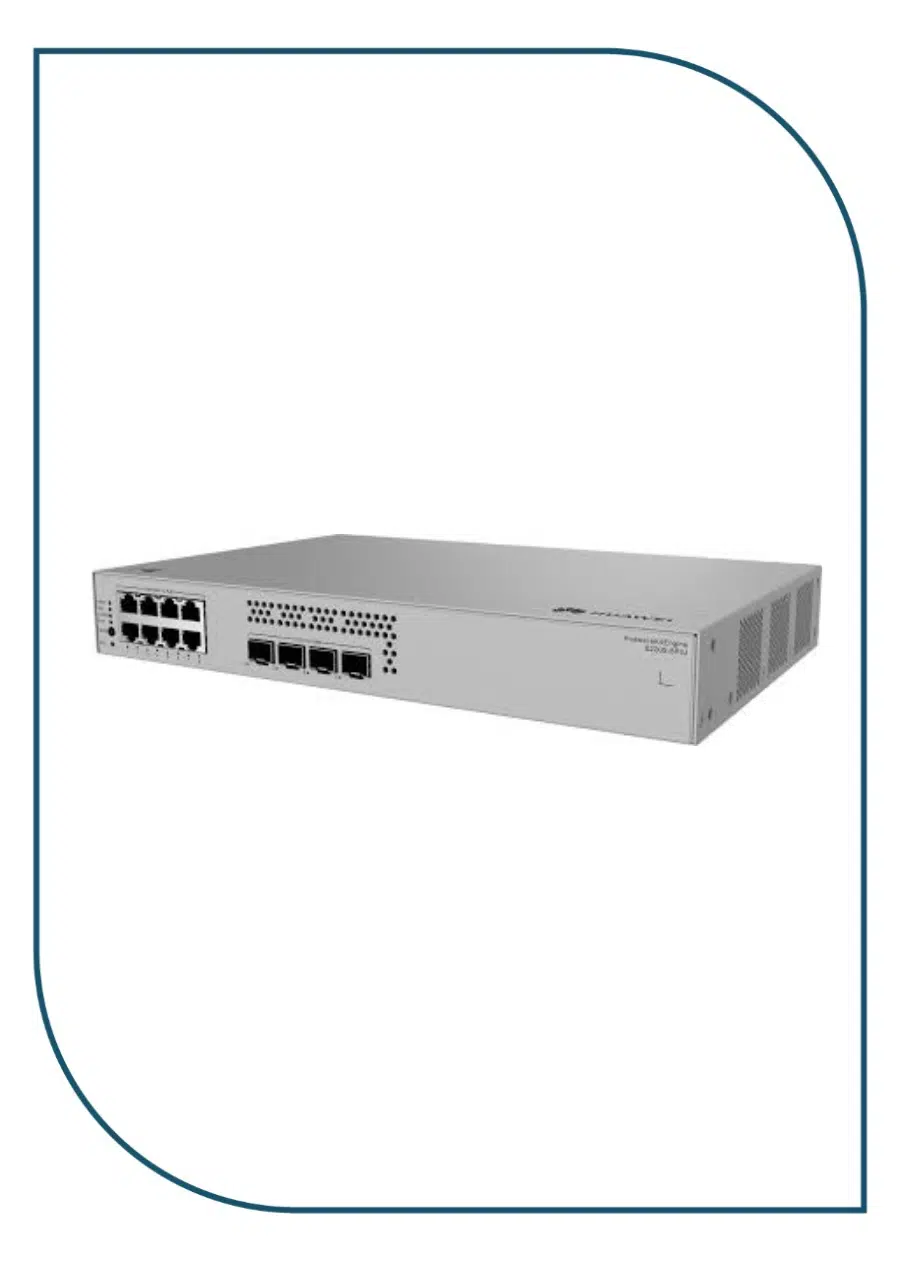

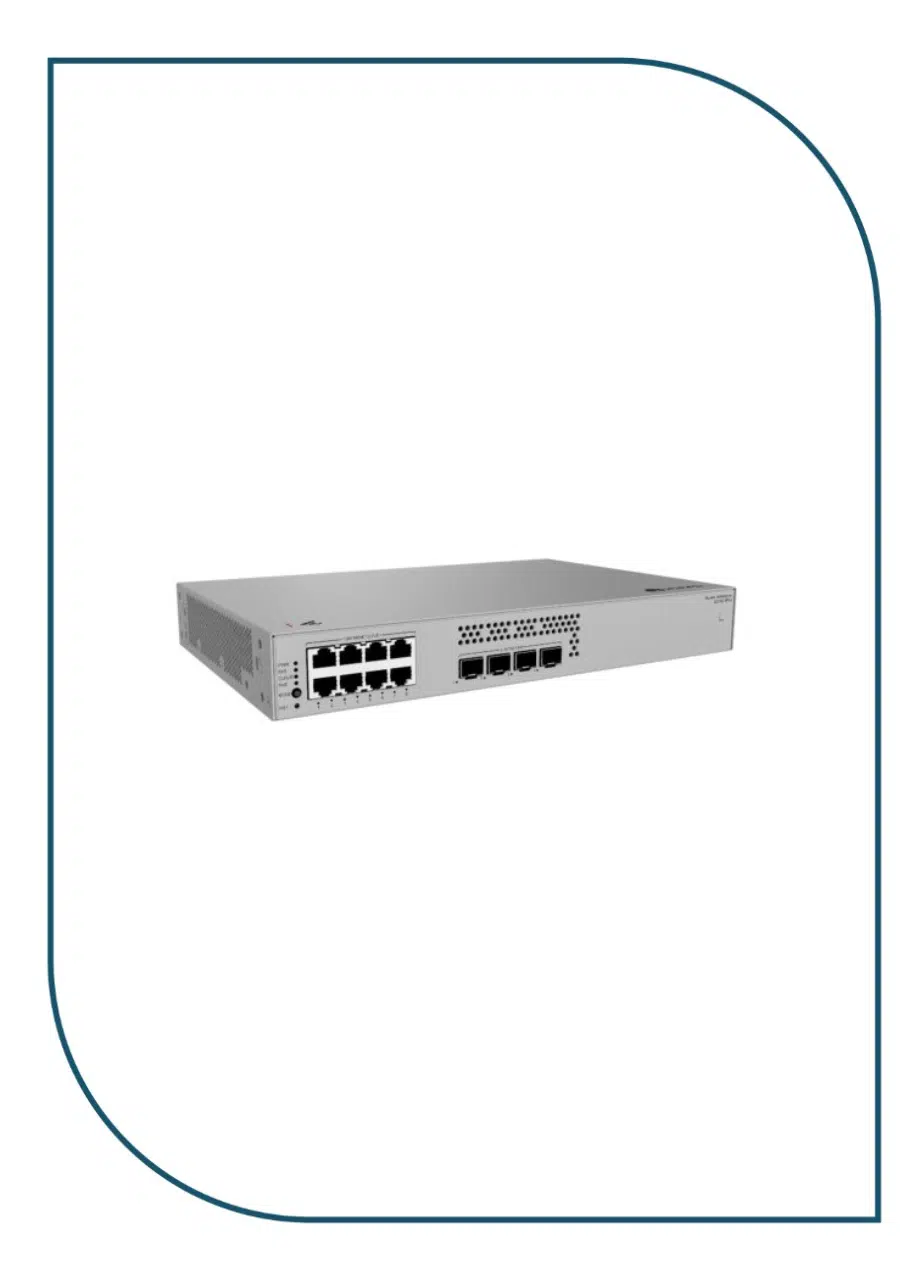

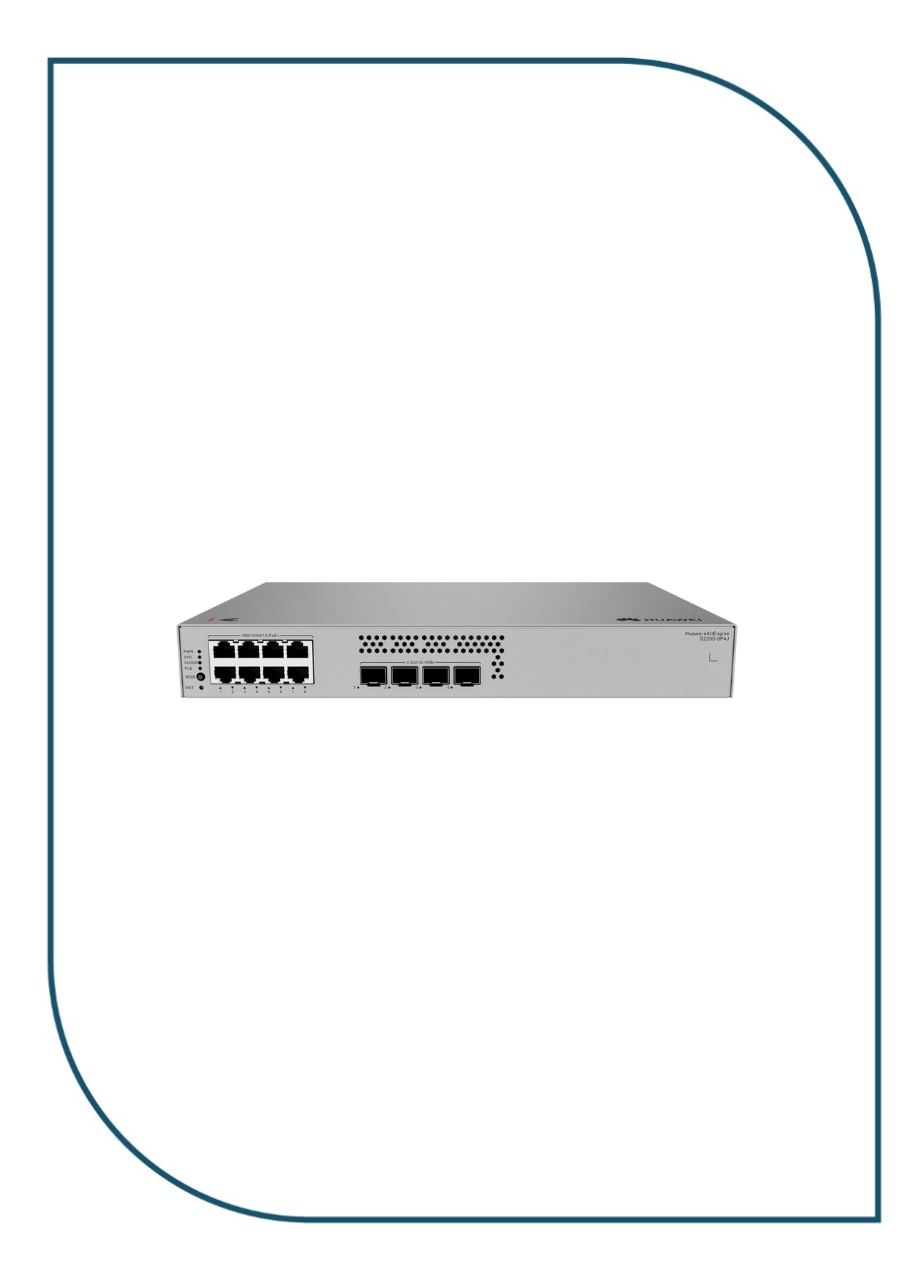

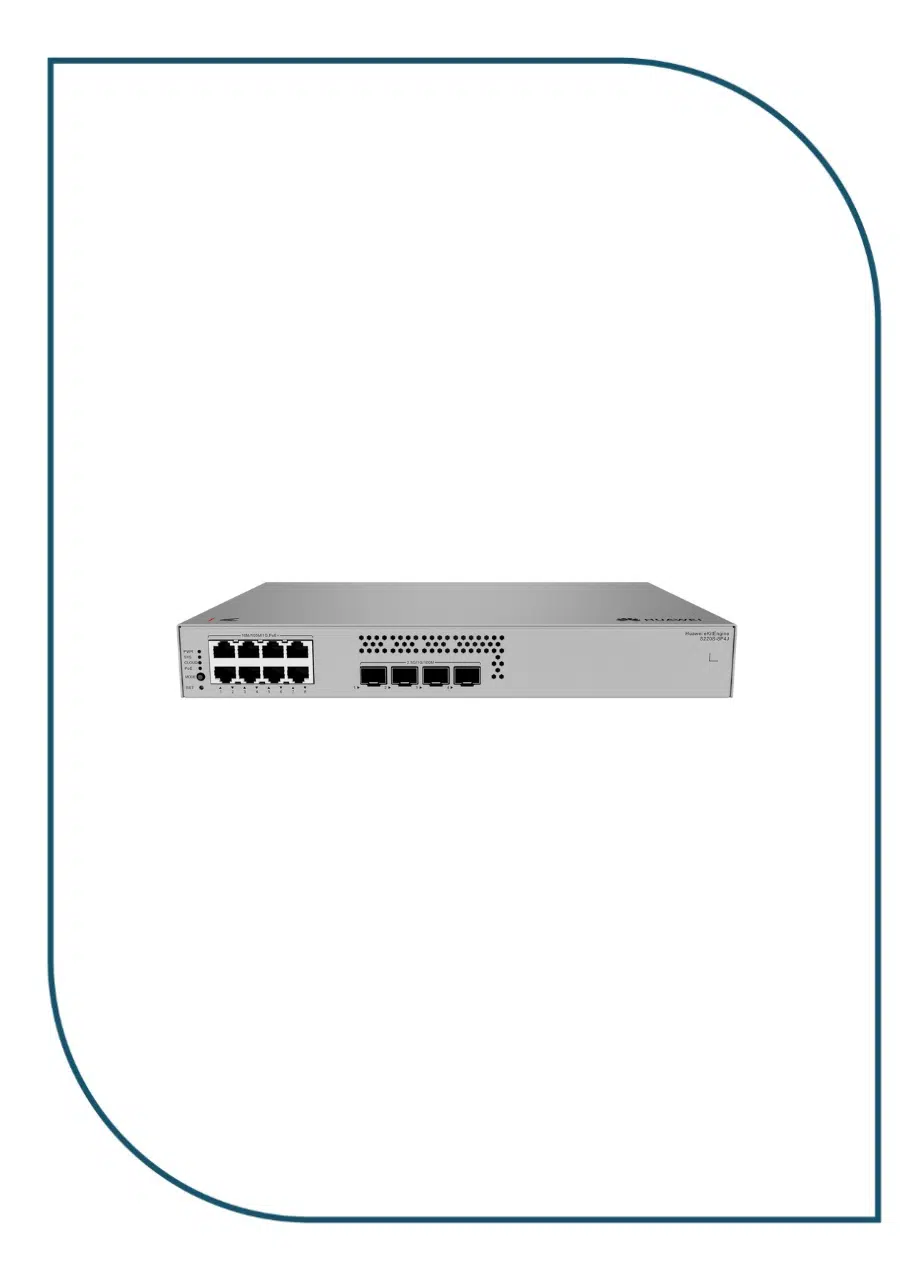

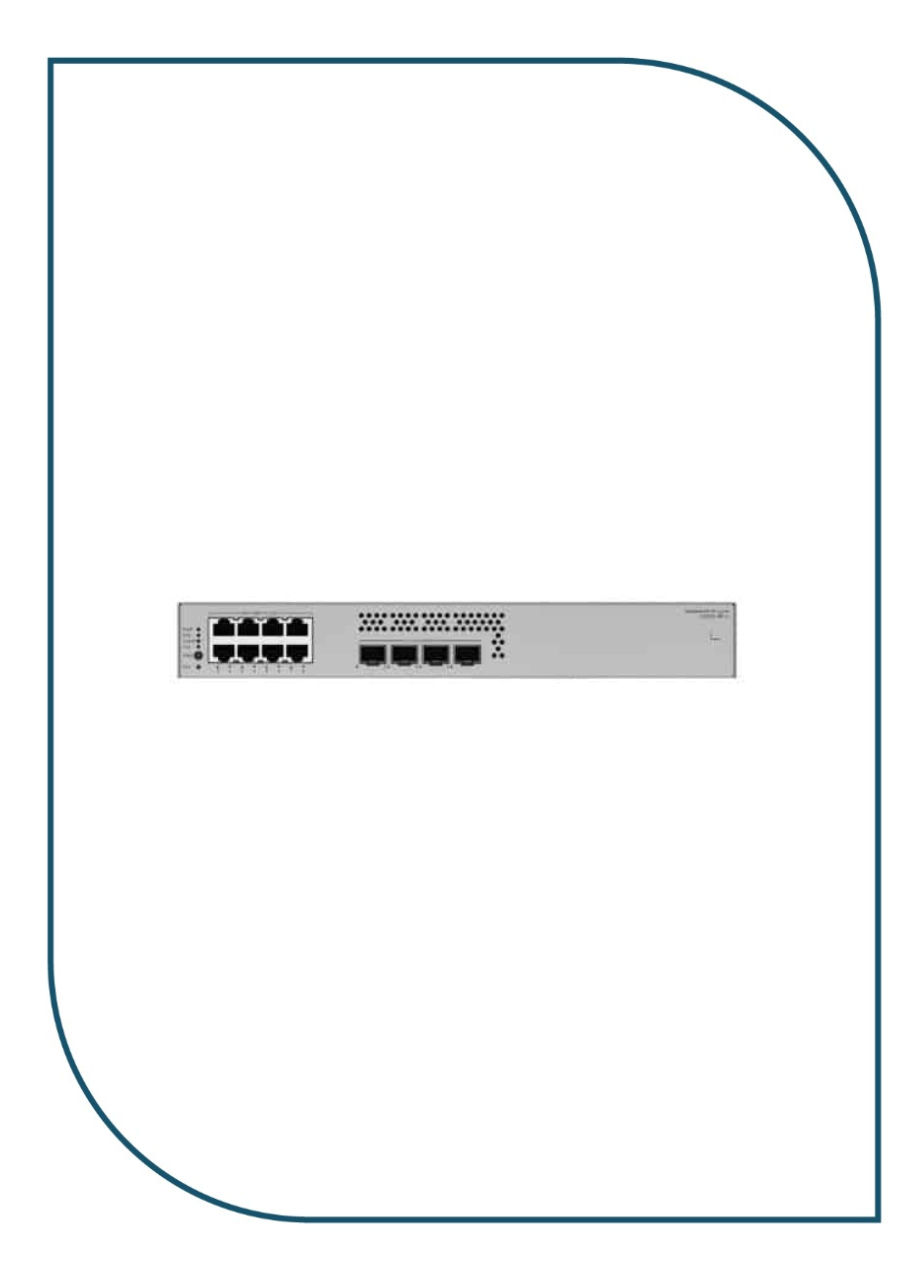

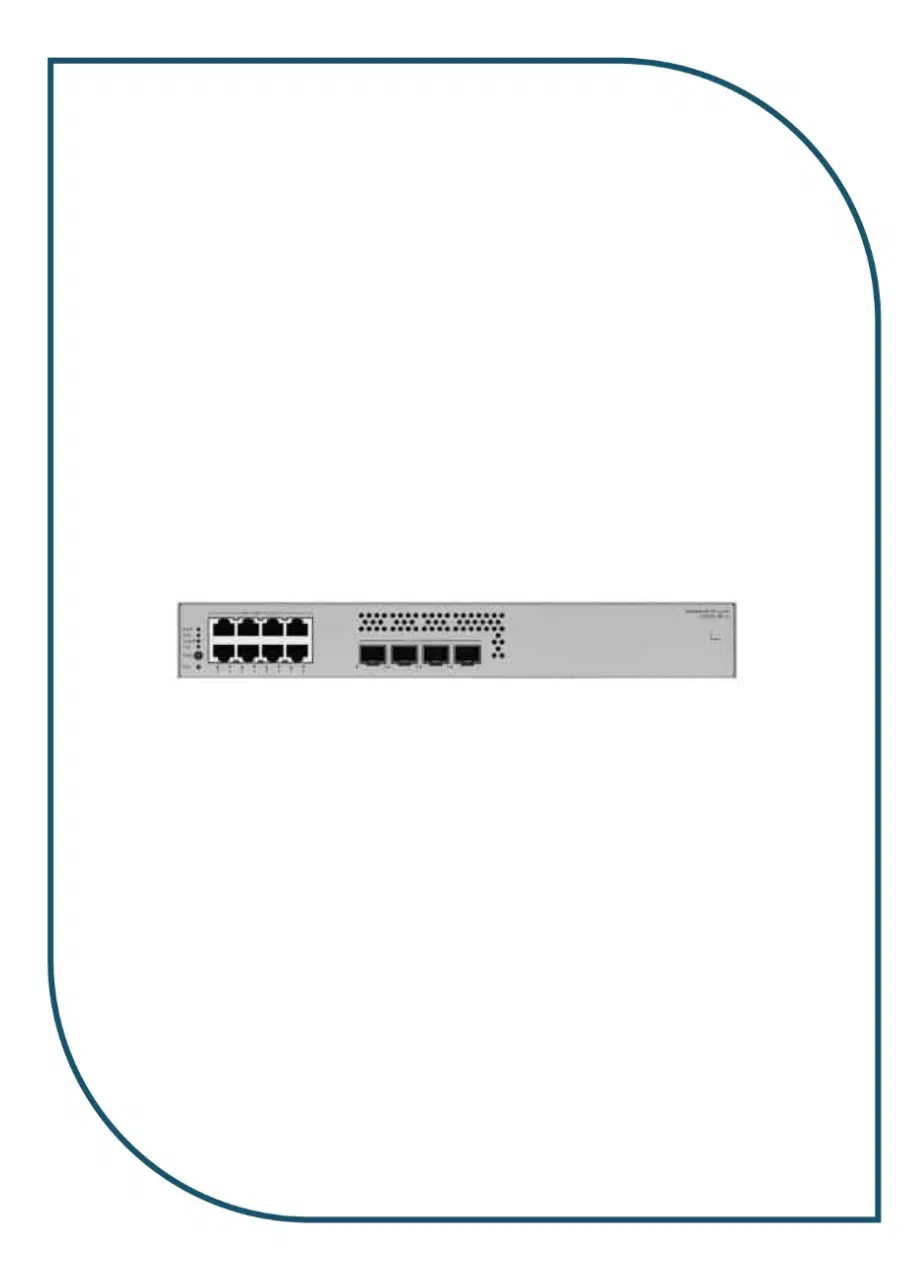

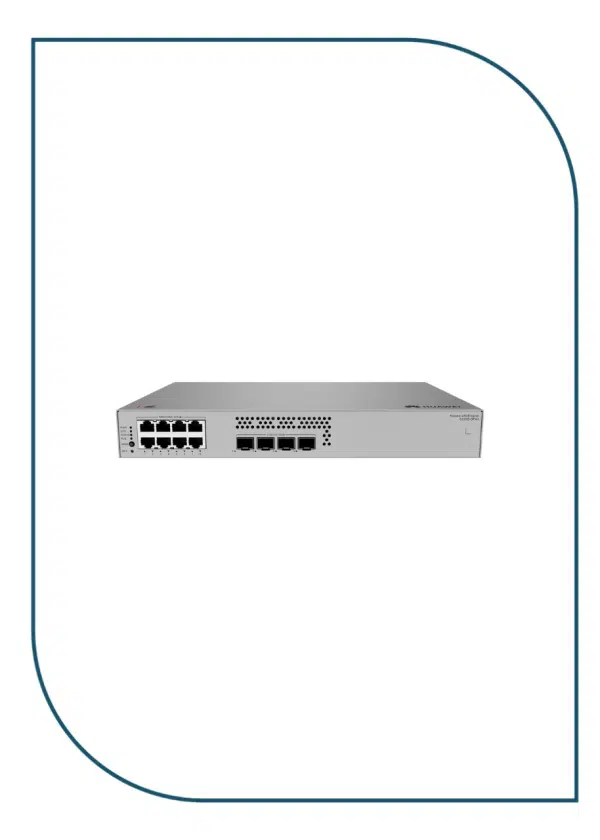

Huawei Layer 2 Smart Managed Switch (S220S-8P4J)
The Huawei S220S-8P4J is a Layer 2 smart managed switch designed for SMB and enterprise edge networks. It features 8 Gigabit Ethernet PoE+ ports for powering devices such as wireless access points, IP cameras, and VoIP phones, along with 4 × 2.5GE SFP uplink ports that provide high-speed and flexible fiber connectivity.
The switch supports essential Layer 2 functions including VLAN, QoS, link aggregation, and security policies, delivering efficient power distribution, high-bandwidth uplinks, and reliable network management in a compact form factor.
| Model | S220S-8P4J Switch |
|---|---|
| Switching capacity | 36 Gbps |
| Network ports | 8 x 10/100/1000BASE-T PoE+ ports |
| Uplink ports | 4 x 2.5GE SFP ports |
| PoE Support | Yes |
| PoE capability | 400 W |
| Ports Support PoE | 8 |
| Dimensions | 9.1 x 46.5 x 35.5 cm |
| Weight | 3.43 kg |
| Technical Specifications | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 217 mm (1.72 in. x 12.60 in. x 8.54 in.) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 91.0 mm x 465.0 mm x 355.0 mm (3.58 in. x 18.31 in. x 13.98 in.) |
| Chassis height [U] | 1 |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.53 kg (5.58 lb) |
| Weight with packaging [kg(lb)] | 3.43 kg (7.56 lb) |
| Typical power consumption [W] | 22.73 |
| Typical heat dissipation [BTU/hour] | 77.56 |
| Maximum power consumption [W] | – Without PoE: 23.23 W |
| – Full PoE load: 161.56 W (PoE: 128 W) | |
| Maximum heat dissipation [BTU/hour] | – Without PoE: 79.26 |
| – Full PoE load: 551.26 | |
| Static power consumption [W] | 13.93 |
| MTBF [years] | 83.83 |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +40°C (41°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND flash: 256 MB |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
