Description

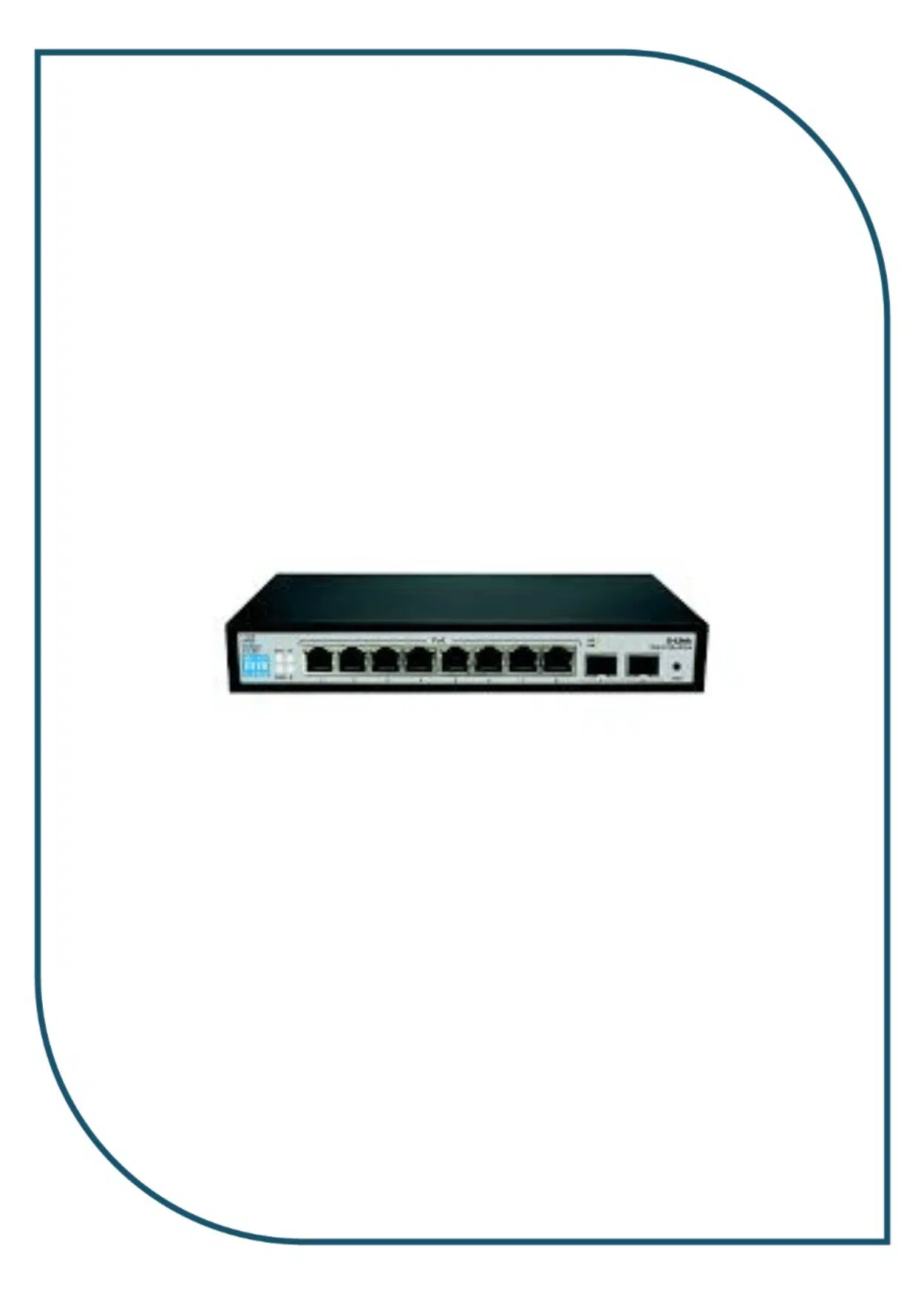

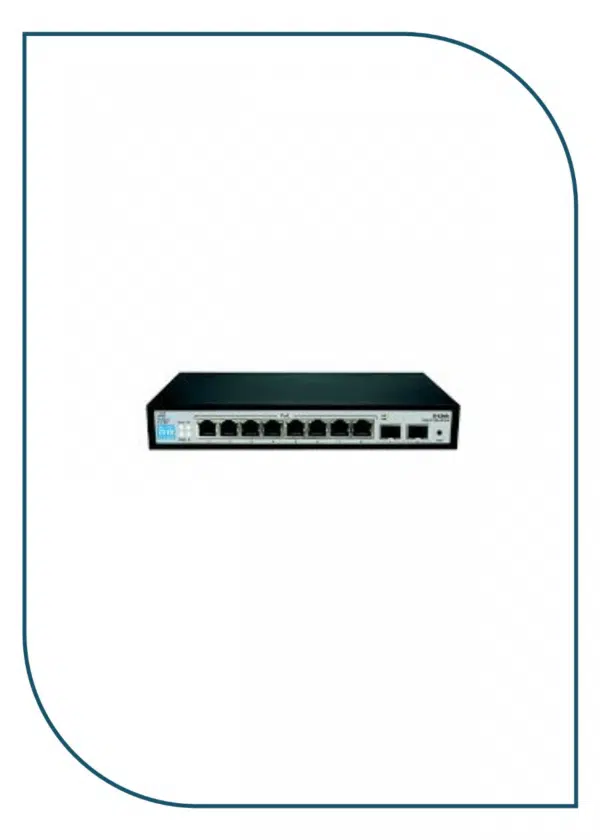

DES-F1016P-E
This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Product Highlights
Power Your Devices Supports IEE 802.3af/at PoE to Power PoE capable Network devices via ethernet cables without need for power adapters
Flexible Connectivity
Support transmission distance up to 250m for flexible installation of wireless AP & Surveillance Solutions.
Eco-friendly and Economical
Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing performance
Superior connectivity
- 16 10/1 0OMbps Fast Ethernet ports
- 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports
- 150 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
DES-F1016P-E Standards
IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
IEEE 802.3z 1000 BASE-X (fiber-optic)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
Easy to Use
- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports
DES-F1016P-E Specification
| 100Base-TX Interface | Ethernet RJ-45 port |
|---|---|
| Auto MDI/MDIX | Yes |
| Switching Capacity | 7.2 Gbps |
| Max. Packet Forwarding Rate | 3.868Mpps |
| Dimension | (LxWxH): 285 x 180 x 44mm |
| Weight | 2.1kg |
| Operation Temperature | O to 40 °C (32 to 104 °F) |
| Operation Humidity | 10% to 90% non-condensing |
| Maximum Power Consumption | 100-240VAC, 50-60Hz |
| FAN | Fanless |
| 802.3x Flow Control | Yes |
