Description

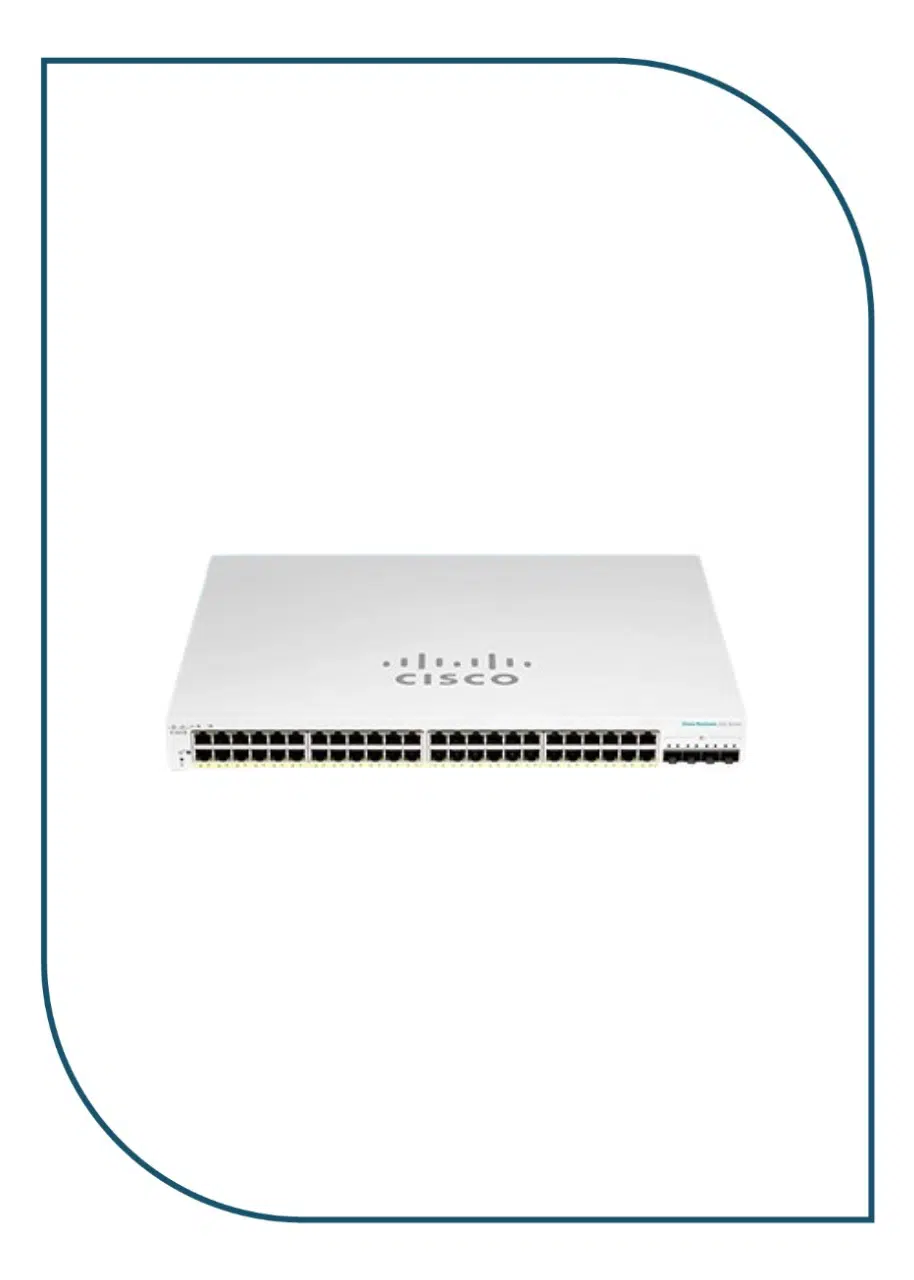

The Cisco CBS220-48P-4X-EU delivers enterprise-class networking performance with intelligent management and advanced Power over Ethernet capabilities for modern business infrastructures. Equipped with 48 Gigabit Ethernet PoE+ ports and 4 ultra-fast 10G SFP+ uplink interfaces, this switch provides scalable connectivity and high-bandwidth network expansion for growing organizations.
As part of the Cisco Business 220 Series, the switch supports advanced Layer 2 networking features including VLAN segmentation, QoS traffic prioritization, IPv6 compatibility, link aggregation, ACL security policies, and intuitive web-based management. These capabilities help businesses optimize network performance while maintaining stable and secure operations.
The integrated PoE+ functionality simplifies deployment by delivering both power and data through a single Ethernet cable to devices such as IP cameras, VoIP phones, wireless access points, and IoT devices. With a powerful 382W PoE budget and rackmount design, the CBS220-48P-4X-EU is ideal for offices, schools, hotels, surveillance systems, and enterprise networking environments.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-48P-4X-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 48 × Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Power Budget | 382W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.94 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, CCTV, VoIP, Wireless APs |
| Brand | Cisco |
Key Features
- 48 Gigabit PoE+ Ethernet ports
- 4 ultra-fast 10G SFP+ uplinks
- Smart managed Layer 2 switch
- Large 382W PoE power budget
- VLAN and QoS support
- Advanced business security features
- IPv6-ready infrastructure
- Ideal for CCTV and VoIP deployments
- Rackmount professional design
- Reliable Cisco networking performance
