Description

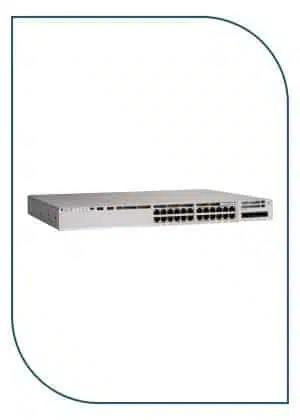

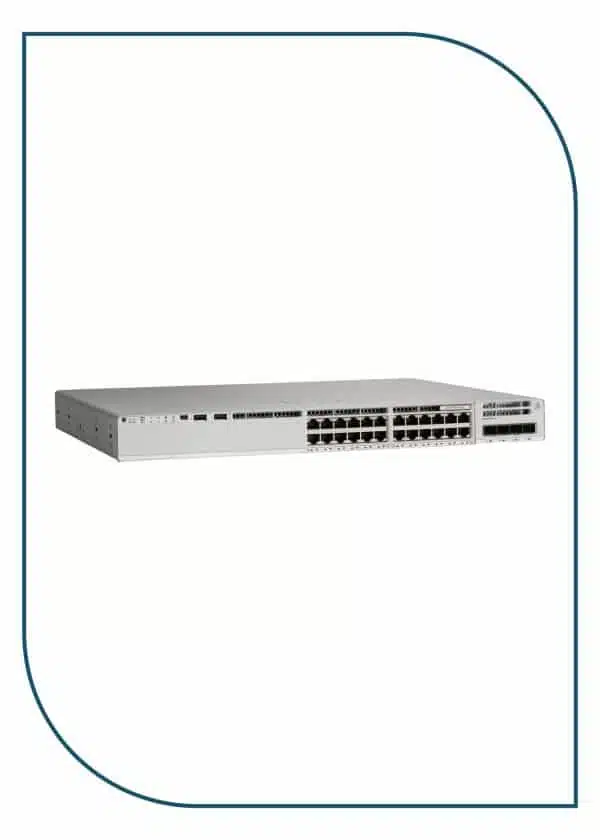

The Cisco C9200L-24P-4X-E is built to provide secure, scalable, and resilient enterprise networking for modern business infrastructures. Equipped with 24 Gigabit Ethernet PoE+ ports and 4 fixed 10G SFP+ uplink interfaces, it enables high-performance connectivity for wireless access points, IP phones, surveillance cameras, and enterprise network devices.
As part of the Cisco Catalyst 9200L Series, the switch supports advanced Layer 3 networking, intelligent traffic management, network segmentation, QoS, IPv4/IPv6 routing, and enterprise-grade security features. Powered by Cisco Network Essentials software, it delivers simplified management and operational efficiency for enterprise environments.
The integrated Full PoE+ capability allows both power and data transmission through a single Ethernet cable, reducing infrastructure costs and simplifying deployment. The switch supports Cisco StackWise technology with stacking bandwidth up to 160 Gbps, enabling seamless scalability and centralized management.
Designed for enterprise campuses, branch offices, education environments, hospitality deployments, and secure business networks, the C9200L-24P-4X-E delivers exceptional reliability, resiliency, and future-ready network performance.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco C9200L-24P-4X-E |
| Product Series | Cisco Catalyst 9200L Series |
| Software License | Network Essentials |
| Switch Type | Managed Layer 3 Switch |
| Ports | 24 × Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | 370W |
| Layer Support | Layer 2 / Layer 3 |
| Routing Features | Static Routing, OSPF, RIP, IPv4/IPv6 |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, MACsec |
| IPv6 Support | Yes |
| Stacking Support | Cisco StackWise |
| Stacking Bandwidth | Up to 160 Gbps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Management | CLI, SNMP, Cisco DNA Center |
| Power Supply | Internal, Redundant PSU Supported |
| Mounting Type | Rack Mountable |
| Application | Enterprise Networks, VoIP, CCTV, Wireless Networks |
| Brand | Cisco |
Key Features
- 24 Gigabit Ethernet PoE+ ports
- 4 fixed 10G SFP+ uplinks
- Cisco Network Essentials software
- Enterprise Layer 3 managed switching
- Advanced MACsec security
- IPv4 and IPv6 routing support
- Cisco StackWise scalability
- Up to 160 Gbps stacking bandwidth
- Redundant power supply support
- Ideal for campus and branch deployments
