Description
AP661
Overview
AP661
| Item | Details |
|---|---|
| Description | AP661(11ax indoor,2+2+4 tri bands ,smart antenna ,USB,BLE) |
| Part Number | 02355VFC |
| Model | AP661 |
| First supported version | V200R023C10 |

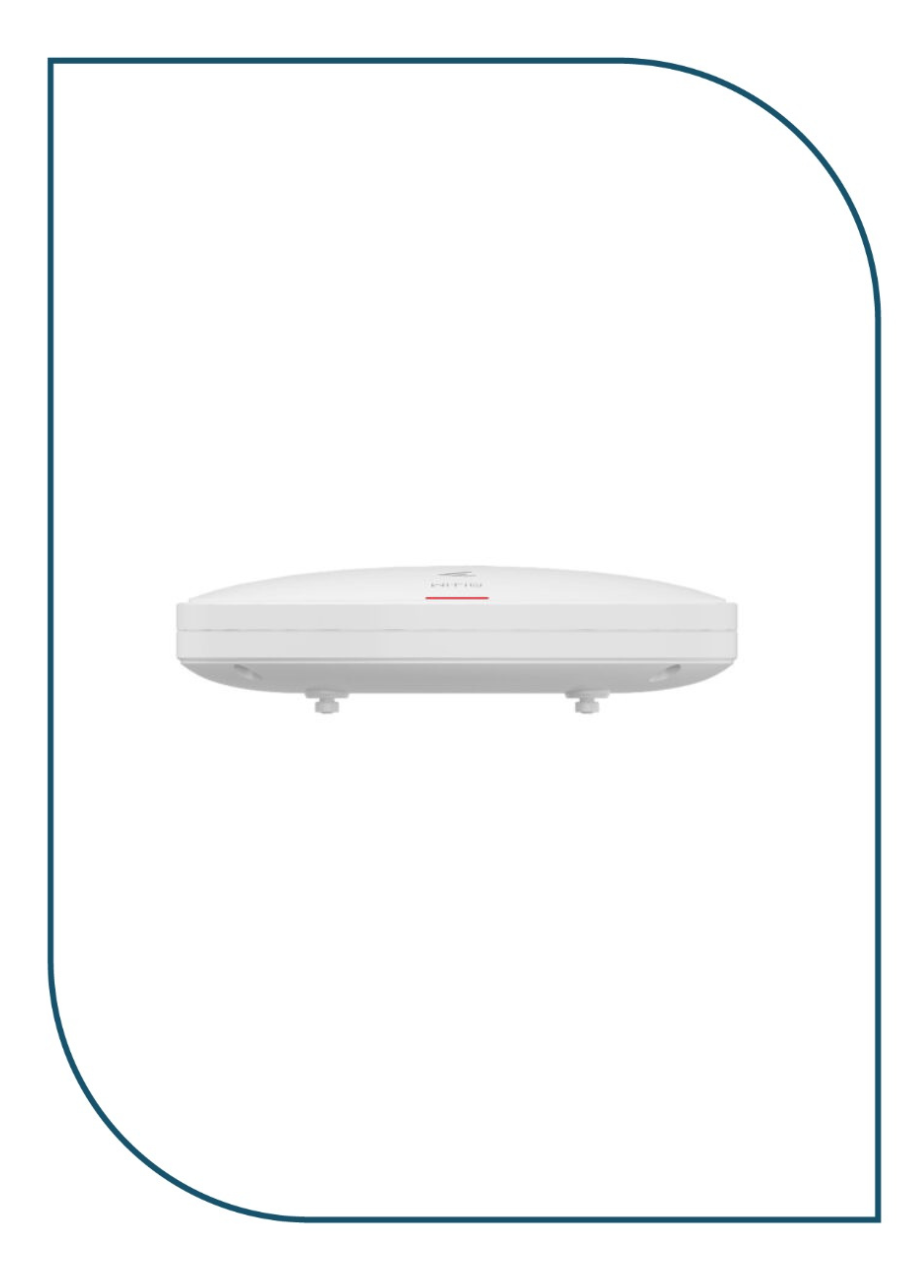

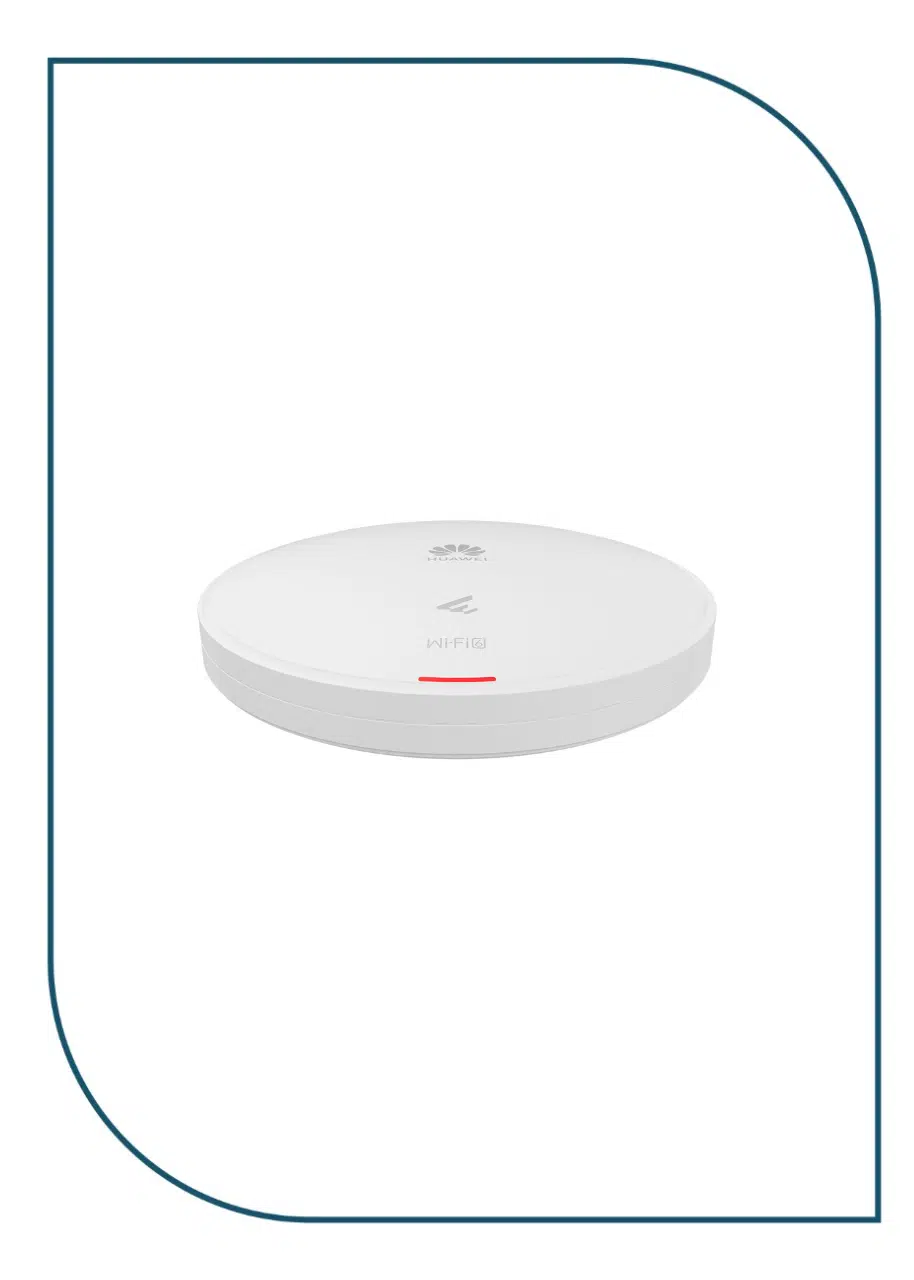

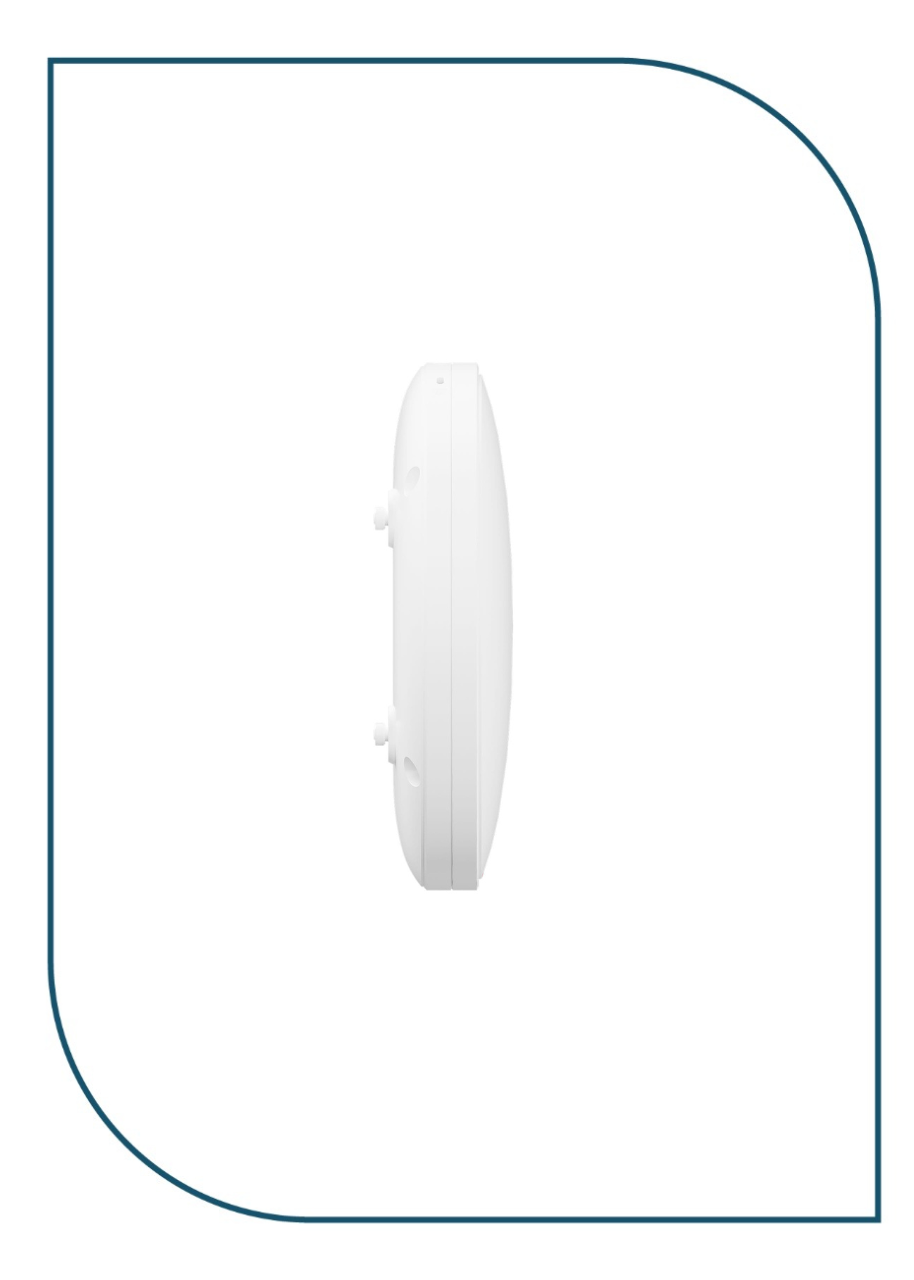

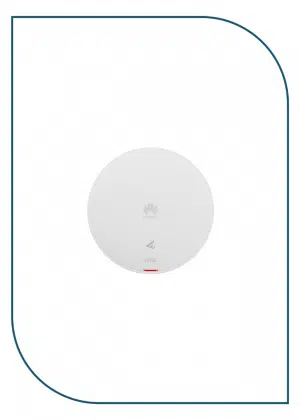

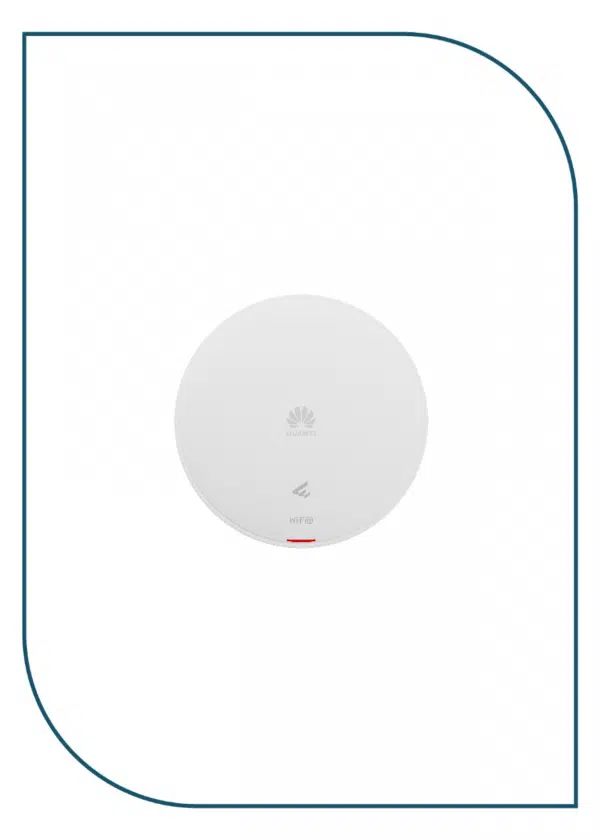

AP661 Appearance
AP661

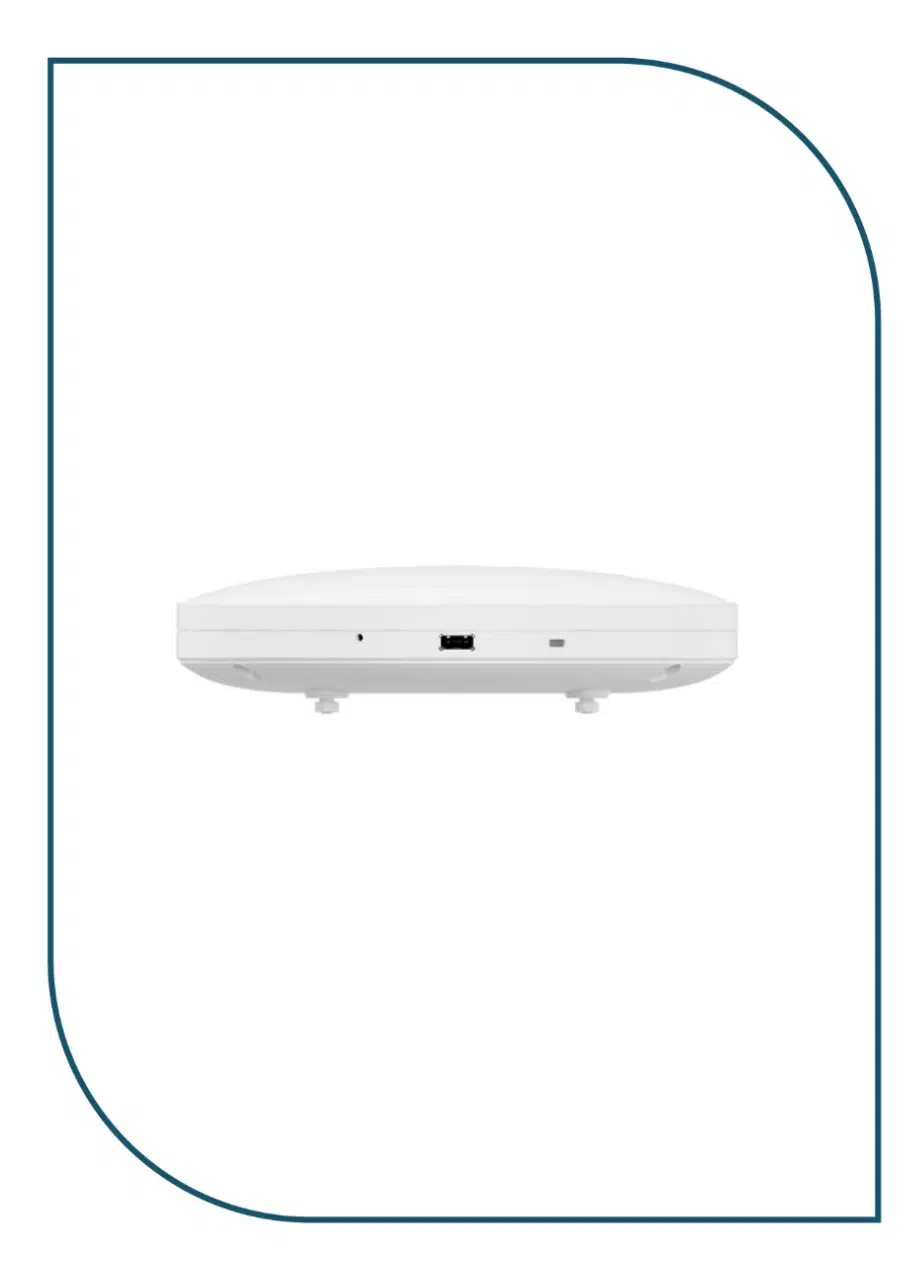

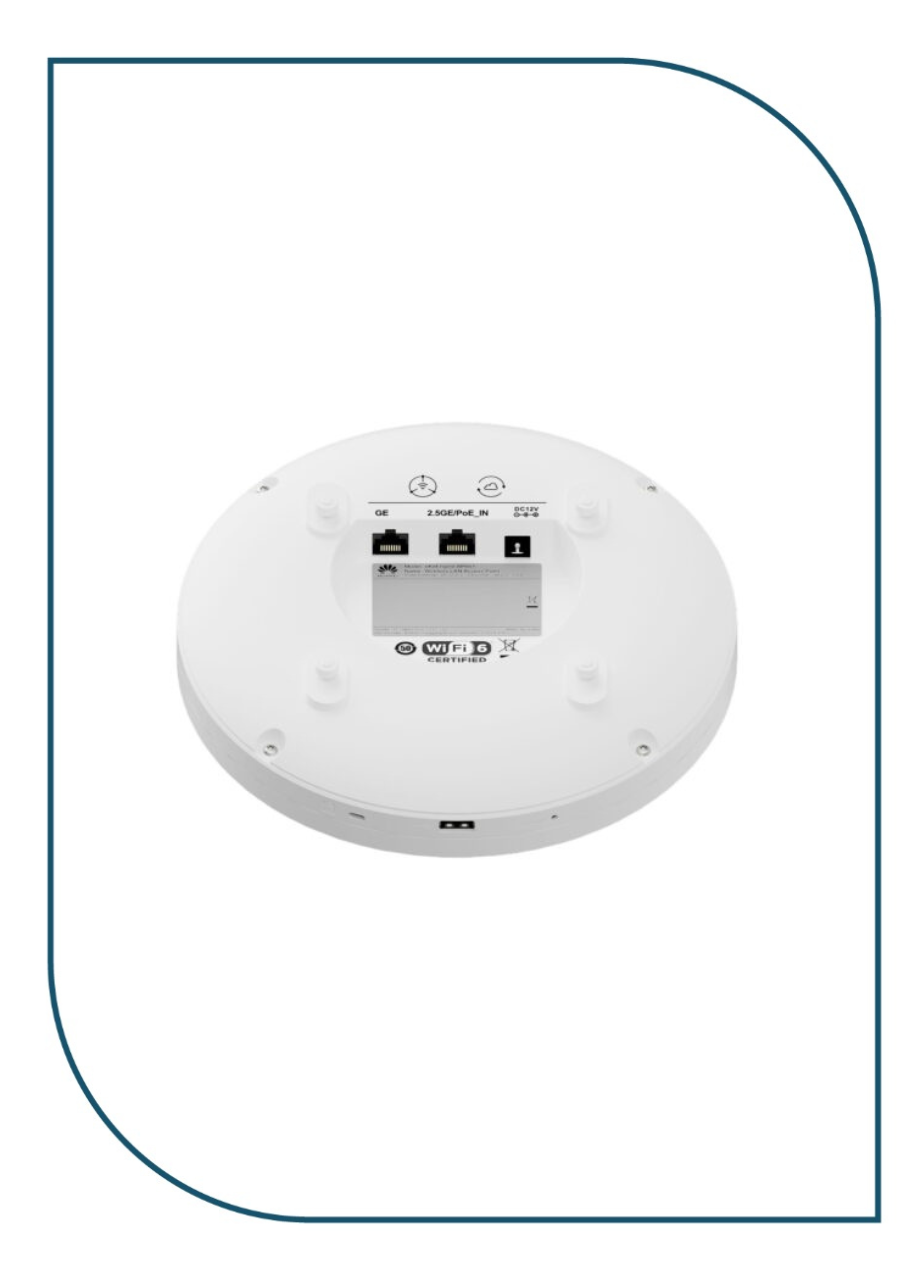

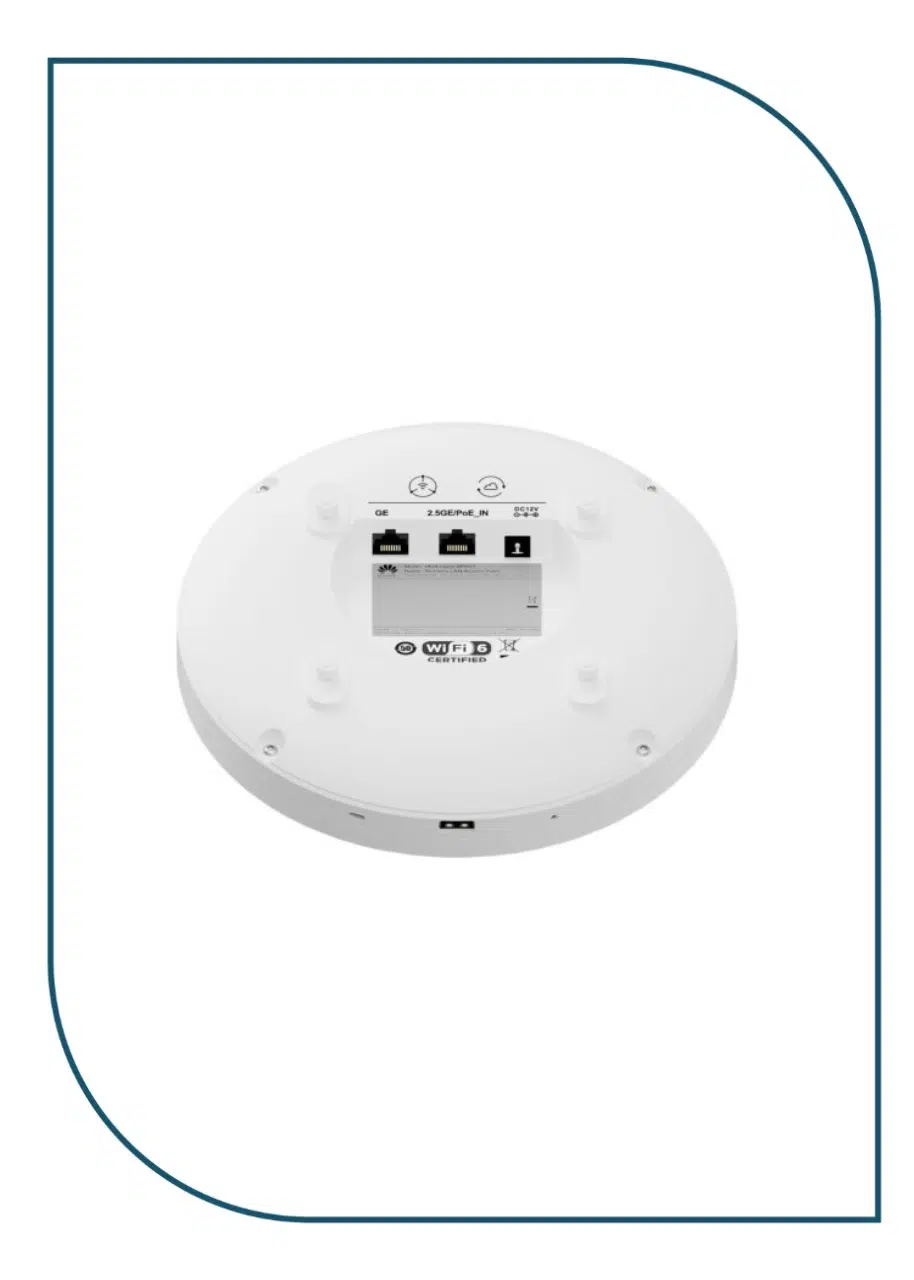

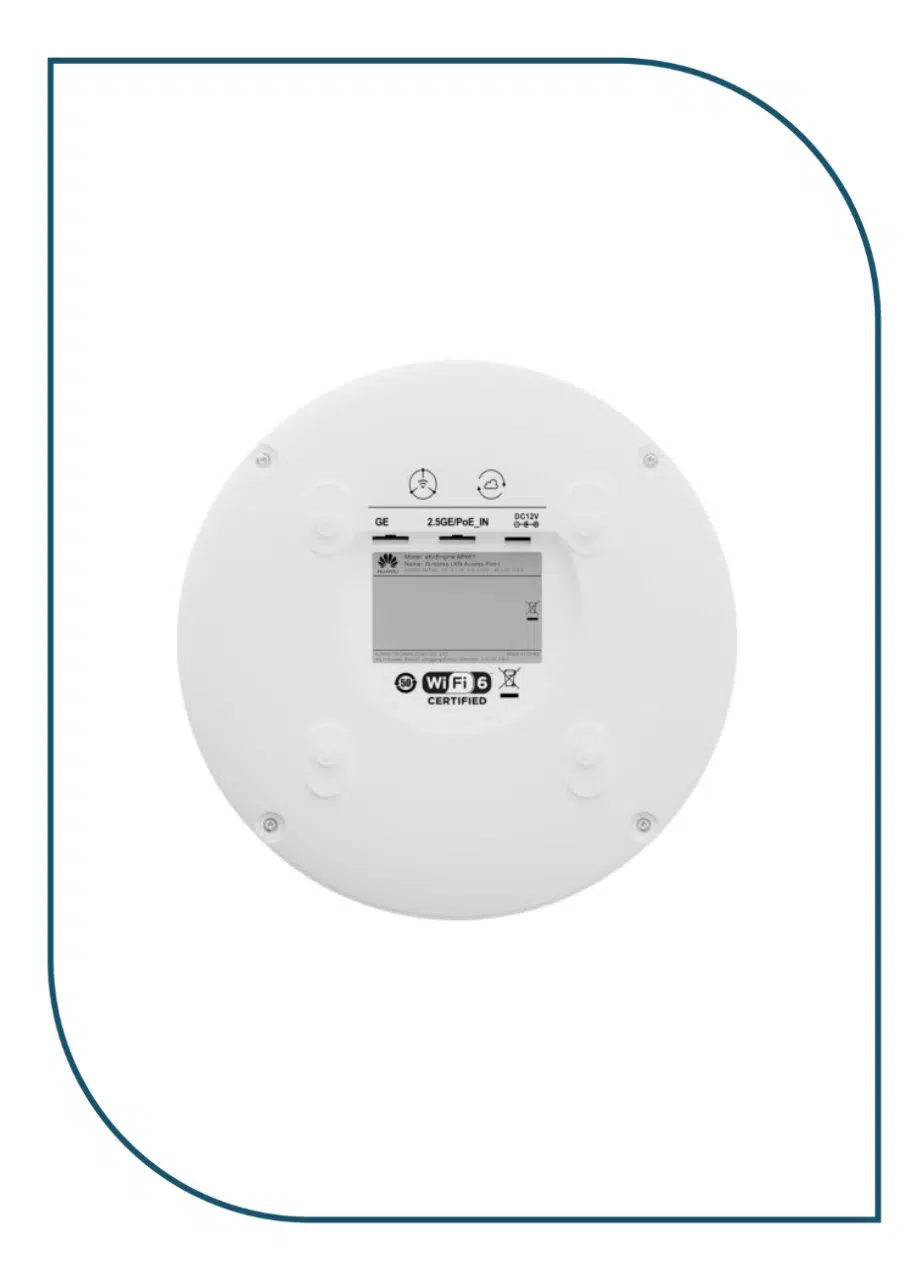

Ports
AP661
| 1 | Security slot | 2 | USB |
| 3 | DC 12V | 4 | 2.5GE/PoE_IN |
| 5 | GE | – | – |
AP661
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 2.5GE/PoE_IN | RJ45 | 100M/1000M/2.5G auto-sensing Ethernet electrical port that connects to the wired Ethernet and supports PoE input. | Network cable |
| GE | RJ45 | Ethernet electrical port that supports 10/100/1000M auto-sensing and connects to the wired Ethernet. | Network cable |
| DC 12V | DC connector | Connects to a 12 V power adapter. | 12 V DC power adapter |
| USB | USB 2.0 Type A | Connects to an IoT terminal to implement IoT applications. | IoT module |
Indicators and Buttons
AP661
| 1 | Indicator | 2 | Default |
AP661
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| – | System indicator | – | Off | The system is not running. |
| White | Steady on |
|
||
| White | Steady on after blinking once | After the hardware reset is cleared and the software starts, the indicator blinks once. Then, the indicator is steady on until the bottom-layer system starts. | ||
| White | Slow blinking (0.5 Hz) | The AP is running properly, the Ethernet connection is normal, and STAs are associated with the AP. | ||
| White | Slow blinking (0.2 Hz) | The AP is running properly, the Ethernet connection is normal, and no STA is associated with the AP. | ||
| White | Blinking once every 0.25s (4 Hz) |
|
||
| Red | Steady on | The system is faulty. |
AP661
| Silkscreen | Name | Description |
|---|---|---|
| Default | Reset button | If you press the button, the device resets; if you hold down the button for more than 6 seconds, the device restores the factory settings, switches to the cloud mode , and restarts. |
AP661 Technical Specifications
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Weight without packaging [kg(lb)] | 1.08 kg (2.38 LB) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 21.2 (excluding USB), 802.3at/AF power supply |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10%
POE: 802.3at/AF |
| Service port surge protection | POE port:
Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing
GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 FT to +16404.20 Ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.2 |
| Radio number | 3 |
| Operating frequency band |
|
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
4 DBI/chain (peak value) 2 DBI (combined gain) 5G: 5 DBI/chain (peak value) 3 DBI(combined gain) BLE: 4 DBI |
| Maximum transmit power | 2.4 GHz:
22 dBm/chain 25 dBm (combined power) 5 GHz (2×2): 20 dBm/chain 23 dBm (combined power) 5 GHz (4×4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 22 dBm/chain
5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 96 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | Wi-Fi: 2.4 GHz (2×2) + 5 GHz (1×1, high band) + 5 GHz (1×1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio).
Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable. Other ports: The USB port is unavailable. |
| DC power supply description | No function is limited. |
