Description

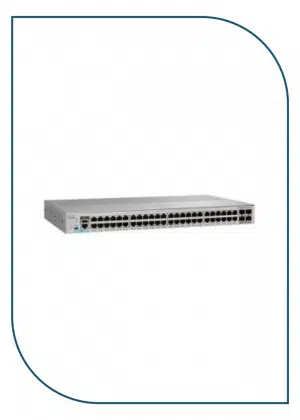

WS-C2960L-48TS-LL
Overview
WS-C2960L-48TS-LL offering 48 x GigE ports, 4 x 1G SFP and LAN Lite, is one of the Cisco Catalyst 2960-L Series Switches. These 2960-L switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure and energy-efficient business operations with a range of Cisco IOS Software features. There is an Asia Pacific Part number: WS-C2960L-48TS-AP. It is the same as the WS-C2960L-48TS-LL.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | WS-C2960L-48TS-LL |
| IOS | LAN Lite |
| Forwarding bandwidth | 52 Gbps |
| Switching bandwidth | 104 Gbps |
| 10/100/1000 Ethernet Ports | 48 |
| Uplink Interfaces | 4 x 1G SFP |
| Fanless | Y |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Dimensions (H x D x W) | 1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm) |
| Net Weight | 7.21 lb (3.27 kg) |

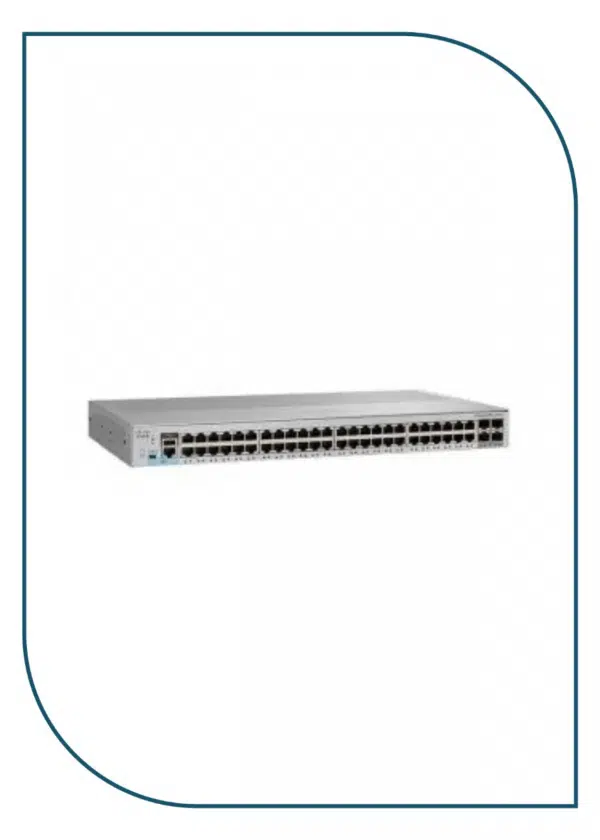

Product Details
Note:
| ① | Mode button |
| ② | USB mini-Type B (console) port |
| ③ | RJ-45 Console Port |
| ④ | 48 x 10/100/1000 ports |
| ⑤ | SFP module slots |
| ⑥ | USB Type A port |
· There are a Security slot and an AC power connector on the back panel.
The Accessories
Table 2 shows the recommended elements for the WS-C2960L-48TS-LL.
| Model | Description |
| CAB-CONSOLE-USB | CiscoCAB-CONSOLE-USBConsole Cable 6 ft with USB Type A and mini-B |
| CAB-CONSOLE-RJ45 | CiscoCAB-CONSOLE-RJ45Console Cable 6ft with RJ45 and DB9F |
| CAB-ACE= | CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M |
| CAB-ACU= | CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m |
Compare to Similar Items
Table 3 shows the comparison of WS-C2960L-24TS-LL and WS-C2960L-48TS-LL.
| Model | WS-C2960L-24TS-LL | WS-C2960L-48TS-LL |
| IOS | LAN Lite | LAN Lite |
| Forwarding bandwidth | 28 Gbps | 52 Gbps |
| Switching bandwidth | 56 Gbps | 104 Gbps |
| 10/100/1000 Ethernet Ports | 24 | 48 |
| Uplink Interfaces | 4 x 1G SFP | 4 x 1G SFP |
