Description
WGSW-24040HP4

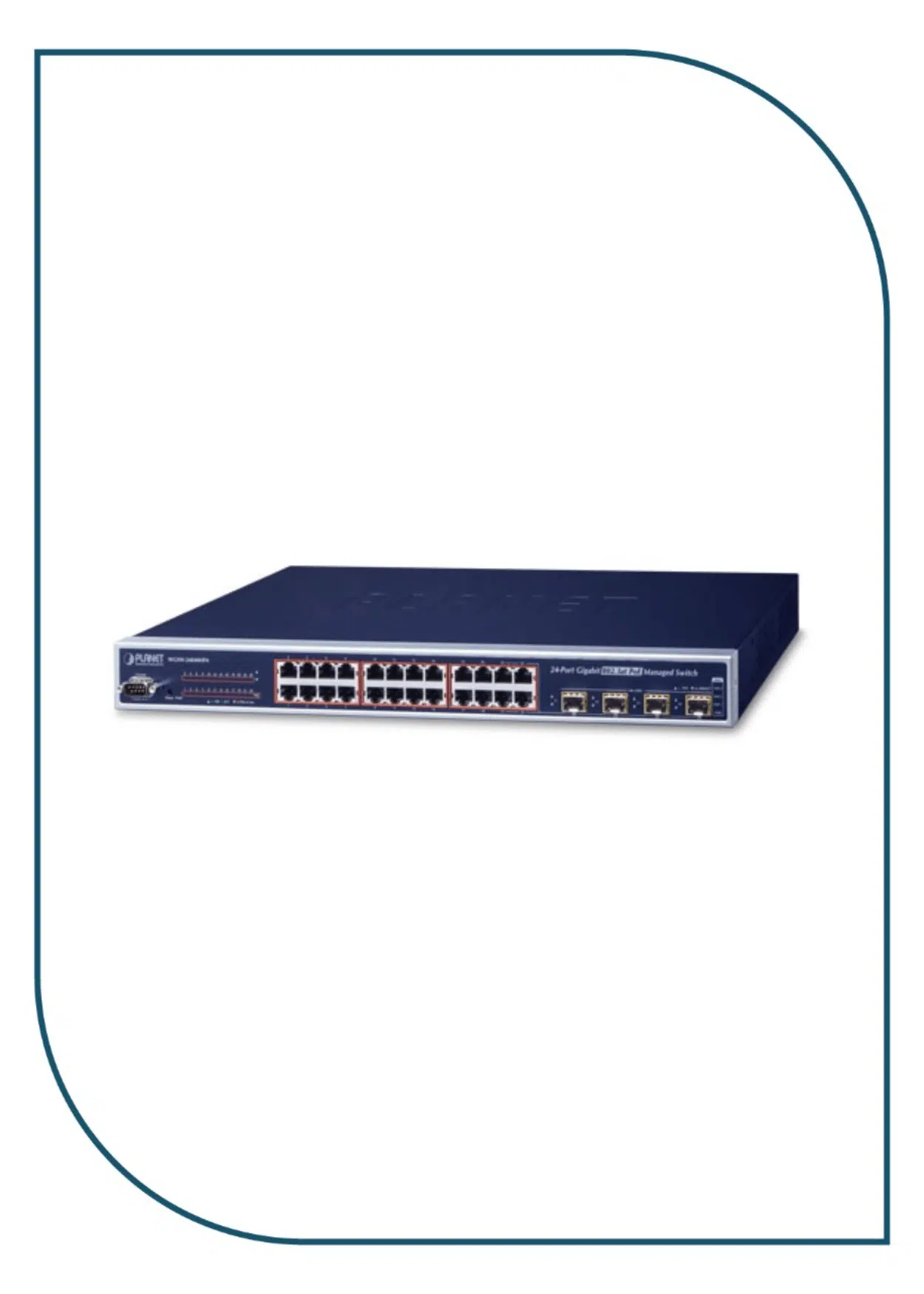

The WGSW-24040HP4 is a 24-port managed switch with PoE capabilities.
- Ports: 24 10/100/1000TX Shared 4 10/100/1000X TP/SFP
- Type: Managed
- PoE Ports: 24 PoE Ports
- Standards: 802.3at/af
- Total PoE Budget: 440W
- Power Consumption: 521W/1777BTU
- Throughput: 35.7Mpps@64Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
802.3at PoE+ Switch
Perfect Managed PoE+ Switch with L2+/L4 Switching and Security
PLANET WGSW-24040HP4 Layer 2 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 static routing, and provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 100/1000BASE-X SFP+ fiber slots. Each of the 24 Gigabit ports provides 36 watts of power, with a total power budget of up to 440 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
Network with Cybersecurity Helps Minimize Security Risks
The WGSW-24040HP4 comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks, it supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer’s critical equipment in a business network, the cybersecurity feature of the WGSW-24040HP4 protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.
Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the WGSW-24040HP4 features the following intelligent PoE management functions:
- PoE Schedule
- PD Alive Check
- Scheduled Power Recycling
- SMTP/SNMP Trap Event Alert
PoE Schedule for Energy Saving
Besides being used for IP surveillance, the WGSW-24040HP4 is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the WGSW-24040HP4 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.
