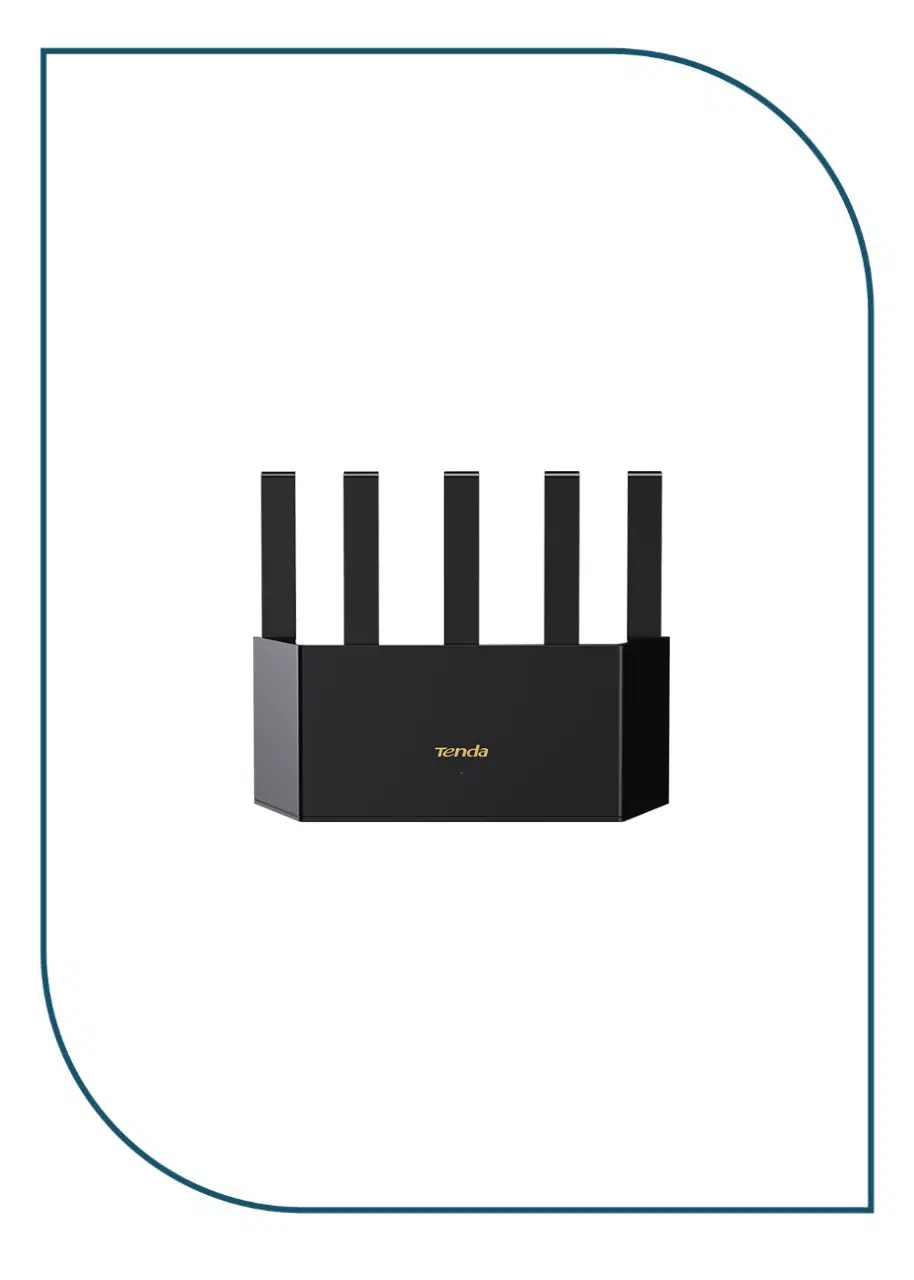

Tenda TX2L Pro Router AX1500 Dual Band Gigabit Wi-Fi 6

IEEE802.3, IEEE802.3u, IEEE802.3ab

1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports

5*external antennas

1*WPS/Reset button

Input: AC 100-240V~50/60Hz

Output: DC 12V1A

1* LED

244*56*200mm(L*W*H)

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

5GHz:1201Mbps

2.4GHz:300Mbps

CE:

2.4G: 2412-2472MHz(CH1-CH13)

5G: 5180-5240MHz(CH36-CH64)

FCC:

2.4G: 2412-2462MHz(CH1-CH11)

5G: 5150-5250MHz(CH36-CH64)

5725-5850MHz(CH149-CH165)

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm (5 GHz)

OFDMA+MU-MIMO

Beamforming Signal Directional Transmission Technology

WPA2-PSK,WPA3-SAE,WPA3-SAE/WPA2-PSK

Wireless Encryption Disable and Enable

WPS Fast Connection

PPPOE, Dynamic IP, Static IP

IPv4&IPv6

Wireless Relay Mode (Client+AP)

Client Filter

Remote Web Management

DHCP Server

DHCP Client List

DHCP Static IP Address Reservation and Assignment

Port Forwarding, DMZ Host, UPnP

ICMP Flood Attack Defense

TCP Flood Attack Defense

UDP Flood Attack Defense

Ignore Ping Packet From WAN Port

Support DynDNS, No-ip

IPSec Transparent Transmission

PPTP Transparent Transmission

L2TP Transparent Transmission

PPTP VPN Server

PPTP VPN Client

L2TP VPN Client

Wi-Fi+(Mesh System)

IPTV

IPv6

Smart LED on/off

Smart Power Saving

Bandwidth Control

Guest Network

System Log

MAC Clone

Broadband Account Migration

Tenda App（Parental Control）

Backup & Restore Configurations

Support Automatic Access Detection

Upgrade Online

Operating Temperature : 0℃~40℃

Storage Temperature : -40C ~70℃

Operating Humidity : 10 %~90% RH non-condensing

Storage Humidity : 5 %~ 90%RH non-condensing

CE, FCC,RoHS

Dual Band Gigabit Wi-Fi 6 Router*1

Ethernet Cable*1

Power Adapter*1

Installation Guide*1
