Description

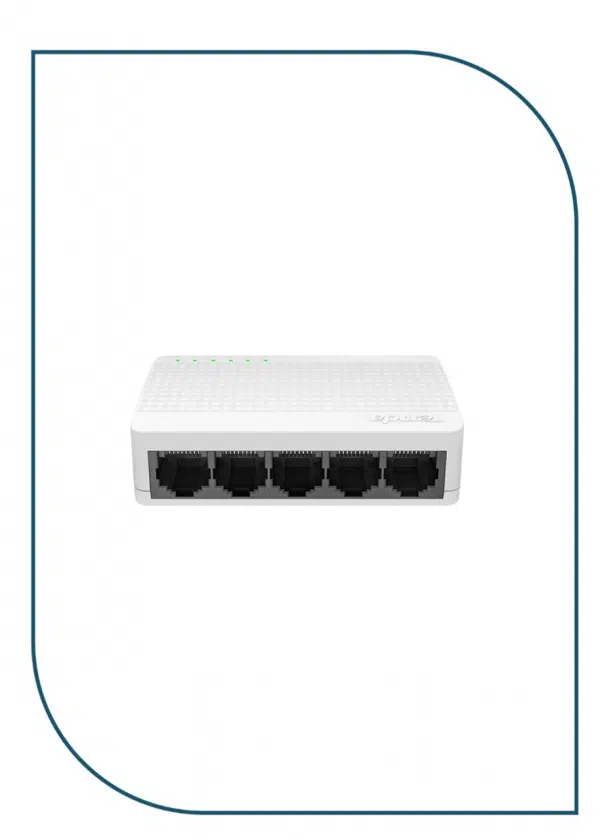

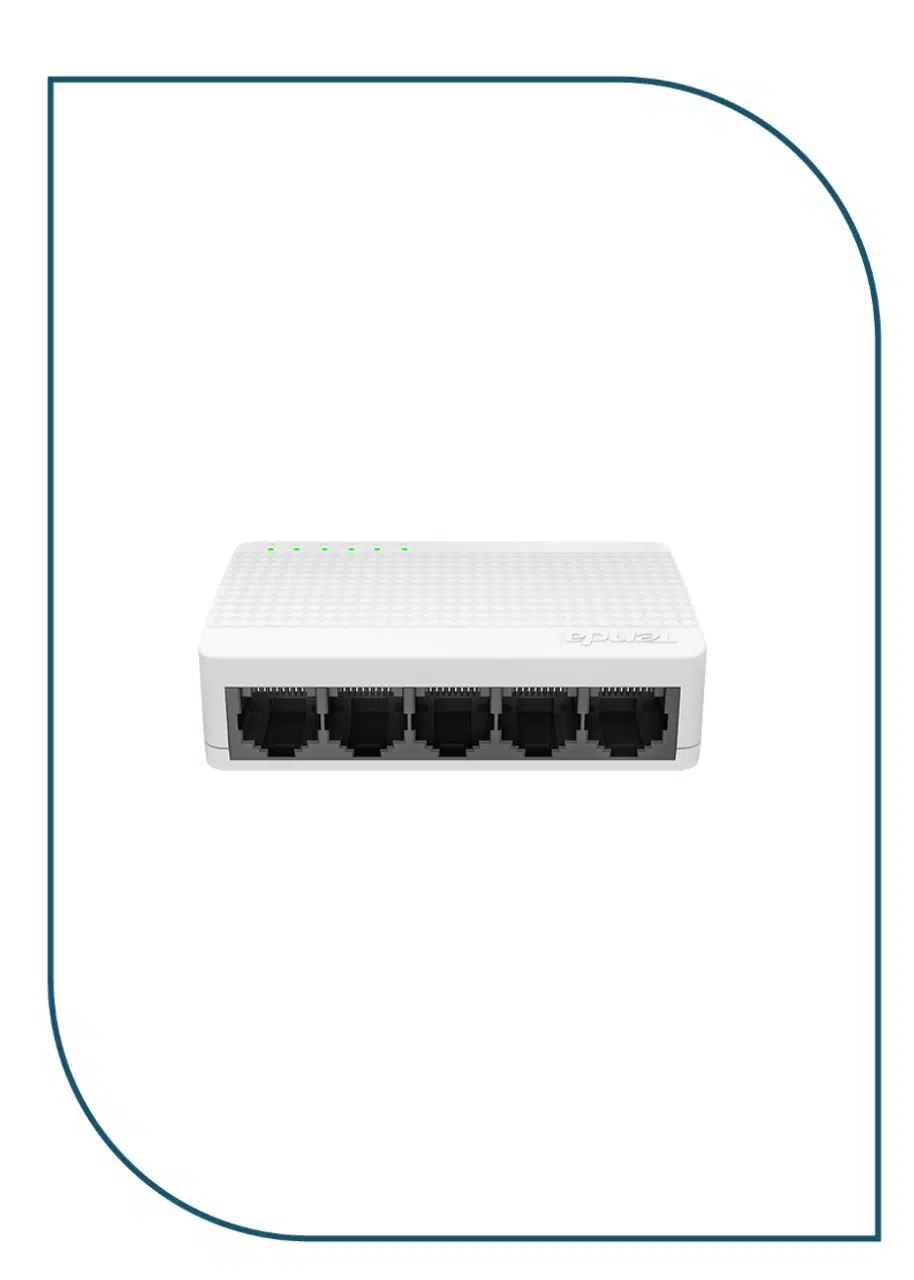

Tenda S105
5-port Ethernet Switch
- Desktop mounting & Wall mounting
- Equipped with plastic shell,Mini and fashionable design
- 5×10/100Mbps RJ-45 ports
Tenda SOHO Fast Ethernet switches offer plug-and-play simplicity, reliability for your small office or home/office network. They come in plastic and Compatible with computer, printer, smart TVs, NAS, smart game console, IP-cameras, Tenda SOHO 10/100M switches makes your home network fun & easy.
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator
1* Power, 5* Link/Act
- Interfaces
5*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
- Transmission media
Recommended: CAT5/5e UTP or better
Dimension
82.0mmx52.0mmx22.3mm
- Material
Plastic
- Level of protection
- ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
- Forwarding mode
Store-and-forward
Switch capacity
1.0Gbps
Packet forwarding rate
0.74Mpps
Buffer
448K
- MAC address table
1K
Power
Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )
- Power consumption
Max:<1.6W
- Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : non-support
- Environment
Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing
- Certification
CE, FCC, RoHS
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
- Nice and Small
Tenda SOHO 10/100M Ethernet switches are nice and small. They wo”t take up much desk or floor space. Because of the small design, you can put SOHO 10/100M Ethernet switches anywhere you want and move flexibly. They come in a pretty dome-shaped pattern case. They will fit equally well in any desktop decor. Not only for WiFi use. But also can be a home ornament.
- Blazing Fast Network Without Data Loss
With store and forwarding mode, MAC address auto learning and auto aging , Tenda SOHO 10/100M Ethernet switches can transfer data over long distance without loss to ensure the stable and blazing fast WiFi performance.
