Description
RS1221+
Key Features :
-
8-bay rackmount NAS for business environments
-
Compact 2U design suitable for server racks
-
High-performance processor with ECC memory support
-
Ideal for virtualization and backup workloads
-
Scalable storage with expansion unit support
-
Reliable 24/7 operation powered by Synology DSM
Hardware Specs
|
Hardware Specifications
|
RS1221RP+
|
RS1221+
|
|
|---|---|---|---|
| CPU | CPU Model | AMD Ryzen V1500B | AMD Ryzen V1500B |
| CPU Quantity | 1 | 1 | |
| CPU Core | 4 | 4 | |
| CPU Architecture | 64-bit | 64-bit | |
| CPU Frequency | 2.2 GHz | 2.2 GHz | |
| Hardware Encryption Engine | |||
| Memory | System Memory | 4 GB DDR4 ECC SODIMM | 4 GB DDR4 ECC SODIMM |
| Total Memory Slots | 2 | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | 32 GB (16 GB x 2) | |
| Notes |
|
||
| Storage | Drive Bays | 8 | 8 |
| Maximum Drive Bays with Expansion Unit | 12 (RX418 x 1) | 12 (RX418 x 1) | |
| Drive Type (See all supported drives) |
|
|
|
| Hot Swappable Drive* | |||
| External Ports | RJ-45 1GbE LAN Port | 4 | 4 |
| USB 3.2 Gen 1 Port | 2 | 2 | |
| Expansion Port | 1 | 1 | |
| Expansion Port Type | eSATA | eSATA | |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) | 1 x Gen3 x8 slot (x4 link) |

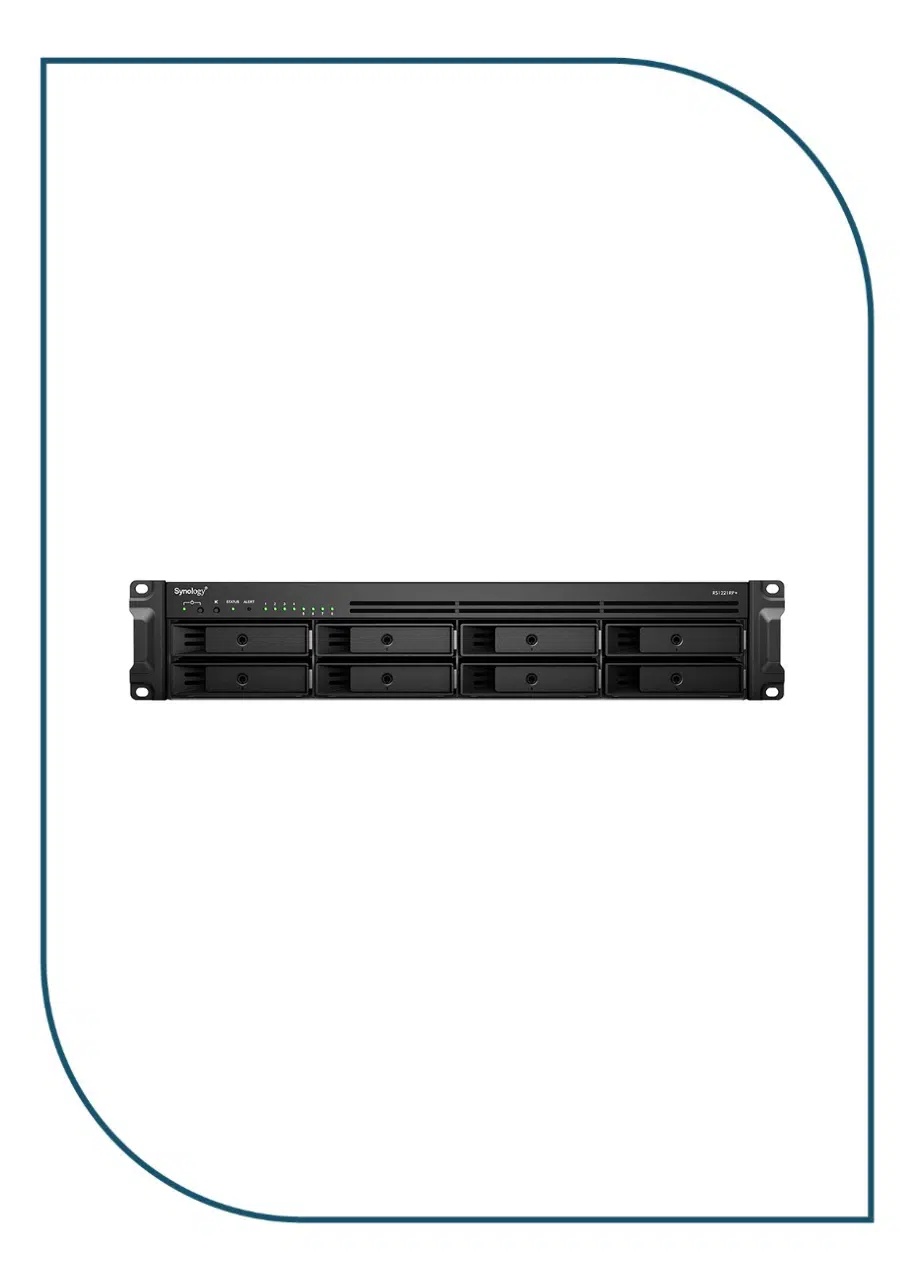

- 1Power indicator
- 2Power button
- 3Alert Off Button
- 4Status indicator
- 5Alert indicator
- 6Drive status indicator
- 7Drive tray
- 8System fan
- 9PCIe expansion slot
- 10Reset button
- 11USB 3.2 Gen 1 port
- 121GbE RJ-45 port
- 13Expansion port
- 14Console port
- 15Power port
- 16PSU Indicators & Alert Off Buttons
