Description

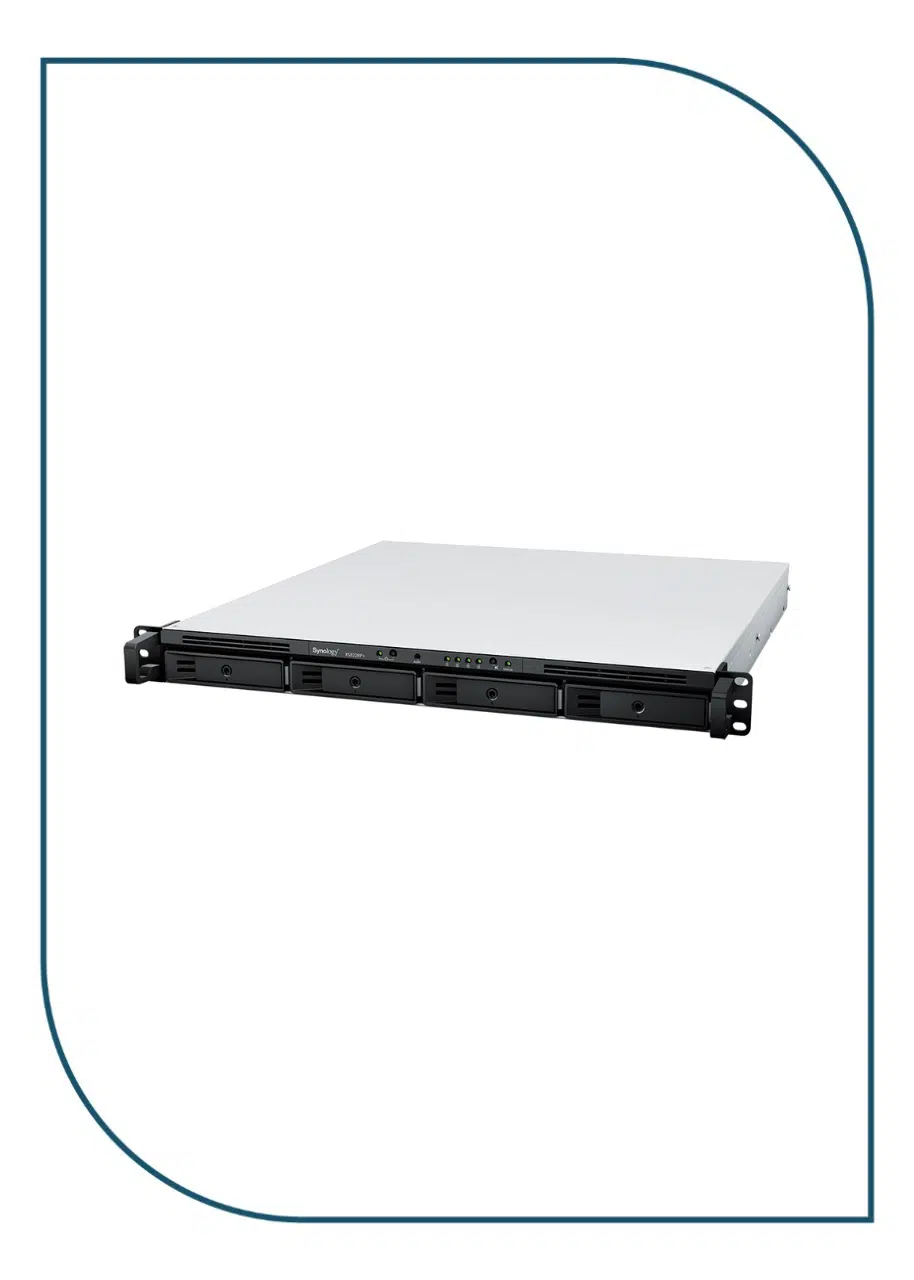

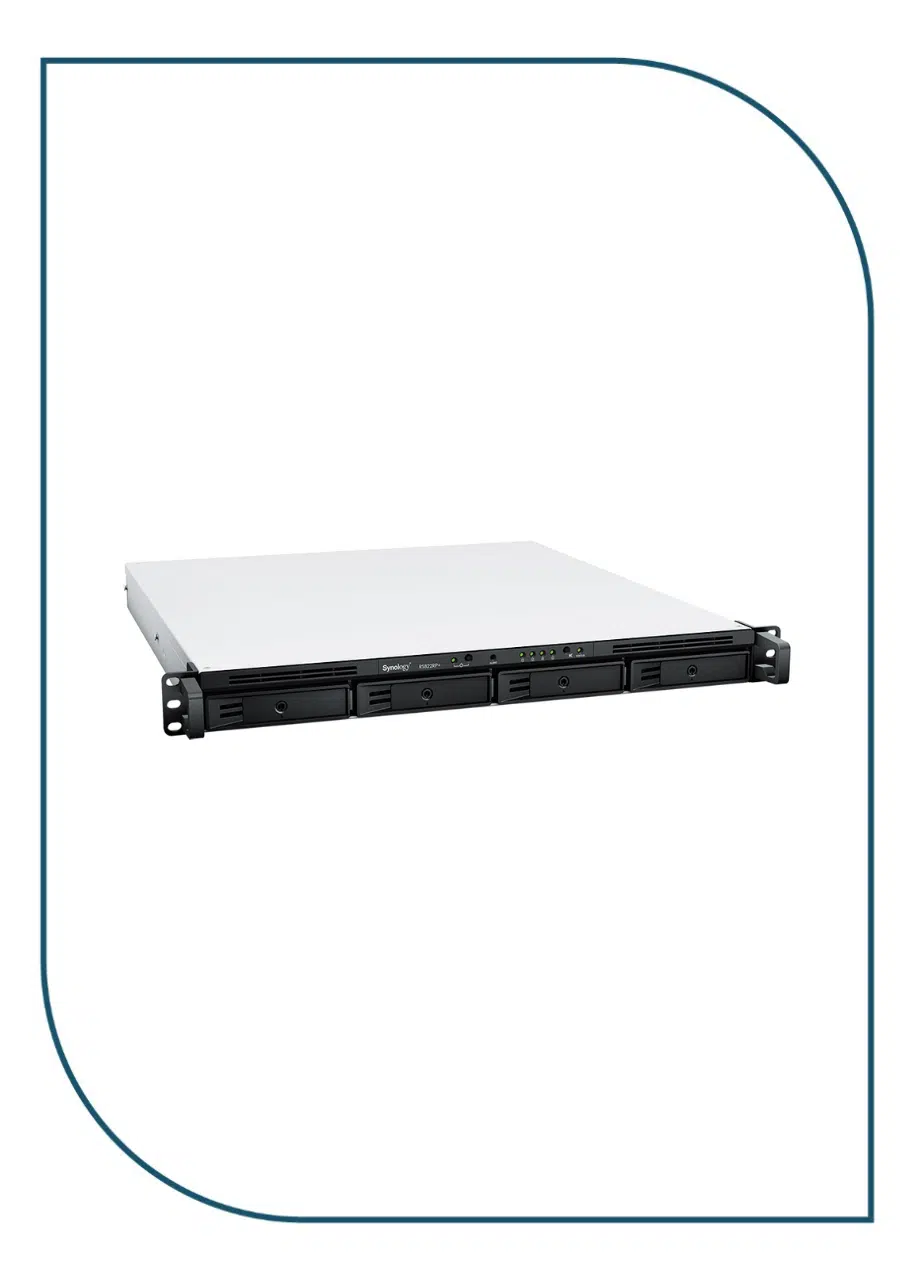

RS822+
Key Features :
-
4-bay rackmount NAS for business and enterprise use
-
Compact 1U design suitable for server racks
-
High-performance CPU with ECC memory support
-
Supports virtualization and advanced backup solutions
-
Scalable storage with expansion unit support
-
Reliable 24/7 operation powered by Synology DSM
Hardware Specs
|
Hardware Specifications
|
RS822RP+
|
RS822+
|
|
|---|---|---|---|
| CPU | CPU Model | AMD Ryzen V1500B | AMD Ryzen V1500B |
| CPU Quantity | 1 | 1 | |
| CPU Core | 4 | 4 | |
| CPU Architecture | 64-bit | 64-bit | |
| CPU Frequency | 2.2 GHz | 2.2 GHz | |
| Hardware Encryption Engine | |||
| Memory | System Memory | 2 GB DDR4 ECC SODIMM | 2 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 2 GB (2 GB x 1) | 2 GB (2 GB x 1) | |
| Total Memory Slots | 2 | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | 32 GB (16 GB x 2) | |
| Notes |
|
||
| Storage | Drive Bays | 4 | 4 |
| Maximum Drive Bays with Expansion Unit | 8 (RX418 x 1) | 8 (RX418 x 1) | |
| Drive Type (See all supported drives) |
|
|
|
| Hot Swappable Drive* | |||
| External Ports | RJ-45 1GbE LAN Port | 4 | 4 |
| USB 3.2 Gen 1 Port | 2 | 2 | |
| Expansion Port | 1 | 1 | |
| Expansion Port Type | eSATA | eSATA | |
| Notes | MTU value of 1GbE LAN port has a limit of 1500. | ||
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) | 1 x Gen3 x8 slot (x4 link) |
Software Specs
|
DSM Specifications
|
RS822RP+
|
RS822+
|
|
|---|---|---|---|
| Storage Management | Maximum Single Volume Size | 108 TB | 108 TB |
| Maximum Internal Volume Number | 64 | 64 | |
| SSD Read/Write Cache (Determining cache size) | |||
| SSD TRIM | |||
| Supported RAID Type |
|
|
|
| RAID Migration |
|
|
|
| Volume Expansion with Larger HDDs |
|
|
|
| Volume Expansion by Adding a HDD |
|
|
|
| Global Hot Spare Supported RAID Type |
|
|
|

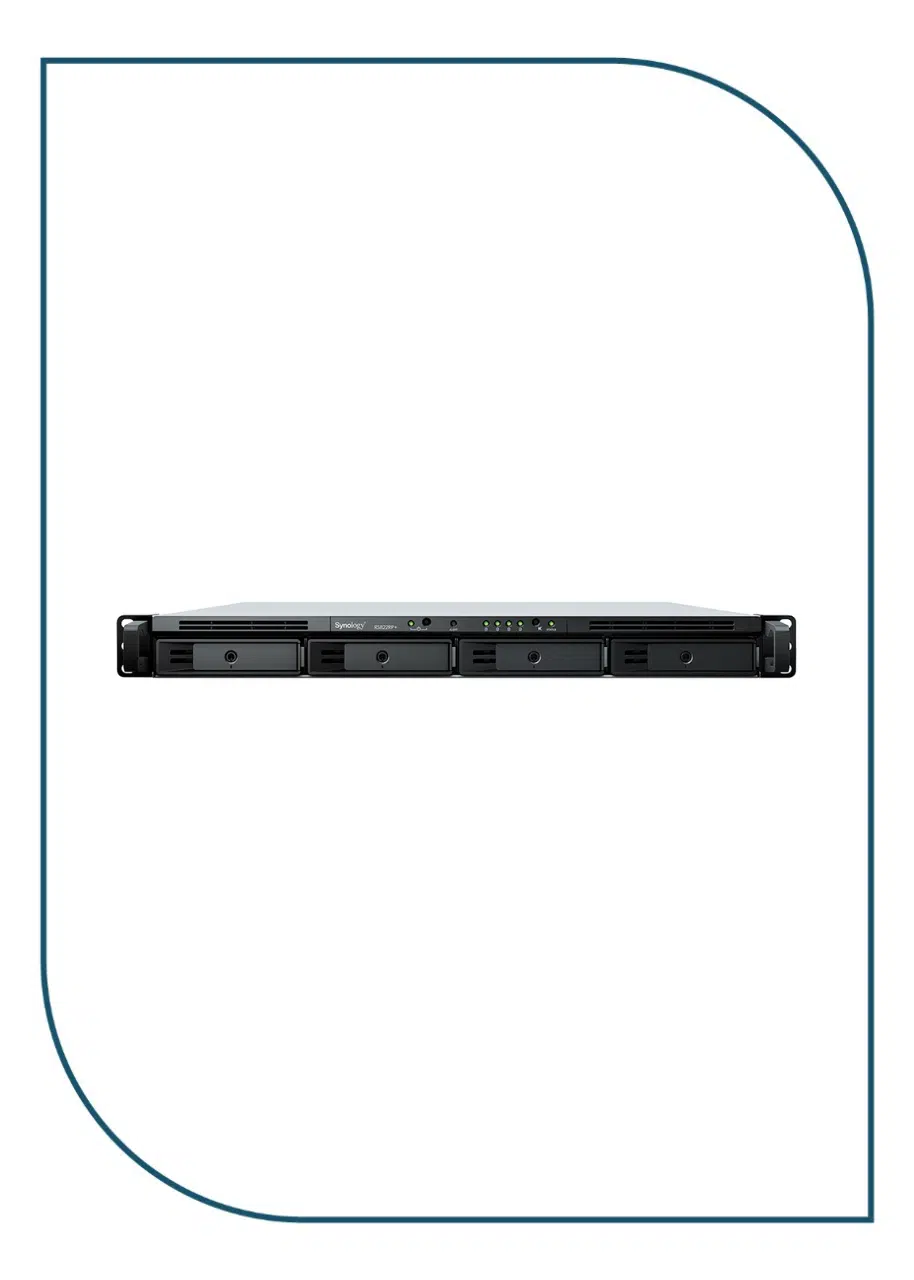

- 1Power Indicator
- 2Power Button
- 3Alert Indicator
- 4Drive Status Indicators
- 5Mute Button
- 6Status Indicator
- 7Drive Trays

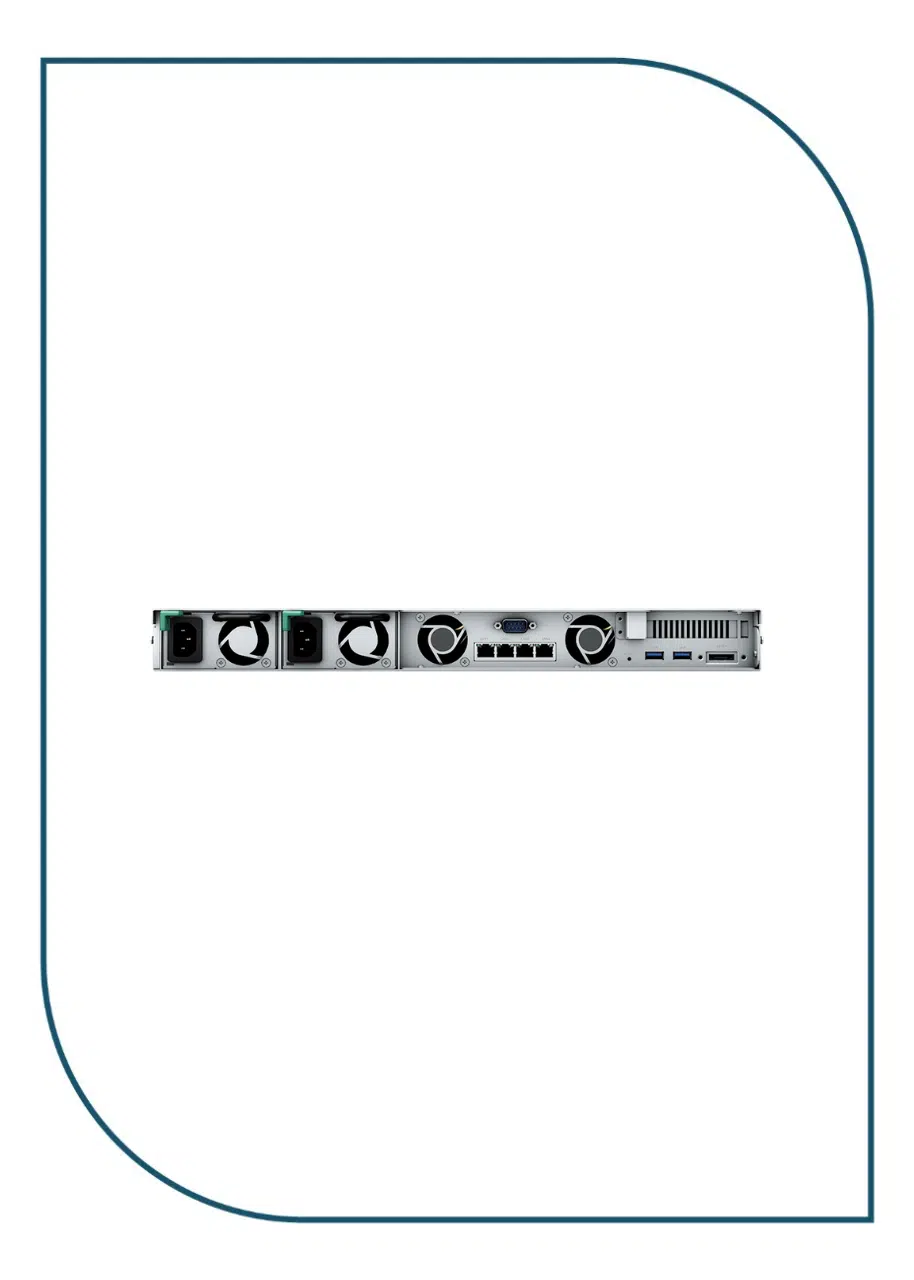

- 8Power Ports
- 9Fans
- 10Console Port
- 11PCI Express Expansion Slot
- 121GbE RJ-45 Ports
- 13Reset Button
- 14USB 3.2 Gen 1 Ports
- 15eSATA Port
- 16Redundant Power LEDs
