Description
DS925+
key features :
-
5-bay NAS enclosure for high-performance storage
-
Diskless design supports user-selected HDDs or SSDs
-
Ideal for small businesses and advanced home users
-
Secure file sharing, backup, and remote access
-
Powered by Synology DiskStation Manager (DSM)
-
Supports RAID configurations for data redundancy
-
Compact, quiet, and energy-efficient operation
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 9 (DX525 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Drive Type (See all supported drives) |
|
|
|
DSM Specifications
|
||
|---|---|---|
|
Storage Management
|
Maximum Single Volume Size |
|
| Maximum Internal Volume Number | 32 | |
| M.2 SSD Storage Pool Support* | ||
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|

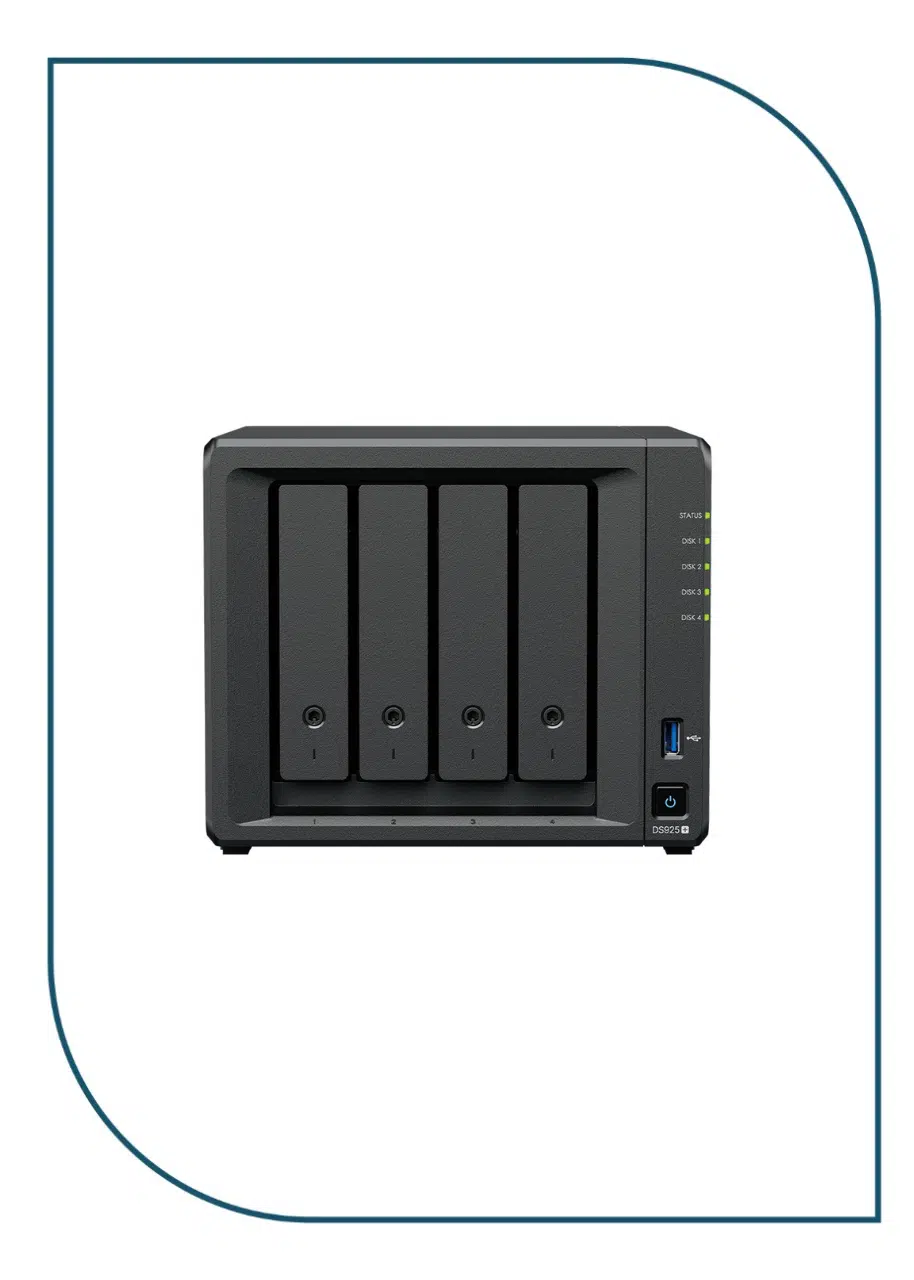

- 1Status Indicator
- 2Drive Status Indicators
- 3Drive Tray Lock
- 4USB 3.2 Gen 1 Port
- 5Power Button and Indicator
- 6Drive Trays

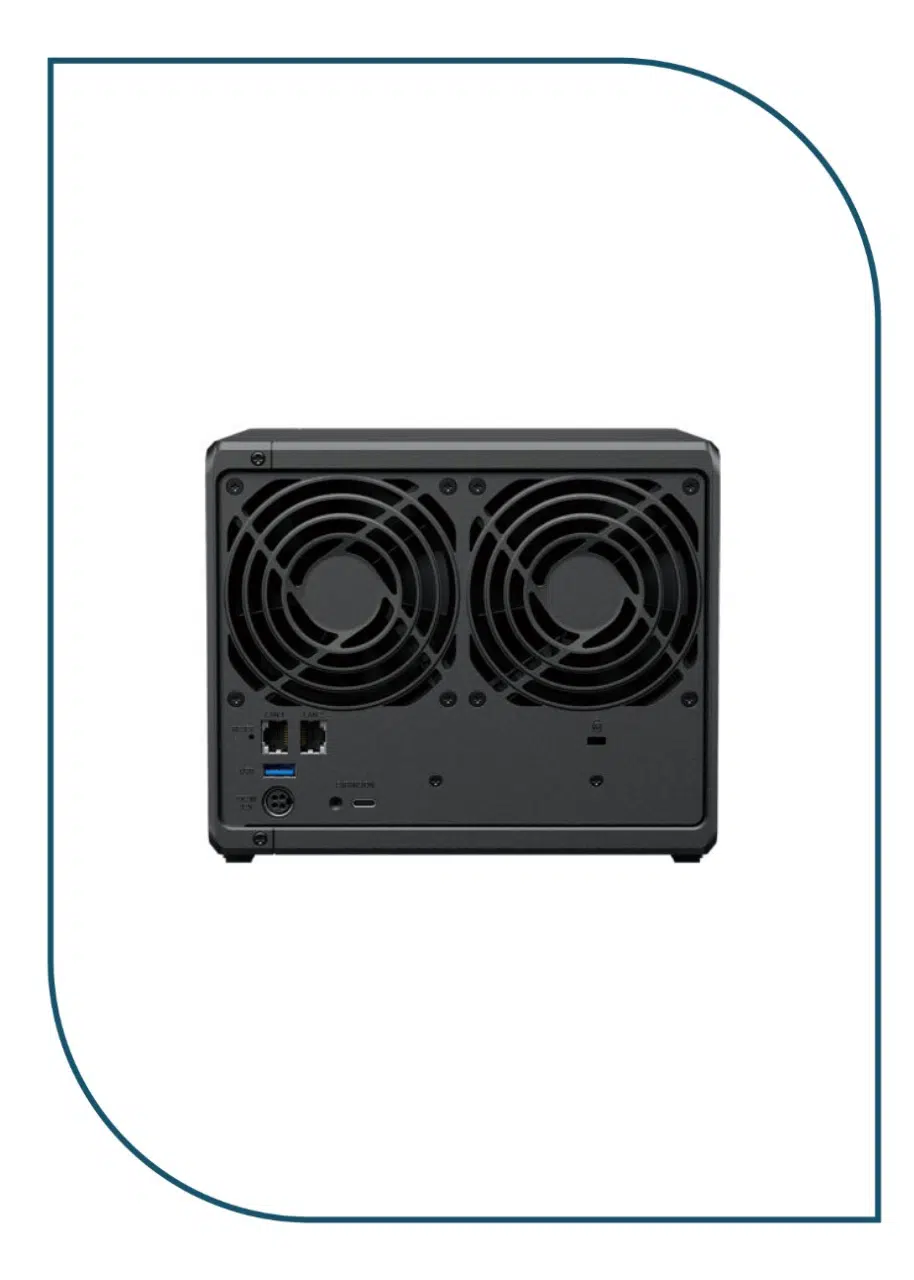

- 7Fans
- 82.5GbE RJ-45 Ports
- 9Reset Button
- 10USB 3.2 Gen 1 Port
- 11Power Port
- 12Expansion Port
- 13Kensington Security Slot
- 14M.2 NVMe SSD Slots
