Description
DS223j
- All-in-one file management and sharing hub
The DS223j is an efficient one-stop solution for all your data storage and sharing needs. With two bays of storage and Synology DiskStation Manager (DSM) on board, the DS223j allows you to create a private cloud to protect your files, share your data across several devices, store security footage with intelligent video surveillance tools, and more.
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | Realtek RTD1619B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 1.7 GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 1 GB DDR4 non-ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
|
Storage
|
Drive Bays | 2 |
| Drive Type |
|
|
| Hot Swappable Drive* | – | |
|
External Ports
|
RJ-45 1GbE LAN Port | 1 |
| USB 3.2 Gen 1 Port | 2 | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
|
DSM Specifications
|
||
|---|---|---|
|
Storage Management
|
Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 | |
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Notes |
|
|

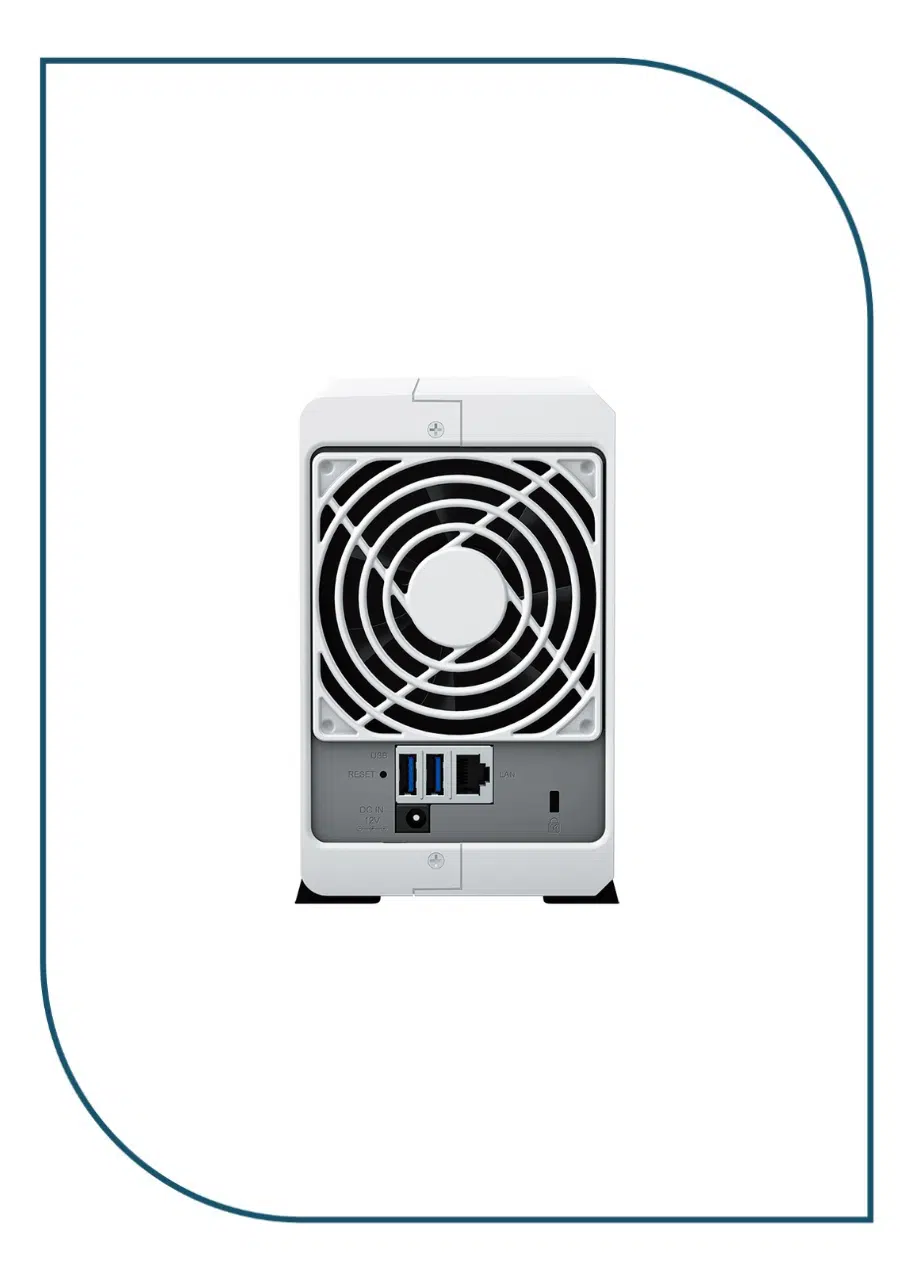

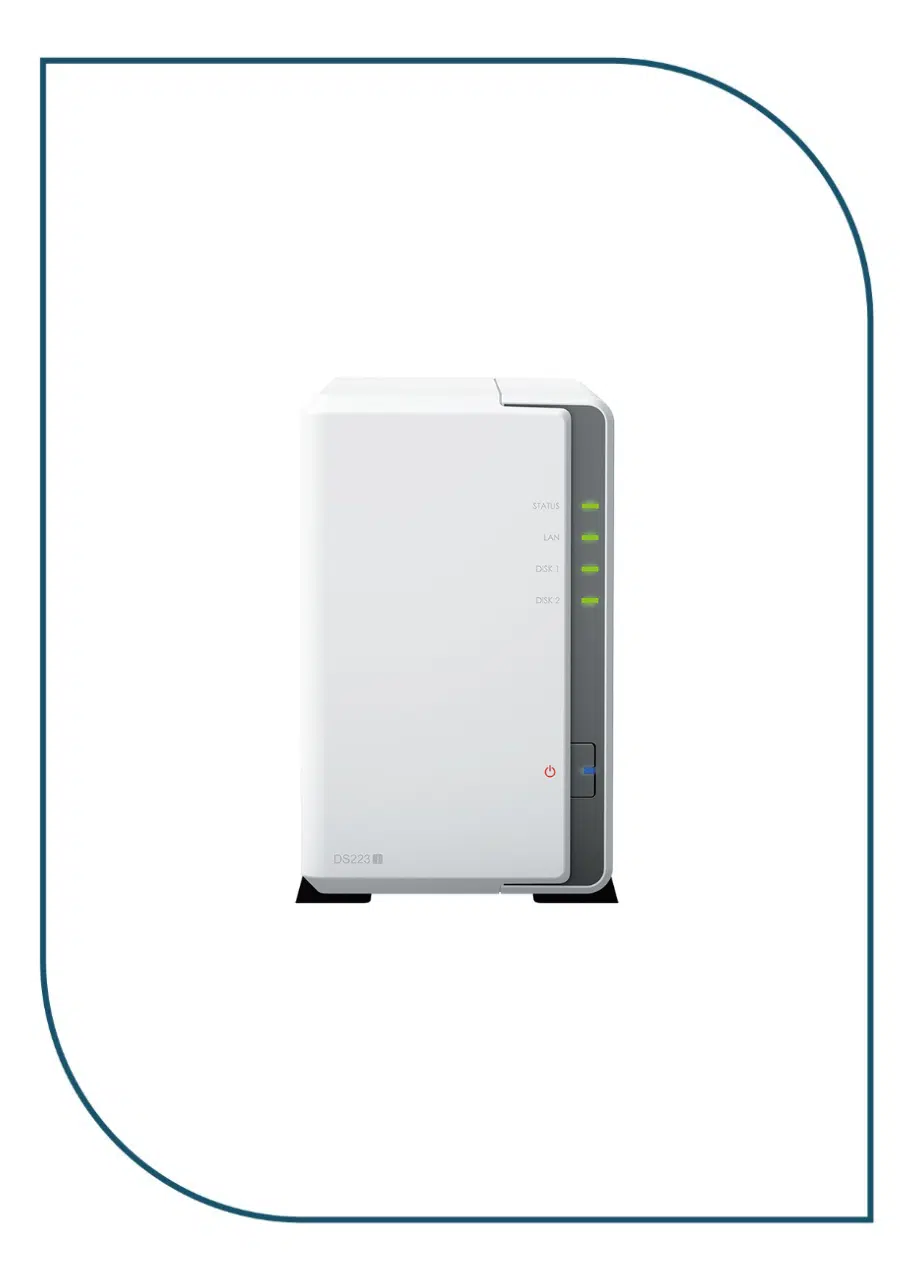

- 1Status Indicator
- 2LAN Indicator
- 3Drive Status Indicators
- 4Power Button and Indicator
- 5Fan
- 61GbE RJ-45 Port
- 7USB 3.2 Gen 1 Ports
- 8Reset Button
- 9Power Port
- 10Kensington Security Slot
