Description

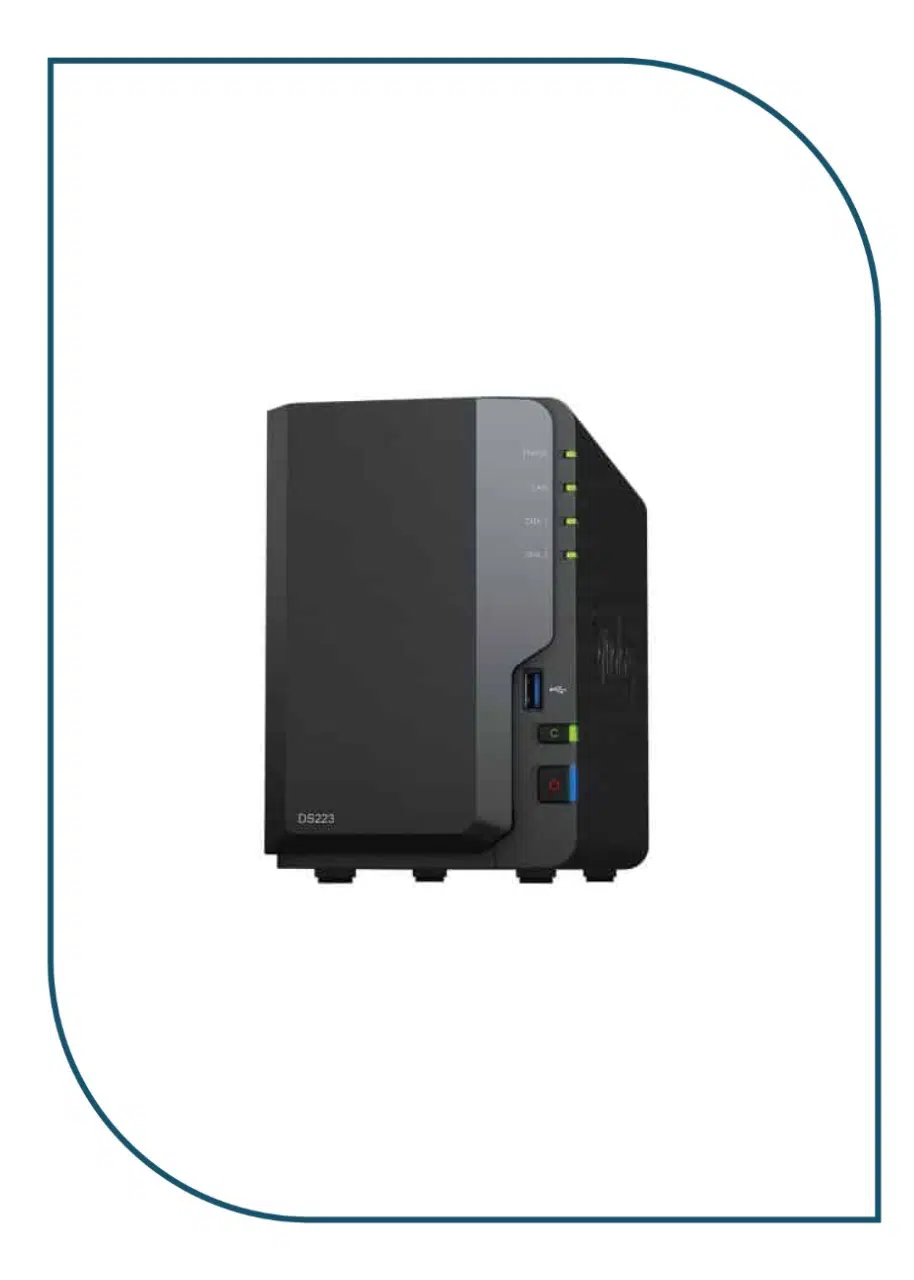

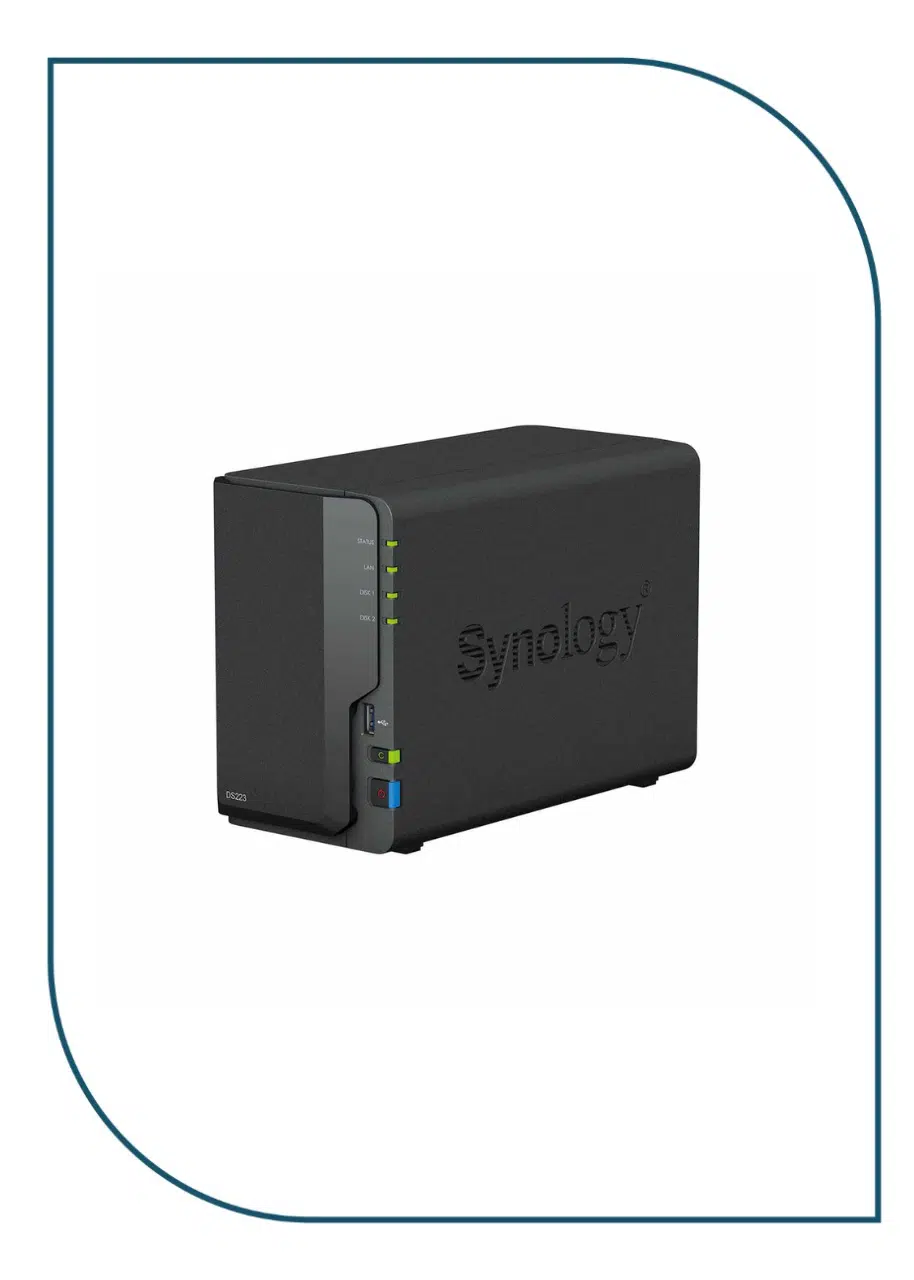

DS223
- Diskless 2-bay design – supports up to 36TB (18TB x 2 drives)
- Quad-core 1.7GHz CPU with 2GB RAM
- Supports RAID 0/1, Synology Hybrid RAID (SHR), JBOD
- Gigabit Ethernet and 3x USB 3.2 Gen 1 ports
- Remote access, cloud sync, AI photo backup & media server
- Runs Synology DiskStation Manager (DSM) for intuitive control
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | Realtek RTD1619B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 1.7 GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 2 GB DDR4 non-ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
|
Storage
|
Drive Bays | 2 |
| Drive Type (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
|
External Ports
|
RJ-45 1GbE LAN Port | 1 |
| USB 3.2 Gen 1 Port | 3 | |
| USB Copy | ||
| Notes | MTU value of 1GbE LAN port has a limit of 1500. | |
|
DSM Specifications
|
||
|---|---|---|
| Maximum Single Volume Size | 108 TB | |
| Maximum Internal Volume Number | 64 | |
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Notes |
|
|
| Internal Drives |
|
|
| External Drives |
|
|

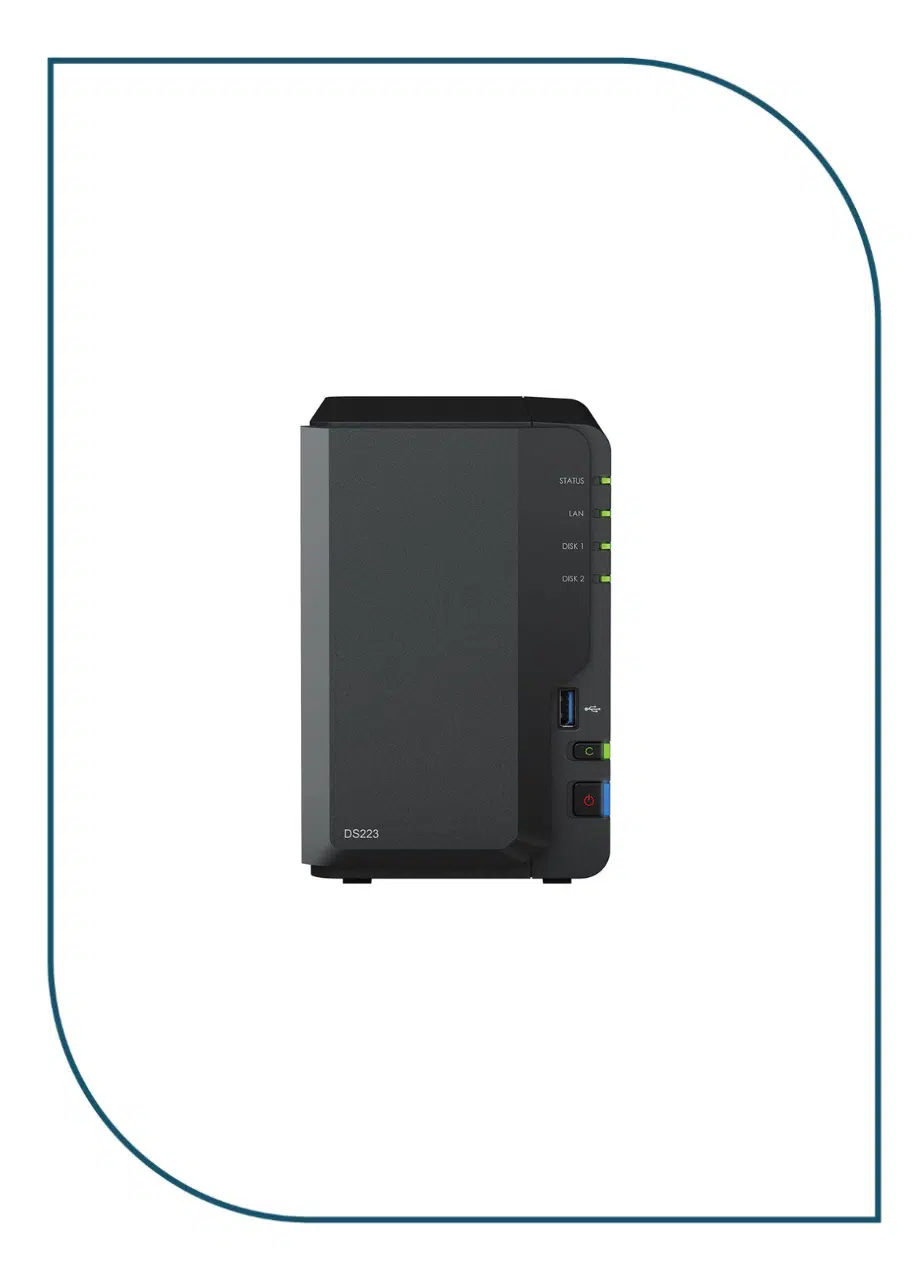

- 1Status indicator
- 2LAN indicator
- 3Drive status indicator
- 4USB 3.2 Gen 1 Port
- 5USB copy button
- 6Power Button

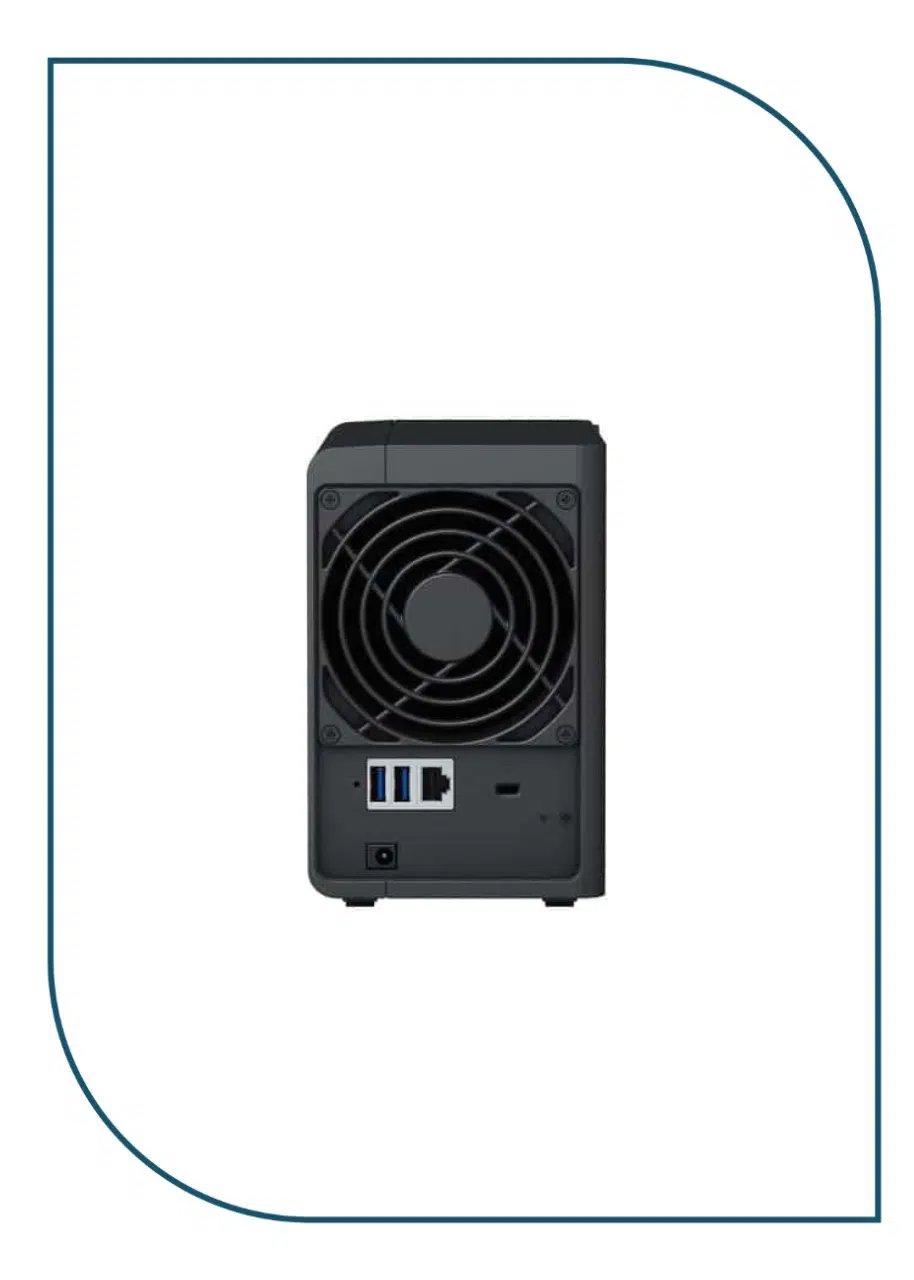

- 7Fan
- 8USB 3.2 Gen 1 port
- 9Reset button
- 101GbE RJ-45 port
- 11Power port
- 12Kensington Security Slot
