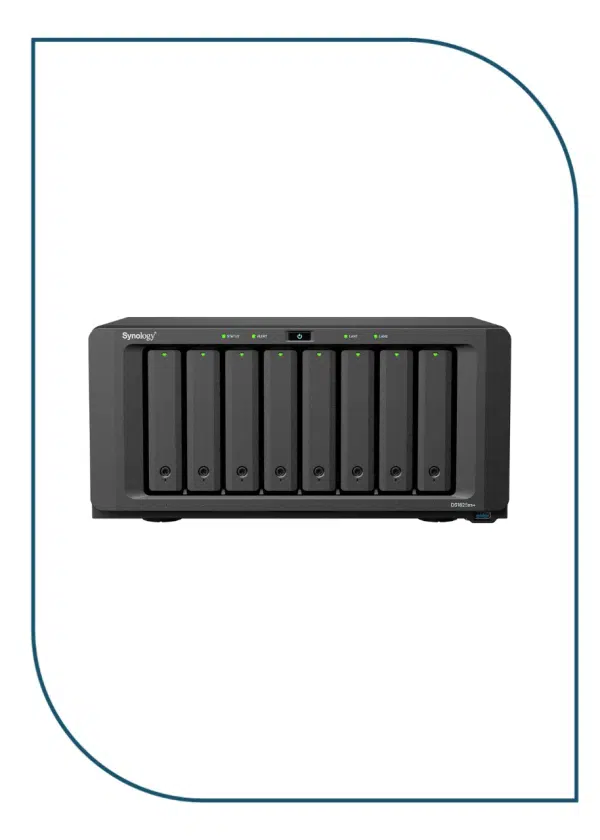

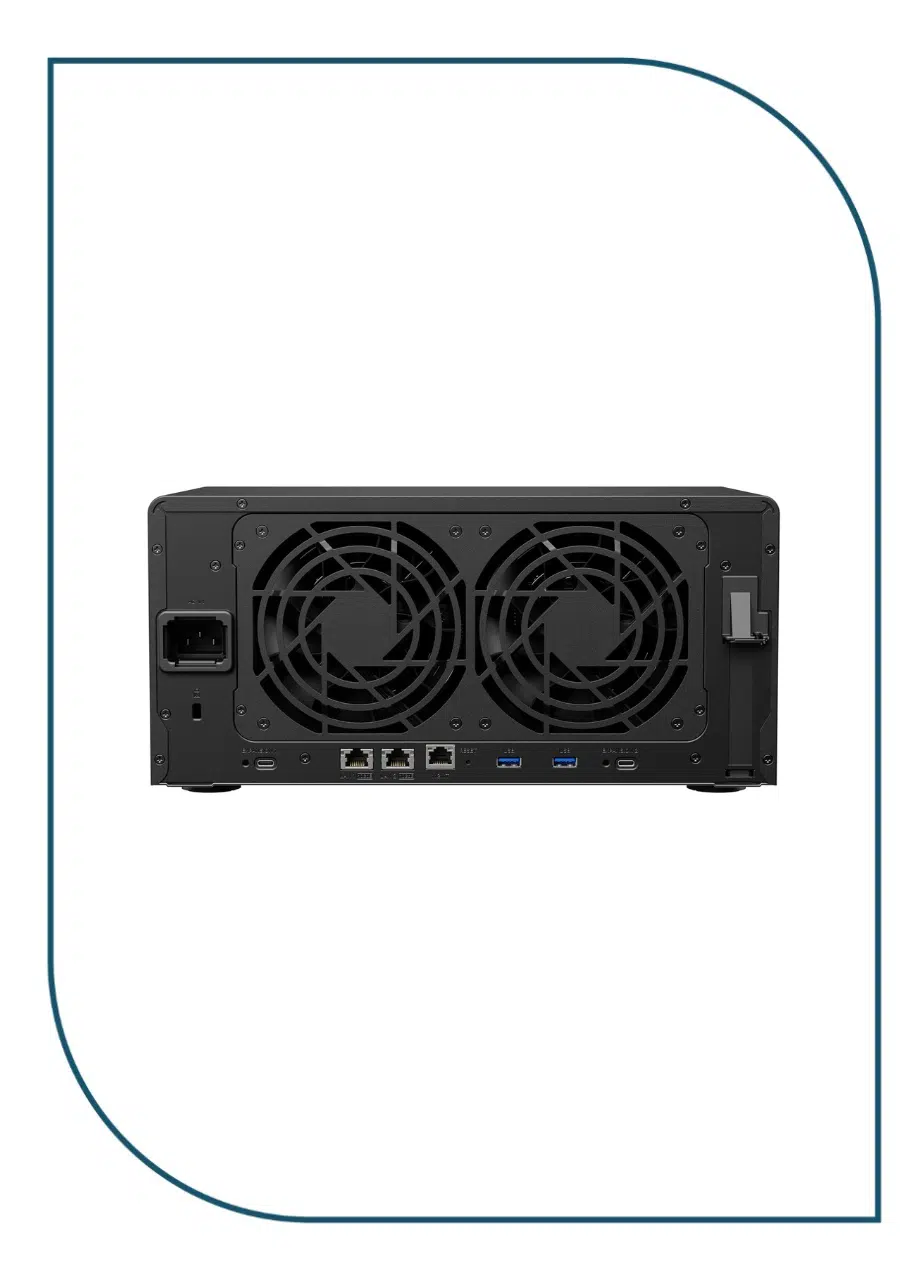

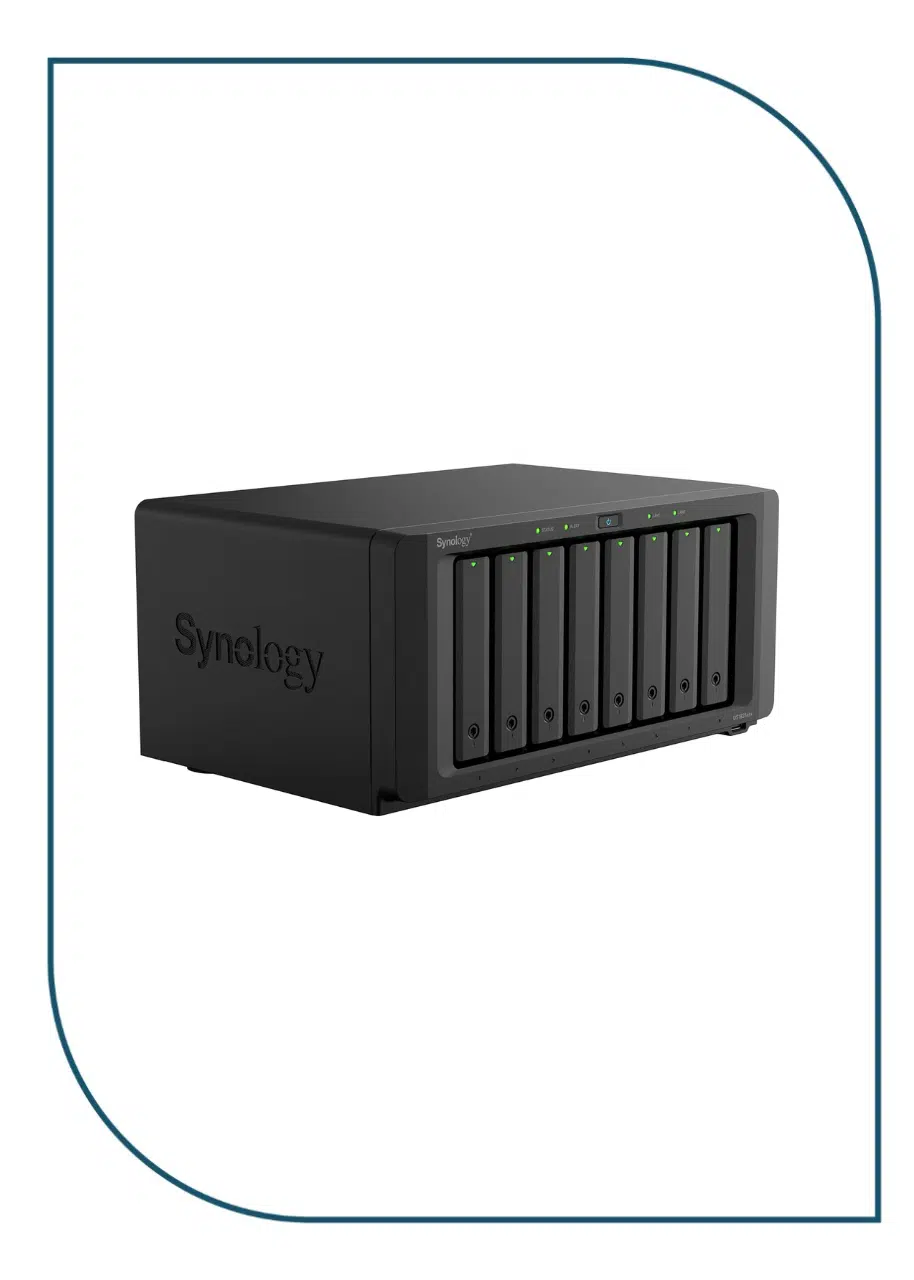

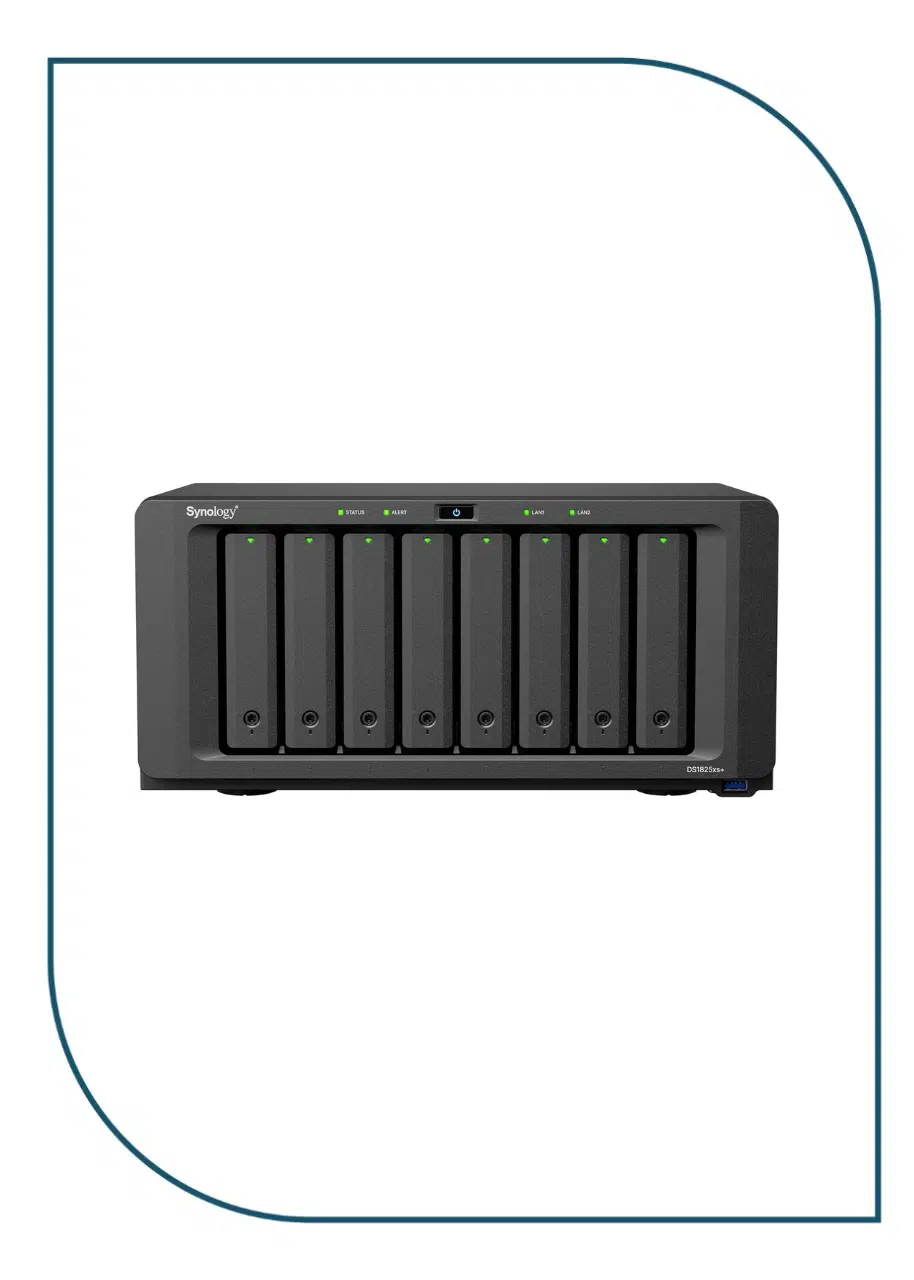

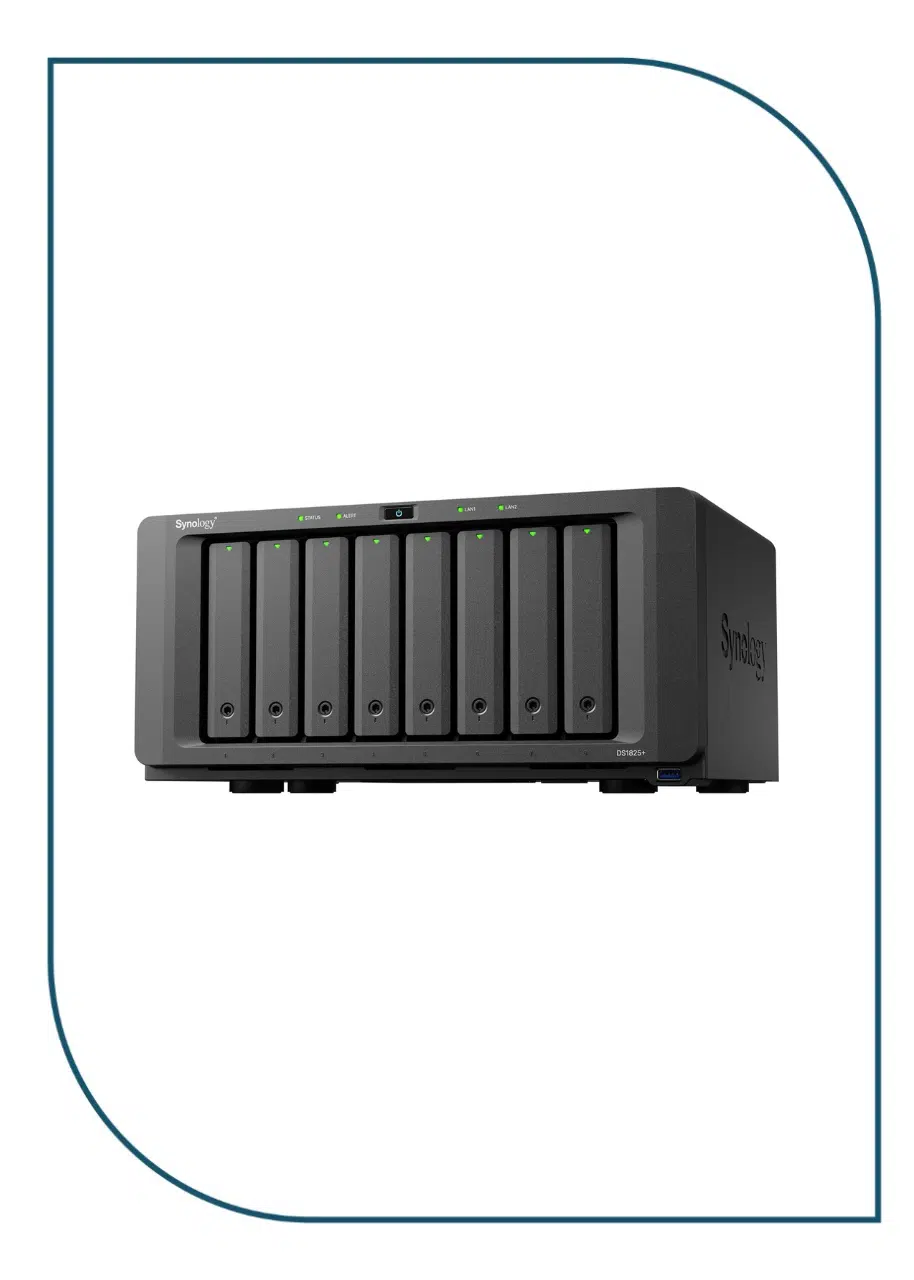

Synology DiskStation DS1823xs+ 8-Bay (Diskless)

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications.

Data Sheet

Availability: Available on backorder

SKU:DS1823XS+

Categories:Network Storage, Storage

Brands:Qnap, Synology

Brand: Qnap, Synology

Description

DS1823XS+

key features :

8-bay enterprise-class NAS enclosure
Diskless design supports high-capacity HDDs and SSDs
Designed for demanding business workloads
High-performance data access and virtualization support
Powered by Synology DiskStation Manager (DSM)
Advanced RAID and data protection features
Reliable, scalable, and energy-efficient design

Hardware Specifications
CPU	CPU Model	AMD Ryzen V1780B
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage	Drive Bays	8
	Maximum Drive Bays with Expansion Unit	18 (DX517 x 2)
	M.2 Drive Slots	2 (NVMe)
	Drive Type (See all supported drives)	3.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD

DSM Specifications
Storage Management	Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	M.2 SSD Storage Pool Support*
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	RAID Group
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
