Description
DS2422+
Key Features :
-
12-bay NAS solution for scalable storage needs
-
Designed for small and medium-sized businesses
-
Supports high-capacity expansion with Synology expansion units
-
Advanced data protection and backup solutions
-
High-performance file sharing and collaboration
-
Supports virtualization and enterprise applications
-
Reliable hardware for 24/7 operation
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 24 (DX1222 x 1) | |
| Drive Type (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
|
External Ports
|
RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Mini-SAS HD | |
|
DSM Specifications
|
||
|---|---|---|
|
Storage Management
|
Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 | |
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|

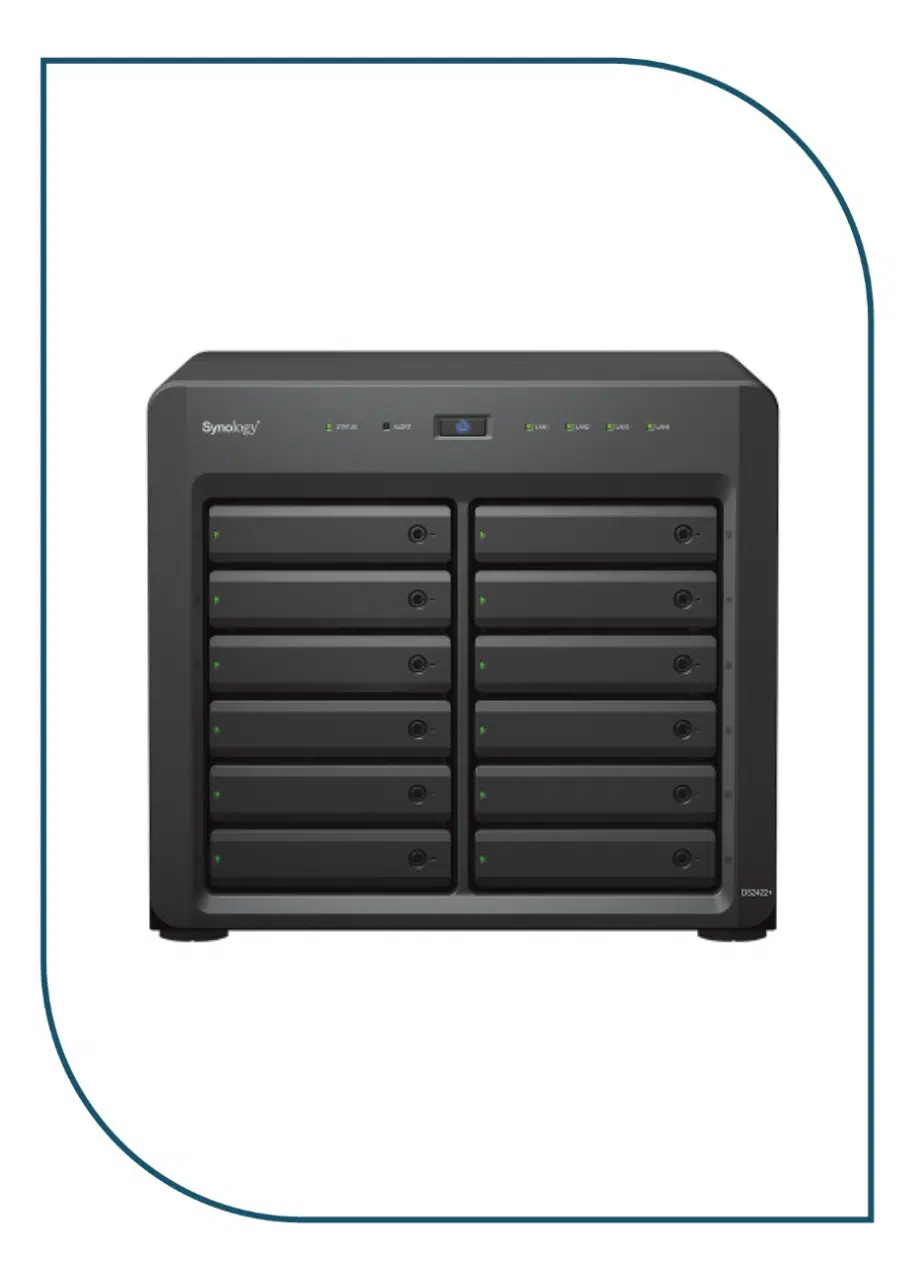

- 1Status indicator
- 2Alert indicator
- 3Power button
- 4LAN indicator
- 5Drive status indicator
- 6Drive tray
- 7Drive tray lock
- 8Power port
- 9System fan
- 10PCIe expansion slot
- 11Reset button
- 12Reset button
- 13Console port
- 14Expansion port
- 151GbE RJ-45 port
