Description

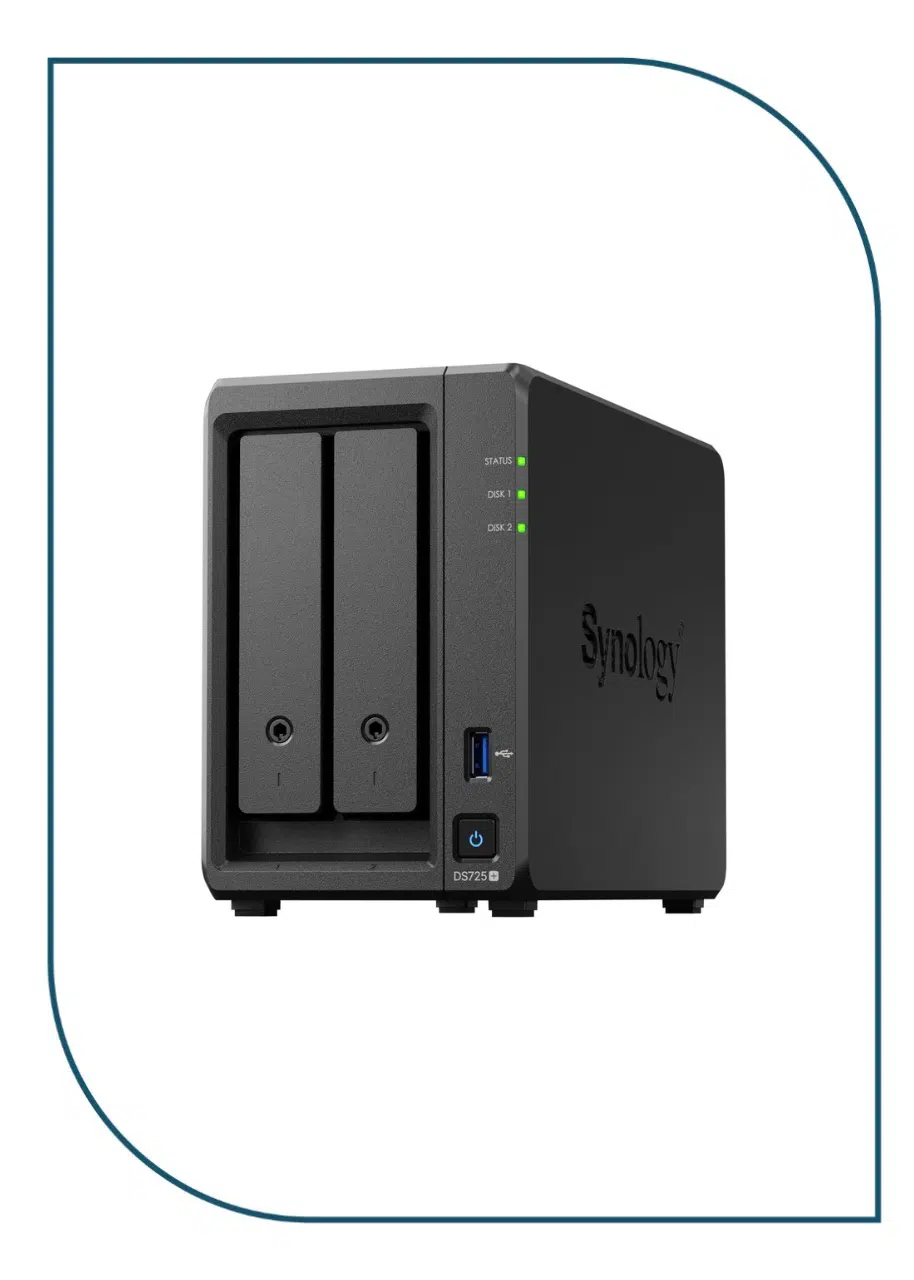

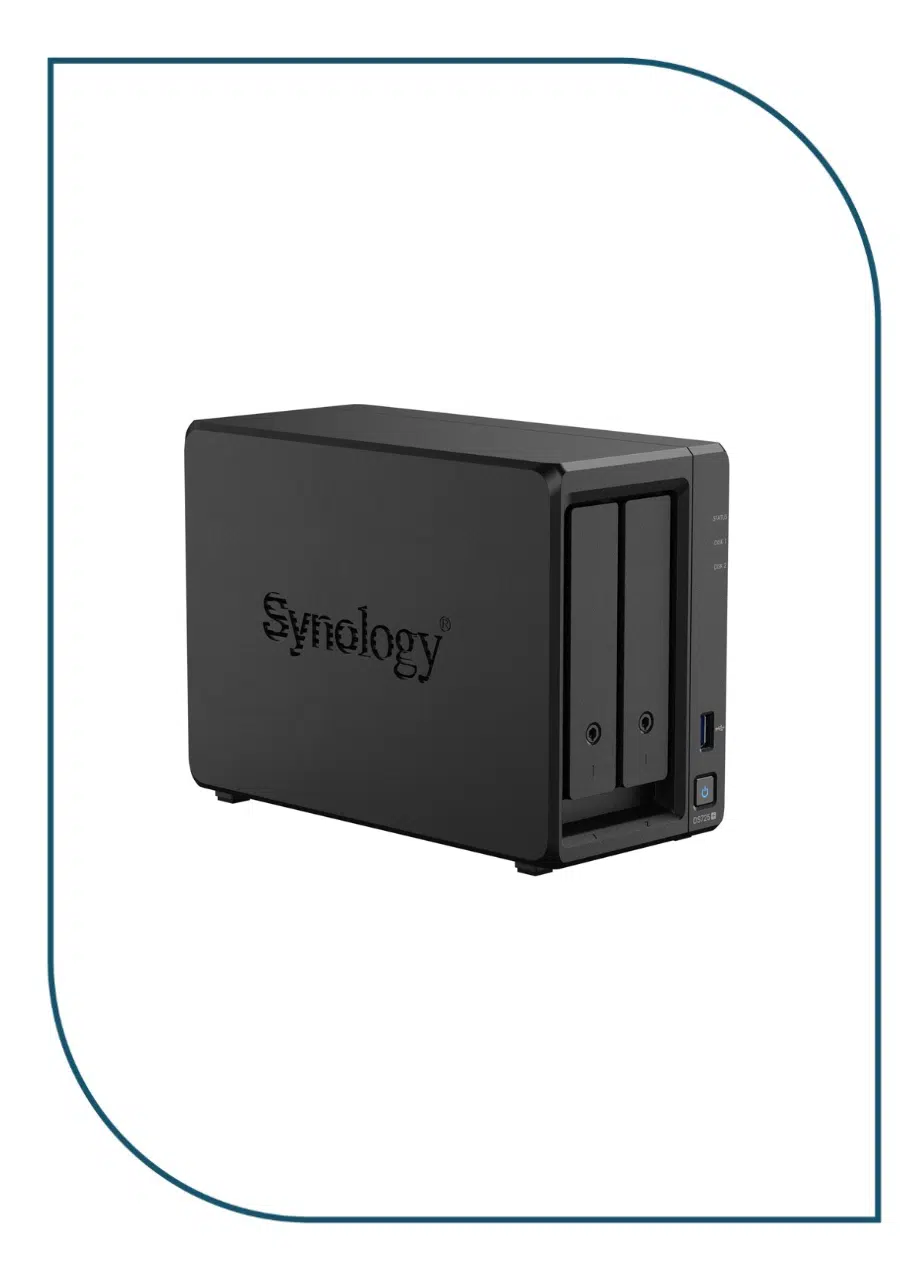

DS725+
-
2-bay NAS enclosure for flexible data storage
-
Diskless design supports user-selected HDDs or SSDs
-
Designed for small businesses and advanced home users
-
High-performance file sharing and data management
-
Powered by Synology DiskStation Manager (DSM)
-
Supports backup, synchronization, and remote access
-
Compact, quiet, and energy-efficient design
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 | |
| CPU Core | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 2 |
| Maximum Drive Bays with Expansion Unit | 7 (DX525 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Drive Type (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|
External Ports
|
RJ-45 1GbE LAN Port | 1 |
| RJ-45 2.5GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 1 | |
| Expansion Port | 1 | |
| Expansion Port Type | USB Type-C | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
|
DSM Specifications
|
||
|---|---|---|
|
Storage Management
|
Maximum Single Volume Size |
|
| Maximum Internal Volume Number | 32 | |
| M.2 SSD Storage Pool Support* | ||
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|

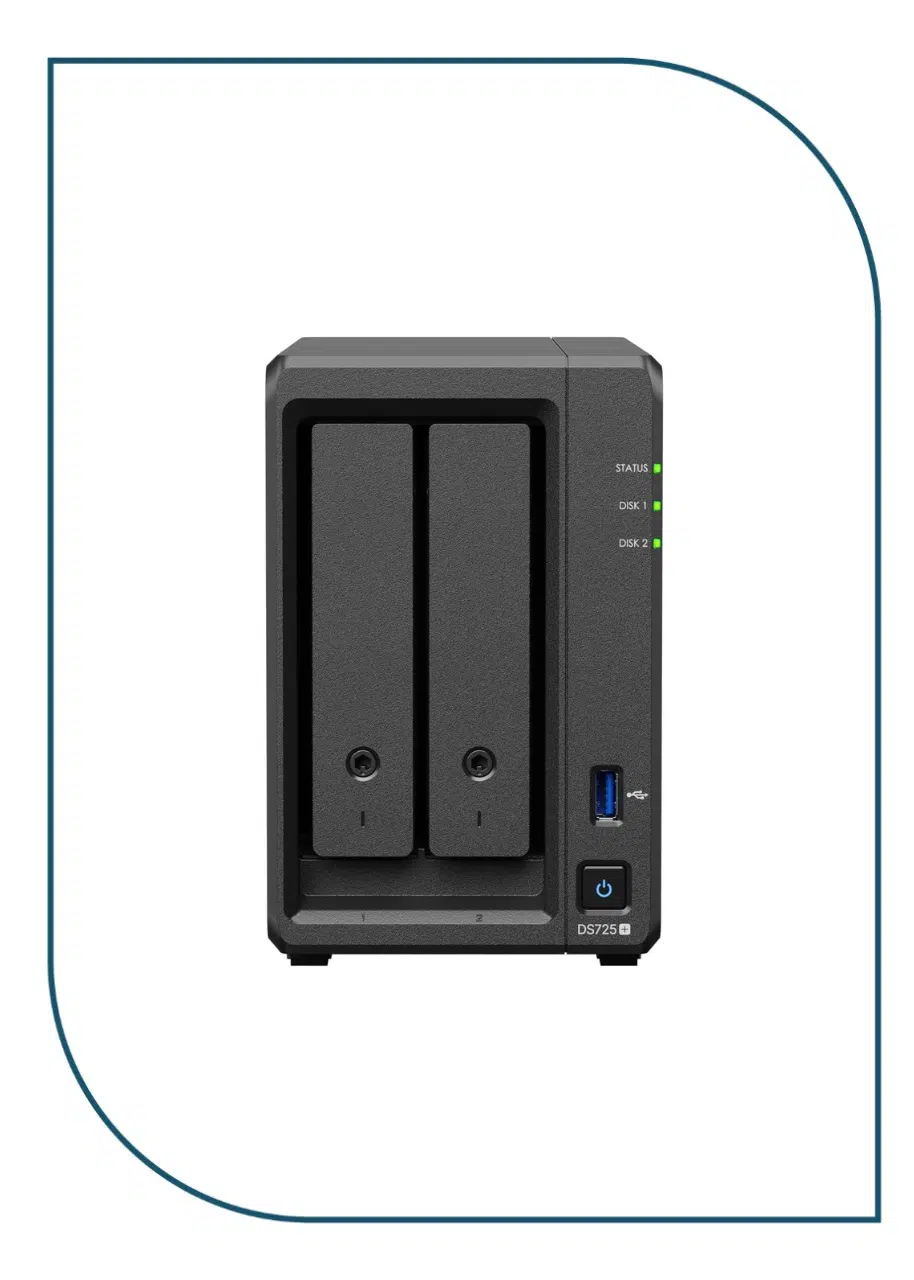

- 1Status indicator
- 2Drive status indicators
- 3Drive tray locks
- 4USB 3.2 Gen 1 port
- 5Power button and indicator
- 6Drive trays

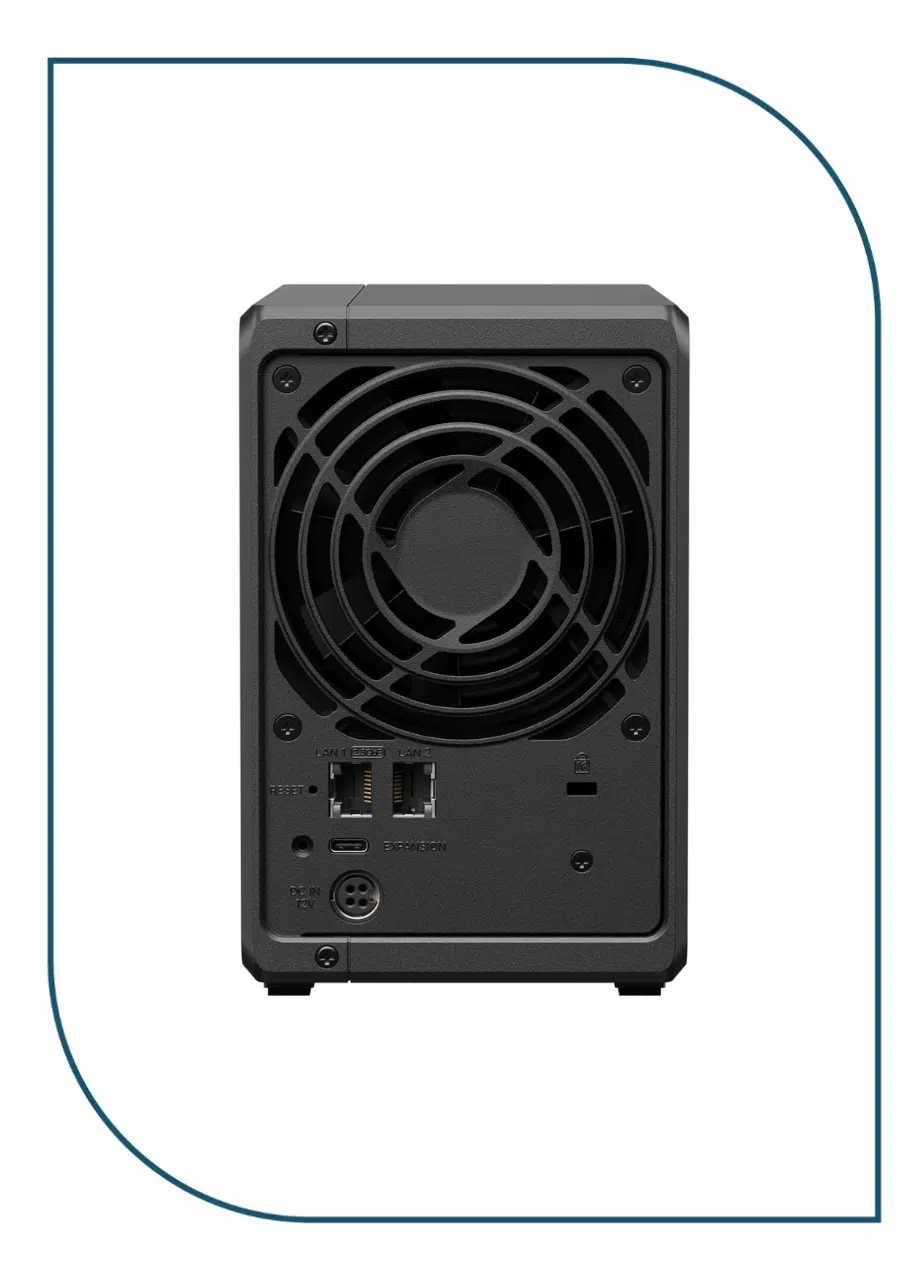

- 7Fan
- 82.5GbE RJ-45 port
- 9Reset button
- 10Expansion port
- 11Power port
- 121GbE RJ-45 port
- 13Kensington security slot
- 14M.2 NVMe SSD slots
