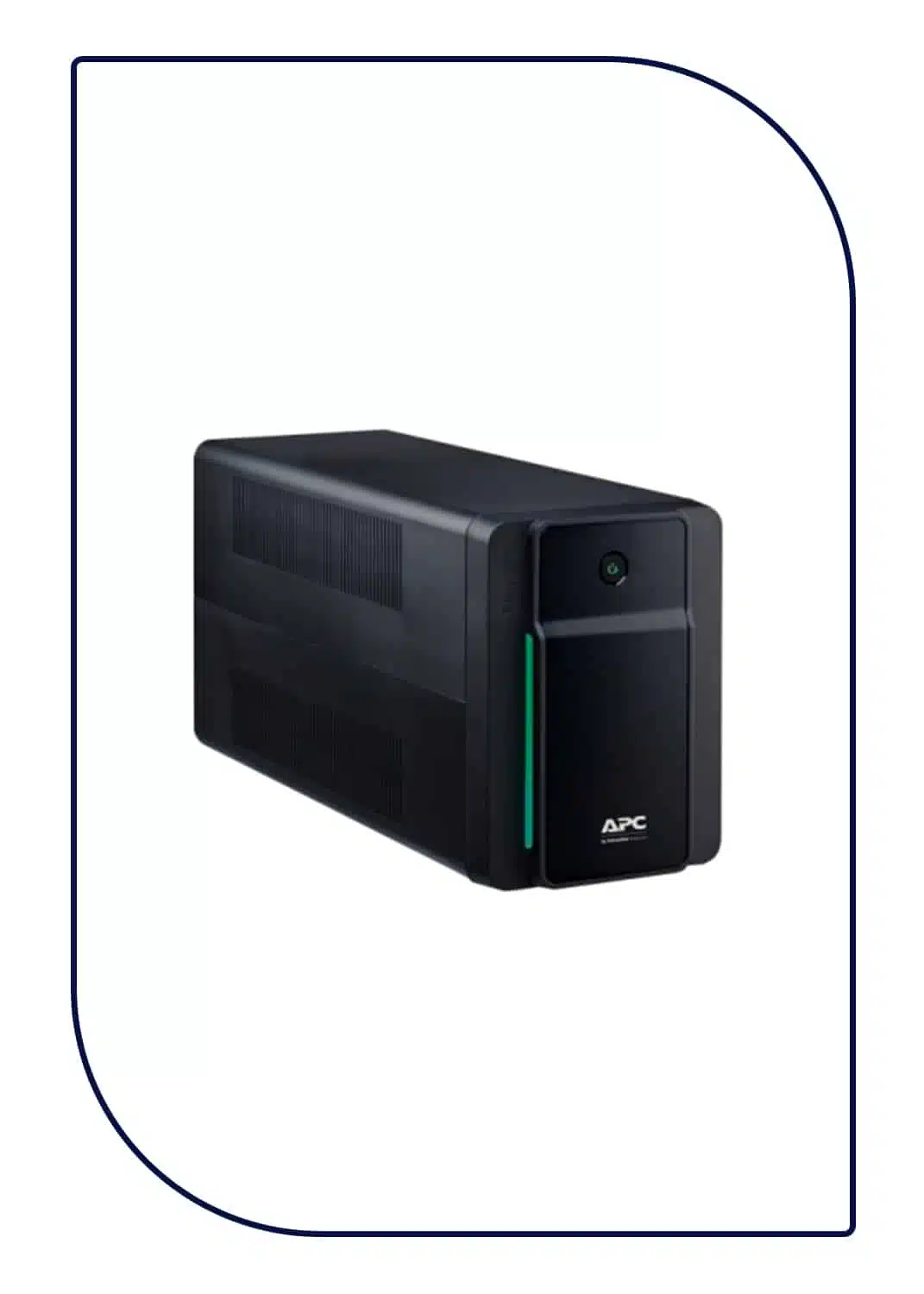

BVX2200LI-GR APC Easy UPS BVX 2200VA, 230V, AVR, Schuko Sockets


Buy Now
Availability: In Stock

All prices include VAT


Lead time Usually in Stock


input voltage 230 V AC 1 phase
Main Output Voltage 230 V AC 1 phase
Rated power in W 1200 W
Rated power in VA 2200 VA
Input Connection Type Schuko
nb of power socket outlets 4 Schuko
Cable length 1.22 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment User manual


Max runtime 240 min
Number of power module Free slots 0
Number of power module Filled slots 0
Redundant No
UPS size WS


Color Black
Height 19 cm
Width 14 cm
Depth 39 cm
Net weight 12.2 kg
Mounting support Floor
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible No


Network frequency 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits 140…300 V 230 V AC
cos phi 0.54


Maximum Configurable Power in W 1200 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Full load runtime 00:01:00 1290 W
Graph display 1
Half load runtime 00:08:30 600 W
Maximum configurable power in VA 2200 VA
Transfer time 6 ms typical: 10 ms maximum


product certifications CE
Equipment protection policy Lifetime: 50000 euros


Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…3000 m
Acoustic level 40 dBA
IP degree of protection IP20


Batteries & Runtime
Run Time View Runtime Graph


Efficiency View Efficiency Graph


Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 8 h
Battery voltage 12 V
Battery capacity 9.0 Ah
Battery life 2…3 year(s)
Replacement battery APCRBC177
Extended runtime 0


Communications & Management
Control panel LED Status display with on line: on battery
Alarm Alarm when on battery: distinctive low battery alarm


Surge Protection and Filtering
Surge energy rate 273 J


Packing Units
Package 1 Weight 13.2 kg
Package 1 Height 29.7 cm
Package 1 width 23.5 cm
Package 1 Length 49.5 cm
SCC14 10731304404627


Contractual warranty
Warranty 2 years repair or replace
