Description

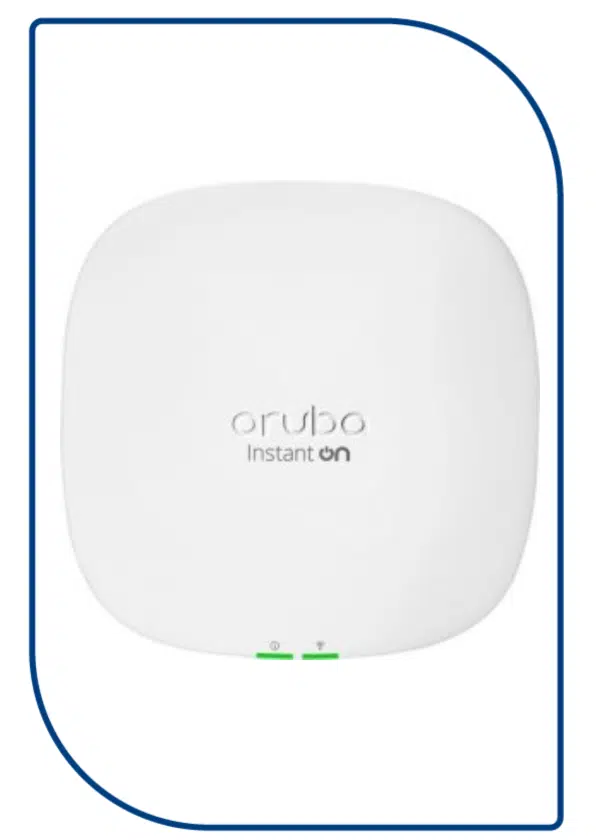

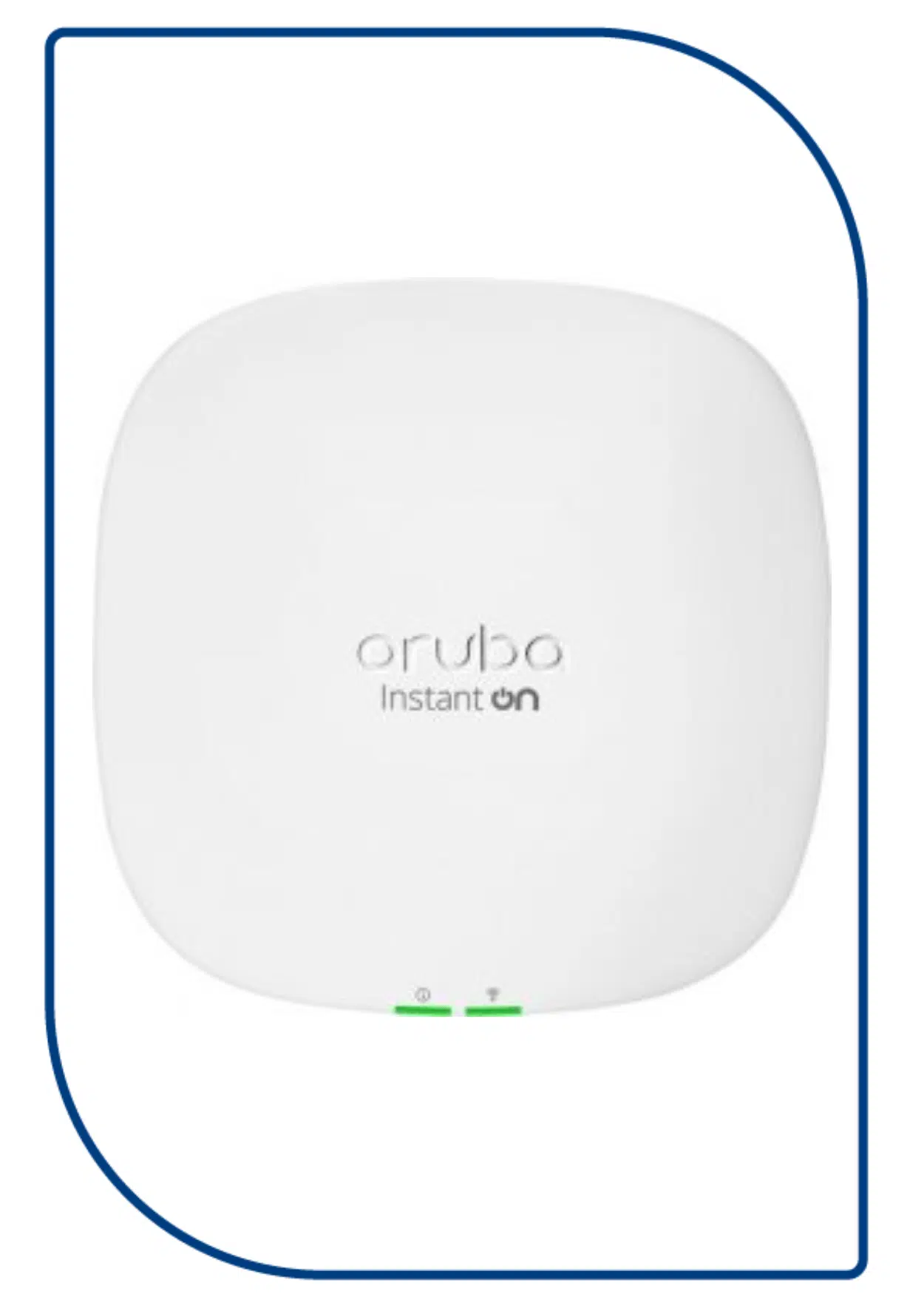

R9B30A
| Specification | Details |
|---|---|
| Product Type | Indoor Wi-Fi 6 Access Point |
| Detailed Description | PoE-powered access point with optional DC power adapter (sold separately unless bundled) |
| Differentiator / Use Case | Designed for high-performance business and medical environments, supporting ultra-fast Wi-Fi 6 with advanced security and reliability |
| Certifications (Medical) | EN 60601-1-1EN 60601-1-2 (approved for medical environments) |
| Wi-Fi Certifications | Wi-Fi Alliance Certified 802.11ax (Wi-Fi 6)WPA2, WPA3 |
| Wireless Standards | Ultra-fast IEEE 802.11ax (Wi-Fi 6), 4×4:4 |
| Radio Coverage | Dual radio for simultaneous dual-band operation |
| 5 GHz Radio | 802.11ax, 4×4 MIMOUp to 4.8 GbpsMulti-User MIMO (Wi-Fi 6) |
| 2.4 GHz Radio | 802.11ax, 2×2 MIMOUp to 574 Mbps (Wi-Fi 6) |
| Wi-Fi Antennas | Down-tilt omni-directional antennas3.77 dBi (2.4 GHz)4.55 dBi (5 GHz)(Effective combined antenna pattern) |
| Ports | 1 × 2.5 Gigabit Ethernet uplink with PoE-in (802.3at)DC power connector (12V) |
| Additional Interfaces | Bluetooth Low Energy (BLE)LED status indicatorsReset / LED control buttonKensington security slot |
| Power Input | PoE (IEEE 802.3at, Class 4)DC Power: 12V |
| Power Consumption | Max (worst-case):20.1 W (PoE)15.9 W (DC) |
| Mounting Options | Includes white mount clip for wall or ceiling mountingOptional design-matching mounts available separately |
| Warranty | Aruba Instant On 2-Year Warranty*24×7 phone support (first 90 days)Chat & community support for product lifetime |
| Extended Support (Optional) | Foundation Care:3 Years – HK1Y0E5 Years – H30GZE |
| Weight | 1.18 kg (2.6 lb) |
| Dimensions | 5.1 × 20.3 cm (2 × 8 × 8 in) |
