Description

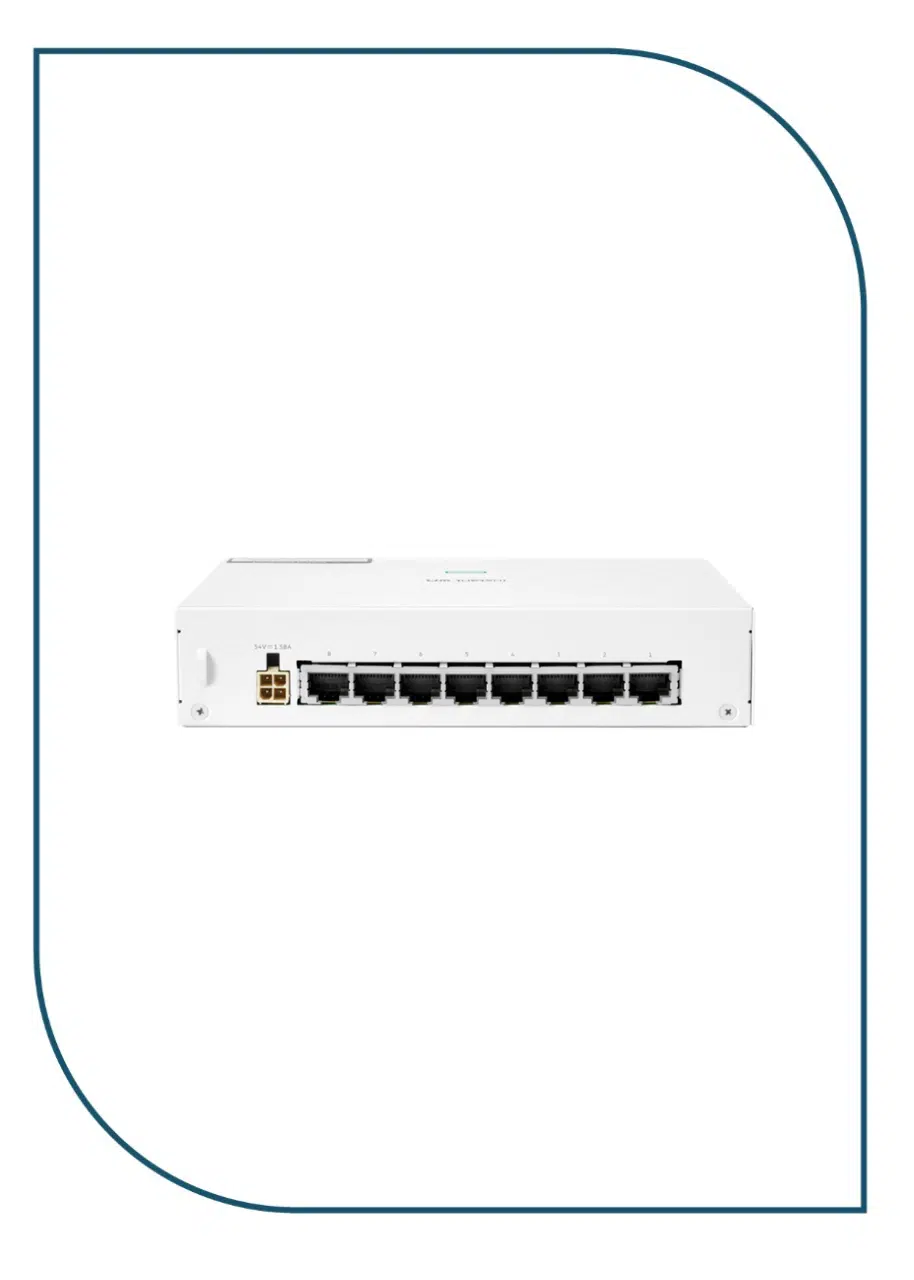

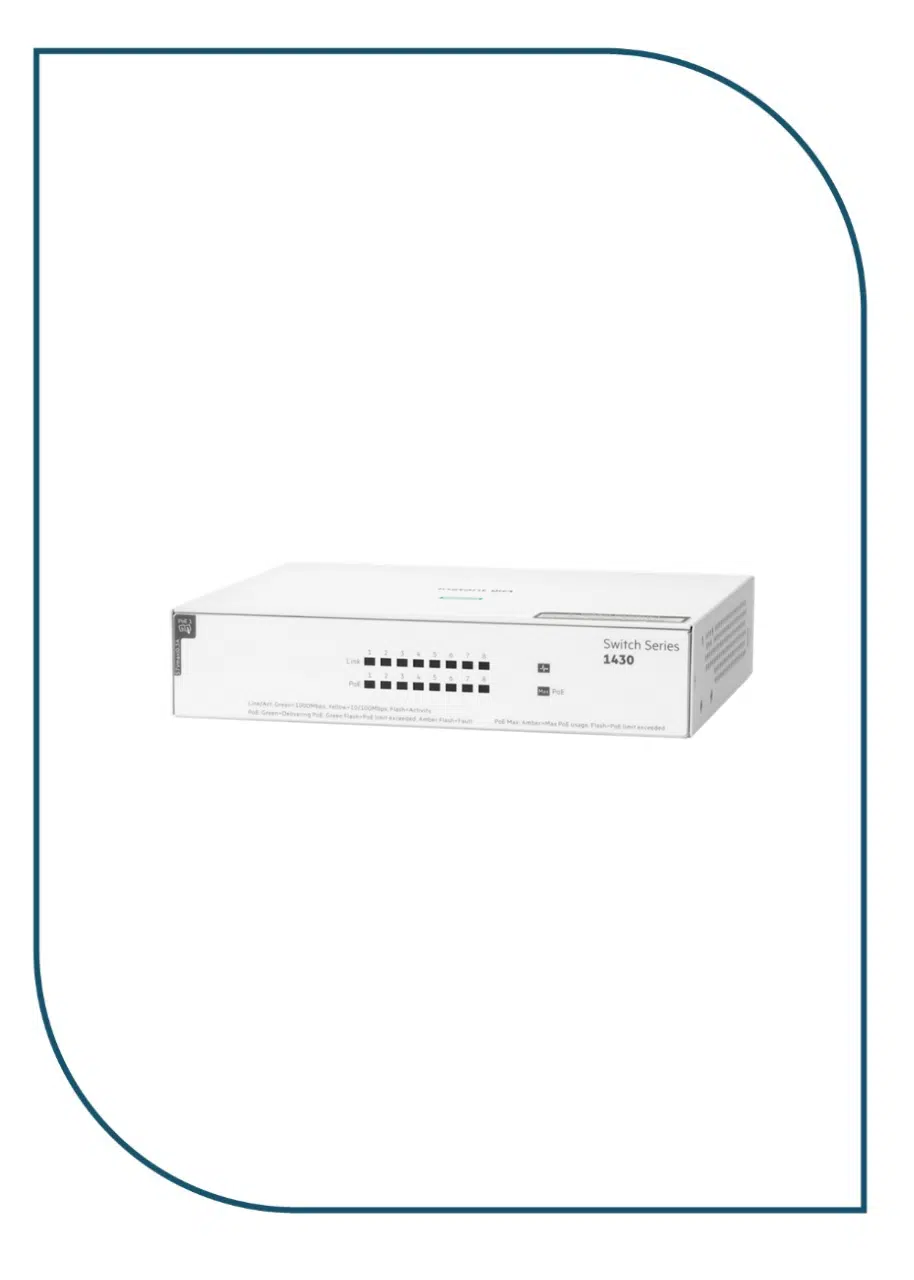

R8R46A

Datasheet

DifferentiatorAffordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

Power consumptionMaximum: 90W Idle: 4.1W

Input voltage100-240VAC

Ports8 RJ-45 10/100/1000 Class 4 PoE ports

Switching capacity16 Gbps

Throughput11.90 Mpps

Memory and processor128Kb EEPROM; Packet buffer size: 2.0 Mb

Power supply nameExternal Power Adapter

PoE capability64W Class 4 PoE

Operating temperature0°C to 40°C, 32°F to 104°F

Management featuresUnmanaged

WarrantyLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Detailed product description8 RJ-45 autosensing Class4 PoE 10/100/1000 ports

Weight0.77 kg (1.70 lb)

Dimensions15.0 x 17.7 x 3.7 cm (5.91 x 6.97 x 1.46 in)
